Outline Introduction The Fermi Architecture Fermi architecture again Software support CSEN 1013 Seminar Multi-Core & High Performance Computing Nvidia Fermi Ahmed Labib February 28, 2010 Ahmed Labib CSEN 1013 Seminar Multi-Core &


slide-1

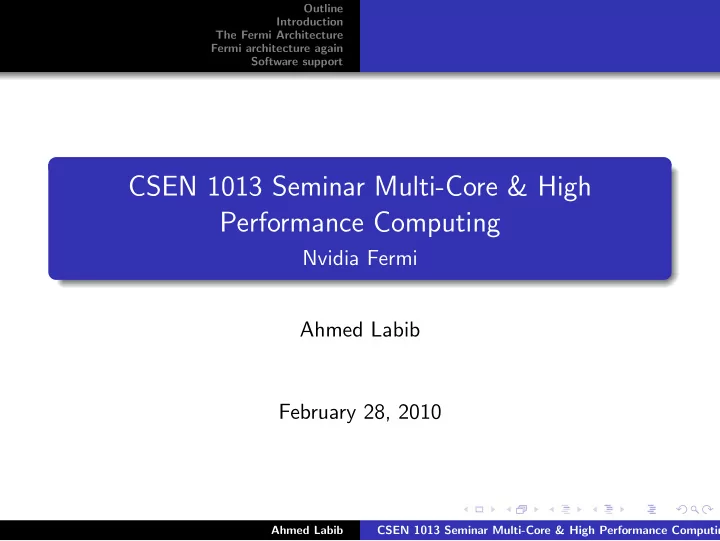

SLIDE 1

Outline Introduction The Fermi Architecture Fermi architecture again Software support

CSEN 1013 Seminar Multi-Core & High Performance Computing

Nvidia Fermi Ahmed Labib February 28, 2010

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-2
SLIDE 2

Outline Introduction The Fermi Architecture Fermi architecture again Software support

1 Introduction 2 The Fermi Architecture

The Stream Multiprocessor

3 Fermi architecture again 4 Software support

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-3
SLIDE 3

Competition & Long Term Strategy

Competition with Intel and AMD. The competitors markets. Trying to enter the chipset market in C2D & Atom. The Hybrid SLI Locking out & legal issues. GPGPU (SQL, MRI, stock options) G80 to GT200 Problems with G80 / GT200’s GPGPU approach CUDA C From GPGPU to GPU Computing.

slide-4
SLIDE 4

Outline Introduction The Fermi Architecture Fermi architecture again Software support

Areas where changes are needed

Double Percision Performance ECC Support Cache (from prev. shared memory) Shared Memory (increase its size) Faster Context Switching Faster Atomic Operations (Read - Modify - Write)

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-5
SLIDE 5

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

General overview of the Fermi Architecture

3 Billion Transistors 40nm TSMC 384 bit memory interface 512 Shader Cores (CUDA Cores) 32 CUDA cores per shader cluster 16 Shader clusters 1MB L1 Cache (64KB per shader cluster)

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-6
SLIDE 6

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

General overview of the Fermi Architecture contd

768KB Unified L2 Cache Upto 6GB GDDR5 Memory Six 64 bit Memory Controllers IEEE 754 - 2008 Double Percision Standard ECC Support 512 FMA in SP Mode 256 FMA in DP Mode

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-7
SLIDE 7

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

Transistor Count

3 Billion Transistors Huge die & the need for the 40nm Fabrication Processes Costs & delay

Figure: Transistor Count

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-8
SLIDE 8

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

Graphics Processing Cluster

Different scalability

  • ptions along GPC & SM

4 SMs / GPC 1 Raster Engine / GPC

Figure: GPC

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-9
SLIDE 9

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The Stream Multiprocessor

Figure: SM

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-10
SLIDE 10

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The Stream Multiprocessor contd

32 CUDA Cores (4x The previous amount) 4 SFU (Special Function Units) 32K FP32 Registers (2x The previous amount) 4 Texture Units A PolyMorph Engine 64K L1 Shared Memory / L1 Cache 2 Warp Schedulers 2 Dispatch Units 16 load / store units

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-11
SLIDE 11

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The CUDA Core

1 Integer ALU 1 FPU Fully pipelined ALU & FLU 1 Integer / FP Opr. per clock per thread in SP 0.5 in DP mode Improved compared to 1/8 in previous architectures

  • Inst. can be mixed (FP +

Int, FP + FP, SFU + FP)

Figure: CUDA Core

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-12
SLIDE 12

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The FMA and the IEEE 754 - 2008

IEEE 754 - 1984 MAD (truncation, rounding to nearst even) Inaccurate yet fast (1 clock cycle) IEEE 754 - 2008 (subnormal numbers, nearest, zero, +/- infinity) FMA (Fused Multiply Add) Advantages to HPC, MRI & other GPU computing apps

Figure: FMA vs MAD

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-13
SLIDE 13

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The Fermi thread hierarchy

Threads Warps Grid GPU kernel grids SM thread blocks CUDA cores threads

Figure: Thread Hierarchy

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-14
SLIDE 14

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The Warp Scheduler

2 warp scheduler 2 warps executed at the same time on each SM Decoupled SFU

Figure: The Warp Scheduler

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-15
SLIDE 15

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The 64KB Shared Memory / L1 Cache

Figure: Shared Memory / L1 Cache

Older configuration and its limitations with the new strategy Nvidia Fermi’s solution

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-16
SLIDE 16

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

The PolyMorph Engine

Performance gap Reason for this gap Nvidia’s Solution PolyMorph Engine advantages

Figure: PolyMorph Engine

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-17
SLIDE 17

Outline Introduction The Fermi Architecture Fermi architecture again Software support The Stream Multiprocessor

Texture Units

4 Texturing Units per SM Uses of the Texturing units

Figure: Texture Units

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-18
SLIDE 18

Outline Introduction The Fermi Architecture Fermi architecture again Software support

Memory Hierarchy

Shared Memory / L1 Cache L2 Cache Memory Controllers & DRAM ECC Protection

Figure: Memory Hierarchy

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-19
SLIDE 19

Outline Introduction The Fermi Architecture Fermi architecture again Software support

The unified address space

Old configuration Unification of thread private, block shared and global Advantages 40bit addressing Supports 64bit addressing for future growth

Figure: Unified address space

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-20
SLIDE 20

Outline Introduction The Fermi Architecture Fermi architecture again Software support

The GigaThread scheduler

Two thread schedulers Scope of each thread scheduler Advantages of the GigaThread Scheduler

Figure: The GigaThread Scheduler

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-21
SLIDE 21

Outline Introduction The Fermi Architecture Fermi architecture again Software support

ROPs - Raster Operator

48 ROPs ROP function inside the GPU

Figure: ROPs

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-22
SLIDE 22

Outline Introduction The Fermi Architecture Fermi architecture again Software support

Nvidia Nexus

Purpose Microsoft Visual Studio Code and Debug Co-processing applications between CPU and GPU

Figure: Nvidia Nexus

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-23
SLIDE 23

Outline Introduction The Fermi Architecture Fermi architecture again Software support

Blog Entry

http://nvidiafermi.wordpress.com/

Ahmed Labib CSEN 1013 Seminar Multi-Core & High Performance Computing

slide-24
SLIDE 24

Outline Introduction The Fermi Architecture Fermi architecture again Software support

References

www.brightsideofnews.com www.xbitlabs.com beyond3d.com www.techreport.com www.semiaccurate.com www.hardocp.com www.gpureview.com www.behardware.com www.nvidia.com
