CS615 - Aspects of System Administration Slide 1 CS615 - Aspects of System Administration Networking I Department of Computer Science Stevens Institute of Technology Jan Schaumann jschauma@stevens.edu https://stevens.netmeister.org/615/

slide-1
SLIDE 1

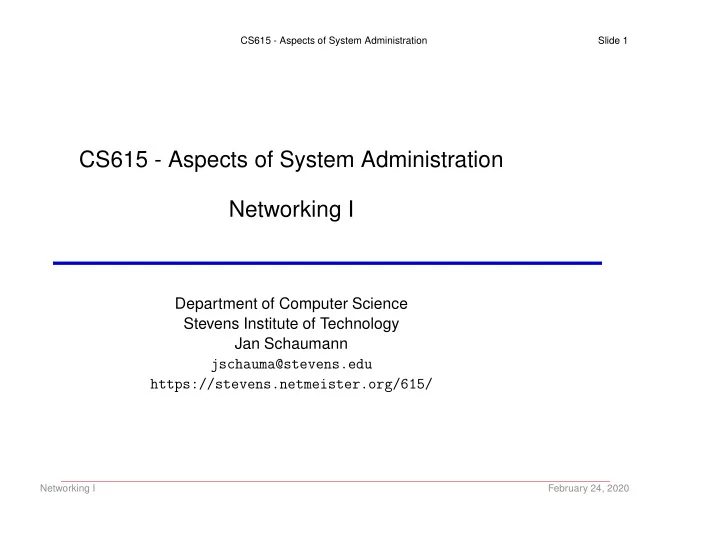

CS615 - Aspects of System Administration Slide 1

CS615 - Aspects of System Administration Networking I

Department of Computer Science Stevens Institute of Technology Jan Schaumann jschauma@stevens.edu https://stevens.netmeister.org/615/

Networking I February 24, 2020

slide-2
SLIDE 2

CS615 - Aspects of System Administration Slide 2

Networking I

Networking I February 24, 2020

slide-3
SLIDE 3

CS615 - Aspects of System Administration Slide 3

Team Missions

https://www.us-cert.gov/ics/advisories/icsa-19-274-01 https://is.gd/soixLV https://is.gd/vSuYvF https://is.gd/qkXhe2

Networking I February 24, 2020

slide-4
SLIDE 4

CS615 - Aspects of System Administration Slide 4

TCP

Networking I February 24, 2020

slide-5
SLIDE 5

CS615 - Aspects of System Administration Slide 5

Networking I

Networking I February 24, 2020

slide-6
SLIDE 6

CS615 - Aspects of System Administration Slide 6

Networking I

Networking I February 24, 2020

slide-7
SLIDE 7

CS615 - Aspects of System Administration Slide 7

Networking I

Networking I February 24, 2020

slide-8
SLIDE 8

CS615 - Aspects of System Administration Slide 8

Networking I

$ sudo tcpdump -w /tmp/out port 80 & $ curl -s -I http://www.cs.stevens.edu/ >/dev/null $ fg ^C $ sudo tcpdump -r /tmp/out -n -XX -c 1 15:23:43.477095 IP 172.16.1.30.51525 > 155.246.56.11.80: Flags [S], seq 1016422373, win 65535, options [mss 1460,nop,wscale 6,nop,nop,TS val 86305166 ecr 0,sackOK,eo 0x0000: c4b3 01db afe2 8c85 9047 b4f6 0800 4500 .........G....E. 0x0010: 0040 0000 4000 4006 b988 ac10 011e 9bf6 .@..@.@......... 0x0020: 380b c945 0050 3c95 5fe5 0000 0000 b002 8..E.P<._....... 0x0030: ffff 6109 0000 0204 05b4 0103 0306 0101 ..a............. 0x0040: 080a 0524 e98e 0000 0000 0402 0000 ...$..........

Networking I February 24, 2020

slide-9
SLIDE 9

CS615 - Aspects of System Administration Slide 9

Networking I

Networking I February 24, 2020

slide-10
SLIDE 10

CS615 - Aspects of System Administration Slide 10

Networking I

Layers: 0x0000: c4b3 01db afe2 8c85 9047 b4f6 0800 4500 .........G....E. 0x0010: 0040 0000 4000 4006 b988 ac10 011e 9bf6 .@..@.@......... 0x0020: 380b c945 0050 3c95 5fe5 0000 0000 b002 8..E.P<._....... 0x0030: ffff 6109 0000 0204 05b4 0103 0306 0101 ..a............. 0x0040: 080a 0524 e98e 0000 0000 0402 0000 ...$.......... Link layer information; here: Ethernet Network layer information; here: IP Transport layer information; here: TCP

Networking I February 24, 2020

slide-11
SLIDE 11

CS615 - Aspects of System Administration Slide 11

Networking I

OSI Layer 2 / TCP/IP Layer 1: Ethernet information: 0x0000: c4b3 01db afe2 8c85 9047 b4f6 0800 4500 .........G....E. 0x0010: 0040 0000 4000 4006 b988 ac10 011e 9bf6 .@..@.@......... 0x0020: 380b c945 0050 3c95 5fe5 0000 0000 b002 8..E.P<._....... 0x0030: ffff 6109 0000 0204 05b4 0103 0306 0101 ..a............. 0x0040: 080a 0524 e98e 0000 0000 0402 0000 ...$.......... Destination address: c4:b3:01:db:af:e2 Source address: 8c:85:90:47:b4:f6 Type: IP (0800) IPv4 stuff TCP stuff $ ifconfig en0 | grep ether ether 8c:85:90:47:b4:f6

Networking I February 24, 2020

slide-12
SLIDE 12

CS615 - Aspects of System Administration Slide 12

Networking I

OSI Layer 3 / TCP/IP Layer 2: Internet Protocol: 0x0000: c4b3 01db afe2 8c85 9047 b4f6 0800 4500 .........G....E. 0x0010: 0040 0000 4000 4006 b988 ac10 011e 9bf6 .@..@.@......... 0x0020: 380b c945 0050 3c95 5fe5 0000 0000 b002 8..E.P<._....... 0x0030: ffff 6109 0000 0204 05b4 0103 0306 0101 ..a............. 0x0040: 080a 0524 e98e 0000 0000 0402 0000 ...$.......... Version 4 (0100) + Header Length 20 (0101) = 01000101 = 45 DSCP default (000000) + Not-ECN (00) = 00 Total length = 0040 = 64 Identification = 0000 Flags = Don’t Fragment (010) + Frag Offset (00000) = 4000 TTL= 40 = 64

Networking I February 24, 2020

slide-13
SLIDE 13

CS615 - Aspects of System Administration Slide 13

Networking I

OSI Layer 3 / TCP/IP Layer 2: Internet Protocol: 0x0000: c4b3 01db afe2 8c85 9013 73c1 0800 4510 ..........s...E. 0x0010: 0040 0000 4000 4006 b988 ac10 011e 9bf6 .@..@.@......... 0x0020: 380b c945 0050 3c95 5fe5 0000 0000 b002 8..E.P<._....... 0x0030: ffff 6109 0000 0204 05b4 0103 0306 0101 ..a............. 0x0040: 080a 0524 e98e 0000 0000 0402 0000 ...$.......... Protocol: TCP (6) 06 Header Checksum: 0xb988 Source Address: 172.16.1.30 (ac10 011e) Destination Address: 155.246.56.11 (9bf6 380b) TCP Stuff: c945 ... 0000 $ ifconfig en0 | grep "inet " inet 172.16.1.30 netmask 0xffffff00 broadcast 172.16.1.255 $

Networking I February 24, 2020

slide-14
SLIDE 14

CS615 - Aspects of System Administration Slide 14

IPv4 Basics

10011011111101100011100000001011 IPv4 addresses are 32-bit numbers.

Networking I February 24, 2020

slide-15
SLIDE 15

CS615 - Aspects of System Administration Slide 15

IPv4 Basics

10011011 11110110 00111000 00001011 Each IPv4 address consists of four octets.

Networking I February 24, 2020

slide-16
SLIDE 16

CS615 - Aspects of System Administration Slide 16

IPv4 Basics

10011011 11110110 00111000 00001011 155 . 246 . 56 . 11 9B F6 38 0B Each IPv4 address consists of four octets.

Networking I February 24, 2020

slide-17
SLIDE 17

CS615 - Aspects of System Administration Slide 17

IPv4 Basics

10011011 11110110 00111000 00001011 IPv4 addresses are divided into a network part and a host part. Hosts on the same network (broadcast domain) can talk to each other without the help of a router.

Networking I February 24, 2020

slide-18
SLIDE 18

CS615 - Aspects of System Administration Slide 18

IPv4 Basics

10011011 11110110 00111000 00001011 There are three different classes of IPv4 networks.

Networking I February 24, 2020

slide-19
SLIDE 19

CS615 - Aspects of System Administration Slide 19

IPv4 Basics

10011011 11110110 00111000 00001011 There are three different classes of IPv4 networks. Well, five, really.

Networking I February 24, 2020

slide-20
SLIDE 20

CS615 - Aspects of System Administration Slide 20

IPv4 Basics

Networking I February 24, 2020

slide-21
SLIDE 21

CS615 - Aspects of System Administration Slide 21

Subnets

10011011 11110110 00111000 00001011 11111111 11111111 00000000 00000000 A netmask splits the IPv4 address into network and host parts.

Networking I February 24, 2020

slide-22
SLIDE 22

CS615 - Aspects of System Administration Slide 22

Subnets

10011011 11110110 00111000 00001011 11111111 11111111 11111111 00000000 A netmask splits the IPv4 address into network and host parts.

Networking I February 24, 2020

slide-23
SLIDE 23

CS615 - Aspects of System Administration Slide 23

Subnets

$ ipcalc -n 155.246.56.11/16 Address: 155.246.56.11 10011011.11110110. 00111000.00001011 Netmask: 255.255.0.0 = 16 11111111.11111111. 00000000.00000000 Wildcard: 0.0.255.255 00000000.00000000. 11111111.11111111 => Network: 155.246.0.0/16 10011011.11110110. 00000000.00000000 HostMin: 155.246.0.1 10011011.11110110. 00000000.00000001 HostMax: 155.246.255.254 10011011.11110110. 11111111.11111110 Broadcast: 155.246.255.255 10011011.11110110. 11111111.11111111 Hosts/Net: 65534 Class B Try also: sipcalc -a 155.246.56.11/16

Networking I February 24, 2020

slide-24
SLIDE 24

CS615 - Aspects of System Administration Slide 24

Subnets

$ ipcalc -n 155.246.56.11/24 Address: 155.246.56.11 10011011.11110110.00111000. 00001011 Netmask: 255.255.255.0 = 24 11111111.11111111.11111111. 00000000 Wildcard: 0.0.0.255 00000000.00000000.00000000. 11111111 => Network: 155.246.56.0/24 10011011.11110110.00111000. 00000000 HostMin: 155.246.56.1 10011011.11110110.00111000. 00000001 HostMax: 155.246.56.254 10011011.11110110.00111000. 11111110 Broadcast: 155.246.56.255 10011011.11110110.00111000. 11111111 Hosts/Net: 254 Class B Try also: sipcalc -a 155.246.56.11/24

Networking I February 24, 2020

slide-25
SLIDE 25

CS615 - Aspects of System Administration Slide 25

CIDR cheat sheet

A.B.C.D/N N = bits describing network portion of address M = 32 − N = bits in host portion of address 2M = number of addresses on this subnet 2M − 2 = number of possible hosts first address on subnet = network address last address on subnet = broadcast address subnet division need not occur on dotted boundary only for example, you can divide 155.246.89.0/24 into four /26 networks networks starting at .0, .64, .128, .192 Which of the following is not a valid netmask? 255.255.253.0, 255.255.250.0, 255.255.240.0

Networking I February 24, 2020

slide-26
SLIDE 26

CS615 - Aspects of System Administration Slide 26

Mommy, where do IP addresses come from?

The Internet Assigned Numbers Authority (IANA)

  • versees global IP address/AS number allocation,

root zone management etc. https://www.iana.org/

Networking I February 24, 2020

slide-27
SLIDE 27

CS615 - Aspects of System Administration Slide 27

Mommy, where do IP addresses come from?

Regional Internet Registries (RIR) manage the allocation and registration

  • f Internet number resources within a region of the world.

See also: https://www.xkcd.com/195/

Networking I February 24, 2020

slide-28
SLIDE 28

CS615 - Aspects of System Administration Slide 28

Mommy, where do IP addresses come from?

RIRs assign blocks of IP addresses to the Local Internet Registries (LIR). LIRs are either ISPs, enterprises using a lot of addresses, or academic institutions.

Networking I February 24, 2020

slide-29
SLIDE 29

CS615 - Aspects of System Administration Slide 29

IPv4 Subnets: Common CIDRs

10011011 11110110 00111000 00001011 | | |||| | |||||||| /32 Host route | | |||| | |||||| /30 "Glue network" (Point-to-point) | | |||| | ||||| /29 Smallest multi-host network | | |||| | |||| /28 Small LAN | | |||| | ||| /27 Small LAN | | |||| | || /26 Small LAN | | |||| | | /25 Large LAN | | |||| | /24 Large LAN | | |||| /20 Small ISP / Large business | | ||| /19 LIR / ISP / Large business | | || /18 LIR / ISP / Large business | | | /17 LIR / ISP / Large business | | /16 LIR / ISP / Large business | /8 RIR

Networking I February 24, 2020

slide-30
SLIDE 30

CS615 - Aspects of System Administration Slide 30

IPv4 Exhaustion

Networking I February 24, 2020

slide-31
SLIDE 31

CS615 - Aspects of System Administration Slide 31

IPv4 Exhaustion

IPv4 address space depletion: private IP space (RFC1918): 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16 class D (224.0.0.0/4) and E (240.0.0.0/4) class As (16M addresses each!) initially handed out liberally (ATT, Apple, MIT, Stanford, Xerox, ...) subnetting often inefficient more and more devices added

Networking I February 24, 2020

slide-32
SLIDE 32

CS615 - Aspects of System Administration Slide 32

IPv4 Exhaustion

IPv4 address space depletion: Total theoretically available IP addresses: 232 RFC1918: 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16 RFC5735 etc.: 0.0.0.0/8, 100.64.0.0/10, 127.0.0.0/8, 169.254.0.0/16, 192.0.0.0/24, 192.0.2.0/24, 192.88.99.0/24, 198.18.0.0/15, 198.51.100.0/24, 203.0.113.0/24 Class D/E: 224.0.0.0/4, 240.0.0.0/4 ”Limited broadcast”: 255.255.255.255/32 What is the percent/number of actually available IP addresses?

Networking I February 24, 2020

slide-33
SLIDE 33

CS615 - Aspects of System Administration Slide 33

IPv4 Exhaustion

Past and predicted: IANA Address Pool Exhaustion: 2011-02-03 APNIC reached final /8: 2011-04-19 RIPENCC reached final /8: 2012-09-14 LACNIC reached final /8: 2014-06-10 ARIN reached final /8: 2015-09-24 AFRINIC (predicted): 2020-05-17 https://www.potaroo.net/tools/ipv4/ https://www.iana.org/assignments/ipv4-address-space/ipv4-address-space.xhtml

Networking I February 24, 2020

slide-34
SLIDE 34

CS615 - Aspects of System Administration Slide 34

IPv6 Basics

10011011111101100011100000001011 IPv4 addresses are 32-bit numbers.

Networking I February 24, 2020

slide-35
SLIDE 35

CS615 - Aspects of System Administration Slide 35

IPv6 Basics

$ sudo tcpdump -w /tmp/out port 80 & $ curl -s -I http://www.yahoo.com/ >/dev/null $ fg ^C $ sudo tcpdump -t -r /tmp/out -n -XX -c 1 reading from PCAP-NG file /tmp/out.pcap IP6 2001:470:1f07:1d1:a8af:a9d:98ff:e30f.52369 > 2001:4998:58:1836::11.80: Flags [S], win 65535, options [mss 1440,nop,wscale 6,nop,nop,TS val 90153796 ecr 0,sackOK,eo 0x0000: c4b3 01db afe2 8c85 9047 b4f6 86dd 6000 .........G....‘. 0x0010: 6c64 002c 0640 2001 0470 1f07 01d1 a8af ld.,.@...p...... 0x0020: 0a9d 98ff e30f 2001 4998 0058 1836 0000 ........I..X.6.. 0x0030: 0000 0000 0011 cc91 0050 51af cc5c 0000 .........PQ..\.. 0x0040: 0000 b002 ffff aca1 0000 0204 05a0 0103 ................ 0x0050: 0306 0101 080a 055f a344 0000 0000 0402 ......._.D...... 0x0060: 0000 ..

Networking I February 24, 2020

slide-36
SLIDE 36

CS615 - Aspects of System Administration Slide 36

IPv6 Basics

OSI Layer 3 / TCP/IP Layer 2: Internet Protocol v6: 0x0000: c4b3 01db afe2 8c85 9047 b4f6 86dd 6000 .........G....‘. 0x0010: 6c64 002c 0640 2001 0470 1f07 01d1 a8af ld.,.@...p...... 0x0020: 0a9d 98ff e30f 2001 4998 0058 1836 0000 ........I..X.6.. 0x0030: 0000 0000 0011 cc91 0050 51af cc5c 0000 .........PQ.._ . 0x0040: 0000 b002 ffff aca1 0000 0204 05a0 0103 ................ 0x0050: 0306 0101 080a 055f a344 0000 0000 0402 ......._.D...... 0x0060: 0000 .. Destination address: c4:b3:01:db:af:e2 Source address: 8c:85:90:47:b4:f6 Type: IPv6 (86dd) IPv6 stuff TCP stuff $ ifconfig en0 | grep ether ether 8c:85:90:47:b4:f6

Networking I February 24, 2020

slide-37
SLIDE 37

CS615 - Aspects of System Administration Slide 37

IPv6 Basics

OSI Layer 3 / TCP/IP Layer 2: Internet Protocol v6: 0x0000: c4b3 01db afe2 8c85 9047 b4f6 86dd 6000 .........G....‘. 0x0010: 6c64 002c 0640 2001 0470 1f07 01d1 a8af ld.,.@...p...... 0x0020: 0a9d 98ff e30f 2001 4998 0058 1836 0000 ........I..X.6.. 0x0030: 0000 0000 0011 cc91 0050 51af cc5c 0000 .........PQ.._ . 0x0040: 0000 b002 ffff 751a 0000 0204 05a0 0103 ......u......... 0x0050: 0306 0101 080a 37c1 3edf 0000 0000 0402 ......7.>....... 0x0060: 0000 .. Version, Traffic Class, Flow Label, Length, Next Header; TTL: 64 (40) Source address: 2001:470:1f07:1d1:18af:0a9d:98ff:e30f Destination address: 2001:4998:58:1836::11 $ ifconfig en0 | grep inet6 inet6 fe80::1461:d52b:78a7:334a%en0 prefixlen 64 secured scopeid 0x5 inet6 2001:470:1f07:1d1:cd9:97f3:f16:eb48 prefixlen 64 autoconf secured inet6 2001:470:1f07:1d1:a8af:a9d:98ff:e30f prefixlen 64 autoconf temporary

Networking I February 24, 2020

slide-38
SLIDE 38

CS615 - Aspects of System Administration Slide 38

IPv6 Basics

0000000000100000 0000000101001001 1001100001011000 0001100000110110 0000000000000000 0000000000000000 0000000000000000 0000000000010001 IPv6 addresses are 128 bits.

Networking I February 24, 2020

slide-39
SLIDE 39

CS615 - Aspects of System Administration Slide 39

IPv6 Basics

IPv4: 32 bits => 232 addresses IPv6: 128 bits => 2128 addresses

Networking I February 24, 2020

slide-40
SLIDE 40

CS615 - Aspects of System Administration Slide 40

IPv6 Basics

IPv4: 32 bits => 4, 294, 967, 296 addresses IPv6: 128 bits => 2128 addresses

Networking I February 24, 2020

slide-41
SLIDE 41

CS615 - Aspects of System Administration Slide 41

IPv6 Basics

IPv4: 32 bits => 4, 294, 967, 296 addresses IPv6: 128 bits => 340, 282, 366, 920, 938, 463, 463, 374, 607, 431, 768, 211, 456 addresses

Networking I February 24, 2020

slide-42
SLIDE 42

CS615 - Aspects of System Administration Slide 42

IPv6 Basics

https://is.gd/94ve91

Networking I February 24, 2020

slide-43
SLIDE 43

CS615 - Aspects of System Administration Slide 43

IPv6 Basics

8x16 bit fields (words) in case insensitive colon hexadecimal representation 2031:0000:0000:030F:0000:0000:0000:130B

Networking I February 24, 2020

slide-44
SLIDE 44

CS615 - Aspects of System Administration Slide 44

IPv6 Basics

8x16 bit fields (words) in case insensitive colon hexadecimal representation 2031:0000:0000:030F:0000:0000:0000:130B Leading zeros in a field are optional: 2031:0:0:30F:0:0:0:130B

Networking I February 24, 2020

slide-45
SLIDE 45

CS615 - Aspects of System Administration Slide 45

IPv6 Basics

8x16 bit fields (words) in case insensitive colon hexadecimal representation 2031:0000:0000:030F:0000:0000:0000:130B Leading zeros in a field are optional: 2031:0:0:30F:0:0:0:130B Successive fields of 0 represented as ::, but only once in an address: 2031::30F:0:0:0:130B

  • k

2031:0:0:30F::130B

  • k

2031::30F::130B not ok

Networking I February 24, 2020

slide-46
SLIDE 46

CS615 - Aspects of System Administration Slide 46

IPv6 Basics

8x16 bit fields (words) in case insensitive colon hexadecimal representation 2031:0000:0000:030F:0000:0000:0000:130B Leading zeros in a field are optional: 2031:0:0:30F:0:0:0:130B Successive fields of 0 represented as ::, but only once in an address: 2031::30F:0:0:0:130B

  • k

2031:0:0:30F::130B

  • k

2031::30F::130B not ok 0000:0000:0000:0000:0000:0000:0000:00001 => 0:0:0:0:0:0:0:1 => ::1

Networking I February 24, 2020

slide-47
SLIDE 47

CS615 - Aspects of System Administration Slide 47

IPv6 Basics - Address Oddities

Address may include a link name: 2001:470:1f07:3d1::1%eth0

Networking I February 24, 2020

slide-48
SLIDE 48

CS615 - Aspects of System Administration Slide 48

IPv6 Basics - Address Oddities

Address may include a link name: 2001:470:1f07:3d1::1%eth0 IPv4-mapped addresses 0:0:0:0:0:ffff:66.163.162.9 ::ffff:66.163.162.9

Networking I February 24, 2020

slide-49
SLIDE 49

CS615 - Aspects of System Administration Slide 49

IPv6 Basics - Address Oddities

Address may include a link name: 2001:470:1f07:3d1::1%eth0 IPv4-mapped addresses 0:0:0:0:0:ffff:66.163.162.9 ::ffff:66.163.162.9 You need brackets to distinguish a port from an address: IPv4: 66.163.162.9:22 IPv6: [2001:470:1f07:3d1::1]:22

Networking I February 24, 2020

slide-50
SLIDE 50

CS615 - Aspects of System Administration Slide 50

IPv6 Basics – Address Scope

Link-Local (example: fe80::e276:63ff:fe72:3900%xennet0) Used on a single link Packets with link-local source or destination addresses are not forwarded to other links

Networking I February 24, 2020

slide-51
SLIDE 51

CS615 - Aspects of System Administration Slide 51

IPv6 Basics – Address Scope

Link-Local (example: fe80::e276:63ff:fe72:3900%xennet0) Used on a single link Packets with link-local source or destination addresses are not forwarded to other links Unique-Local (fc00::/7) Used for private IPv6 networks not globally routable Applications similar to RFC 1918

Networking I February 24, 2020

slide-52
SLIDE 52

CS615 - Aspects of System Administration Slide 52

IPv6 Basics – Address Scope

Link-Local (example: fe80::e276:63ff:fe72:3900%xennet0) Used on a single link Packets with link-local source or destination addresses are not forwarded to other links Unique-Local (fc00::/7) Used for private IPv6 networks not globally routable Applications similar to RFC 1918 Global (example: 2001:470:1f07:3d1::1) A globally unique address Packets with global addresses can be forwarded to any part of the global network

Networking I February 24, 2020

slide-53
SLIDE 53

CS615 - Aspects of System Administration Slide 53

IPv6 Subnets

$ sipcalc 2001:470:30:84:e276:63ff:fe72:3900/64

  • [ipv6 : 2001:470:30:84:e276:63ff:fe72:3900/64] - 0

[IPV6 INFO] Expanded Address

  • 2001:0470:0030:0084:e276:63ff:fe72:3900

Compressed address

  • 2001:470:30:84:e276:63ff:fe72:3900

Subnet prefix (masked)

  • 2001:470:30:84:0:0:0:0/64

Address ID (masked)

  • 0:0:0:0:e276:63ff:fe72:3900/64

Prefix address

  • ffff:ffff:ffff:ffff:0:0:0:0

Prefix length

  • 64

Address type

  • Aggregatable Global Unicast Addresses

Network range

  • 2001:0470:0030:0084:0000:0000:0000:0000 -

2001:0470:0030:0084:ffff:ffff:ffff:ffff

Networking I February 24, 2020

slide-54
SLIDE 54

CS615 - Aspects of System Administration Slide 54

IPv6 Subnets: Common CIDRs

2001:0db8:0123:4567:89ab:cdef:1234:5678 |||| |||| |||| |||| |||| |||| |||| |||128 Single end-points and loopback |||| |||| |||| |||| |||| |||| |||| ||124 |||| |||| |||| |||| |||| |||| |||| |120 |||| |||| |||| |||| |||| |||| |||| 116 |||| |||| |||| |||| |||| |||| |||112 |||| |||| |||| |||| |||| |||| ||108 |||| |||| |||| |||| |||| |||| |104 |||| |||| |||| |||| |||| |||| 100 |||| |||| |||| |||| |||| |||96 |||| |||| |||| |||| |||| ||92 |||| |||| |||| |||| |||| |88 |||| |||| |||| |||| |||| 84 |||| |||| |||| |||| |||80 |||| |||| |||| |||| ||76 |||| |||| |||| |||| |72 |||| |||| |||| |||| 68 |||| |||| |||| |||64 Single End-user LAN (default prefix size for SLAAC) |||| |||| |||| ||60 |||| |||| |||| |56 Proposed minimal end sites assignment |||| |||| |||| 52 |||| |||| |||48 Default end sites assignment |||| |||| ||44 |||| |||| |40 |||| |||| 36 |||| |||32 Local Internet registry minimum allocations |||| ||28 Local Internet registry medium allocations |||| |24 Local Internet registry large allocations |||| 20 Local Internet registry extra large allocations |||16 ||12 Regional Internet Registry allocations from IANA |8

Networking I February 24, 2020

slide-55
SLIDE 55

CS615 - Aspects of System Administration Slide 55

Hooray! 5 Minute Break

Networking I February 24, 2020

slide-56
SLIDE 56

CS615 - Aspects of System Administration Slide 56

Networking Buzzwords

“The network is the computer.”

John Gage, Sun Microsystems

Networking I February 24, 2020

slide-57
SLIDE 57

CS615 - Aspects of System Administration Slide 57

Networking Buzzwords

“The network is the network, the computer is the computer - sorry about the confusion.”

Joe on Computing

Networking I February 24, 2020

slide-58
SLIDE 58

CS615 - Aspects of System Administration Slide 58

Networking Buzzwords

Networking I February 24, 2020

slide-59
SLIDE 59

CS615 - Aspects of System Administration Slide 59

Networking

http://www.chrisharrison.net/index.php/Visualizations/InternetMap

Networking I February 24, 2020

slide-60
SLIDE 60

CS615 - Aspects of System Administration Slide 60

Networking

/X?

Networking I February 24, 2020

slide-61
SLIDE 61

CS615 - Aspects of System Administration Slide 61

Networking

/X?

Networking I February 24, 2020

slide-62
SLIDE 62

CS615 - Aspects of System Administration Slide 62

Networking

Networking I February 24, 2020

slide-63
SLIDE 63

CS615 - Aspects of System Administration Slide 63

WHOIS ASN?

The Internet Assigned Numbers Authority (IANA)

  • versees global IP address/AS number allocation,

root zone management etc. https://www.iana.org/

Networking I February 24, 2020

slide-64
SLIDE 64

CS615 - Aspects of System Administration Slide 64

WHOIS ASN?

Autonomous System Numbers (ASNs) are assigned by IANA to the RIRs, see e.g. ftp://ftp.arin.net/pub/stats/arin/ You can query databases on the internet about e.g. IP block or ASN information via the WHOIS protocol: $ whois 155.246.56.11 | more NetRange: 155.246.0.0 - 155.246.255.255 CIDR: 155.246.0.0/16 NetName: STEVENS NetHandle: NET-155-246-0-0-1 Parent: NET155 (NET-155-0-0-0-0) NetType: Direct Assignment Organization: Stevens Institute of Technology (SIT) RegDate: 1991-12-31 Updated: 2007-01-29 Ref: https://rdap.arin.net/registry/ip/155.246.0.0

Networking I February 24, 2020

slide-65
SLIDE 65

CS615 - Aspects of System Administration Slide 65

WHOIS ASN?

Carriers connect their Autonomous Systems at Internet Exchange Points (IXPs) to route traffic between the different networks. This peering happens amongst carriers on a tiered basis. Examples: https://peeringdb.com/net?asn=21976 https://peeringdb.com/net?asn=6939 https://peeringdb.com/net/27 https://peeringdb.com/net/433 https://peeringdb.com/net/457

Networking I February 24, 2020

slide-66
SLIDE 66

CS615 - Aspects of System Administration Slide 66

Networking

Networking I February 24, 2020

slide-67
SLIDE 67

CS615 - Aspects of System Administration Slide 67

WHOIS ASN?

Most of these services are available via APIs or text-based interfaces: $ host www.google.com www.google.com has address 172.217.0.36 www.google.com has IPv6 address 2607:f8b0:4006:807::2004 $ whois -h whois.cymru.com 2607:f8b0:4006:807::2004 AS | IP | AS Name 15169 | 2607:f8b0:4006:807::2004 | GOOGLE - Google Inc., US $ curl -s https://peeringdb.com/api/net?asn=15169 | python -mjson.tool | more { "data": [ { "aka": "Google, YouTube (for Google Fiber see AS16591 record)", "created": "2005-02-06T06:41:04Z", "id": 433, "info_ipv6": true, "info_prefixes4": 15000, "info_prefixes6": 750, "info_ratio": "Mostly Outbound",

Networking I February 24, 2020

slide-68
SLIDE 68

CS615 - Aspects of System Administration Slide 68

Networking

To find the path your packets might take, give traceroute(1) a go: $ traceroute search.yahoo.com traceroute to search.yahoo.com (63.250.200.63), 30 hops max, 60 byte packets 1 155.246.89.2 (155.246.89.2) 0.342 ms postal0.cs.stevens-tech.edu (155.246.89.3) 2 155.246.89.2 (155.246.89.2) 0.311 ms 0.300 ms gwa.cc.stevens.edu (155.246.151.3 3 454a0465.cst.lightpath.net (69.74.4.101) 3.984 ms 3.761 ms 3.735 ms 4 18267502.cst.lightpath.net (24.38.117.2) 32.559 ms 32.591 ms 32.577 ms 5 hunt183-154.optonline.net (167.206.183.154) 4.473 ms 4.634 ms 18267502.cst.ligh 6 451be0a9.cst.lightpath.net (65.19.113.169) 5.170 ms 5.278 ms hunt183-154.optonl 7 nyiix.bas1-m.nyc.yahoo.com (198.32.160.121) 6.928 ms 451be0a9.cst.lightpath.net 8 ae-1.pat2.bfw.yahoo.com (216.115.111.26) 26.422 ms ae-1.pat1.bfw.yahoo.com (216. 9 et-18-1-0.msr1.bf2.yahoo.com (74.6.227.37) 17.812 ms et-18-1-0.msr2.bf1.yahoo.co 10 et-0-1-1.clr1-a-gdc.bf1.yahoo.com (74.6.122.15) 18.817 ms et-0-1-1.clr2-a-gdc.bf1

Networking I February 24, 2020

slide-69
SLIDE 69

CS615 - Aspects of System Administration Slide 69

Networking

Networking I February 24, 2020

slide-70
SLIDE 70

CS615 - Aspects of System Administration Slide 70

Networking

Networking I February 24, 2020

slide-71
SLIDE 71

CS615 - Aspects of System Administration Slide 71

Networking

Networking I February 24, 2020

slide-72
SLIDE 72

CS615 - Aspects of System Administration Slide 72

Networking

Stringing cables across the oceans’ floors since 1866! https://www.submarinecablemap.com/ https://is.gd/CjanOu

Networking I February 24, 2020

slide-73
SLIDE 73

CS615 - Aspects of System Administration Slide 73

Networking

https://www.submarinecablemap.com/

Networking I February 24, 2020

slide-74
SLIDE 74

CS615 - Aspects of System Administration Slide 74

Networking

“The Net interprets censorship as damage and routes around it.” ...except when it can’t. https://blog.cloudflare.com/how-syria-turned-off-the-internet https://youtu.be/OZHKeYwnALc

Networking I February 24, 2020

slide-75
SLIDE 75

CS615 - Aspects of System Administration Slide 75

Networking

https://amzn.com/0061994952 https://cromwell-intl.com/travel/usa/new-york-internet/

Networking I February 24, 2020

slide-76
SLIDE 76

CS615 - Aspects of System Administration Slide 76

Networking

The internet is a physical place. https://en.wikipedia.org/wiki/Room 641A

Networking I February 24, 2020

slide-77
SLIDE 77

CS615 - Aspects of System Administration Slide 77

Networking

Now identify the physical and organizational aspects of your network traffic: $ traceroute search.yahoo.com traceroute to search.yahoo.com (63.250.200.63), 30 hops max, 60 byte packets 1 155.246.89.2 (155.246.89.2) 0.342 ms postal0.cs.stevens-tech.edu (155.246.89.3) 2 155.246.89.2 (155.246.89.2) 0.311 ms 0.300 ms gwa.cc.stevens.edu (155.246.151.3 3 454a0465.cst.lightpath.net (69.74.4.101) 3.984 ms 3.761 ms 3.735 ms 4 18267502.cst.lightpath.net (24.38.117.2) 32.559 ms 32.591 ms 32.577 ms 5 hunt183-154.optonline.net (167.206.183.154) 4.473 ms 4.634 ms 18267502.cst.ligh 6 451be0a9.cst.lightpath.net (65.19.113.169) 5.170 ms 5.278 ms hunt183-154.optonl 7 nyiix.bas1-m.nyc.yahoo.com (198.32.160.121) 6.928 ms 451be0a9.cst.lightpath.net 8 ae-1.pat2.bfw.yahoo.com (216.115.111.26) 26.422 ms ae-1.pat1.bfw.yahoo.com (216. 9 et-18-1-0.msr1.bf2.yahoo.com (74.6.227.37) 17.812 ms et-18-1-0.msr2.bf1.yahoo.co 10 et-0-1-1.clr1-a-gdc.bf1.yahoo.com (74.6.122.15) 18.817 ms et-0-1-1.clr2-a-gdc.bf1

Networking I February 24, 2020

slide-78
SLIDE 78

CS615 - Aspects of System Administration Slide 78

Networking I

Networking I February 24, 2020

slide-79
SLIDE 79

CS615 - Aspects of System Administration Slide 79

Internet Maps and Architecture

https://is.gd/C66S8a https://www.submarinecablemap.com/ https://en.wikipedia.org/wiki/Peering https://is.gd/tpPNE5 https://is.gd/B0d3kh https://amzn.com/0061994936 https://bgp.he.net/ https://www.wired.com/2014/08/shark_cable/

Networking I February 24, 2020

slide-80
SLIDE 80

CS615 - Aspects of System Administration Slide 80

IPv6

https://www.potaroo.net/papers/isoc/2005-07/ipv6size.html https://bgp.he.net/ipv6-progress-report.cgi https://ipv6.he.net/statistics/ https://tunnelbroker.net/

Networking I February 24, 2020
