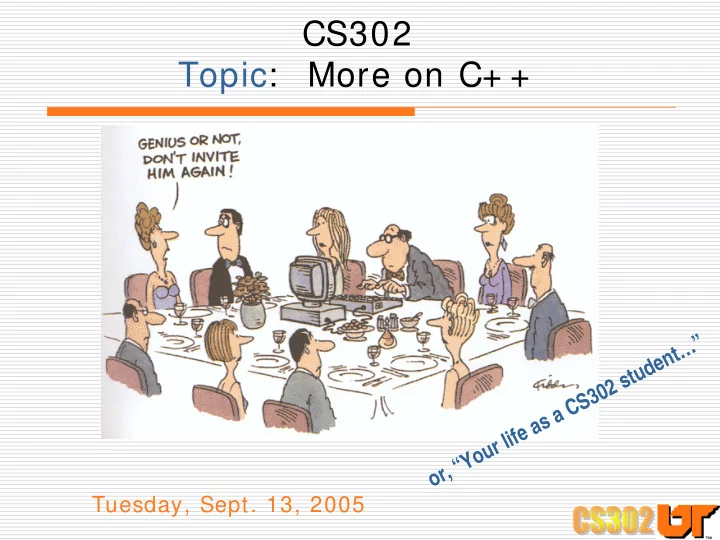

CS302 Topic: More on C+ +

Tuesday, Sept. 13, 2005

• r, “Your life as a CS302 student…”

Announcements

• Lab 2 (Golf Handicaps) is due this Friday, Sept. 16!!
• Lab 3 (Stock Charts) will be made available soon
• It will be due next Friday, Sept. 23!!

Don’t get behind!!

More C+ +

Naming conventions (suggestions) More about classes

• Privileges (incl. “friend”)
• “this”
• inlining
• string class
• More class examples
• Templates

Naming Suggestions (commonly used, but not required)

• Class, variables, functions
• Concatenate all words without using underscore (“_”)
• Don’t capitalize first word
• Capitalize all other words
• Examples:
• dList
• rbTree
• screenCursor
• assignNum()
• Constants:
• Capitalize all letters, use underscores between words
• Examples:
• const int HIGH_SCORE = 100;
• const int BOILING_POINT = 212;

More about classes

• Class object can be declared as a data member only if its class

definition has already been seen

• Example (BAD CODE!):

class Stack { int topStack; Stack stack; // illegal--class definition not yet complete };

• Pointer

Pointer to a class object can be declared as a data member as long as a forward definition of the class has been seen:

• Example (good code):

class Stack; // forward declaration class Stack { int topStack; Stack *stack; // legal: forward class def’n. has been seen };

• Example (good code):

class tree_node { tree_node *left_child; // legal: class declared when name seen tree_node *right_child; };

Class privileges

Notes: “Class member” refers to data elements or methods within a class Types of access privileges for a class member:

• public:
• Class member accessible from anywhere within the

application

• protected:
• Class member accessible from any of the class’s methods;
• Class member may be inherited by subclass
• Not available elsewhere in application
• private [ default] :
• Class member only available to class’s methods
• Not inherited

Using “friend” to grant access

• “friend”:
• Gives an outside class access to a class’s protected and

private members

• Is NOT reciprocal
• Example:

class Dlist; class Dlnode { friend class Dlist; protected: ... };

• Here, Dlist gains access to all of Dlnode’s variables and

methods

• Typically used when outside class “owns” the current class

Can also define “friend functions”

• Allow nonmember functions access to private/ protected

members of class

• Example:

class myClass { int a, b; //default to private public: myClass(int I, int j) {a=I; b=j;} friend int comDenom(myClass x); }; int comDenom(myClass x) { //Note that since comDenom is a friend function //of myClass, it can directly access a and b int max = x.a < x.b ? x.a : x.b; for (int i=2; i <= max; i++) if ((x.a%i) == 0 && (x.b%i) == 0) return i; return 0; }

Implicit “this” pointer

• “this”: a pointer to the object through which this method was

invoked

• Example: the following are equivalent:

int getSize() { return size; } int getSize() { return this->size; }

• Passed as an implicit argument to every member method
• Common uses for “this”:
• To call a method in another object, passing the current
• bject as an argument
• E.g.: objectTable.add(this)
• To return a pointer to the current object
• Note:

friend functions don’t have a “this” pointer, because friends are not members of a class. Only member functions have a “this” pointer

Inlining

• Inline function: expanded inline at the point at which it is

invoked, rather than being called

• Advantage: efficiency (eliminates function call)
• Frequently used in class definitions
• Two ways to create inline functions:
• Use “inline” modifier:

inline int f() { … }

• Define inline function within a class (any function defined

inside class definition is automatically made into an inline function)

class cl { int i; public: int get_i() {return i;} void put_i(int j) { i = j; } };

Inline function definitions

A bit on C+ + Memory Management

We’ve seen new and delete C+ + does some memory management for you

• E.g., when you declare a local class object (e.g.,

inside a procedure), C+ + will automatically call the destructor for that class when the procedure exits

C+ + string class handles memory management for you

• E.g., to ensure that enough memory is made

available for your string, regardless of how long it is (or gets)

C+ + string class

1st-class vs. 2nd-class objects:

• 1st-class objects:
• Can be manipulated in “usual” ways
• E.g.,
• assignment operator (= )
• copy constructor to make complete copies
• destructor that performs memory management
• comparisons (< , = = , > , != , …

)

• 2nd class objects:
• Can be manipulated only in certain restricted ways

C+ + string class

• Two types of strings:
• 2 nd-class objects: C-style, null-terminated string
• #include <string.h> // C version
• Common functions: strcpy(), strcat(), strcmp(), strlen()
• 1 st-class objects: “string” class
• A string is like a (char * ) that has been made into a safe C+ + class
• Part of C+ + class library
• Provides object-oriented approach to string handling
• #include <string>

using namespace std; // C++ String class

• Common functions:

length, c_str, =, +=, ==, !=, <, <=, >, >=, [ ]

Example 1 (hw2): Using string class

#include <stdio.h> #include <iostream> #include <string> using namespace std; main() { string str1, str2; const char *s2; char *s3; str1 = "Hello World"; printf("%d %s\n", str1.length(), str1.c_str()); cout << str1.length() << " " << str1 << "\n"; str2 = str1; cout << str2 << "\n"; str1[0] = 'J'; cout << str1 << "\n" << str2 << "\n"; s2 = str2.c_str(); cout << s2 << " " << str2 << "\n"; s3 = "Daffy Duck"; str2 = s3; str2[0] = 'T'; cout << s3 << " " << str2 << "\n"; str2 += " "; str2 += str1; cout << str2 << "\n"; }

Can assign string to a standard null-terminated C string Use length() to get string length To printf, have to convert to (char *); c_str() does this for you Can print with cout without converting to (char *) Can assign one string to another

Example 1 (hw2): Using string class

#include <stdio.h> #include <iostream> #include <string> using namespace std; main() { string str1, str2; const char *s2; char *s3; str1 = "Hello World"; printf("%d %s\n", str1.length(), str1.c_str()); cout << str1.length() << " " << str1 << "\n"; str2 = str1; cout << str2 << "\n"; str1[0] = 'J'; cout << str1 << "\n" << str2 << "\n"; s2 = str2.c_str(); cout << s2 << " " << str2 << "\n"; s3 = "Daffy Duck"; str2 = s3; str2[0] = 'T'; cout << s3 << " " << str2 << "\n"; str2 += " "; str2 += str1; cout << str2 << "\n"; }

Can use + operator to concatenate strings When you assign a string from a (char *), it makes a copy Can turn string to (char *) and assign to a (char *) variable; however, can only do this with const variables Can modify individual characters of string by treating them as (char *)

Example 1 (hw2): Using string class

#include <stdio.h> #include <iostream> #include <string> using namespace std; main() { string str1, str2; const char *s2; char *s3; str1 = "Hello World"; printf("%d %s\n", str1.length(), str1.c_str()); cout << str1.length() << " " << str1 << "\n"; str2 = str1; cout << str2 << "\n"; str1[0] = 'J'; cout << str1 << "\n" << str2 << "\n"; s2 = str2.c_str(); cout << s2 << " " << str2 << "\n"; s3 = "Daffy Duck"; str2 = s3; str2[0] = 'T'; cout << s3 << " " << str2 << "\n"; str2 += " "; str2 += str1; cout << str2 << "\n"; }

Output?

11 Hello World 11 Hello World Hello World Jello World Hello World Hello World Hello World Daffy Duck Taffy Duck Taffy Duck Jello World

Example 2: bert.h, bert.cpp, berttest1

#include <stdio.h> #include <iostream.h> #include <string> using namespace std; class Bert { public: Bert(char *); ~Bert(); void add_bert(); string getString(); int getLength(); protected: string str; } Bert::Bert(char *s) { printf(“Creating new Bert (%s)\n”, s); str = s; } Bert::~Bert() { printf(“Bert destructor called (%s)\n”, str.c_str()); } void Bert::add_bert() { str += “bert”; } string Bert::getString() { return str; } int Bert::getLength() { return str.length();}

#include <stdio.h> #include "bert.h" main() { Bert s1("Dog"), s2("Rat"); s1.add_bert(); s2.add_bert(); printf("S1: %s\n", s1.getString().c_str()); }

Output?

Creating new Bert (Dog) Creating new Bert (Rat) S1: Dogbert Bert destructor called (Ratbert) Bert destructor called (Dogbert)

Example 3: berttest2 (add procedure calls)

#include <stdio.h> #include <iostream.h> #include <string> using namespace std; class Bert { public: Bert(char *); ~Bert(); void add_bert(); string getString(); int getLength(); protected: string str; } Bert::Bert(char *s) { printf(“Creating new Bert (%s)\n”, s); str = s; } Bert::~Bert() { printf(“Bert destructor called (%s)\n”, str.c_str()); } void Bert::add_bert() { str += “bert”; } string Bert::getString() { return str; } int Bert::getLength() { return str.length();}

#include <stdio.h> #include "bert.h" void a() { Bert s2("Rat"); s2.add_bert(); printf("S2: %s\n", s2.getString().c_str()); } int main() { Bert s1("Dog"); a(); printf("S1: %s\n", s1.getString().c_str()); a(); return 0; }

Output?

Creating new Bert (Dog) Creating new Bert (Rat) S2: Ratbert Bert destructor called (Ratbert) S1: Dog Creating new Bert (Rat) S2: Ratbert Bert destructor called (Ratbert) Bert destructor called (Dog)

Example 4: berttest4 (passing Bert as parameter)

#include <stdio.h> #include <iostream.h> #include <string> using namespace std; class Bert { public: Bert(char *); ~Bert(); void add_bert(); string getString(); int getLength(); protected: string str; } Bert::Bert(char *s) { printf(“Creating new Bert (%s)\n”, s); str = s; } Bert::~Bert() { printf(“Bert destructor called (%s)\n”, str.c_str()); } void Bert::add_bert() { str += “bert”; } string Bert::getString() { return str; } int Bert::getLength() { return str.length();}

#include <stdio.h> #include "bert.h" void a(Bert s2) { s2.add_bert(); printf("S2: %s\n", s2.getString().c_str()); } main() { Bert s1("Dog"); a(s1); printf("S1: %s\n", s1.getString().c_str()); a(s1); }

Output?

Creating new Bert (Dog) S2: Dogbert Bert destructor called (Dogbert) S1: Dog S2: Dogbert Bert destructor called (Dogbert) Bert destructor called (Dog)

Note: when you declare an instance

• f a class to be a copy of an existing

instance, the constructor is not called. Instead, every member of the instance is copied.

Example 5: berttest5 (global variables)

#include <stdio.h> #include <iostream.h> #include <string> using namespace std; class Bert { public: Bert(char *); ~Bert(); void add_bert(); string getString(); int getLength(); protected: string str; } Bert::Bert(char *s) { printf(“Creating new Bert (%s)\n”, s); str = s; } Bert::~Bert() { printf(“Bert destructor called (%s)\n”, str.c_str()); } void Bert::add_bert() { str += “bert”; } string Bert::getString() { return str; } int Bert::getLength() { return str.length();} #include <stdio.h> #include "bert.h" Bert Global_bert("Rat"); main() { Bert s1("Dog"); s1.add_bert(); printf("S1: %s\n", s1.getString().c_str()); printf("GJ: %s\n", Global_bert.getString().c_str()); }

Output?

Creating new Bert (Rat) Creating new Bert (Dog) S1: Dogbert GJ: Rat Bert destructor called (Dogbert) Bert destructor called (Rat)

Note: constructor for global is called before main() is invoked; destructor for global is called after main() returns

Example 6: berttest6 (global variables, con’t.)

#include <stdio.h> #include <iostream.h> #include <string> using namespace std; class Bert { public: Bert(char *); ~Bert(); void add_bert(); string getString(); int getLength(); protected: string str; } Bert::Bert(char *s) { printf(“Creating new Bert (%s)\n”, s); str = s; } Bert::~Bert() { printf(“Bert destructor called (%s)\n”, str.c_str()); } void Bert::add_bert() { str += “bert”; } string Bert::getString() { return str; } int Bert::getLength() { return str.length();} #include <stdio.h> #include "bert.h" Bert Global_bert("Rat"); main() { Bert s1("Dog"); s1.add_bert(); printf("S1: %s\n", s1.getString().c_str()); printf("GJ: %s\n", Global_bert.getString().c_str()); exit(0); }

Output?

Creating new Bert (Rat) Creating new Bert (Dog) S1: Dogbert GJ: Rat Bert destructor called (Rat)

Note: destructor for s1 is never called, because exit() never returns

Example 7: berttest8

(return instance of class from procedure)

#include <stdio.h> #include <iostream.h> #include <string> using namespace std; class Bert { public: Bert(char *); ~Bert(); void add_bert(); string getString(); int getLength(); protected: string str; } Bert::Bert(char *s) { printf(“Creating new Bert (%s)\n”, s); str = s; } Bert::~Bert() { printf(“Bert destructor called (%s)\n”, str.c_str()); } void Bert::add_bert() { str += “bert”; } string Bert::getString() { return str; } int Bert::getLength() { return str.length();} #include <stdio.h> #include "bert.h" Bert a() { Bert s2("Rat"); s2.add_bert(); printf("S2: %s\n", s2.getString().c_str()); return s2; } main() { Bert s1("Dog"); printf("S1: %s\n", s1.getString().c_str()); s1 = a(); printf("S1: %s\n", s1.getString().c_str()); }

Output?

Creating new Bert (Dog) S1: Dog Creating new Bert (Rat) S2: Ratbert Bert destructor called (Ratbert) S1: Ratbert Bert destructor called (Ratbert)

Example 8: berttestp1

(automatic constructor/ destructor not for pointers)

#include <stdio.h> #include <iostream.h> #include <string> using namespace std; class Bert { public: Bert(char *); ~Bert(); void add_bert(); string getString(); int getLength(); protected: string str; } Bert::Bert(char *s) { printf(“Creating new Bert (%s)\n”, s); str = s; } Bert::~Bert() { printf(“Bert destructor called (%s)\n”, str.c_str()); } void Bert::add_bert() { str += “bert”; } string Bert::getString() { return str; } int Bert::getLength() { return str.length();}

#include <stdio.h> #include "bert.h" main() { Bert *s1; s1 = new Bert("Dog"); s1->add_bert(); printf("S1: %s\n", s1->getString().c_str()); s1 = new Bert("Rat"); s1->add_bert(); printf("S1: %s\n", s1->getString().c_str()); }

Output?

Creating new Bert (Dog) S1: Dogbert Creating new Bert (Rat) S2: Ratbert

Note: have to call “delete” to explicitly destroy class object
