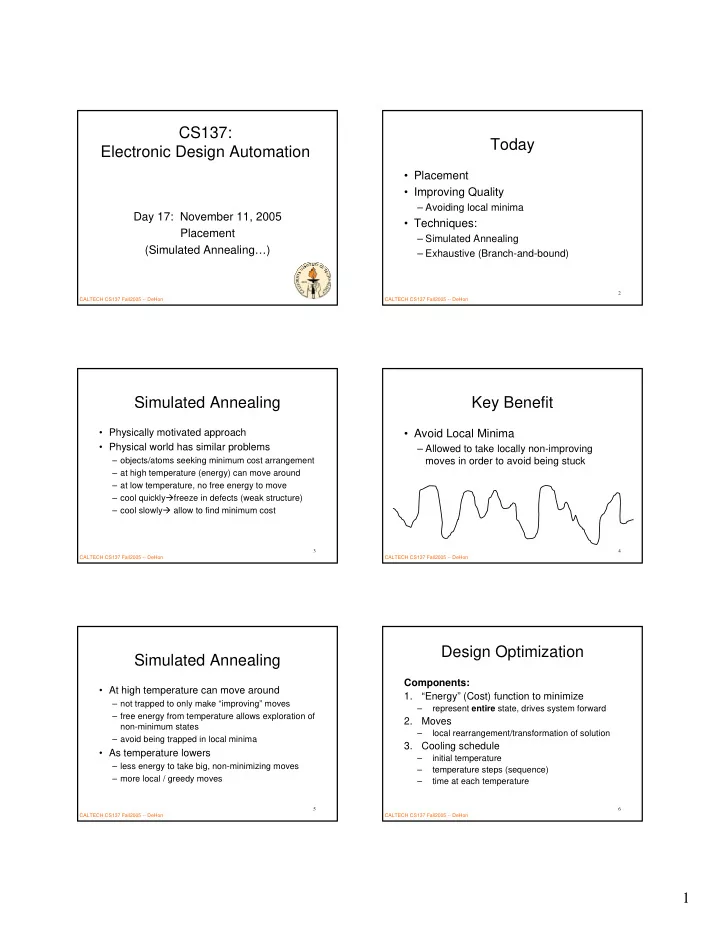

CALTECH CS137 Fall2005 -- DeHon 1

CS137: Electronic Design Automation

Day 17: November 11, 2005 Placement (Simulated Annealing…)

CALTECH CS137 Fall2005 -- DeHon 2

Today

• Placement
• Improving Quality

– Avoiding local minima

• Techniques:

– Simulated Annealing – Exhaustive (Branch-and-bound)

CALTECH CS137 Fall2005 -- DeHon 3

Simulated Annealing

• Physically motivated approach
• Physical world has similar problems

– objects/atoms seeking minimum cost arrangement – at high temperature (energy) can move around – at low temperature, no free energy to move – cool quicklyfreeze in defects (weak structure) – cool slowly allow to find minimum cost

CALTECH CS137 Fall2005 -- DeHon 4

Key Benefit

• Avoid Local Minima

– Allowed to take locally non-improving moves in order to avoid being stuck

CALTECH CS137 Fall2005 -- DeHon 5

Simulated Annealing

• At high temperature can move around

– not trapped to only make “improving” moves – free energy from temperature allows exploration of non-minimum states – avoid being trapped in local minima

• As temperature lowers

– less energy to take big, non-minimizing moves – more local / greedy moves

CALTECH CS137 Fall2005 -- DeHon 6

Design Optimization

Components: 1. “Energy” (Cost) function to minimize

– represent entire state, drives system forward

2. Moves

– local rearrangement/transformation of solution

3. Cooling schedule

– initial temperature – temperature steps (sequence) – time at each temperature

2

CALTECH CS137 Fall2005 -- DeHon 7

Basic Algorithm Sketch

• Pick an initial solution
• Set temperature (T) to initial value
• while (T>Tmin)

– for time at T

• pick a move at random
• compute Δcost
• if less than zero, accept
• else if (RND<e-Δcost/T), accept

– update T

CALTECH CS137 Fall2005 -- DeHon 8

Details

• Initial Temperature

– T0=Δavg/ln(Paccept)

• Cooling schedule

– fixed ratio: T=λT

• (e.g. λ=0.85)

– temperature dependent – function of both temperature and acceptance rate

• example to come
• Time at each temperature

– fixed number of moves? – fixed number of rejected moves? – fixed fraction of rejected moves?

CALTECH CS137 Fall2005 -- DeHon 9

Cost Function

• Can be very general

– Combine area, timing, energy, routability…

• Should drive entire solution in right

direction

– reward each good move

• Should be cheap to compute delta costs

– e.g. FM – Ideally O(1)

CALTECH CS137 Fall2005 -- DeHon 10

Example Cost Functions

• Total Wire Length

– Linear, quadratic…

• Bounding Box (semi-perimeter)

– Surrogate for routed net length

• Channel widths

– probably wants to be more than just width

• Cut width

bby bbx

CALTECH CS137 Fall2005 -- DeHon 11

Bad Cost Functions

• Update cost

– rerun maze route on every move – rerun timing analysis – recalculate critical path delay

• Drive toward solution:

– size < threshold ? – Critical path delay

CALTECH CS137 Fall2005 -- DeHon 12

VPR Wire Costs

• VPR Bounding Box

( ) ( ) ( )

[ ] ( )

∑ =

+ × =

Nets i y x

i bb i bb i q Cost

1 Swartz, Betz, & Rose FPGA 1998 Original table: Cheng ICCAD 1994

3

CALTECH CS137 Fall2005 -- DeHon 13

VPR Timing Costs

• Criticality(e)=1-Slack(e)/Dmax
• TCost(e)=Delay(e)*Criticality(e)CriticalityExp
• Keep all edge delays in a table
• Recompute Net Criticality

at each Temperature

Marquardt, Betz, & Rose FPGA2000

CALTECH CS137 Fall2005 -- DeHon 14

VPR Balance Wire and Time Cost ( )

⎟ ⎠ ⎞ ⎜ ⎝ ⎛ Δ − + ⎟ ⎠ ⎞ ⎜ ⎝ ⎛ Δ = Δ OldWCost WCost OldTCost TCost Cost λ λ 1

Marquardt, Betz, & Rose FPGA2000

CALTECH CS137 Fall2005 -- DeHon 15

Initial Solution

• Spectral Placement
• Random
• Constructive Placement

– Fast placers start at lower temperature; assume constructive got global right.

CALTECH CS137 Fall2005 -- DeHon 16

Moves

• Swap two cells

– Within some distance limit? (ex. to come)

• swap regions

– …rows, columns, subtrees

• rotate cell (when feasible)
• flip (mirror) cell
• permute cell inputs (equivalent inputs)

CALTECH CS137 Fall2005 -- DeHon 17

Variant

• Allow non-legal solutions

– capture badness in cost function – E.g. -- allow cells to overlap

• Just make sure cost function makes

very expensive as cool

– settle out to legal solutions

CALTECH CS137 Fall2005 -- DeHon 18

Variant: “Rejectionless”

• Order moves by cost

– compare FM

• Pick random number first
• Use random to define range of move costs

will currently accept

• Pick randomly within this range
• Idea: never pick a costly move which will be

rejected

4

CALTECH CS137 Fall2005 -- DeHon 19

Theory

• If stay long enough at each cooling

stage

– will achieve tight error bound

• If cool long enough

– will find optimum

CALTECH CS137 Fall2005 -- DeHon 20

Practice

• Good results

– ultimately, what most commercial tools use...what vpr uses…

• Slow convergence
• Tricky to pick schedules to accelerate

convergence

CALTECH CS137 Fall2005 -- DeHon 21

Range Limit

• Want to tune so accepting 44% of the

moves – Lam and Delosme DAC 1988

• VPR

– Define Rlimit – defines maximum Δx and Δy accepted – Tune Rlimit to maintain acceptance rate – Rlimitnew=Rlimitold×(1-0.44+α)

฀ α is measured acceptance rate

CALTECH CS137 Fall2005 -- DeHon 22

VPR Cooling Schedule

• Moves at Temperature = cN4/3
• Temperature Update

– Tnew=Told×γ – Idea: advance slowly in good α range

Betz, Rose, & Marquardt Kluwer 1999

CALTECH CS137 Fall2005 -- DeHon 23

Range Limiting?

• Eguro alternate [DAC 2005]

– define P=D-M – Tune M to control α

CALTECH CS137 Fall2005 -- DeHon 24

Range Limiting

Eurgo, Hauck, & Sharma DAC 2005

5

CALTECH CS137 Fall2005 -- DeHon 25

Big Hammer

• Costly, but general
• Works for most all problems

– (part, placement, route, retime, schedule…)

• Can have hybrid/mixed cost functions

– as long as weight to single potential – (e.g. wire/time from VPR)

• With care, can attack multiple levels

– place and route

• Ignores structure of problem

– resignation to finding/understanding structure

CALTECH CS137 Fall2005 -- DeHon 26

Optimal/Exhaustive

CALTECH CS137 Fall2005 -- DeHon 27

• If you run simulated annealing long

enough….

– It should converge to optimum

• If you have enough monkeys typing at

keyboards keyboards long enough

– They’ll eventually produce the works of Shakespeare….

CALTECH CS137 Fall2005 -- DeHon 28

Brute Force?

• If you are really going to give up on

structure and explore the entire space

– …there are more efficient ways to do it

• …and maybe they’re not terrible

– For small/modest problems – As our computers get faster

CALTECH CS137 Fall2005 -- DeHon 29

Optimum Placement

• Simplest case:

– Gate/array (FPGA) w/ fixed cell locations

• N locations
• M cells
• Try all permutations of N choose M

N!/M! cases

CALTECH CS137 Fall2005 -- DeHon 30

Improving

• Prune off symmetry cases

– Rotate 90, 180, 270 – Mirror X, Y, XY

• Reject provably bad starts

– (return to in a minute)

6

CALTECH CS137 Fall2005 -- DeHon 31

Exhaustive Placement

• More general:

– Modules have variable size – Modules can be rotated/flipped…

• To explore all cases:

– For each module

• For each orientation

CALTECH CS137 Fall2005 -- DeHon 32

Branch-and-Bound

• Consider dense 1D placement

– Search space of all placements – Tree branch is choice of logical cell for physical cell position – Keep track of best solution so far as reach leaves – If partial solution worse than best solution, prune branch

CALTECH CS137 Fall2005 -- DeHon 33

Pruning: 1D example

• Reducing channel width

– Have solution with width=10 – When find a partial solution with width>=10

• Can abort that branch
• Reducing Delay

– Have solution with delay=20 – When find a partial solution with delay>=20

• Can abort branch

CALTECH CS137 Fall2005 -- DeHon 34

Viable

• Only on small problems

– But “small” growing with machine speed

• Use for end-case in constructive

– Flatten bottom of hierarchy – Maybe even in iteration/overlap relaxation

CALTECH CS137 Fall2005 -- DeHon 35

Caldwell et. al. Results

[TRCAD v19n11p1304-13]

CALTECH CS137 Fall2005 -- DeHon 36

Runtime

[TRCAD v19n11p1304-13]

7

CALTECH CS137 Fall2005 -- DeHon 37

Runtime

[TRCAD v19n11p1304-13]

CALTECH CS137 Fall2005 -- DeHon 38

Faster?

• Accounting and gain complexity

– Make it linear time – But does make each update somewhat complex – Exhaustive case less bookkeeping

• Not an atypical result…

CALTECH CS137 Fall2005 -- DeHon 39

Summary

• Simulated Annealing

– use randomness to explore space – accept “bad” moves to avoid local minima – decrease tolerance over time

• General purpose solution

– costly in runtime

• Small (sub)problems

– May solve exhaustively – Can prune to accelerate…

CALTECH CS137 Fall2005 -- DeHon 40

Admin

• Class Monday
• …but not W, F (finish assignment)

CALTECH CS137 Fall2005 -- DeHon 41

Big Ideas:

• Use randomness to explore large (non-

convex) space

– Simulated Annealing

• Use dominance to quickly skip over
• bviously bad solutions

– Branch and Bound
