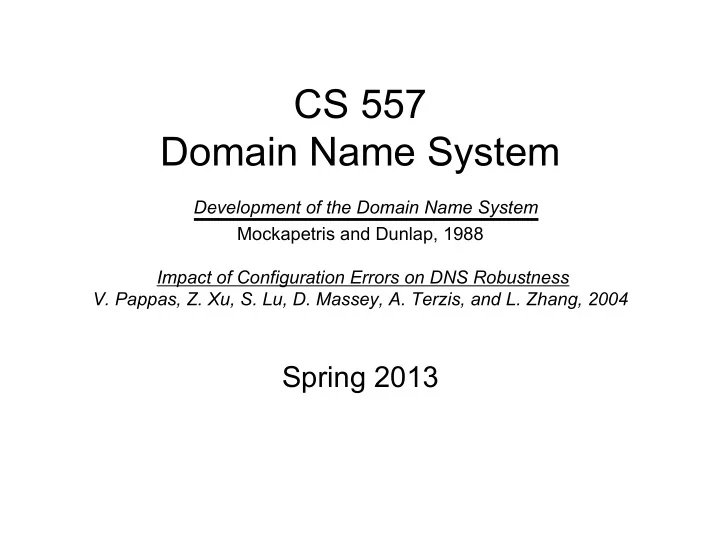

CS 557 Domain Name System Development of the Domain Name System - - PowerPoint PPT Presentation

CS 557 Domain Name System Development of the Domain Name System

Mockapetris and Dunlap, 1988 Impact of Configuration Errors on DNS Robustness

• V. Pappas, Z. Xu, S. Lu, D. Massey, A. Terzis, and L. Zhang, 2004

Spring 2013

Network layer: Addressing, Fragmentation, Dynamic Routing, Best Effort Forwarding Transport layer: End to End communication, Multiplexing, Reliability, Congestion control, Flow control,

The Story So Far….

Data Layer: richly connected network (many paths) with many types of unreliable links Some Essential Apps: DNS (naming) and NTP (time).

Slides Adopted From SIGCOMM 2004 Presentation

Motivation

• DNS: part of the Internet core infrastructure

– Applications: web, e-mail, e164, CDNs …

• DNS: considered as a very reliable system

– Works almost always

• Question: is DNS a robust system?

– User-perceived robustness – System robustness

are they the same?

– Thousands or even millions of users affected – All due to a single DNS configuration error

Motivation Short Answer:

“Microsoft's websites were offline for up to 23 hours

• - the most dramatic snafu to date on the Internet --

because of an equipment misconfiguration”

• - Wired News, Jan 2001

Related Work

• Traffic & implementation errors studies:

– Danzig et al. [SIGCOMM92]: bugs – CAIDA : traffic & bugs

• Performance studies:

– Jung et al. [IMW01]: caching – Cohen et al. [SAINT01]: proactive caching – Liston et al. [IMW02]: diversity

• Server availability :

– To appear [OSDI04, IMC04]

Our Work: Study DNS Robustness

• Classify DNS operational errors:

– Study known errors – Identify new types of errors

• Measure their pervasiveness
• Quantify their impact on DNS

– availability – performance

Outline

• DNS Overview
• Measurement Methodology
• DNS Configuration Errors

– Example Cases – Measurement Results

• Discussion & Summary

net com uk ca jp foo buz bar bar1 bar2 bar3

Zone:

Occupies a continues subspace Served by the same nameservers bar.foo.com. NS ns1.bar.foo.com. bar.foo.com. NS ns3.bar.foo.com. bar.foo.com. NS ns2.bar.foo.com. bar.foo.com. MX mail.bar.foo.com. www.bar.foo.com. A 10.10.10.10

bar

name servers resource records

Background

caching server client bar zone foo zone com zone root zone

asking for www.bar.foo.com answer:

www.bar.foo.com A 10.10.10.10

referral:

com NS RRs com A RRs

referral:

foo NS RRs foo A RRs

referral:

bar NS RRs bar A RRs

Infrastructure RRs

foo.com. NS ns1.foo.com. foo.com. NS ns2.foo.com. foo.com. NS ns3.foo.com.

foo.com. NS ns1.foo.com. foo.com. NS ns2.foo.com. foo.com. NS ns3.foo.com.

foo.com com

ns1.foo.com. A 1.1.1.1 ns2.foo.com. A 2.2.2.2 ns3.foo.com. A 3.3.3.3

ns1.foo.com. A 1.1.1.1 ns2.foo.com. A 2.2.2.2 ns3.foo.com. A 3.3.3.3

• NS Resource Record:

– Provides the names of a zone’s authoritative servers – Stored both at the parent and at the child zone

• A Resource Record

– Associated with a NS resource record – Stored at the parent zone (glue A record)

What Affects DNS Availability

• Name Servers:

– Software failures – Network failures – Scheduled maintenance tasks

• Infrastructure Resource Records:

– Availability of these records – Configuration errors

focus of

• ur work

Classification of Measured Errors

Inconsistency Dependency

Lame Delegation Delegation Inconsistency Diminished Redundancy Cyclic Dependency The configuration of infrastructure RRs does not correspond to the actual authoritative name-servers. More than one name-servers share a common point of failure.

What is Measured?

• Frequency of configuration errors:

– System parameters: TLDs , DNS level, zone size (i.e. the number of delegations)

• Impact on availability:

– Number of servers: lost due to these errors – Zone’s availability: probability of resolving a name

• Impact on performance:

– Total time to resolve a query

• Starting from the query issuing time
• Finishing at the query final answer time

Measurement Methodology

• Error frequency and availability impact:

– 3 sets of active measurements

• Random set of 50K zones
• 20K zones that allow zone transfers
• 500 popular zones
• Performance impact:

– 2 sets of passive measurements:1-week DNS packet traces

Lame Delegation

com foo

foo.com. NS A.foo.com. foo.com. NS B.foo.com.

A.foo.com

A.foo.com. A 1.1.1.1 B.foo.com. A 2.2.2.2

2) DNS error code

• - 1 RTT perf. penalty

3) Useless referral

• - 1 RTT perf. penalty

4) Non-authoritative answer (cached) 1) Non-existing server

• - 3 seconds perf. penalty

B.foo.com

Lame Delegation Results

Lame Delegation Results

0.06 sec 0.4 sec 3 sec 50%

Lame Delegation Results

• Error Frequency:

– 15% of the zones – 8% for the 500 most popular zones – independent of the zone’s size, varies a lot per TLD

• Impact:

– 70% of the zones with errors lose half or more of the authoritative servers – 8% of the queries experience increased response times (up to an order of magnitude) due to lame delegation

C) Geographic location level:

• belong to the same city

B) Autonomous system level:

• belong to the same AS

Diminished Server Redundancy

com foo

foo.com. NS A.foo.com. foo.com. NS B.foo.com.

A.foo.com B.foo.com

A.foo.com. A 1.1.1.1 B.foo.com. A 2.2.2.2

A) Network level:

• belong to the same subnet

Diminished Server Redundancy Results

• Error Frequency:

– 45% of all zones have all servers in the same /24 subnet – 75% of all zones have servers in the same AS – large & popular zones: better AS and geo diversity

• Impact:

– less than 99.9% availability: all servers in the same /24 subnet – more than 99.99% availability: 3 servers at different ASs or different cities

Cyclic Zone Dependency (1)

com foo

foo.com. NS A.foo.com. foo.com. NS B.foo.com.

A.foo.com B.foo.com

A.foo.com. A 1.1.1.1

B.foo.com depends

• n A.foo.com

The A glue RR for B.foo.com missing

B.foo.com. A 2.2.2.2

If A.foo.com is unavailable then B.foo.com is too

Cyclic Zone Dependency (2)

com foo

foo.com. NS A.foo.com. foo.com. NS B.bar.com.

A.foo.com B.bar.com

A.foo.com. A 1.1.1.1

bar

B.foo.com A.bar.com

bar.com. NS A.bar.com. bar.com. NS B.foo.com. A.bar.com. A 2.2.2.2

The foo.com zone seems correctly configured The combination of foo.com and bar.com zones is wrongly configured The B servers depend on A servers If A.foo and A.bar are unavailable, B addr. are unresolvable

Cyclic Zone Dependency Results

• Error Frequency:

– 2% of the zones – None of the 500 most popular zones

• Impact:

– 90% of the zones with cyclic dependency errors lose 25% (or even more) of their servers – 2 or 4 zones are involved in most errors

Discussion: User-Perceived != System Robustness

• User-perceived robustness:

– Data replication: only one server is needed – Data caching: temporary masks infrastructure failures – Popular zones: fewer configuration errors

• System robustness:

– Fewer available servers: due to inconsistency errors – Fewer redundant servers: due to dependency errors

Discussion: Why so many errors?

• Superficially: are due to operators:

– Unaware of these errors – Lack of coordination

• parent-child zone, secondary servers hosting
• Fundamentally: are due to protocol design:

– Lack of mechanisms to handle these errors

• proactively or reactively

– Design choices that embrace some of them:

• Name-servers are recognized with names
• Glue NS & A records necessary to set up the DNS tree

Summary

• DNS operational errors are widespread
• DNS operational errors affect availability:

– 50% of the servers lost – less than 99.9% availability

• DNS operational errors affect performance:

– 1 or even 2 orders of magnitude

• DNS system robustness lower than user perception

– Due to protocol design, not just due to operator errors

Ongoing Work

• Reactive mechanisms:

– DNS Troubleshooting [NetTs 04]

• Proactive mechanisms:

– Enhancing DNS replication & caching

Thank You!!!
