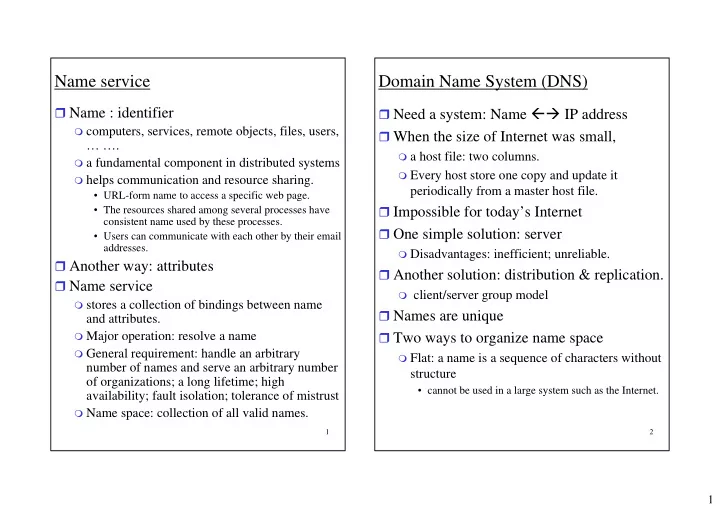

Name service

Name : identifier

computers, services, remote objects, files, users,

… ….

a fundamental component in distributed systems helps communication and resource sharing.

URL-form name to access a specific web page.
The resources shared among several processes have

consistent name used by these processes.

Users can communicate with each other by their email

addresses.

Another way: attributes Name service

stores a collection of bindings between name

and attributes.

Major operation: resolve a name General requirement: handle an arbitrary

number of names and serve an arbitrary number

f organizations; a long lifetime; high

availability; fault isolation; tolerance of mistrust

Name space: collection of all valid names.

2

Domain Name System (DNS)

Need a system: Name IP address When the size of Internet was small,

a host file: two columns. Every host store one copy and update it

periodically from a master host file. Impossible for today’s Internet One simple solution: server

Disadvantages: inefficient; unreliable.

Another solution: distribution & replication.

client/server group model

Names are unique Two ways to organize name space

Flat: a name is a sequence of characters without

structure

cannot be used in a large system such as the Internet.

SLIDE 2

2

3

Domain Name System (DNS)

Hierarchy: each name is composed of several

parts.

called domain name space
each organization can choose the prefix name for its

host independently.

In domain name space, names are defined in

an inverted-tree structure.

Each node in the tree has a label, and a

domain name.

Label is a string with a maximum of 63

characters.

Root label is an empty string Children of a node have different labels Domain name is a sequence of labels from the

current node up to the root, separated by dots.

Fully Qualified Domain Name (FQDN): a

complete domain name

Partially Qualified Domain Name (PQDN): a

domain name is ended at some node except the root

4

DNS in the Internet

DNS can be used in different platforms. generic domains

com: commercial organizations edu: universities and other educational institutions gov: US governmental agencies mil:US military organizations net: major network support centers

rg: organizations not mentioned above

int: international organizations

country domains

ca: Canada; us: United States; … … Use their own domains to distinguish their organizations,

except USA. i.e. co.uk, ac.uk inverse domain

map an address to a name Example: a server has a list of authorized clients, but only

IP address from packet.

the server may ask its resolver to send a query to the DNS

server and ask for a mapping of address to name.

inverse query (or pointer query)
“inverse-IP.in-addr.arpa”

SLIDE 3

3

5

DNS queries

Host name resolution

Get IP addresses from host names

Looking up e-mail host Reverse resolution

Name server replies only if the IP address is in

its own domain. Others in the textbook

file Web server Socket http://www.cdk3.net:80/WebExamples/earth.html URL Resource ID (IP number, port number, pathname) 138.37.88.61 WebExamples/earth.html 80 DNS lookup (Ethernet) Network address 2:60:8c:2:b0:5a ARP lookup 6

Domain Name System (DNS)

Distribution of name space

DNS servers: organized in the same way as the hierarchy

f names.

Each server contains part of the naming database – data

for the local domain.

Also, each server records the domain names and

addresses of other servers. DNS data are divided into zones, and each DNS

server is responsible for zero or more zones.

Zones vs. domains Each zone must be hold by at least two servers.

A master file for a zone (zone file): entered by

system administrator.

Root server:

a server whose domain consists of the whole tree. no detailed information, just maintains references to

lower-level servers.

Currently, there are more than 13 root servers distributed

all around the world, each covering the whole domain name space.

SLIDE 4

4

7

Domain Name System (DNS)

Primary servers

Read zone data directly from a local master file creating, maintaining, and updating the zone file

Secondary servers

Download zone data from other servers

(primary or other secondary)

Communicate periodically with the primary

server to check the match Both of them are authorities for the zone

they serve: redundancy

Zone transfer: secondary server primary

server A server can be primary server for a

specific zone, and a secondary server for another zone.

8

Domain Name System (DNS)

Name-Address Resolution

Process calls a DNS client, called a resolver The resolver accesses the closest DNS server with a

mapping request.

Either server replies with the information, or tells the

resolver that other servers have this information.

the resolver delivers the result to the request process.

Most of requests are “Mapping Names to

Addresses”

Mapping Addresses to Names: DNS client (resolver) reverses the IP address, and appends it with “.in-addr.arpa.” to create a domain name. Two approaches

Recursive resolution: the resolver expects the server to

supply the final answer

Iterative Resolution

it returns to the client the IP address of the server that it

thinks can resolve the query.

The client is responsible to repeat the query to this

second server.

SLIDE 5

5

9

Domain Name System (DNS)

Caching technique in DNS

recursive resolution Store the mapping before send it to client One problem: cache some mapping for a long time. So the

client receives an out-of-date mapping. two simple techniques: “time-to-live” (TTL)

Original server binds a mapping with a TTL value.

It defines the time in seconds that the other servers

can cache the mapping information.

Receiving server sets a TTL for each mapping in its

cache. DNS Messages

Two types: query and response A query message consists of a header and the question

records

A response message consists of a header, question

records, answer records, authority records, and additional records.

1

DNS Messages

The header is 12 bytes

Identification: 16-bit, match the response (used by client) Flags: 16-bit

QR (query/response): 1-bit, defines the type of

message

OpCode: 4-bit, defines type of query or response (0:

standard, 1: inverse, etc.)

AA (authoritative answer): 1-bit, used in caching

technique (1: original server)

TC (truncated):1-bit, 1 means the response was

more than 512 bytes and reduced to 512.

RD (recursion desired):1-bit, 1 means the client

desires a recursive answer. (set in query message, repeated in response message)

RA (recursion available):1-bit, 1 means that a

recursive response is available. (set in the response message)

Reserved: 3-bit, “000”
rCode: 4-bit, error code in the response (only original

server can set it)

Number of question records: 16-bit Number of answer records: 16-bit, all 0s in query message Number of authority records: 16-bit, all 0s in query Number of additional records: 16-bit, all 0s in query

SLIDE 6

6

1 1

DNS Messages: types of records

Question Record

Used by client to get information from a server Query name: domain name, variable-length field Query type: 16-bit, i.e., 1: 32-bit IPv4 address, 28: An

IPv6 address, …

Query class: 16-bit, defines specific protocol using DNS,

i.e., 1: Internet; 2: CSNET network; … Resource Record

Domain name Domain type Domain class Time-to-live: 32-bit, number of seconds Resource data length: 16-bit Resource data:

answer to the query in answer section;
domain name of server in authoriy section
Additional information (IP address) in additional section

1 2

Time

important information in distributed systems.

Precise time: ‘e-commerce’ transaction; authentication

protocols; Check if the call message is a duplicated message and check if the call message is valid, in Sun RPC message, …

the order of events is important: e-mail

Situation in distributed systems

no global clock in distributed systems Each computer has its own internal clock, and each clock

has its own physical properties.

clock drift rate: difference between a computer clock and

the perfect reference clock

Two approaches to correct

Time server, Cristian in 1989
logical clock

Synchronizing physical clocks

External synchronization: clock-draft-rate is bounded

by some constant.

Time server: Cristian’s method, the Network Time Protocol

Internal synchronization: the difference between any

two computer clocks is bounded by some constant.

Master/slaves: the Berkeley’s algorithm

SLIDE 7

7

1 3

Cristian’s method: time server

1. Client process sends a time request to time

server.

2. After receiving a request, the server replies with

the time according to its clock.

Analysis

no upper bound on message transmission

delays.

Its success is based on that the round-trip times

for messages exchange are short compared with the required accuracy.

a group of synchronized time servers

multicast its request to all the time servers in

the LAN, and use the first replied time.

Better performance:

– server failure, reply message omission failure; – the first replied time has smaller value (more close to the perfect time).

1 4

The Berkeley’s algorithm

One computer is chosen to be a master The master computer periodically selects the other

computers to synchronize their clocks, called slaves.

The slaves send back their clock values to master. The master estimates their clock times, and

computes the average values of all the clock times

T + (round-trip time/2).

The master sends the adjustment amount for each

individual slave.

The reason for not sending the updated current time

to avoid the further uncertainty introduced by message

transmission time One possible problem: readings from faulty clocks One simple fix: select a subset of clocks whose

mutual difference is bounded by some specified value

SLIDE 8

8

1 5

The Network Time Protocol (NTP)

Cristian’s method, the Berkeley algorithm:

intranets.

The Network Time Protocol is a protocol to

distribute time information over the Internet.

External synchronization: synchronize time to agree on

coordinated universal time (UTC), with some fixed bound The NTP system consists of a network of primary

and secondary time servers, clients, and interconnecting transmission paths. (synchronization subnet)

A primary time server is directly synchronized to a

primary reference source, usually a timecode receiver

A secondary time server is synchronized, possibly

via other secondary servers, from a primary server

ver network paths.

A hierarchy: primary reference source at the root Stratum: reference level

Primary time server: level 1 (stratum 1) increasing levels with decreasing accuracy.

1 6

The Network Time Protocol (NTP)

The minimum-weight spanning trees: the Bellman-

Ford distributed routing algorithm

stratum numbers heavy lines: the active synchronization paths Light lines: backup synchronization paths

Used for exchanging timing information, not necessarily

for synchronizing local clocks Direction: timing information flow If x is out of service, reconfigure with backup

paths.

SLIDE 9

9

1 7

Modes of operation

Multicast mode: high speed LANs with numerous computers and not require highest accuracies. procedure-call mode: higher accuracy, or Multicast mode is not available. Symmetric mode

Used in distributed environment Pairs of servers exchange messages containing

time information

Symmetric active mode

used by servers operating near the leaves (high

stratum levels) of the synchronization subnet and with preconfigured peer addresses.

Symmetric passive mode

used by servers operating near the root (low stratum

levels) and with a relatively large number of peers

1 8

NTP message

After IP, UDP header Timestamp: 64bits, 32-bit integer part for seconds

+ 32-bit fraction part, from January 1, 1900

Leap Indicator; Version number; operating mode;

stratum number; local-clock precision

Poll Interval (Poll): the maximum interval between

successive NTP messages.

SLIDE 10

10

1 9

NTP message

Synchronization Distance, Synchronization

Dispersion:

Indicate the roundtrip delay and dispersion, to

the primary reference source.

Reference Clock Identifier, Reference Timestamp

Identifies particular reference source and the

time of its last update; used for management.

Originate Timestamp

The transmit timestamp in the last received NTP

message (Ti-3).

Receive Timestamp

The local time when the latest NTP message

was received (Ti-2).

Transmit Timestamp

The local time when this NTP message was

transmitted (Ti-1).

Authenticator (optional)

The key identifier and encrypted checksum of

the message contents.

2
