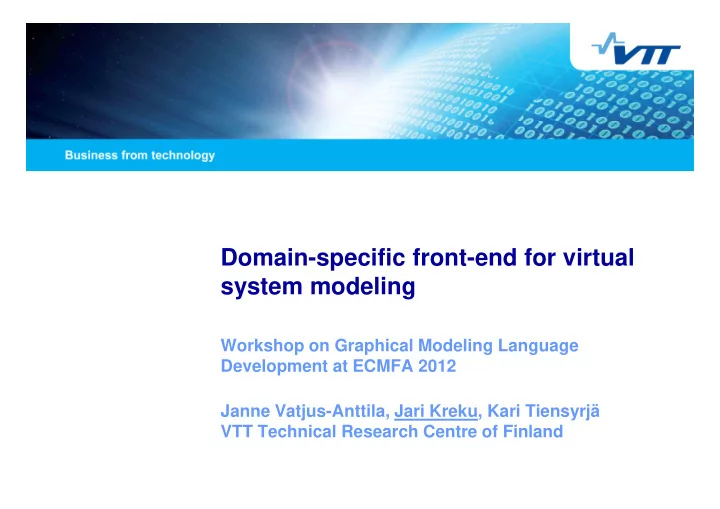

Domain-specific front-end for virtual Domain-specific front-end for virtual system modeling

Workshop on Graphical Modeling Language Development at ECMFA 2012 Janne Vatjus-Anttila, Jari Kreku, Kari Tiensyrjä VTT Technical Research Centre of Finland

2 03/07/2012

Outline

Motivation System-level performance evaluation techniques ABSOLUT performance modeling and evaluation Workload and platform modeling Performance simulation Domain-specific front-end for ABSOLUT Workload, platform and allocation modeling DSLs Case Example Conclusions

3 03/07/2012

Motivation

Increasing complexity of embedded system design New methods and tools needed for increasing productivity ABSOLUT Early-phase performance modeling and evaluation Set of prototype tools Command-line based tools: high learning curve Domain specific modeling (DSM) Raise the level of abstraction above programming Used on many different domains DSM was used in this work to shorten learning curve, improve usability and raise modeling abstraction of ABSOLUT

4 03/07/2012

Techniques for system-level performance evaluation

Virtual system Abstract application and platform models (no ISS) Instruction and cycle approximate System level exploration Virtual platform Real application software and a virtual platform model (ISS) Instruction accurate Software development Virtual prototype Real application software and a virtual prototype (HDL) Instruction accurate, clock accurate Co-verification

5 03/07/2012

ABSOLUT virtual system modeling

Application control behavior Data processing and memory access load

= Workload model + Enables early simulation Improves simulation speed Reduces modeling effort Presents resource requirements

• f applications

Platform independent ABSINTH model generator

Application modelling Simulation

Model of both hardware and platform software components and interconnections Abstract, transaction-level SystemC models Platform, subsystem and component layers Computing, communication and storage resources Role in ABSOLUT Processes load primitives Provides higher-level services Consumes time (cycle-approximate) ALE library of component models COGNAC text-based configuration system

Platform modelling Resources + Allocation Interfaces Simulation control Utilisation of resources Resources Platform characteristics

System is simulated using OSCI SystemC kernel 2.2

• 1. Workload

models utilise resources with read, write, execute and/or service requests

• 2. OS models

propagate load from WL models to the CPUs

• 3. CPU models model execution time

for data processing instructions and propagate reads and writes to other components Workload / platform interfaces SystemC threads

Performance simulation

Instrumentationof workload and / or platform models performance and power probes Status probes, e.g. resource utilisation Timers, e.g. service processingtime Counters, e.g. numberof reads and writes Visualisationwith VODKA

Simulation results OSCI SystemC Utilisation Latencies Etc

6 03/07/2012

Workload modeling

IDLE ESTABLISHCONNECTION [xp_connection_succ] /^ConnectionEstablishedInd(); set(T1(),now+40000000); [xp_connection_succ] /^ConnectionEstablishedInd(); set(T1(),now+40000000); ShutDownApplicationReq() /^ShutDownApplicationCnf(); ShutDownApplicationReq() /^ShutDownApplicationCnf(); OpenApplicationReq() /^OpenApplicationCnf(); OpenApplicationReq() /^OpenApplicationCnf(); [xp_processtap_succ] /^TouchScreenTapActionCnf(); [xp_processtap_succ] /^TouchScreenTapActionCnf(); [xp_screenupdate_succ] /^UpdateCompleteInd(); set(T1(),now+40000000); [xp_screenupdate_succ] /^UpdateCompleteInd(); set(T1(),now+40000000); WAITING_EVENTS

Application control behavior = Workload model + Enables early simulation Improves simulation speed Reduces modeling effort

UPDATE PROCESS_SCREEN_TAP /^TouchScreenTapActionCnf(); /^TouchScreenTapActionCnf(); T1() T1() TouchScreenTapActionReq() TouchScreenTapActionReq()

Disassembly of section .init: 00008000 <_init>: 8000: e1a0c00d mov ip, sp 8004: e92ddff8 stmdb sp!, {r3, r4, r5, 8008: e24cb004 sub fp, ip, #4 800c: eb000023 bl 80a0 <frame_dummy 8010: eb000c8c bl b248 <__do_global 8014: e24bd028 sub sp, fp, #40 8018: e89d6ff0 ldmia sp, {r4, r5, r6, 801c: e1a0f00e mov pc, lr Disassembly of section .text: 00008020 <__do_global_dtors_aux>: 8020: e92d4030 stmdb sp!, {r4, r5,

Data processing and memory access load

Composite structure diagram1 active class VNCInternetBrowser : Application_Workload {1/1}

p1 p1 FromNavWL ToNavWL FromNavWL ToNavWL FromConWL ToConWL FromConWL ToConWL +ConWL : Connection_Workload p1 p1 +NavWL : Navigation_Workload p1 p1 VNCCrl : VNCProcessControl p1 p1 p2 p2 p3 p3 p5 p5 p4 p4 ToMWL FromMWL ToMWL FromMWL +DisWL : Display_Workload p1 p1 +MemWL : MemoryHandling_Workload p1 p1 FromDisWL ToDisWL FromDisWL ToDisWL FromMemWL ToMemWL FromMemWL ToMemWL

+ Presents resource requirements

• f applications

Platform independent Support tools (ABSINTH)

7 03/07/2012

Platform capacity modeling

Model of both hardware and platform software components and interconnections Abstract, transaction-level SystemC models Platform, subsystem and component layers Platform, subsystem and component layers Computing, communication and storage resources Role in ABSOLUT Processes load primitives Provides higher-level services Consumes time (cycle-approximate) Support tools and libraries (COGNAC, ALE)

8 03/07/2012

Performance simulation

OS model ProcessWL 1 ApplicationWL Load primitives, Service calls Subsystem

System is simulated using OSCI SystemC kernel 2.2

• 1. Workload

models utilise

• 2. OS models

propagate load from WL models

Processing unit 1 ProcessWL 2 ProcessWL N Processing unit N

models utilise resources with read, write, execute and/or service requests from WL models to the CPUs

• 3. CPU models model execution time

for data processing instructions and propagate reads and writes to other components Workload / platform interfaces SystemC threads

9 03/07/2012

Simulation results

Instrumentation of workload and / or platform models performance and power probes Status probes, e.g.

Image Storage Subsystem 4.8 ms 4.8 ms 4.8 ms 25 Decoding 480 µs 1 µs 450 µs 26 DMA transfer Max Min Average Calls Service Image Storage Subsystem 4.8 ms 4.8 ms 4.8 ms 25 Decoding 480 µs 1 µs 450 µs 26 DMA transfer Max Min Average Calls Service

Display subsystem load

35,00 % 40,00 %

Status probes, e.g. resource utilisation Timers, e.g. service processing time Counters, e.g. number of reads and writes Visualisation tool (VODKA)

Display 1.6 ms 1 ms 1.4 ms 25 DMA transfer Display 1.6 ms 1 ms 1.4 ms 25 DMA transfer

0,00 % 5,00 % 10,00 % 15,00 % 20,00 % 25,00 % 30,00 % display.gpp0 display.sram display.dma display.display_if display.bus display.net_if Component Utilisation% Busy

10 03/07/2012

Domain-specific modeling (DSM)

DSM commonly used as productivity tool for Developing a DSL to model a specific application/product Generating documentation, validity checking, code, etc. Domain-specific front-end for ABSOLUT Develop DSLs for early phase embedded system design exploration DSLs for the three modeling phases in ABSOLUT Workload modeling Platform modeling Allocation

11 03/07/2012

Workload modeling DSL

Workload primitives of basic blocks (XML) Define and generate workload Control (gzipped trace) generate workload models Output: ”pointers” to generated workload models

12 03/07/2012

Platform modeling DSL

Design a platform model from existing components; generate (XML) Components instantiated from model library

13 03/07/2012

Allocation modeling DSL

Allocate workload models on the processing elements of the platform model Output: allocation specification (INI-file)

14 03/07/2012

ABSOLUT Y-chart approach with DSLs

• wnApplicationCnf();

• wnApplicationCnf();

• nWL

• nWL

• nWL

• nWL

• nWL : Connecti
• n_Workload

• ad

• f applications

Application modelling Simulation

Model of both hardware and platform software components and interconnections Abstract, transaction-level SystemC models Platform, subsystem and component layers Computing, communication and storage resources Role in ABSOLUT Processes load primitives Provides higher-level services Consumes time (cycle-approximate) ALE library of component models COGNAC text-based configuration system

Platform modelling Resources + Allocation Interfaces

DSL + ABSOLUT

Simulation control Utilisation of resources Resources Platform characteristics

System is simulated using OSCI SystemC kernel 2.2

• 1. Workload

models utilise resources with read, write, execute and/or service requests

• 2. OS models

propagate load from WL models to the CPUs

• 3. CPU models model execution time

for data processing instructions and propagate reads and writes to other components Workload / platform interfaces SystemC threads

Performance simulation

Instrumentationof workload and / or platform models performance and power probes Status probes, e.g. resource utilisation Timers, e.g. service processing time Counters, e.g. number of reads and writes Visualisation with VODKA

• display. gpp0

Simulation results OSCI SystemC Utilisation Latencies Etc

Back-annotation Back-annotation ABSOLUT

15 03/07/2012

Case example: H.264 video player / recorder

Graphical video player / recorder application x264 codec Single- and multi-threaded OMAP4-like execution platform Two ARM Cortex A9 cores, crossbar, mobile DDR2 memory Software decoding (no accelerators used) Modeling and simulation using DSLs with ABSOLUT Back-annotation of filtered simulation results Verification of simulation results by comparing them with those measured on PandaBoard (work in progress)

16 03/07/2012

Environment

MetaEdit+ 4.5 Workbench Definition of DSLs Easy to use tool Great support ABSOLUT ABSINTH workload model generator COGNAC platform model generator, ALE model library BEER simulator Red Hat Enterprise Linux 6 operating system, Intel Core i7-based workstation

17 03/07/2012

Results [1/2]

Case study succesfully modelled and simulated Platform model with MetaEdit+, COGNAC and ALE Workload models with MetaEdit+, ABSINTH Simulation with BEER Experiences Modelling/simulation UI improves usability and provides lower learning curve Raises modelling abstraction Platform and allocation DSLs work well Workload DSL could be improved Result backannation could be done in a limited way

18 03/07/2012

Results [2/2]

Example: CPU utilisation caused by the multi-threaded x264 workload

19 03/07/2012

Conclusions

New methods and tools needed for embedded system design due to the increasing complexity of both applications and platforms ABSOLUT is early-phase performance modeling and evaluation technique with a set of supporting tools DSLs for the workload, platform and allocation modeling phases of DSLs for the workload, platform and allocation modeling phases of ABSOLUT implemented with MetaEdit+ and serve as front-ends MetaEdit+ and ABSOLUT combination experimented with a video player / recorder case example on OMAP4 platform model DSLs provided improved usability to the modelling/simulation flow

20 03/07/2012

Acknowledgements

This work is supported by the European Commission and Tekes – the Finnish Funding Agency for Technology and Innovation - under the grant agreement ARTEMIS-2010-1-269362 PRESTO. The adoption of DSM principles and MetaEdit+ environment was guided by experts of Meta-Case. Especially Mr. Janne Luoma contributed in solving issues faced during the work. Dr. Juha-Pekka Tolvanen receives also our issues faced during the work. Dr. Juha-Pekka Tolvanen receives also our gratitude for professional comments.

Thank you !
