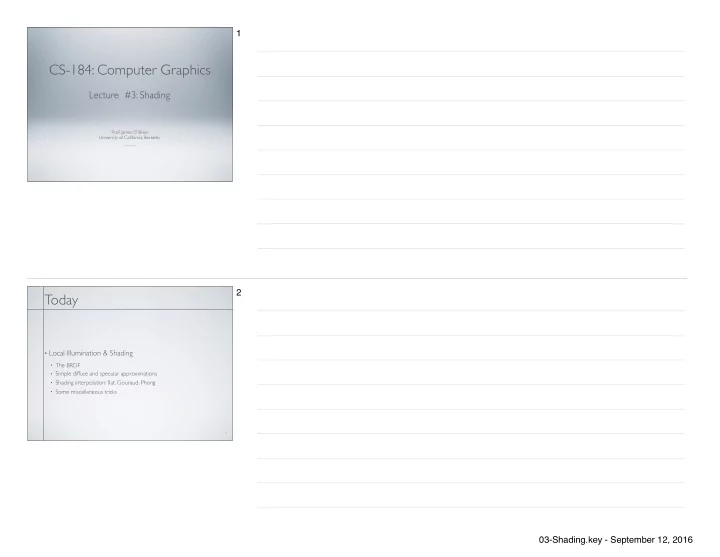

SLIDE 1

CS-184: Computer Graphics

Lecture #3: Shading

Prof. James O’Brien

University of California, Berkeley

V2016-F-03-1.0

1

2

Today

Local Illumination & Shading
The BRDF
Simple diffuse and specular approximations
Shading interpolation: flat, Gouraud, Phong
Some miscellaneous tricks

2 03-Shading.key - September 12, 2016

SLIDE 2

3

Local Shading

Local: consider in isolation
1 light
1 surface
The viewer
Recall: lighting is linear
Almost always...

Counter example: photochromatic materials

3

4

Local Shading

Examples of non-local phenomena
Shadows
Reflections
Refraction
Indirect lighting

4 03-Shading.key - September 12, 2016

SLIDE 3

5

The BRDF

ρ(θV,θL) ρ(v,l,n)

ρ = =

The Bi-directional Reflectance Distribution Function
Given
Surface material
Incoming light direction
Direction of viewer
Orientation of surface
Return:
fraction of light that reaches the viewer
We’ll worry about physical units later...

5

The BRDF

6

Ideal specular

Perfect mirror reflection

Ideal diffuse

Equal reflection in all directions

Glossy specular

Majority of light reflected near

mirror direction Retro-reflective

Light reflected back towards light

source

Diagrams illustrate how light from incoming direction is reflected in various outgoing directions.

Ren Ng

6 03-Shading.key - September 12, 2016

SLIDE 4

7

The BRDF

ρ(v,l,n) ˆ v ˆ l ˆ n

Spatial variation capture by “the material”
Frequency dependent
Typically use separate RGB functions
Does not work perfectly
Better:

ρ = ρ(θV,θL,λin,λout) 7

8

Obtaining BRDFs

Measure from real materials

Images from Marc Levoy

8 03-Shading.key - September 12, 2016

SLIDE 5

9

Obtaining BRDFs

Measure from real materials
Computer simulation
Simple model + complex geometry
Derive model by analysis
Make something up

9

10

Beyond BRDFs

The BRDF model does not capture everything
e.g. Subsurface scattering (BSSRDF)

Images from Jensen et. al, SIGGRAPH 2001

10 03-Shading.key - September 12, 2016

SLIDE 6

11

Beyond BRDFs

The BRDF model does not capture everything
e.g. Inter-frequency interactions

ρ = ρ(θV,θL,λin,λout)This version would work....

11

12

A Simple Model

Approximate BRDF as sum of
A diffuse component
A specular component
A “ambient” term

+ =

+

12 03-Shading.key - September 12, 2016

SLIDE 7

13

Diffuse Component

Lambert’s Law
Intensity of reflected light proportional to cosine of angle between

surface and incoming light direction

Applies to “diffuse,” “Lambertian,” or “matte” surfaces
Independent of viewing angle
Use as a component of non-Lambertian surfaces

13

14

Diffuse Component

l n

Steve Marschner

Top face of cube  receives a certain   amount of light Top face of   60º rotated cube  intercepts half the light In general, light per unit  area is proportional to  cos θ = l • n

14 03-Shading.key - September 12, 2016

SLIDE 8

15

Diffuse Component

kdI(ˆ l· ˆ n)

Comment about two-side lighting in text is wrong...

max(kdI(ˆ l· ˆ n),0)

15

16

Diffuse Component

Plot light leaving in a given direction:
Plot light leaving from each point on surface

16 03-Shading.key - September 12, 2016

SLIDE 9

17

Specular Component

Specular component is a mirror-like reflection
Phong Illumination Model
A reasonable approximation for some surfaces
Fairly cheap to compute
Depends on view direction

17

18

Specular Component

ksI(ˆ r· ˆ v)p

ksI max(ˆ r· ˆ v,0)p

L R V N

18 03-Shading.key - September 12, 2016

SLIDE 10

19

Specular Component

Computing the reflected direction

ˆ r = −ˆ l+2(ˆ l· ˆ n)ˆ n

n l r

l

θ n cos θ n cos θ

19

20

Specular Component

“Half-angle” approximation for specular

n l h ω e

ˆ h = ˆ l+ ˆ v ||ˆ l+ ˆ v||

*Don’t use half-angle approximation in your assignments!

ksI(ˆ h · ˆ n)p

different specular term

20 03-Shading.key - September 12, 2016

SLIDE 11

21

Specular Component

Plot light leaving in a given direction:
Plot light leaving from each point on surface

21

22

Specular Component

Specular exponent sometimes called “roughness”

n=1 n=2 n=4 n=8 n=256 n=128 n=64 n=32 n=16

22 03-Shading.key - September 12, 2016

SLIDE 12

23

Ambient Term

Really, its a cheap hack
Accounts for “ambient, omnidirectional light”
Without it everything looks like it’s in space

23

24

Summing the Parts

Recall that the are by wavelength
RGB in practice
Sum over all lights

R = kaI +kdI max(ˆ l· ˆ n,0)+ksI max(ˆ r· ˆ v,0)p

k? +

= +

24 03-Shading.key - September 12, 2016

SLIDE 13

25

Anisotropy

25

26

Metal -vs- Plastic

26 03-Shading.key - September 12, 2016

SLIDE 14

27

Metal -vs- Plastic

27

28

Other Color Effects

28 03-Shading.key - September 12, 2016

SLIDE 15

Materials: Diffuse

Ren Ng

29

Materials: Plastic

Ren Ng

30 03-Shading.key - September 12, 2016

SLIDE 16

Materials: Paint

Ren Ng

31

Materials: Paint

Ren Ng

32 03-Shading.key - September 12, 2016

SLIDE 17

Materials: Mirror

Ren Ng

33

Materials: Metallic

Ren Ng

34 03-Shading.key - September 12, 2016

SLIDE 18

35

Other Color Effects

Images from Gooch et. al, 1998 + =

pure blue to yellow pure black to object color darken select final tone

35

36

Measured BRDFs

Images from Cornell University Program of Computer Graphics

BRDFs for automotive paint

36 03-Shading.key - September 12, 2016

SLIDE 19

37

Measured BRDFs

Images from Cornell University Program of Computer Graphics

BRDFs for aerosol spray paint

37

38

Measured BRDFs

Images from Cornell University Program of Computer Graphics

BRDFs for house paint

38 03-Shading.key - September 12, 2016

SLIDE 20

39

Measured BRDFs

Images from Cornell University Program of Computer Graphics

BRDFs for lucite sheet

39

Ashikhmin-Shirley BRDF

More realistic specular term (for some materials)
Anisotropic specularities
Fresnel behavior (grazing angle highlights)
Energy preserving diffuse term
Sum of diffuse and specular terms (as before)

Michael Ashikhmin and Peter Shirley. 2000. An anisotropic phong BRDF model. J. Graph. Tools 5, 2 (February 2000), 25-32.  https://www.cs.utah.edu/~shirley/papers/jgtbrdf.pdf

40

ρ(ˆ l, ˆ v) = ρd(ˆ l, ˆ v) + ρs(ˆ l, ˆ v)

40 03-Shading.key - September 12, 2016

SLIDE 21

Ashikhmin-Shirley BRDF

41

F(ˆ h · ˆ e) = Ks + (1 − Ks)(1 − (ˆ h · ˆ e))5 ρs(ˆ l,ˆ e) = p (pu + 1)(pv + 1) 8π (ˆ n · ˆ h)pu cos2 φ+pv sin2 φ (ˆ h · ˆ e) max ⇣ (ˆ n · ˆ e), (ˆ n ·ˆ l) ⌘F(ˆ h · ˆ e) Light direction Viewer (eye) direction Specular powers Normal Half angle Specular coefficient (color) Parametric directions

ˆ l ˆ e pu, pv ˆ n ˆ h Ks ˆ u, ˆ v

41

Ashikhmin-Shirley BRDF

42

ρs(ˆ l,ˆ e) = p (pu + 1)(pv + 1) 8π (ˆ n · ˆ h)

pu(ˆ h·ˆ u)2+pu(ˆ h·ˆ v)2 1−(ˆ h·ˆ n)2

(ˆ h · ˆ e) max ⇣ (ˆ n · ˆ e), (ˆ n ·ˆ l) ⌘F(ˆ h · ˆ e) F(ˆ h · ˆ e) = Ks + (1 − Ks)(1 − (ˆ h · ˆ e))5 Light direction Viewer (eye) direction Specular powers Normal Half angle Specular coefficient (color) Parametric directions

ˆ l ˆ e pu, pv ˆ n ˆ h Ks ˆ u, ˆ v

Approximate Fresnel function

42 03-Shading.key - September 12, 2016

SLIDE 22

Ashikhmin-Shirley BRDF

43

Light direction Viewer (eye) direction Specular powers Normal Half angle Specular coefficient (color) Parametric directions

ˆ l ˆ e pu, pv ˆ n ˆ h Ks ˆ u, ˆ v

ρd(ˆ l,ˆ e) = 28Kd 23π (1 − Ks) 1 − ✓ 1 − ˆ n · ˆ e 2 ◆5! 0 @1 − 1 − ˆ n ·ˆ l 2 !51 A

Note: The Phong diffuse term (Lambertian) is independent of

view. But this term accounts for unavailable light due to

specular/Fresnel reflection.

43

Ashikhmin-Shirley BRDF

44

44 03-Shading.key - September 12, 2016

SLIDE 23

Ashikhmin-Shirley BRDF

45

Ashikhmin-Shirley BRDF

46

nv = 10000 nv = 1000 nv = 100 nv = 10 nu = 10 nu = 100 nu = 1000 nu = 10000

46 03-Shading.key - September 12, 2016

SLIDE 24

47

Details Beget Realism

The “computer generated” look is often due to a lack of

fine/subtle details... a lack of richness.

From bustledress.com

47

48

Details Beget Realism

48 03-Shading.key - September 12, 2016

SLIDE 25

49

Direction -vs- Point Lights

For a point light, the light direction changes over the

surface

For “distant” light, the direction is constant
Similar for orthographic/perspective viewer

49

50

Falloff

r intensity  here: I/r2 I 1 intensity  here: Steve Marschner

50 03-Shading.key - September 12, 2016

SLIDE 26

51

Falloff

Physically correct: light intensify falloff
Tends to look bad (why?)
Not used in practice
Sometimes compromise of used

1/r2 1/r 51

52

Spot and Other Lights

Other calculations for useful

effects

Spot light
Only light certain objects
Negative lights
etc.

52 03-Shading.key - September 12, 2016

SLIDE 27

53

Ugly....

53

54

Ugly....

54 03-Shading.key - September 12, 2016

SLIDE 28

The normal vector at a point on a surface is perpendicular

to all surface tangent vectors

For triangles normal given by right-handed cross product

55

Surface Normals

55

56

Flat Shading

Use constant normal for each triangle (polygon)
Polygon objects don’t look smooth
Faceted appearance very noticeable, especially at specular highlights
Recall mach bands...

56 03-Shading.key - September 12, 2016

SLIDE 29

57

Smooth Shading

Compute “average” normal at vertices
Interpolate across polygons
Use threshold for “sharp” edges
Vertex may have different normals for each face

57

Smooth Shading

58

58 03-Shading.key - September 12, 2016

SLIDE 30

Smooth Shading

59

From blender.stackexchange.com

59

60

Gouraud Shading

Compute shading at each vertex
Interpolate colors from vertices
Pros: fast and easy, looks smooth
Cons: terrible for specular reflections

Flat Gouraud

Note: Gouraud was hardware rendered...

60 03-Shading.key - September 12, 2016

SLIDE 31

61

Gouraud

Phong Shading

Compute shading at each pixel
Interpolate normals from vertices
Pros: looks smooth, better speculars
Cons: expensive

Phong

Note: Gouraud was hardware rendered...
