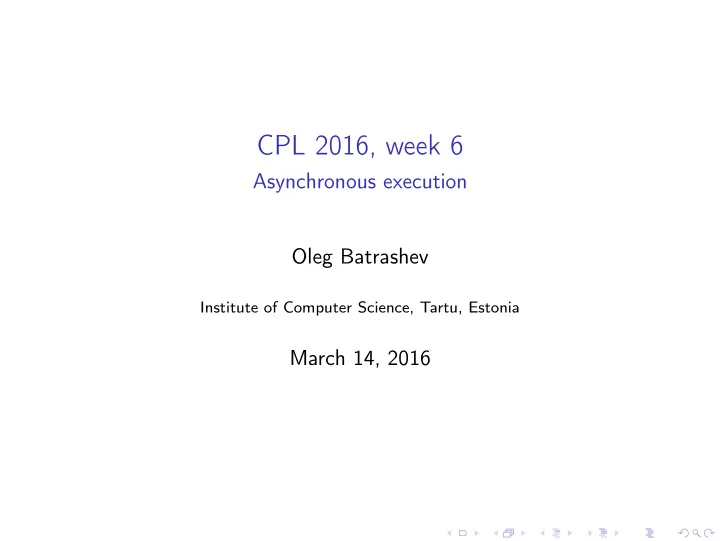

SLIDE 1

CPL 2016, week 6

Asynchronous execution Oleg Batrashev

Institute of Computer Science, Tartu, Estonia

March 14, 2016

SLIDE 2

Overview

Studied so far:

1. Inter-thread visibility: JMM
2. Inter-thread synchronization: locks and monitors
3. Thread management: executors, tasks, cancelation
4. Inter-thread communication: confinements, queues, back

pressure

5. Inter-thread collaboration: actors, inboxes, state diagrams

Today:

◮ Asynchronous execution: callbacks, Pyramid of Doom, Java

8 promises. Next weeks:

◮ Performance considerations: asynchronous IO, Java 8

streams.

SLIDE 3

Asynchronous execution 118/145 Why asynchronous -

Outline

Asynchronous execution Why asynchronous Callback hell Lambdas in Java 8 Promises in Java 8 Promises within actors Promise libraries

SLIDE 4

Asynchronous execution 119/145 Why asynchronous -

Synchronous vs asynchronous

Synchronous execution – algorithm executes sequentially, one step after another in single thread

res1 = doSomething1 () res2 = doSomething2 (res1) res3 = doSomething3 (res1) print (res2+res3) ◮ doSomething3 executes after doSomething2

◮ even with optimizations, think of the execution this way

Asynchronous execution – parts of the algorithm run separately, possibly in different threads

◮ execute doSomething2 and doSomething3 in separate threads

and wait for their results

◮ solvable with Java Futures

◮ execute them in separate threads but release this thread until

res2 and res3 are available, then execute printing

◮ not solvable with Java Futures

SLIDE 5

Asynchronous execution 120/145 Why asynchronous -

Problems of synchronous execution

◮ parallelism in the algorithm is not utilized (solved with Java

futures)

◮ current thread is not released even if nothing to do, consider res1 = doRequest1 () res2 = doRequest2 (res1) print (res2)

◮ if the thread is waiting for the result of request 1, it has

nothing else to do

◮ the thread is not released, it may not be used elsewhere ◮ e.g. making 10000 network requests or waiting for data from

10000 web clients requires the same number of threads

◮ solution: release the thread between doRequest1() and

doRequest2()

◮ how to do that?

SLIDE 6

Asynchronous execution 121/145 Why asynchronous -

Authentication example: the algorithm

Need for an algorithm with several steps that run over a network. Authentication with the salt and hash digest:

1. Client provides his name
2. Server checks if the name is ok and returns the salt

◮ the salt is just any random string

3. Client combines the salt and his password into single string, it

then computes the hash for it. The hash is sent to the server.

◮ hash is a sequence of bytes

4. Server compares received hash with the locally computed
hash. If they are equal, then the password was correct. The

server sends resulting response to the client.

◮ password is in the server database

5. Client knows whether the authentication was successful

Advantage: the password is never sent over the network.

SLIDE 7

Asynchronous execution 122/145 Why asynchronous -

Authentication example: synchronous code

// send user name

conn. sendMessage (new
AuthComm. LoginRequest ("Oleg"));

// receive params or result response Message <Type > m1 = conn. readMessage (); if (m1.type == Type.RES_RESULT) { ResultResponse m = ( ResultResponse ) m1; System.out.println("Success "+m); return; } { // send password digest ParamsResponse m = ( ParamsResponse ) m1; MessageDigest digestAlgo = MessageDigest . getInstance ("SHA -1"); String password = " mypassword "; byte [] digest = digestAlgo .digest ((m.salt+password ). getBytes ())

conn. sendMessage (new
AuthComm. AuthRequest (digest ));

} // receive result response Message <Type > m2 = conn. readMessage (); { ResultResponse m = ( ResultResponse ) m2; System.out.println("Success "+m); return; }

SLIDE 8

Asynchronous execution 123/145 Callback hell -

Outline

Asynchronous execution Why asynchronous Callback hell Lambdas in Java 8 Promises in Java 8 Promises within actors Promise libraries

SLIDE 9

Asynchronous execution 124/145 Callback hell -

Callback solution

◮ give the method another one which should be executed when

the operations completes

doRequest1 (callback1 ); void callback1(res1) { doRequest2 (res1 , callback2 ); } void callback2(res2) { print (res2 ); } ◮ put into inline callbacks results in Pyramid of Doom (not Java

code!)

doRequest1 (void callback1(res1) { doRequest2 (res1 , void callback2(res2) { print (res2 ); }); });

SLIDE 10

Asynchronous execution 125/145 Callback hell -

Authentication example: callbacks

◮ response with the salt to the login request public interface ParamsCallback { void

nSalt(String

salt ); } public void login(String username , ParamsCallback paramsCallback , ResultCallback resultCallback ) ◮ response with result to the auth request public interface ResultCallback { void

nSuccess ();

void

nFailure(String

error ); } public void authenticate (byte [] digest , ResultCallback callback) ◮ login may result in failure through the result callback: if the

username is invalid

SLIDE 11

Asynchronous execution 126/145 Callback hell -

Authentication example: Pyramid of Doom

◮ Java callbacks are 2 level, because they are in interfaces // send user name authProxy.login("Oleg", new ParamsCallback () { public void

nSalt(String

salt) { // send password digest String password = " mypassword "; byte [] digest = algo.digest (( salt+password ). getBytes ());

authProxy. authenticate (digest , new

ResultCallback () { public void

nSuccess () {

System.out.println("Login was successful"); } public void

nFailure(String

error) { System.out.println("Login failed: "+error ); } }); } }, null ); ◮ not pleasant to read, not reusable ◮ last null is the callback where error handling for login should

happen, omitted here

SLIDE 12

Asynchronous execution 127/145 Callback hell -

Named callbacks

◮ explicit classes: reusable code, but more difficult to follow public void run () { // send user name authProxy.login("Oleg", new ParamsCallbackImpl (), null ); } class ParamsCallbackImpl implements ParamsCallback { public void

nSalt(String

salt) { // send password digest String password = " mypassword "; byte [] digest = algo.digest (( salt + password ). getBytes ());

authProxy. authenticate (digest , new

ResultCallbackImpl ()); } } class ResultCallbackImpl implements ResultCallback { public void

nSuccess () {

System.out.println("Login was successful"); } public void

nFailure(String

error) { System.out.println("Login failed: " + error ); } } ◮ imagine if callbacks are split between different files

SLIDE 13

Asynchronous execution 128/145 Callback hell -

Callback summary

◮ asynchronous execution requires code that will be executed

later – callbacks

◮ inline callbacks result in the Pyramid of Doom, which is

unpleasant to read

◮ named callbacks split sequential logic into separate methods,

which is even more difficult to follow

◮ Java callback as an object with method – adds 2 levels to the

Pyramid of Doom Java 8 solutions:

◮ Java 8 promises (CompletableFuture) solve the problem with

unreadable and hard to follow code

◮ Java 8 lambdas solve the problem of 2-level callbacks

SLIDE 14

Asynchronous execution 129/145 Lambdas in Java 8 -

Outline

Asynchronous execution Why asynchronous Callback hell Lambdas in Java 8 Promises in Java 8 Promises within actors Promise libraries

SLIDE 15

Asynchronous execution 130/145 Lambdas in Java 8 -

Java 8 lambdas

◮ Syntactic sugar for “inline” methods: (arg1 ,arg2 ,arg3) -> { code ;..; return res; } ◮ It is possible to write: Runnable r = ()-> System.out.println("hello"); Callable <String > c1 = ()->"hello"; Callable <String > c2 = ()-> { System.out.println("in c2"); return "hello"; }; r.run (); c1.call (); c2.call (); ◮ However, the following is invalid, because need an interface: Object o = ()-> System.out.println("hello");

“The target type of this expression must be a functional interface”

◮ Java makes methods out of interface implementations ◮ functional interface[1, sec 1.3] must contain single method

declaration

SLIDE 16

Asynchronous execution 131/145 Lambdas in Java 8 -

Java 8 method references

Java 8 provides nice way to reference methods as functional interfaces:

◮ obj::methodName

◮ this::methodName

◮ ClassName::staticMethodName

java.util.function interfaces:

Function <Integer ,Integer > m1 = Math :: abs; BiFunction <Random ,Integer ,Integer > m2 = Random :: nextInt; BiConsumer <PrintStream ,char[]> m3 = PrintStream :: print;

SLIDE 17

Asynchronous execution 132/145 Lambdas in Java 8 -

Lambdas in Pyramid of Doom

// send user name authProxy.login("Oleg", salt

> { // Java8

lambda // send password digest String password = " mypassword "; byte [] digest = algo.digest (( salt+password ). getBytes ());

authProxy. authenticate (digest , new

ResultCallback () { public void

nSuccess () {

System.out.println("Login was successful"); } public void

nFailure(String

error) { System.out.println("Login failed: "+error ); } }); }, null ); ◮ problem with success/failure result, interface should contain

single method

◮ failure handling at each call may pollute the code

◮ Java 8 provides error forwarding for promises

SLIDE 18

Asynchronous execution 133/145 Promises in Java 8 -

Outline

Asynchronous execution Why asynchronous Callback hell Lambdas in Java 8 Promises in Java 8 Promises within actors Promise libraries

SLIDE 19

Asynchronous execution 134/145 Promises in Java 8 -

Problems of Java Future

◮ Java Future is the result of task execution

◮ it provides the result once execution is completed ◮ must submit a task before you can have its future ◮ what if want to return the future for the task executed third in

the sequence of async steps

◮ Java Future does not provide

fut.runThisCallback(callback) methods

◮ i.e. can only wait with fut.get() blocking the thread

Java 8 CompletableFuture (promise):

◮ may be completed at any time by promise.complete(res)

◮ only first result is preserved and valid

◮ have a bunch of promise.thenApply(callback) methods

◮ all registered callbacks are executed when promise is completed

SLIDE 20

Asynchronous execution 135/145 Promises in Java 8 -

Java 8 CompletableFuture

java.util.concurrent.CompletableFuture<Result>

◮ like Java Future completed once but no specific task required

◮ use complete(), completeExceptionally(), cancel()

◮ like java Future may be waited with get() or get(t,unit) ◮ unlike Java Futures “continuations” may be added to it CF <Void > thenRun(Runnable action) CF <Void > thenAccept (Consumer <? super T> action) CF thenApply(Function <? super T,? extends U> fn) CF thenCompose ( Function <? super T,? extends CompletionStage > fn) CF handle(BiFunction <? super T,Throwable ,? extends U> fn) CF <T> whenComplete ( BiConsumer <? super T,? super Throwable > action)

◮ the callbacks are executed after the promise is completed

◮ create the promise

◮ completedFuture(), runAsync(), supplyAsync()

SLIDE 21

Asynchronous execution 136/145 Promises in Java 8 -

Apply vs compose

After a promise has completed run a function with the result:

◮ apply callback returns (? extends U) ◮ compose callback returns (? extends CompletionStage) ◮ both take value of type T from the source promise

Imagine we have CompletableFuture<String> is a username we get asynchronously (e.g. receive from network) Want to check the validity of a username:

1. Boolean checkLocally(String username) – only validates that

characters are ok, may be done synchronously

2. CF<Boolean> checkRemotely(String username) – validates

that username exists in a database, the result comes asynchronously Need to use apply in the first case and compose in the second:

1. unamePromise.thenApply(this::checkLocally)
2. unamePromise.thenCompose(this::checkRemotely)

Otherwise, compose returns CF<CF<Boolean>‌> – need to flatten

SLIDE 22

Asynchronous execution 137/145 Promises in Java 8 -

Handle vs whenComplete

◮ whenComplete() returns the old future

◮ i.e. it invokes the callback, but does not enhance the callback

chain

◮ handle() does return the new future

◮ this may be used to run actions when async action defined in

the handle method completes

SLIDE 23

Asynchronous execution 138/145 Promises in Java 8 -

Authentication example: promise chaining

◮ use thenCompose and handle to chain promises ◮ error in the chain is propagated to the last promise omitting all

subsequent callbacks in the chain

// send user name CompletableFuture <String > saltPromise = authProxy.login("Oleg"); CompletableFuture <Void > resultPromise = saltPromise . thenCompose (salt

> {

// send password digest String password = " mypassword "; byte [] digest = algo.digest (( salt+password ). getBytes ()); return

authProxy. authenticate (digest );

}); // handle all errors or final success resultPromise .handle ((v, err) -> { if (err == null) System.out.println("Login was successful"); else System.out.println("Login failed: "+err ); return null; });

SLIDE 24

Asynchronous execution 139/145 Promises in Java 8 -

Promise chaining with separate methods

◮ easier to see the overall process public void doAuth () throws IOException { authProxy.connect("localhost", 5000); CompletableFuture . completedFuture ("Oleg") . thenCompose (authProxy :: login) . thenCompose (this :: sendHashFromSaltAndPassword ) .handle(this :: printResult ); } CompletableFuture <Void > sendHashFromSaltAndPassword (String salt) { // send password digest String password = " mypassword "; byte [] digest = digestAlgo .digest (( salt+password ). getBytes ()); return

authProxy. authenticate (digest );

} Void printResult (Void v, Throwable err) { if (err == null) System.out.println("Login was successful"); else System.out.println("Login failed: "+err ); return null; }

SLIDE 25

Asynchronous execution 140/145 Promises within actors -

Outline

Asynchronous execution Why asynchronous Callback hell Lambdas in Java 8 Promises in Java 8 Promises within actors Promise libraries

SLIDE 26

Asynchronous execution 141/145 Promises within actors -

Promise executors

Almost all methods provide 3 flavors, e.g. for run:

CF <Void > thenRun(Runnable action ); CF <Void > thenRunAsync (Runnable action ); CF <Void > thenRunAsync (Runnable action , Executor executor ); ◮ action may be executed in the thread that has completed the

promise

◮ action is executed by the ForkJoinPool.commonPool() ◮ action is executed by the provided executor

We must think about the consequences of synchronization or the lack of it!

SLIDE 27

Asynchronous execution 142/145 Promises within actors -

Promises within actors

◮ actor is inherently asynchronous

◮ its logic is split between message handling code pieces

◮ often it is more convenient to program sequence of actions,

like with authentication

◮ use promise chains inside an actor

Pay attention:

◮ callbacks must be executed in the actor thread, ◮ current state is not automatically checked when the callback is

executed,

◮ consider promise (chain) cancellation

◮ if done from the actor thread, the rest of the promise chain

won’t be executed

SLIDE 28

Asynchronous execution 143/145 Promise libraries -

Outline

Asynchronous execution Why asynchronous Callback hell Lambdas in Java 8 Promises in Java 8 Promises within actors Promise libraries

SLIDE 29

Asynchronous execution 144/145 Promise libraries -

Libraries

◮ Akka futures –

http://doc.akka.io/docs/akka/2.4.2/java/futures.html

◮ RxJava – https://github.com/ReactiveX/RxJava/wiki ◮ ReactiveX – http://reactivex.io/intro.html
