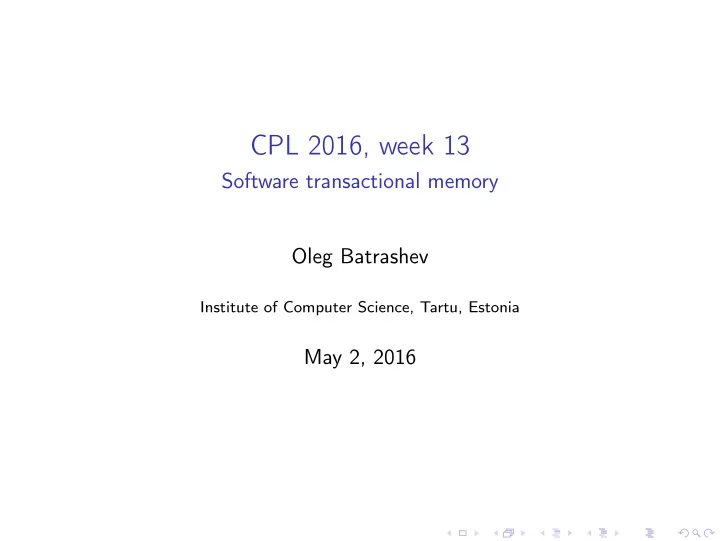

CPL 2016, week 13

Software transactional memory Oleg Batrashev

Institute of Computer Science, Tartu, Estonia

May 2, 2016

Overview

Last weeks

◮ Clojure language core ◮ Immutable data structures ◮ Clojure simple state and design

This week

◮ Software transactional memory (STM)

Next weeks

◮ Agents in Clojure

Software transactional memory 68/83 Transactions -

Outline

Software transactional memory Transactions Software transactional memory

Software transactional memory 69/83 Transactions -

ACID properties

◮ long used with databases ◮ result is either abort or commit ◮ actions with

◮ atomicity – all or none effects of the action become visible ◮ consistency – data stays in consistent state after a transaction ◮ isolation – during its work the action is “completely” unaffected

by other threads

◮ durability – survives system failures

◮ Clojure STM transactions satisfy atomicity, consistency and

isolation

◮ durability

Software transactional memory 70/83 Transactions -

Isolation levels

Not as obvious as may seem. Concurrency with ANSI isolation levels

• 1. serializable – ideal case, as if run sequentially
• 2. repeatable read – new data may interfere (where clause in

SQL)

◮ phantom reads – second read returns more rows than first read

• 3. read committed – see the results of other transactions

◮ non-repeatable reads – read data changed by another commit

• 4. read uncommitted – see the changes in other transactions

◮ dirty reads – read data changed in another transaction

Software transactional memory 71/83 Transactions -

Isolation levels (2)

There is a criticism that ANSI levels

◮ too ambiguous ◮ does not cover all possible scenarios!

See A Critique of ANSI SQL Isolation Levels (1995)

Software transactional memory 72/83 Software transactional memory -

Outline

Software transactional memory Transactions Software transactional memory

Software transactional memory 73/83 Software transactional memory -

Classical problem

◮ transfer money from bankA to bankB (defn transfer [from to amount] (reset! from (- @from amount )) (reset! to (+ @to amount ))) ◮ Works without problems with single thread (def bankA (atom 20.0)) (def bankB (atom 10.0)) (transfer bankA bankB 4.0) (println @bankA) ; -> 16.0 (println @bankB) ; -> 14.0 ◮ deref/reset! is not atomic, so two threads may end up with

incorrect result

◮ classical Java solution uses locks

Software transactional memory 74/83 Software transactional memory -

Atomic is not enough

◮ make both operations atomic themselves (defn transfer2 [from to amount] (swap! from (fn [v] (- v amount ))) (swap! to (fn [v] (+ v amount )))) ◮ both swap! operations are atomic themselves ◮ however, if the second one fails (by any reason), the first one

has already removed money from the first account

◮ it is required to restore the original state

◮ there are more complex examples with many reads/writes

Software transactional memory 75/83 Software transactional memory -

Refs

◮ mutable entities that STM operates with ◮ must be accessed within a transaction (dosync) ◮ @/deref – read value of a ref

◮ inside transaction has repeatable read semantics ◮ in fact uses the value that was at the start of the transaction ◮ can do that using versions (explanation follows)

◮ ref-set – sets the value inside a transaction ◮ (alter ref update-fn & args...) – changes the value inside the

transaction

◮ other transactions see it only after this commits

◮ commute – special case where mutation time is not critical

◮ re-executed at the end of a transaction if needed

Software transactional memory 76/83 Software transactional memory -

STM Example

◮ banking example (def bankC (ref 20.0)) (def bankD (ref 10.0)) ◮ using deref and ref-set (defn transfer3 [from to amount] (dosync (ref -set from (- @from amount )) (ref -set to (+ @to amount )))) ◮ using alter (defn transfer4 [from to amount] (dosync (alter from (fn [v] (- v amount ))) (alter to (fn [v] (+ v amount )))))

Software transactional memory 77/83 Software transactional memory -

STM Diagram

Software transactional memory 78/83 Software transactional memory -

STM in Clojure

multiversion concurrency control (MVCC) in Clojure (implementation may differ from these semantics)

◮ every transaction has start time ◮ every ref has version – time of last commit

◮ read fails if current transaction start time < ref time,

transaction restarted unless

◮ copy has been made earlier on a write ◮ or there is appropriate version in the ref history queue (see

next slide)

◮ creates in-transaction copy for every ref written in transaction

◮ copies are saved to the ref on commit, if their versions (times)

has not been changed since the start of the transaction

Software transactional memory 79/83 Software transactional memory -

Ref history queue

◮ every ref has history queue of previous ref values (ref -history -count rf)

◮ initially history is not maintained (count=0), even when

written

◮ history queue count is increased if there is failed read (see

previous slide)

◮ no actual value is yet stored at this point ◮ value is stored on any following commit

◮ idea: transaction need not be restarted if there is the version

in the history that was at the start of the transaction

◮ ref-min-history, ref-max-history (see ref documentation)

Software transactional memory 80/83 Software transactional memory -

Write-skew

◮ value used in a transaction that is never written, but may be

modified at the end of the transaction

◮ book example: daylight parameter that defines how much

damage is inflicted in the battle

◮ my example: max energy available <= sum of consumed

energies

◮ if max energy is rewritten while transaction changes one of

consumed energies

◮ transaction uses historical value of the max energy

◮ Clojure solution: ensure command – as (ref-set a @a) but more

efficient

◮ does not cause other transactions to fail

Software transactional memory 81/83 Software transactional memory -

Livelock problem

◮ one long transaction ◮ many short transactions that modify a value read or written by

the long one

◮ read fails because history queue needs to grow very long before

long transaction may succeed

◮ write fails because confilcted value always overwritten when

long transaction finishes, so it has to restart

Guideline:

◮ try to reduce number of refs with potential conflict ◮ try to keep transactions short

Software transactional memory 82/83 Software transactional memory -

Summary

◮ Use two levels in your program:

• 1. immutable state of objects
• 2. stored in mutable refs that are modified in transactions

◮ for example

• 1. game state (field state, player states) is stored in immutable

structures

• 2. game itself is stored in mutable ref that may be modified by

several threads (e.g. socket listener threads)
