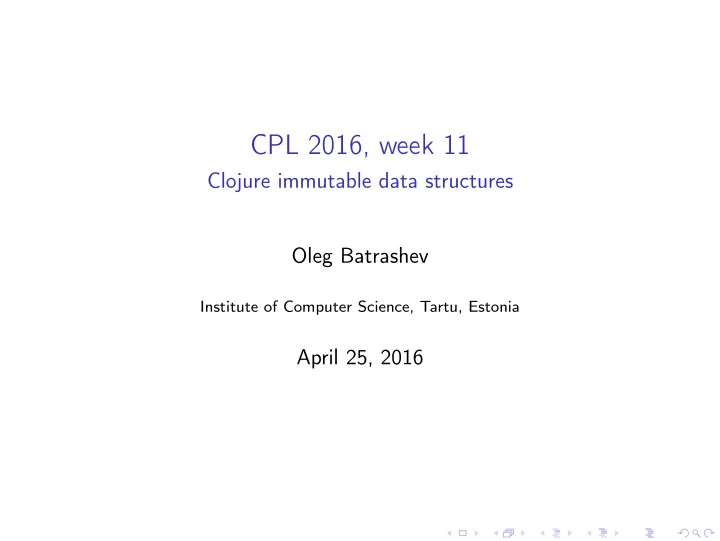

CPL 2016, week 11

Clojure immutable data structures Oleg Batrashev

Institute of Computer Science, Tartu, Estonia

April 25, 2016

Overview

Last week

◮ Clojure language core

This week

◮ Immutable data structures

Next weeks

◮ Clojure simple state and design ◮ Software transactional memory ◮ Agents in Clojure

Immutable data structures 27/74

• Trees

◮ (defrecord tree [value left right]) – Java class with 3

immutable fields

◮ Having (tree. 3 :leaf (tree. 33 :leaf :leaf))

◮ want to replace 3 with 45

tree 3 leaf tree 33 leaf leaf

Immutable data structures 27/74

• Trees

◮ (defrecord tree [value left right]) – Java class with 3

immutable fields

◮ Having (tree. 3 :leaf (tree. 33 :leaf :leaf))

◮ want to replace 3 with 45

tree 3 leaf tree 33 leaf leaf tree 45

◮ need to create new node and point to the subtrees ◮ in general, path from root to node must be reconstructed ◮ whoever references (part of) the tree never sees any changes

Immutable data structures 28/74

• Immutable data structures

◮ “Purely functional data structures” (book)

◮ immutable – whoever has reference never sees any changes ◮ structural sharing – old instance shares data with the new one ◮ assymptotically (almost) as efficient as transient

implementations

◮ O(log32 n) for unsorted collections (vector,hash-map,hash-set) ◮ O(log2 n) for sorted collections (sorted-map,sorted-set) ◮ in Clojure referred as persistent collections

◮ transient counterparts

◮ handy for local,temporary operations, like StringBuffer

Immutable data structures 29/74

• Benefits

◮ may be safely

◮ passed to functions ◮ used as keys in maps and entries in sets

◮ enabling concurrency

◮ sharing collections between threads is safe

◮ free versioning

◮ old versions of the instance are untouched – may store them to

a sequence and use for undo

Immutable data structures 30/74 Binary Tree -

Outline

Immutable data structures Binary Tree Working with immutable data Binary search tree Balanced BST Other algorithms Persistent vector and map

Immutable data structures 31/74 Binary Tree -

Definition

◮ A node in binary tree can be either

◮ a leaf – :leaf ◮ an internal node – with left and right subtrees

(defrecord Node [value left right ]) ◮ Ex: (Node. 15 :leaf (Node. 33 :leaf :leaf))

tree 15 leaf tree 33 leaf leaf

◮ More compactly

15 33

Immutable data structures 32/74 Binary Tree -

Depth-first traversal

◮ Traverse left subtree then right subtree (defn dft [node] (if (= node :leaf) (println :leaf) (do (println (. value node )) (dft (. left node )) (dft (. right node ))))) ◮ by itself not specifically useful

◮ add accumulator

Immutable data structures 33/74 Binary Tree -

DFT with accumulator

(defn - dft -acc -impl [node acc] (if (= node :leaf) acc (let [lAcc (dft -acc -impl (. left node) acc) cAcc (cons (. value node) lAcc) rAcc (dft -acc -impl (. right node) cAcc )] rAcc ))) (defn dft -acc [node] (reverse (dft -acc -impl node '()))) ◮ List accumulator

◮ grow from list head ◮ reverse at the end

Immutable data structures 34/74 Binary Tree -

Breadth-first traversal

• 1. put tree root node to a queue
• 2. iteratively

2.1 take tree node from the queue 2.2 process node 2.3 put child nodes to the queue

◮ queue could be immutable (see below)

Immutable data structures 35/74 Working with immutable data -

Outline

Immutable data structures Binary Tree Working with immutable data Binary search tree Balanced BST Other algorithms Persistent vector and map

Immutable data structures 36/74 Working with immutable data -

Accessing

◮ Having collection/object like (def d {:somekey 42}) access (d :somekey) (: somekey d) (. somekey d) (get d :somekey) (get -in d [: somekey ])

• 1. works for lists and maps
• 2. works for maps and records, may return nil
• 3. works for records/types/objects, may throw

NullPointerException

• 4. works for lists, maps and records
• 5. multilevel get, may specify list of keys for several levels

Immutable data structures 37/74 Working with immutable data -

“Update” immutable state

(assoc d :newkey 43 :key3 44) (conj d [: newkey 43]) (into d {: newkey 43}) (assoc -in d [: newkey 2 3] 43) ; -> {: somekey 42, :newkey {2 {3 43}}}

• 1. assign new values, works with lists, maps, and records
• 2. update elements, works with lists, maps
• 3. update several elements (from another collection)
• 4. multilevel update, works with maps and records

All of them return new object, because you are working on immutable structures!

Immutable data structures 38/74 Binary search tree -

Outline

Immutable data structures Binary Tree Working with immutable data Binary search tree Balanced BST Other algorithms Persistent vector and map

Immutable data structures 39/74 Binary search tree -

Definition

◮ binary search tree (ordered binary tree)

◮ values in ◮ left subtree are smaller ◮ right subtree are larger

15 6 3 8 33

Immutable data structures 40/74 Binary search tree -

Lookup

(defn lookup [node v] (if (= node :leaf) :not -found (let [nodeV (. value node )] (cond (= v nodeV) v (< v nodeV) (lookup (. left node) v) (> v nodeV) (lookup (. right node) v))))) ◮ this is set, should have key&value to act as map

Immutable data structures 41/74 Binary search tree -

Insertion

(defn insert -1 [node v] (if (= :leaf node) (Node. v :leaf :leaf) (let [{nv :value nl :left nr :right} node] (if (< v nv) (Node. nv (insert -1 nl v) nr) (Node. nv nl (insert -1 nr v)) ))))

15 6 3 8 33

Immutable data structures 41/74 Binary search tree -

Insertion

(defn insert -1 [node v] (if (= :leaf node) (Node. v :leaf :leaf) (let [{nv :value nl :left nr :right} node] (if (< v nv) (Node. nv (insert -1 nl v) nr) (Node. nv nl (insert -1 nr v)) ))))

15 6 3 8 7 33

Immutable data structures 42/74 Binary search tree -

Insertion (2)

◮ Record may have many fields – we want to redefine one ◮ Record acts as a type (later) and as a dict

◮ use assoc as for dictionary ◮ record fields accessed by Keyword keys

(defn insert [node v] (if (= :leaf node) (Node. v :leaf :leaf) (if (< v (. value node )) (assoc node :left (insert (. left node) v)) (assoc node :right (insert (: right node) v)))))

Immutable data structures 43/74 Binary search tree -

Deletion (1)

(defn remove -smallest [node] ;; Remove the smallest value from the tree and ;; return it with the node root. (when node (let [[Yp Tp] (remove -smallest (. left node ))] (if Yp [Yp (assoc node :left Tp)] [(. value node) (: right node )]))))

Y T1 T2 ? T1 T2 Yp Yp T1 Tp Yp

Immutable data structures 44/74 Binary search tree -

Deletion (2)

• 1. find v in tree
• 2. cut nv2 (smallest) from right subtree nr
• 3. put nv2 and nr2 into the place of node

(defn delete [{nv :value , nl :left , nr :right :as node} v] (cond (nil? node) nil ;; recurse into left/right subtree , reconstruct new tree (< v nv) (Node. nv (delete nl v) nr) (> v nv) (Node. nv nl (delete nr v)) ;; found the nvalue , return it and cut the right subtree (= v nv) (let [[ nv2 nr2] (remove -smallest nr)] (if -not (nil? nv2) ; is right subtree non -empty? (Node. nv2 nl nr2) nl)) ))

Immutable data structures 45/74 Balanced BST -

Outline

Immutable data structures Binary Tree Working with immutable data Binary search tree Balanced BST Other algorithms Persistent vector and map

Immutable data structures 46/74 Balanced BST -

Overview

◮ Balanced binary search tree

◮ binary search tree ◮ complexities ◮ lookup O(log n) ◮ insertion O(log n) ◮ deletion O(log n) ◮ iterate over elements O(n)

◮ Variants

◮ Red-black tree ◮ AVL tree ◮ others

Immutable data structures 47/74 Balanced BST -

Red-black tree: definition

• 1. A node is either red or black
• 2. Root node is black
• 3. All leaves are black
• 4. Both children of every red node are black
• 5. Same number of black nodes in each path from the root to a

leaf 15 6 3 8 33 Property

◮ the longest path is less than 2 times the shortest path

◮ hint: shortest must be all blacks

Immutable data structures 48/74 Balanced BST -

Rotate

◮ left and right rotation if two nodes are red

◮ assume changes are made in A (B)

◮ right rotation

◮ if U and root of A (root of B) are both red ◮ change the color of the root A (root of B) to black ◮ preserves ordering

V U A B C U V A B C right rotate left rotate

Immutable data structures 49/74 Balanced BST -

Rotate right: code

(defn - rotate -right -if -reds [{U :left C :right :as V}] (let [A (: left U) B (: right U)] (cond (or ; two cases when need to rotate (and (= (: color U) :red) (= (: color A) :red )) (and (= (: color U) :red) (= (: color B) :red ))) (assoc U :left (assoc A :color :black) :right (assoc V :left B)) :true V ; else do not rotate )))

Immutable data structures 50/74 Balanced BST -

Rotate left: code

(defn - rotate -left -if -reds [{A :left V :right :as U}] (let [B (: left V) C (: right V)] (cond (or ; two cases when need to rotate (and (= (: color V) :red) (= (: color B) :red )) (and (= (: color V) :red) (= (: color C) :red ))) (assoc V :left (assoc U :right B) :right (assoc C :color :black )) :true U ; else do not rotate )))

Immutable data structures 51/74 Balanced BST -

Insertion (1)

◮ insert red node as in binary search tree

◮ rotate if somewhere appear two red nodes

◮ leave black in the root (may appear red as the result of

rotation)

(defn insert [v T] (let [T2 (insert -and -rotate v T)] (assoc T2 :color :black )))

Immutable data structures 52/74 Balanced BST -

Insertion (2)

◮ insert here if in leaf or found the location ◮ otherwise, insert new value into the left or right subtree

◮ try to rotate right or left correspondingly

(defn - insert -and -rotate [v T] (cond (nil? T) (Node. :red v nil nil) (= v (. value T)) T (< v (. value T)) (let [T2 (insert -and -rotate v (. left T))] (rotate -right -if -reds (assoc T :left T2 ))) (> v (. value T)) (let [T2 (insert -and -rotate v (. right T))] (rotate -left -if -reds (assoc T :right T2 ))) ))

Immutable data structures 53/74 Other algorithms -

Outline

Immutable data structures Binary Tree Working with immutable data Binary search tree Balanced BST Other algorithms Persistent vector and map

Immutable data structures 54/74 Other algorithms -

Queue (1)

◮ queue may be represented as list, e.g. 1|4|5|nil

◮ adding or removing from head is easy and cheap ◮ adding or removing from tail requires full list copy

◮ alternative: queue with 2 lists

◮ Backward list is used to prepend elements to it ◮ Forward list is used to take elements from it ◮ queue = FList + reversed BList ◮ if forward list is empty it is replaced with reversed backward list

Immutable data structures 55/74 Other algorithms -

Queue (2)

fun {New} queue(nil nil) end fun {IsEmpty Q} queue(FList BList) = Q in FList==nil andthen BList==nil end % append element to the queue proc {Append Q X ?Qn} queue(FList BList) = Q in Qn = queue(FList X|BList) end

Immutable data structures 56/74 Other algorithms -

Queue (3)

% take element from the queue proc {Take Q ?X ?Qn} queue(FList BList) = Q in if FList\=nil then X = FList.1 Qn = queue(FList.2 BList) elseif BList\=nil then RBList in % reverse RBList = {Reverse BList} X = RBList.1 Qn = queue(RBList.2 nil) else raise app("List is empty") end end end

Immutable data structures 57/74 Other algorithms -

Queue (4)

◮ new reference is created for the updated queue

% append elements Qu = {New} Qu2 = {Append Qu 3} Qu3 = {Append Qu2 1} Qu4 = {Append Qu3 2} {System.show Qu4} % take element X Qu5 = {Take Qu4 X} {System.show X} {System.show Qu5}

◮ easy undo

◮ store old references: immutable data structures make it

possible (same for trees!)

Immutable data structures 58/74 Other algorithms -

Graphs

declarative model (as compared to non-declarative)

◮ traversing graph is possible

◮ complexity (usually) multiple of log n ◮ unless graph node ids can be stored in array

◮ changing graph may require copying the whole graph

◮ because of immutable data ◮ node references ◮ same problem for double linked list

Immutable data structures 59/74 Persistent vector and map -

Outline

Immutable data structures Binary Tree Working with immutable data Binary search tree Balanced BST Other algorithms Persistent vector and map

Immutable data structures 60/74 Persistent vector and map -

Persistent vector

◮ http://en.wikipedia.org/wiki/Trie ◮ see (link) Understanding Clojure’s PersistentVector

implementation

◮ tree with 32 children, elements stored from leftmost to the

right

◮ 2-level may store 322 = 1024 elements ◮ 6-level may store 326 = 230 elements

◮ expands as necessary – adding to the end is cheap ◮ tail data optimization – store tail to separate buffer until

exceeds 32 elements

Immutable data structures 61/74 Persistent vector and map -

Persistent map

Persistent hashmap

◮ similar ideas as in Persistent vector ◮ see http://blog.higher-order.net/2009/09/08/understanding-

clojures-persistenthashmap-deftwice Persistent sorted map

◮ implementation is immutable balanced search tree (def m (sorted -map 1 5 2 "z")) ; -> #'user/m m ; -> {1 5, 2 "z"} (m 1) ; -> 5 (type m) ; -> clojure.lang. PersistentTreeMap
