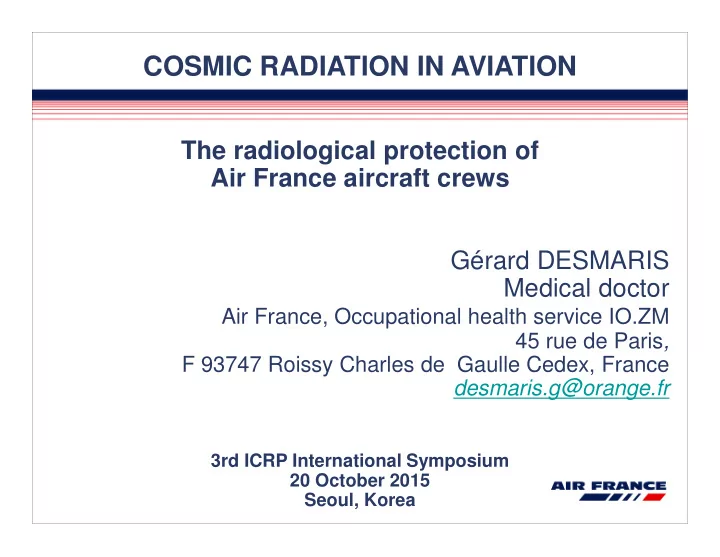

COSMIC RADIATION IN AVIATION The radiological protection of Air France aircraft crews Grard DESMARIS Medical doctor Air France, Occupational health service IO.ZM 45 rue de Paris , F 93747 Roissy Charles de Gaulle Cedex, France

slide-1
SLIDE 1

COSMIC RADIATION IN AVIATION

The radiological protection of Air France aircraft crews Gérard DESMARIS Medical doctor

Air France, Occupational health service IO.ZM 45 rue de Paris, F 93747 Roissy Charles de Gaulle Cedex, France desmaris.g@orange.fr

3rd ICRP International Symposium 20 October 2015 Seoul, Korea

slide-2
SLIDE 2

HISTORICAL ACCOUNT

DISCOVERY

  • V. HESS, W. KOLHORSTER 1912-1913
  • A. MILLIKIAN 1925
  • P. AUGER 1930

CONCERNS FOR MANED SPACE FLIGHT

  • D. SIMONS 1957

Man High Project MEASUREMENTS IN SPACE Satellites Explorer, Pionneer 1953-1958 Elektron 1964

slide-3
SLIDE 3

MEASUREMENTS ON BOARD CIVIL AIRCRAFTS

SUPERSONIC CONCORDE Mach 2 cruise 15-18 km 1969 on board first prototype 1976 on commercial flights Air France British Airways SUBSONIC AIRCRAFTS Extensive campaingns since 1990 0,8 Mach cruise 8-12 km RESULTS Concorde 12-15 µSv per hour Long haul 4-6 µSv per hour Short haul 1-3 µSv per hour CONSEQUENCE 750 boarding hours ≥ 1mSv/year

HISTORICAL ACCOUNT

slide-4
SLIDE 4

NEW INTERNATIONAL RECOMMENDATIONS

1991 : Recom m endations of the International Com m ission

  • n Radiological Protection

Tw o novelties :

  • To take into account natural sources of ionising radiation

w hen occupational exposure

  • To low er the lim its of exposure

ICRP 60

Public < 1mSv /year Exposed workers < 100mSv / 5 successive years B category 1 to 6 mSv / year A category > 6 mSv / year

slide-5
SLIDE 5

EUROPEAN REGULATION’S CHANGEOVER

slide-6
SLIDE 6

THE SIEVERT SYSTEM

SIEVERT PROJECT

Système d’Information et d’Evaluation par Vol de l’Exposition au Rayonnement cosmique dans les Transports aériens Computerized System for Flight Assessment of Exposure to Cosmic Radiation in Air Transport

  • DGAC French Airworthiness Agency
  • IRSN French Institute for Research and Nuclear Safety
  • PARIS – MEUDON Observatory
  • IFRTP French Institute for Research and Polar Technology
  • Air France
slide-7
SLIDE 7

THE SIEVERT SYSTEM

3D + Time Route with corresponding date map of dose rates 2000-2003 CARI 6 based on LUIN code Since 2004 EPCARD 3 based on FLUKA code validated by IRSN

Way points Pass throught points

Cells altitude 1000 Feet from ground to 80 000 ft Latitude 2° Longitude 10°

slide-8
SLIDE 8

PARIS OBSERVATORY SiGLE MODEL

slide-9
SLIDE 9

AIR FRANCE APPROACH

  • Assessment of aircrew individual exposures based on the

Sievert system operated by IRSN

  • Specific information aircrew members
  • Adjustment of the flight schedule if individual dose approaching

4 mSv/year

  • Support of a radiation protection officer for scheduling flights
  • Routine occupational health surveillance of flight personnel
  • Pregnant female aircrew are normally suspended from flying but

can exceptionally continue if they wish so

slide-10
SLIDE 10

EXPOSURE’S FOLLOW UP OF AIRCREWS

100 Cabin crew 100 Flight deck crew

slide-11
SLIDE 11

SOLAR WIND AND GALACTIC RAYS EARTH MAGNETIC FIELD - EARTH ATMOSPHERE

slide-12
SLIDE 12

HIGHEST DOSES 2001-2014

3.33 3.78 3.48 3.99 4.39 4.89 4.96 5.09 5 4.87 4.45 3.91 4.06 3.93 3.15 3.43 3.74 4.06 4.25 4.77 5.07 5.07 5.5 4.91 4.68 4.41 4.48 3.87 3 3.5 4 4.5 5 5.5 6 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Pilote PNC

slide-13
SLIDE 13

DISTRIBUTION OF INDIVIDUAL DOSES

C

slide-14
SLIDE 14

ANNUAL AVERAGE EXPOSURES 2005 - 2014

1.86 2.04 2.12 2.2 2.3 2.19 2.13 2.03 2 1.82 0.5 1 1.5 2 2.5 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Doses en mSv

CABIN CREWS

1.8 2 2.14 2.2 2.21 2.09 2.03 1.92 1.86 1.78 0.5 1 1.5 2 2.5 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Doses en mSv

PILOTS

slide-15
SLIDE 15

PREGNANT PILOTS Allowed to fly for the two first trimesters since 2005 in Europe If they agree If they are fit Information encourage early report of the pregnancy Dose to the fetus < 1 mSv About 200 flying hours

slide-16
SLIDE 16

TOWARD AN EDUCATIONAL PROGRAM

Operating procedure Health manual News bulletin Flyers Films E-learning : 14,000 attendants

  • ver 3 years
slide-17
SLIDE 17

SOLAR FLARES WITH GLE Four radiations storms taken into account since 2000 14 July 2000 GLE59 15 April 2001 GLE 60 20 January 2005 GLE 69 13 December 2006 GLE 70 Middle magnitude S3 : 0.1 mSv/h altidude 12 Km, duration 1 to 6 hours Dose X 2 for flights hit Remember GLE 05 23 February 1956 estimate 10 mSv/h

slide-18
SLIDE 18

SUPERSONIC CONCORDE DURING GLE Radiation monitoring equipment in the flight deck Mandatory above 15 Km Triggered at 0.5 mSv/hour 3 emergency descents reported 9 january 1997 1 mSv/h at 16 Km then 10 mSv at 17.6 Km Return to 16 Km to pursue cruise toward NY PARIS NEW YORK 0.5 mSv (X4)

slide-19
SLIDE 19

IRSN - AF PARTNERSHIP FOR SPACE WEATHER RESEARCH

GLE

7 Liulin and 30 EPD N2 are today availale on board Solar Proton Event 7 january 2014 no significant dose’s increase recorded at flight level

TGF

1928 RPL Dosimeters analysed from 2009 to 2014 No trace of a TGF was found

slide-20
SLIDE 20

CONCLUDING REMARKS Aviation is a justified activity Althougt possibilities to control exposures are limited, implementation of a radiological protection strategy is feasable The objective is :

  • first to keep highly

exposed crews to reasonable level

  • second to raise

awareness about cosmic radiation
