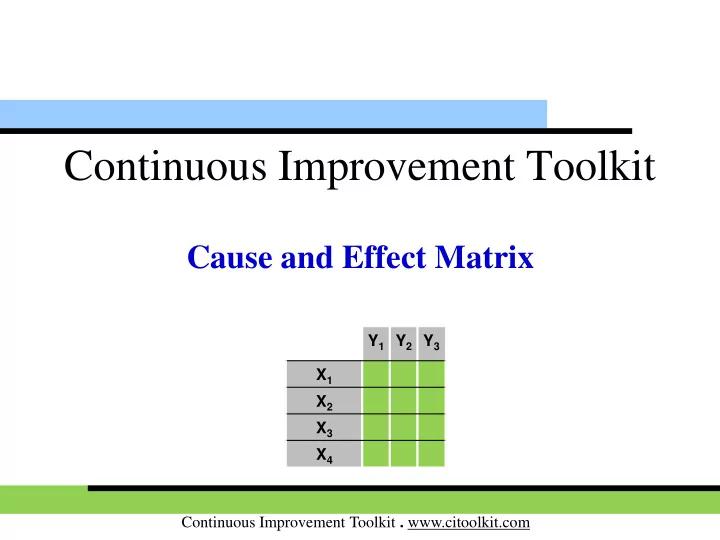

Continuous Improvement Toolkit

Cause and Effect Matrix

Y1 Y2 Y3 X1 X2 X3 X4

Continuous Improvement Toolkit . www.citoolkit.com

Check Sheets

Data Collection

Affinity Diagram

Designing & Analyzing Processes

Process Mapping Flowcharting Flow Process Chart 5S Value Stream Mapping Control Charts Value Analysis Tree Diagram**

Understanding Performance

Capability Indices Cost of Quality Fishbone Diagram Design of Experiments

Identifying & Implementing Solutions***

How-How Diagram

Creating Ideas**

Brainstorming Attribute Analysis Mind Mapping*

Deciding & Selecting

Decision Tree Force Field Analysis Importance-Urgency Mapping Voting

Planning & Project Management*

Activity Diagram PERT/CPM Gantt Chart Mistake Proofing Kaizen SMED RACI Matrix

Managing Risk

FMEA PDPC RAID Logs Observations Interviews

Understanding Cause & Effect

MSA Pareto Analysis Surveys IDEF0 5 Whys Nominal Group Technique Pugh Matrix Kano Analysis KPIs Lean Measures Cost -Benefit Analysis Wastes Analysis Fault Tree Analysis Relations Mapping* Sampling Benchmarking Visioning Cause & Effect Matrix Descriptive Statistics Confidence Intervals Correlation Scatter Plot Matrix Diagram SIPOC Prioritization Matrix Project Charter Stakeholders Analysis Critical-to Tree Paired Comparison Roadmaps Focus groups QFD Graphical Analysis Probability Distributions Lateral Thinking Hypothesis Testing OEE Pull Systems JIT Work Balancing Visual Management Ergonomics Reliability Analysis Standard work SCAMPER*** Flow Time Value Map Measles Charts Analogy ANOVA Bottleneck Analysis Traffic Light Assessment TPN Analysis Pros and Cons PEST Critical Incident Technique Photography Risk Assessment* TRIZ*** Automation Simulation Break-even Analysis Service Blueprints PDCA Process Redesign Regression Run Charts RTY TPM Control Planning Chi-Square Test Multi-Vari Charts SWOT Gap Analysis Hoshin Kanri

Continuous Improvement Toolkit . www.citoolkit.com

Cause and Effect Matrix:

 Used to understand the relationship

between causes and effects.

 Consists of a two-dimensional array.  It will help:

• Determining the nature the problem.
• Prioritizing potential causes.
• Minimizes the need for more expensive statistical evaluation
• f inputs that are unlikely to have an impact on the output.
• Cause and Effect Matrix

Y1 Y2 Y3 X1 X2 X3 X4

Continuous Improvement Toolkit . www.citoolkit.com

Approach:

 Identify the problem and the possible causes (Fishbone diagram).  The (X’s) will be listed along the left side of the matrix.  The (Y’s) will be listed along the top of the matrix.  The (Y’s) are then ranked in terms of importance.  The relationship between causes and effects are ranked and an

• verall score is calculated.

 The causes with the highest overall

score should be addressed first in improvement efforts.

• Cause and Effect Matrix

Continuous Improvement Toolkit . www.citoolkit.com

Example – Explore the Process of Doing a Load of Laundry:

 The “Critical to Quality” factors for the process:  Clean clothes.  Clothes smell good.  Wrinkle-free.  No shrinkage.

• Cause and Effect Matrix

Continuous Improvement Toolkit . www.citoolkit.com

Example – Explore the Process of Doing a Load of Laundry:

• Cause and Effect Matrix

Laundry sorted Wash temp. Rinse temp. Washer type Detergent Load size Softener Cycle used

Load on the Laundry

Continuous Improvement Toolkit . www.citoolkit.com

Example – Explore the Process of Doing a Load of Laundry:

• Cause and Effect Matrix

Inputs / Outputs

Clean clothes Clothes smell good Wrinkle free No shrinkage Score Weight

10 7 5 3

Laundry sorted

9 9 117

Cycle used

3 1 1 3 51

Wash temperature

9 1 3 106

Rinse temperature

1 5

Load size

3 9 75

Softener

9 3 1 81

Detergent

9 3 3 1 129

Washer type

3 3 45
