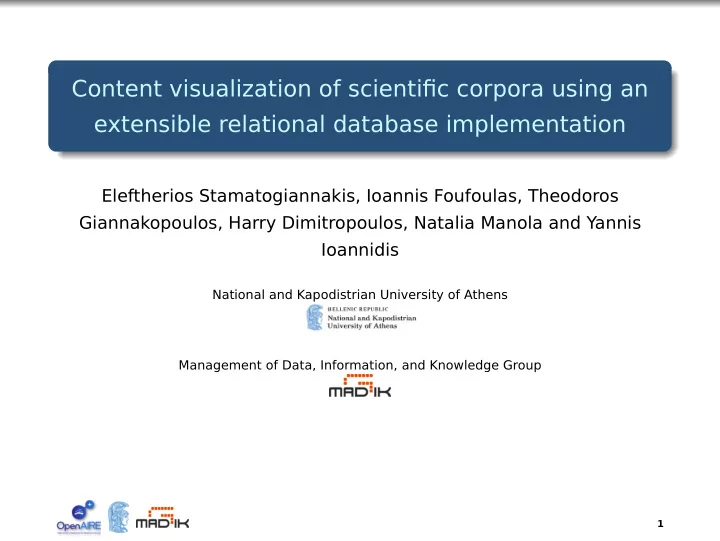

Content visualization of scientific corpora using an extensible relational database implementation

Eleftherios Stamatogiannakis, Ioannis Foufoulas, Theodoros Giannakopoulos, Harry Dimitropoulos, Natalia Manola and Yannis Ioannidis

National and Kapodistrian University of Athens Management of Data, Information, and Knowledge Group

1

. . Introduction

Goal: content-based visualization of scientific documents Scientific documents: rich and diverse Applied on three datasets Application on publications that share a common funding scheme (e.g. EU FP7-ICT): funding mining submodule Implemented in madIS: data analysis via extended relational db OpenAIRE+ EU project

“2nd-Generation Open Access Infrastructure for Research in Europe” - 283595 infrastructure of publication - data repositories implements EC’s open access policies connects publications to research data and funding automatic content clustering and classification

2

. . Content-based classification (1)

Document d representation:

. .

1

tokenization . .

2

stop word removal . .

3

stemming . .

4

term frequency dfd(t) calculation

repeat for each class c estimate P(t) and P(t|c) build for each class c:

a dictionary Dc an array of respective weights Wc

3

. . Content-based classification (2)

add term t if

P(t|c) P(t) > T

Wc(t) =

P(t|c) P(t)

classification based on sum of logs actually equivalent to the Naive Bayes classifier

4

. . Visualization of text corpora, Class representation - dimensionality reduction (1)

Goal: class representation in 2D space Classes of similar content are close A dimensionality reduction task (classes instead of samples) Previous step: class represented by a set of terms and weights Compute similarity matrix: S(c1, c2) =

∑N1

i=1 Wc2(k : Dc1(i) = Dc2(k))

∑N2

i=1 Wc2(i)

+ ∑N2

i=1 Wc1(k : Dc2(i) = Dc1(k))

∑N1

i=1 Wc1(i)

(1)

classes c1 and c2, dictionaries Dc1 and Dc2 , weights Wc1 and Wc2 , number of terms per dictionary N1 and N2 5

. . Visualization of text corpora, Class representation - dimensionality reduction (2)

S: class distributions in the RM space (M: #classes) Reduce dimension to 2 using discretized class representations Step 1: reduce the feature space via clustering (k clusters):

use rows of S as samples compute distance between rows i of S and clusters j: d(i, j) each class now represented by its distances from clusters k feature space

Step 2: use SOM to map k-dimensional space to 2D avoid numerical - computational issues in SOM training

6

. . Visualization of text corpora, Content visualization of unlabelled corpora

“Batch” classification + visualization for a corpus For every document i, i = 1, . . . , Nd:

apply the classifier soft-outputs: Pi(c) for each class c = 1, . . . , M

Collection of documents is represented for each class c, using:

the 2-D class estimated coordinates the accumulated estimated content class probability

[Xc, Yc, ∑Nd

i=1 Pi(c)

Nd

]

where, Xc, and Yc are the estimated 2-D class coordinates Adopt a balloon representation

7

. . Fund Mining Module

Goal: detect particular funding schemes Started with EU FP7-funded Recently extended to Wellcome Trust projects Currently: handle arbitrary number of funding Funding information important for: funding statistics - visual analytics. Here funding information is used to specify the types of documents being visualized Module either used on individual docs or in batch mode Preprocessing (stopwords removal, tokenization, etc) Find matches against known lists of project grant agreement numbers - acronyms Use contextual information to filter out false matches

8

. . Datasets

arXiv (arxiv.org)

coverings 7 categories 2 level hierarchy (2nd: 130 classes 2nd level - 7 general categories)

• nly use 2nd level labels

arXiv.org API used to retrieve the docs (450K abstracts used)

BASE (www.base-search.net).

• pen access archive of scientific docs
• perated by Bielefeld University Library

DDC categorization (Dewey Decimal Classification) 35K annotated documents in the English language 2 DDC levels (i.e. 100 classes)

WoS (Web of Science)

http://thomsonreuters.com/web-of-science 180 class labels (non-hierarchical) 18K labelled abstracts

9

. . Implementation Issues (1)

Training and testing (both classification and visualization modules):

implemented in Python external libraries, e.g. NumPy, NLTK,...

But: need a release version for the testing case:

implementation in the context of a data processing workflow, easily transferred to a distributed environment

Achievable? Yes: adopted scheme only involves text segmentation, dictionary terms retrieval and a simple weights computation

10

. . Implementation Issues (2)

Implemented in madIS (https://code.google.com/p/madis/) Data analysis via an extended relational database Built on top of the SQLite database with Python extensions Feels like Hadoop SQL without the overhead but also without the distributed processing capabilities madSQL, an SQL-based: extended with UDFs (User Defined Functions) Eliminates the effort using UDFs (UDFs are first class citizens in the query language itself) UDF categories:

row: analogous to the Map operator of Map/Reduce systems aggregate: capture arbitrary aggregation functionality beyond the one predefined in SQL (SUM(), AVG(), ...).Analogous to the Reduce operator virtual table: (table functions in Postgresql and Oracle) used to create virtual tables

11

. . Implementation Issues (3)

UDF functionality + traditional relational DB facilities (UDFs closely tied to the relational DB engine): eliminates the communication cost between the two execution layers (functional/relational) Naive bayes classification example:

use a UDF to split documents into words use the relational facilities to calculate word frequencies use aggregate UDFs to compute sum of logs ALL done in one madSQL query, completely within madIS

every process (classification, visualization) is implemented in terms of an (extended) SQLite query:

create temp table if not exists resultsT able as select ontop(5, p, title,class,matches,p) from (select title,class,jgroup(term,p) as matches,sum(p) as p from (select * from (select title,textwindow((summary),0,0,2) from abstractT able),arxiv where middle = term or regexpr(’(\S+)(\s)(\S+)’,middle,’1’) = term) group by title,class) group by title ; 12

. . Results - Classification Evaluation on the arXiv dataset

(different probability ratio thresholds) 13

. . Results - Classification Module Execution Times

T able: Average execution times per abstract. Higher dictionary thresholds (less dictionary terms) obviously lead to faster classifications. Times are in msecs

# abstracts T = 2 T = 10 T = 20 T = 30 T = 50 10 63 27 21 20 17 15000 57 23 15 13 10

14

. . Results - Visualization Example: FP7 - ICT calls - ARXIV

arXiv astro-ph.GA Astroph.

• Galaxy

Astrophysics astro-ph.SR Astroph.

• Solar

and Stellar cs.DB CS - Databases cs.DL CS

• Digital

Li- braries cs.IT CS

• Information

Theory cs.LG CS

• Machine

Learning cs.PF CS - Performance cond- mat.other Condensed Matter

• Other

hep-lat High Energy Physics - Lattice hep-th High Energy Physics - Theory physics.geo- ph Physics

• Geo-

physics physics.optics Physics - Optics physics.space- ph Physics

• Space

Physics quant-ph Quantum Physics q-bio.CB Quantitative Biol-

• gy - Cell Behavior

stat.ML Statistics - Machine Learning 15

. . Results - Visualization Example: FP7 - ICT calls - WOS

WOS BU Astronomy - Astro- physics GC Geochemistry & Geophysics GU Ecology IQ Engineering, Elec- trical & Electronic EX Computer Science, Theory & Methods HL Health Care Sci- ences LE Geosciences, Mul- tidisc. PU Mechanics RU Neurosciences UB Physics, Applied UK Physics, Con- densed Matter UI Physics, Multidisc. UP Physics, Particles & Fields YE T ellecom. 16

. . OpenAIRE mining service BETA

http://hatter.madgik.di.uoa.gr:8080/openaireplus/classifier returns a jason-like result (for several taxonomies, not only arXiv)

17

. . Ongoing work

Detailed Evaluation (visualization functionality) Visualization enhancement (e.g, a tag cloud for each estimated class probability) Semi-supervised techniques (e.g., probabilistic topic modeling).
