CONSTRUCTION ASSEMBLY DETAILS Sectional view Roof timber External - - PDF document

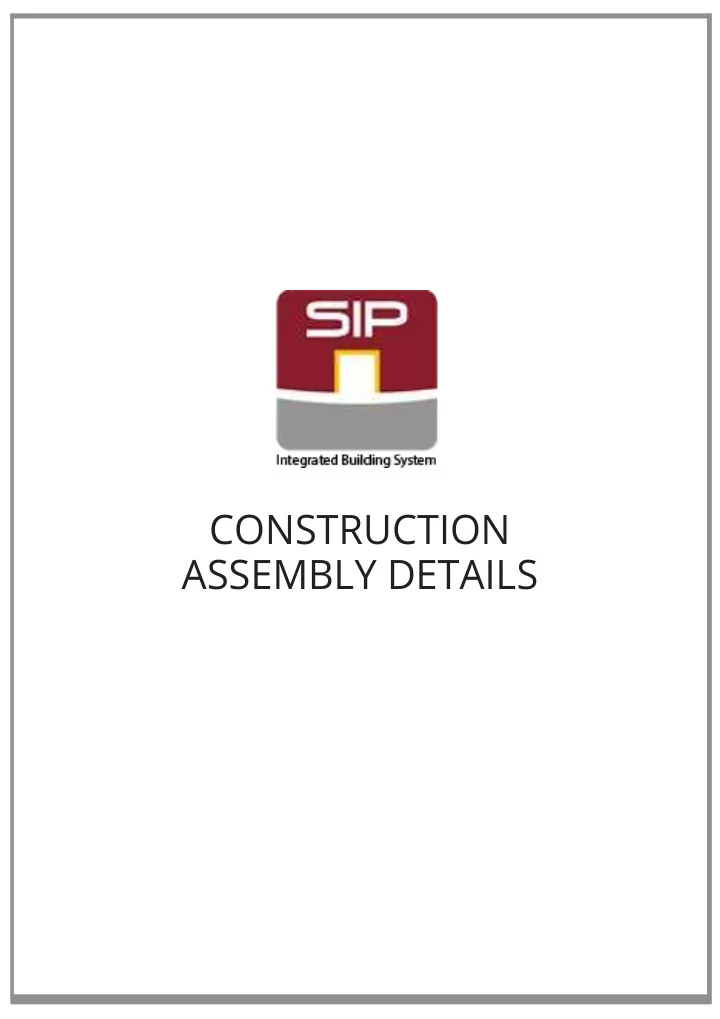

CONSTRUCTION ASSEMBLY DETAILS

Sectional view

Detail no.

01

Detail:

SECTIONAL VIEW

External facing Roof timber S.I.P. system beams

(Posi Joist system/ solid wood beams/

I

) type wooden beams

Wall panel (S.I.P. system) faced with gypsum board/ MGO board

Tyvek

Detail no.

02

Detail:

• roof view-

SECTIONAL VIEW

Wall panel (S.I.P. system) faced with gypsum board/ MGO board Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

External facing Roof tile covering Roof timber

Sectional view

External facing

Detail no.

03

Detail:

• outside view -

SECTIONAL VIEW

Strip boards, collar beams Roof tile covering Top plate/ Bottom plate Wall panel (S.I.P. system) Roof panel (S.I.P. system) Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

Parquet floor O.S.B. panel Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

Gypsum board/ MGO board Aerated concrete (acoustic insulation) Thermal insulation Reinforced concrete slab Hydroinsulation sheet Reinforced concrete foundation

Sectional view

Reinforced concrete foundation

Detail no.

04

Detail:

• inside view -

SECTIONAL VIEW

Wall panel (S.I.P. system) Top plate/ Bottom plate Gypsum board/ MGO board Collar beam (wooden) Roof tile covering Roof panel (S.I.P. system) Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

Parquet floor O.S.B. panel Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

Gypsum board/ MGO board Aerated concrete (acoustic insulation) Thermal insulation Reinforced concrete slab Hydroinsulation sheet

Sectional view

• foundation view -

SECTIONAL VIEW

Detail no.

05

Detail:

Bricks protection for foundation Reinforced concrete foundation Utilities pipes Utilities pipes Parquet floor Aerated concrete (acoustic insulation) Thermal insulation Reinforced concrete slab Hydroinsulation sheet

Sectional view

Tyvek

NOTE:

For openings / holes less than 250 mm x 250 mm there is no need for window framing.

Detail no.

06

Detail: - extrernal wall - window joint -

SECTIONAL VIEW

Window sill (sheet) External facing O.S.B. panel P.I.R. foam Wooden opening frame Wooden window sill Wooden opening frame

Sectional view

Tyvek

Detail no.

07

Detail:

SECTIONAL VIEW

• external wall - floor joint -

Tyvek Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

O.S.B. panel Parquet floor Wooden window sill Wooden opening frame P.I.R. foam O.S.B. panel Window sill (sheet) Wooden opening frame External facing Metallic connection angle (for beams) Gypsum board/ MGO board Wall panel (S.I.P. system)

Sectional view

Detail no.

08

Detail:

BEAM TYPES -

external wall - floor joint -

I type wooden beams

Solid wood beams

External facing External facing External facing Top plate/ Bottom plate Top plate/ Bottom plate Top plate/ Bottom plate Metallic connection angle (for beams) Metallic connection angle (for beams) Metallic connection angle (for beams) Wall panel (S.I.P. system) Wall panel (S.I.P. system) Wall panel (S.I.P. system) Parquet floor O.S.B. panel Beams (Posi Joist

system)

Gypsum board/ MGO board Parquet floor O.S.B. panel Beams (solid wood

beams)

Gypsum board/ MGO board Parquet floor O.S.B. panel Beams (I type wooden

beams)

Gypsum board/ MGO board

Posi Joist system beams

Sectional view

Tyvek External facing

Detail no.

09

Detail:

• outside roof view -

SECTIONAL VIEW

Roof tile covering P.I.R. foam O.S.B. panel Roof panel (S.I.P. system) Wooden collar beams (for facade anchorage) Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

Gypsum board/ MGO board

Sectional view

Tyvek

Detail no.

10

Detail:

• inside roof view -

SECTIONAL VIEW

Wooden eaves O.S.B. panel Roof tile covering O.S.B. panel Beams (Posi Joist

system/solid wood beams/

I

) type wooden beams

Gypsum board/ MGO board

Sectional view

S.I.P. SYSTEM STRUCTURAL WALL

• joint view -

Detail no.

11

Detail:

S connector (same material as wall) P.I.R. foam O.S.B. panel Bottom plate

Sectional view

EXTERNAL WALLS FINISHING TYPES

Detail no.

14

Detail:

• 1. MGO facade
• 2. Evotherm facade
• 3. External false brick

finishing facade

• 5. Brick facade

(with ties - 6 pcs./ m²)

• 4. Aerated facade

Wall finishing types
