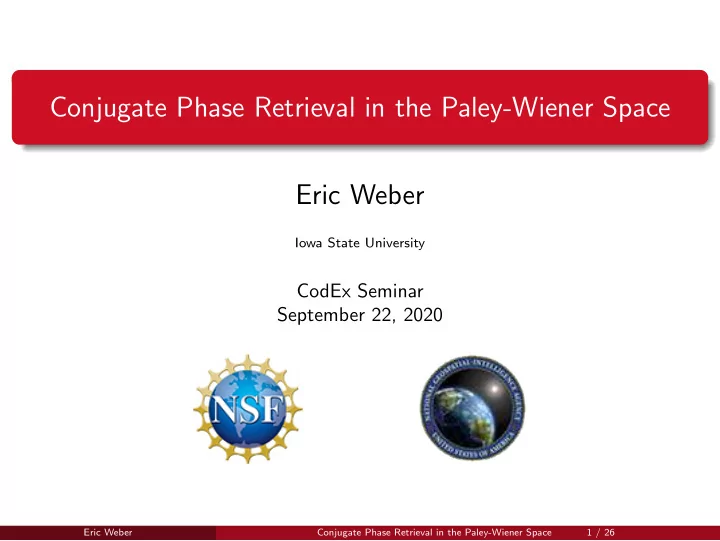

Conjugate Phase Retrieval in the Paley-Wiener Space Eric Weber Iowa - - PowerPoint PPT Presentation

Conjugate Phase Retrieval in the Paley-Wiener Space Eric Weber

Iowa State University

CodEx Seminar September 22, 2020

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 1 / 26

Acknowledgements

ChunKit Lai Friedrich Littmann San Francisco State University North Dakota State University Support from NSF Award #1830254.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 2 / 26

Phase Retrieval

Problem (Phase Retrieval)

Can a signal f be reconstructed from the magnitudes of linear measurements of f , up to the ambiguity of uniform phase factor α? Formally, we define an equivalence class on the signal space H by: f ∼ g if f = αg for some |α| = 1. then ask whether the mapping A : H/ ∼→ ℓ2(I) : f → (|φn(f )|)n is injective, where φn are linear functionals on H. If so, the next question is: how to invert A?

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 3 / 26

Conjugate Phase Retrieval

Suppose the signal space H has the property that if f ∈ H, then f ∈ H (e.g. Cd

• r the Paley-Wiener space). We formulate a weaker variation:

Problem (Conjugate Phase Retrieval–Evans & Lai [EL17])

Can a signal f be reconstructed from the magnitudes of linear measurements of f , up to the ambiguity of uniform phase factor α and the ambiguity of conjugation? Formally, we define an equivalence class on the signal space H by: f ∼ g if f = αg, or f = αg for some |α| = 1. then ask whether the mapping A : H/ ∼→ ℓ2(I) : f → (|φn(f )|)n is injective, where φn are linear functionals on H. If so, the next question is: how to invert A?

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 4 / 26

Paley-Wiener Space

Definition

For β > 0, we denote PWβ = {f ∈ L2(R)|ˆ f (ξ) = 0 a.e.|ξ| > β}.

Definition

If f ∈ PWβ, then f ♯(z) = f (z) ∈ PWβ Note that for real z, f ♯ = f . From here on, our equivalence relation is on PWβ: f ∼ g if f = αg, or f = αg ♯ for some |α| = 1.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 5 / 26

The Problem with Phase Retrieval in the PWβ

Goal

Design a sampling regime {φn} on PWβ that:

1

does conjugate phase retrieval;

2

admits a numerical reconstruction method. Preferably, the sampling regime occurs on the real axis.

Problem

If f ∈ PWβ, |f (x)| does not determine f (x) up to unimodular scalar, or conjugation either (here, x ∈ R). If ˆ f is supported in an interval smaller than 2β, ˆ f can be shifted to remain in (−β, β), which modulates f (x).

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 6 / 26

Phase Retrieval: A Short History

1

Optics: Gerchberg-Saxton [GS72], Fienup [Fie78], Rosenblatt [Ros84], Levi-Stark [LS84]

2

Inverse Spectral Theory [KS92, KST95]

3

Frames: Balan et. al. [BCE06, BBCE09] Bandeira et. al. [BCMN14]

4

Reconstructions: Alternating projections; Wirtinger Flow; PhaseLift; PhaseMax; AltMinPhase; Kaczmarz; etc

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 7 / 26

Phase Retrieval: A Short History (cont’d)

1

Paley-Wiener space: Thakur [Tha11], Pohl-Yang-Boche [PYB14].

1

[Tha11] considers the case of real phase retrieval in PWπ. The reconstruction

• ccurs off of the real axis, where there are no zeros of the function.

2

[PYB14] considers the case of (complex) phase retrieval in PWπ by designing a sampling scheme that occurs off of the real axis. In particular, the sampling scheme as presented in [PYB14] takes the form φn(f ) =

• j

cj,nf (zn − bj,n) (1) for complex scalars cj,n, zn, bj,n. Sampling schemes such as this are referred to as structured modulations in [PYB14] because the authors there consider the reconstruction in the Fourier domain, where the shifts become modulations.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 8 / 26

Conjugate Phase Retrieval: A Short History

Proposition (McDonald [McD04])

Suppose f , g ∈ PWβ.

1

If b < β/π, and for all x ∈ R, |f (x)| = |g(x)| and |f (x + b) − f (x)| = |g(x + b) − g(x)|, then f ∼ g.

2

If for all x ∈ R, |f (x)| = |g(x)| and |f ′(x)| = |g ′(x)|, then f ∼ g.

Proposition (Evans-Lai [EL17])

If v1, v2, v3 ∈ R2 is written as

• v1
• v2
• v3
• =

a1 b1 c1 a2 b2 c2

• then

v1, v2, v3 does conjugate phase retrieval in C2 if and only if det   a2

1

2a1a2 a2

2

b2

1

2b1b2 b2

2

c2

1

2c1c2 c2

2

  = 0. (2)

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 9 / 26

Conjugate Phase Retrieval in Cd

1

CPR is weaker than PR: there exist vectors in Cd that do CPR but not PR.

2

Q: Can CPR be done with 3d vectors?

3

No proven reconstruction method exists for Conjugate Phase Retrieval in Cd.

4

We will use Gerchberg-Saxton for reconstruction. We show experimentally that it works well.

5

Q: Can CPR be made robust to noise?

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 10 / 26

Gerchberg-Saxton for Reconstruction

Given A that does conjugate phase retrieval, |AT v|, reconstruct w ∈ [ v].

1

Choose phases λ1, . . . , λn;

2

Apply (AT)† to (λ1| v, v1|, . . . , λn| v, vn|)T to obtain estimate w;

3

Replace w with (AT)† applied to w, v1 | w, v1|| v, v1|, . . . , w, vn | w, vn|| v, vn| T ;

4

Repeat step 3.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 11 / 26

Gerchberg-Saxton Method Results

Observed behavior:

1

the alternating projections method converges (Levi-Stark)

2

the method may not converge to a solution (i.e. Traps)

3

Traps/Tunnels were observed in numerical simulations (reconstruction failed; however, reseeding succeeds)

4

for the 3 × 6 matrix A used in the PW example, reconstruction error was < 10−4 after 400 iterations for approximately 80% of instances (performed 1000 random examples)

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 12 / 26

A Corollary of McDonald’s Theorem

Lemma

If f ∈ PWβ, then: f ′ ∈ PWβ; ff ♯ ∈ PW2β; f ′(f ′)♯ ∈ PW2β.

Theorem

Suppose {tn} ⊂ R is a set of sampling for PW2β. Then the mapping A : PWβ/ ∼→ ℓ2(Z) ⊕ ℓ2(Z) : f → (|f (tn)|, |f (tn + b) − f (tn)|)n is one-to-one whenever b < β

π.

Similarly, the mapping

• A : PWβ/ ∼→ ℓ2(Z) ⊕ ℓ2(Z) : f → (|f (tn)|, |f ′(tn)|)n

is one-to-one.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 13 / 26

Inversion

Fundamental Question: How to invert these mappings? A : PWβ/ ∼→ ℓ2(Z) ⊕ ℓ2(Z) : f → (|f (tn)|, |f (tn + b) − f (tn)|)n

• A : PWβ/ ∼→ ℓ2(Z) ⊕ ℓ2(Z) : f → (|f (tn)|, |f ′(tn)|)n

1

We can reconstruct |f (x)|2 and |f (x + b) − f (x)|2 (or |f ′(x)|2) easily.

2

McDonald’s Theorem guarantees injectivity of the mappings using Weierstrass factorizations of functions of finite order.

3

Reconstruction from McDonald’s Theorem requires knowledge of the zeros of f .

4

Inversion is unstable: observed by Mallat-Waldspurger [MW15], proven by Cahill-Casazza-Daubechies [CCD16]. We propose a sampling and reconstruction method following Pohl-Yang-Boche [PYB14] using “structured convolutions”.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 14 / 26

Injectivity via Structured Convolutions

Theorem (Lai, Littmann & W.)

The following sampling scheme does conjugate phase retrieval on PWπ: {|αm ∗ f (tn)| : m = 0, 1, . . . , M − 1; n ∈ Z} where αm ∗ f =

K−1

• k=0

akmf (· − bk) (3) provided:

1

A = (akm) be a K × M matrix which does conjugate phase retrieval on CK

2

{tn}n∈Z ⊂ R is a set of sampling for the space PW2π

3

{bj}K−1

j=0 ⊂ R be such that the group Z({b0, b1, . . . , bK−1}) has finite upper

Beurling density and lower Beurling density greater than one.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 15 / 26

Reconstruction via Structured Convolutions

For f ∈ PWπ we sample {|αm ∗ f (tn)| : m = 0, 1, . . . , M − 1; n ∈ Z} (4) where {tn} and αm satisfy the hypotheses of Theorem 3. Choose bj = j/B for some integer B.

Reconstruction Algorithm

1

From the samples in Equation (4), reconstruct the functions |αm ∗ f (x)|2, m = 0, 1, . . . , M − 1, using the Shannon sampling theorem.

2

Choose β at random†. By Lemma 4, with probability 1, f ( n B − bj − β) = 0 for all j = 0, . . . , K − 1, n ∈ Z.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 16 / 26

Reconstruction via Structured Convolutions

Reconstruction Algorithm (Continued)

3

Calculate the following samples using Step 1: |αm ∗ f ( n B − β)|2, m = 0, 1, . . . , M − 1, n ∈ Z.

4

Use the fact that the matrix A does conjugate phase retrieval to calculate for each n ∈ Z the vector

• Fn := λ( n

B − β)    f ( n

B − b0 − β)

. . . f ( n

B − bK−1 − β)

   (5) up to the unknown phase λ( n

B − β) and unknown conjugation.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 17 / 26

Reconstruction via Structured Convolutions

Reconstruction Algorithm (Continued)

5

For adjacent vectors Fn and Fn+1, choose the conjugations and phase factors so that the entries that appear in both vectors agree. This can be done, since by Lemma 5, the choice of β makes these choices unique (with probability 1).

6

We now obtain the samples {λf ( n B − β) : n ∈ Z} or {λf ( n B − β) : n ∈ Z} up to unknown unimodular scalar λ, depending on whether our choice for conjugation was correct. Using these samples, we reconstruct λf (x − β) (if

• ur choice of conjugation was correct) or λf ♯(x − β) (if our choice of

conjugation was incorrect).

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 18 / 26

An Example

1

f ∈ PWπ, generated with 20 random complex valued coefficients (f (n)), and f (0) = 0

2

we choose b0 = 0, b1 = 1/2, b2 = 1, and the matrix A =   1 1 1 1 −1 1 1 −1 −1  

3

we sample αm ∗ f at Z 2

4

we select β ∈ (0, 1) at random, then reconstruct for n ∈ [−20, 20]: |αm ∗ f (n 2 − β)|2

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 19 / 26

An Example (Continued)

5

Apply alternating projections (the Gerchberg-Saxton method) to

• 

    f (n + 1 2 − β) f (n 2 − β) f (n − 1 2 − β)      , am

• m = 1, . . . , 6

6

for n we obtain, up to unknown conjugation and phase λn:

• Fn = λn

     f (n + 1 2 − β) f (n 2 − β) f (n − 1 2 − β)     

7

choose conjugation and phase so that Fn+1 is consistent with Fn.

8

Reconstruct f from the consistent samples f (n 2 − β).

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 20 / 26

Graphs of the Reconstruction

• 20
• 15
• 10
• 5

5 10 15 20

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1

• riginal signal

coefficients reconstruction

• 20
• 15
• 10
• 5

5 10 15 20

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1

• riginal signal

coefficients reconstruction

Real part Imaginary part Reconstruction error: (f -original signal; r-reconstructed signal; Fr¨

• benius norm)

f ⊗ f − r ⊗ r/f ⊗ f = 0.026 β = 0.2119 (chosen using the MATLAB command rand). Choice of β affected the reconstruction error.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 21 / 26

Reconstruction (Magnified)

• 20
• 15
• 10
• 5

5 10 15 20

• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8 1

• riginal signal

coefficients reconstruction Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 22 / 26

Failed Reconstruction

• 20
• 15
• 10
• 5

5 10 15 20

• 1.2
• 1
• 0.8
• 0.6
• 0.4
• 0.2

0.2 0.4 0.6 0.8

• riginal signal

coefficients reconstruction Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 23 / 26

Sample Complexity

The “McDonald Corollary” samples 2 convoluted copies of f at twice the Nyquist

• rate. Thus, the sample complexity is 4 times the Nyquist rate.

Our example with a numerical reconstruction samples 3 convoluted copies of the signal f at twice the Nyquist rate. Thus, the sample complexity is 6 times the Nyquist rate. However, for generic signals, we can reduce the sample complexity to 3 times the Nyquist rate:

Reconstruction Algorithm

1

Sample |f (n)|, |f (n + 1) − f (n − 1)|, and |f (n + 1) − f (n)| at Z;

2

reconstruct {f (n + 1), f (n), f (n − 1)} up to phase and conjugation from {|f (n + 1)|, |f (n)|, |f (n − 1)|, |f (n + 1) − f (n − 1)|, |f (n + 1) − f (n)|, |f (n) − f (n − 1)|}; (6)

3

If Z(f ) ∩ Z = ∅, the samples can be made consistent.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 24 / 26

Several Lemmas

Lemma

The set of all β ∈ R such that f ( n B − bj − β) = 0, for some j = 0, . . . , K − 1 and for some n ∈ Z is countable.

Lemma

Suppose g is an entire function. For fixed {b0, . . . , bK−1} ⊂ R, the set of x ∈ R for which the vectors      g(x − b0) g(x − b1) . . . g(x − bK−1)      and      g(x − b0) g(x − b1) . . . g(x − bK−1)      are colinear is either all of R or at most countable.

Eric Weber Conjugate Phase Retrieval in the Paley-Wiener Space 25 / 26
