Computer Animation Karen Liu associate professor at School of Interactive Computing Murali Varma graduate student at School of Interactive Computing Administrations http://www.cc.gatech.edu/classes/AY2012/ cs4496_spring Slides and

slide-1
SLIDE 1

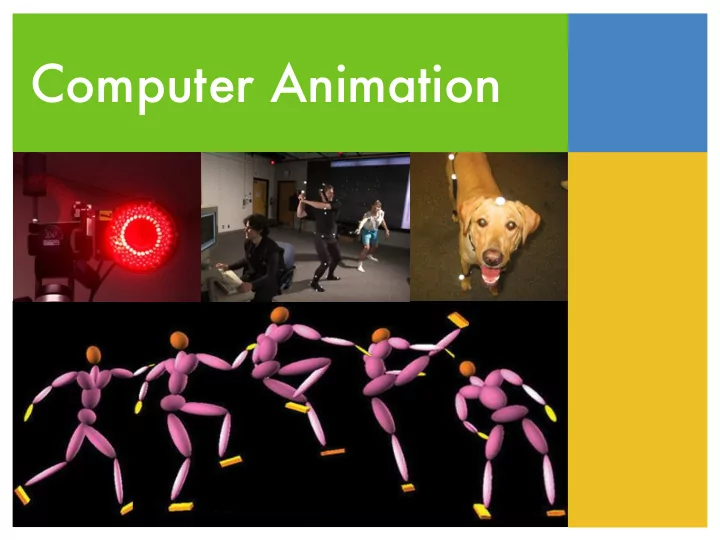

Computer Animation

slide-2
SLIDE 2

Karen Liu

associate professor at School of Interactive Computing

Murali Varma

graduate student at School of Interactive Computing

slide-3
SLIDE 3
  • http://www.cc.gatech.edu/classes/AY2012/

cs4496_spring

  • Slides and assignments are online
  • No textbook, but there are reading materials
  • My office hours: Mon 12:15-1:30, TSRB 230A
  • TA office hours: Fri 2:00pm-3:15pm

Administrations

slide-4
SLIDE 4

Contact

  • Best way to get my attention
  • in class
  • office hours
  • Worst way to get my attention
  • emails
slide-5
SLIDE 5
  • Thorough understanding of linear algebra
  • Vector calculus
  • A good working knowledge of C and C++

programming

Prerequisites

slide-6
SLIDE 6

About Maya

  • You need to bring a laptop with Maya

installed on Friday

  • No prior knowledge in Maya is required
  • Simple Maya tutorial to help you start
  • http://students.autodesk.com
slide-7
SLIDE 7

OpenGL

slide-8
SLIDE 8

FLTK

slide-9
SLIDE 9

Tutorial on OpenGL and FLTK

  • OpenGL Tutorial: http://www.opengl.org/sdk/
  • One hour introduction lecture before Project 2 is assigned
slide-10
SLIDE 10

Get ready for this class

  • If you have a couple of hours this weekend
  • skim through the first three chapters of your
  • ld linear algebra textbook
slide-11
SLIDE 11
  • Given two vectors, a = (3, 0, 1) and b = (-2, 5,

2),

  • What is the dot product of a and b?
  • What is the cross product of a and b?
  • What is the norm of a?
  • What is the angle between a and b?
  • What is the projection of a on b?
slide-12
SLIDE 12
  • Given three n by n matrices A, B, and C
  • Is AB = BA true?
  • Is A(BC) = (AB)C true?
  • Is (AB)T = ATBT true?
  • Does A-1 always exist?
  • What is the rank of A?
slide-13
SLIDE 13
  • Reading assignment (0%)
  • Project 1 (15%)
  • Project 2 (20%)
  • Project 3 (20%)
  • Final project (20%)
  • Midterm (25%)

Grading schemes

slide-14
SLIDE 14
  • Project 1: Splines
  • Project 2: Particles
  • Project 3: Physics games
  • Final project: Inverse kinematics
  • Late policy: 33% reduction per day if you don’t have

a good reason

  • Everything has to be turned in before 10 am on the

due date

Projects and homework

slide-15
SLIDE 15

Partners

  • For project 3 and project 4, you will work with
  • ne partner
slide-16
SLIDE 16
  • Give you an overview of computer animation

with an emphasis on physics-based animation and character animation

  • Teach you how to be a good engineer who

also understands art

  • Inspire some of you to do research in

computer animation

What do I expect?

slide-17
SLIDE 17
  • A class that
  • takes a lot of your time (I’m not kidding)
  • tests your programming skills
  • makes you revisit linear algebra and

calculus

What should you expect?

slide-18
SLIDE 18

Course overview

slide-19
SLIDE 19

Traditional animation

That was then...

  • Film runs at 24 frames per sec;

that is, 1440 pictures to draw in

  • ne minute
  • Artistic vision has to be

converted into a sequence of still “keyframes”

  • Hard to draw consistent “in-

between” frames

  • Not enough to get the still right;

must to look right at full speed

slide-20
SLIDE 20

Computer assisted animation

This is now

  • Generate the images

by rendering a 3D model

  • Manually set the

parameters for each keyframe

  • Automatically

interpolate between two drawings to produce inbetweens

slide-21
SLIDE 21

Does it really get better?

Do computers really expedite the process of creating animation?

pencil and paper computer

slide-22
SLIDE 22

What can’t be done by keyframes?

slide-23
SLIDE 23

UNiGiNE

slide-24
SLIDE 24

NVIDIA Physx

slide-25
SLIDE 25
slide-26
SLIDE 26

Physics simulation

  • It’s an algorithm that produces a sequence of

states over time under the laws of physics

  • What is a state?
slide-27
SLIDE 27

Simulation

xi ∆x

xi+1 xi+1 = xi + ∆x

xi

slide-28
SLIDE 28

Simulation

xi ∆x

xi+1

xi

xi+1 = xi + ∆x

Newtonian laws gravity wind gust elastic force

. . .

slide-29
SLIDE 29

Ordinary differential equations

An ODE is an equality equation involving a function and its derivatives

˙ x(t) = f(x(t))

known function time derivative of the unknown function unknown function that evaluates the state given time

F = ma

slide-30
SLIDE 30

Rigid bodies

slide-31
SLIDE 31

Rigid bodies

slide-32
SLIDE 32

Deformable objects

slide-33
SLIDE 33

Fluids

slide-34
SLIDE 34

Fluids

slide-35
SLIDE 35

And for my acting Oscar, I thank the special effects

“Acting is all about honesty, but something like this makes what you see on screen a dishonest moment,” said a leading technician (of Blood Diamond). “Everyone feels a bit dirty about it.”

slide-36
SLIDE 36

Fluids

slide-37
SLIDE 37

Fluids

slide-38
SLIDE 38

Fluid-solid coupling

slide-39
SLIDE 39

Water-thinshell interaction

slide-40
SLIDE 40

Melted

slide-41
SLIDE 41

Burned

slide-42
SLIDE 42

Drowned

slide-43
SLIDE 43

Deformed

slide-44
SLIDE 44

Crushed

slide-45
SLIDE 45

What can’t be done by simulation alone?

slide-46
SLIDE 46

Controlled simulation

Popovic et al Twigg and James

slide-47
SLIDE 47
slide-48
SLIDE 48
slide-49
SLIDE 49

Fluid control

slide-50
SLIDE 50

Fluid control

slide-51
SLIDE 51

Controlled interaction

slide-52
SLIDE 52

Character control

slide-53
SLIDE 53
slide-54
SLIDE 54

Character animation

  • Unknown internal forces
slide-55
SLIDE 55

Simulation

xi ∆x

xi+1

xi

xi+1 = xi + ∆x

Newtonian laws gravity wind gust elastic force

. . .

slide-56
SLIDE 56

Simulation

xi ∆x

xi+1

Newtonian laws gravity wind gust elastic force

. . .

slide-57
SLIDE 57

Simulation

xi ∆x

xi+1

Newtonian laws gravity ground contact forces internal forces

. . .

slide-58
SLIDE 58
slide-59
SLIDE 59
slide-60
SLIDE 60
slide-61
SLIDE 61
slide-62
SLIDE 62

Character animation

  • Unknown internal forces
  • Natural human motion with variations
slide-63
SLIDE 63
slide-64
SLIDE 64

Motion capture

Animals Humans Celebrities Objects

slide-65
SLIDE 65

What is captured?

Whole body Face Hands

slide-66
SLIDE 66

Optical systems

  • Cameras
  • High temporal resolution (120+ fps)
  • Detect the locations of reflective markers
  • Markers
  • Sensitive to infrared
slide-67
SLIDE 67

Raw data

3D locations of markers

slide-68
SLIDE 68

Inverse kinematics

  • Input: articulated body with handles + desired

handle positions

  • Joint angles that move handles to desired

positions

slide-69
SLIDE 69

Final motion

slide-70
SLIDE 70

Issues

The main problem with motion capture associated with characters has to do with mass distribution, weight and exaggeration. It is impossible for a performer to produce the kind of motion exaggeration that a cartoon character needs, and the mass and weight of the performer almost never looks good when applied to a character

  • f different proportions.

Eric Darnell, codirector of Antz

slide-71
SLIDE 71

Issues

The mapping of human motion to a character with non-human proportions doesn’t work, because the most important things you get out

  • f motion capture are the weight shifts and the

subtleties and that balancing act of the human body. If the proportions change, you throw all that out the door, so you might as well animate it.

Richard Chuang, VP at PDI

slide-72
SLIDE 72
slide-73
SLIDE 73
slide-74
SLIDE 74
slide-75
SLIDE 75

Performance animation

slide-76
SLIDE 76

Performance animation

slide-77
SLIDE 77

Performance animation

slide-78
SLIDE 78

Other Topics

  • Facial animation
  • Cloth simulation
  • Hair modeling
  • Sound simulation
  • Crowd animation
