Introducing ASKA Composite Extjnguisher ABC Type Foam Type Introducing in Technical Collaboratjon with Britannia Fire Ltd. UK Fire Extjnguishers An industry created by the industry? The ASKA Composite, a new approach? Low/no

SLIDE 1

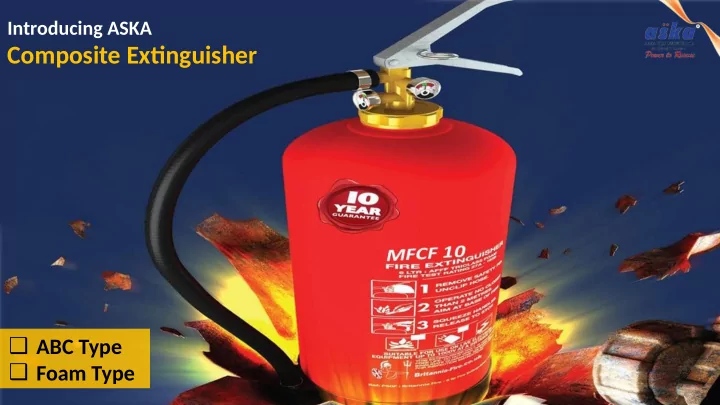

Introducing ASKA

Composite Extjnguisher

❑ ABC Type ❑ Foam Type

SLIDE 2

Introducing in Technical Collaboratjon with Britannia Fire Ltd. UK

SLIDE 3

Fire Extjnguishers

An industry created by the industry?

SLIDE 4

The ASKA Composite, a new approach?

SLIDE 5

 Low/no spares  Refjlls/discharge every 10 years  20 year lifespan  Multj-purpose  Lightweight  No corrosion  Fully approved

SLIDE 6

Why

is this

?

SLIDE 7

Design

❑ Kevlar lined cylinder – 80 bar burst test ❑ Stainless Steel Handle & Pin ❑ Brass Head ❑ 2 Gauges ❑ UV protectjve casing

Super strong aramid inner core-aramid is one of the toughest composite materials known to man, used to create bullet proof vests and fjre retardant gloves.Britannia has used aramid to construct the inner core of the MFCF 10 extjnguisher, not only creatjng incredible strength and durability, but also preventjng any form of corrosion. One in 500 units manufactured is tested to destructjon by pressurising the unit 12,000 tjmes to 25 bar before crushing fmat with a mangle. Afuer this cycle the extjnguisher is burst to destructjon at over 80 bar.

SLIDE 8

How well does

❑ EN 3 approved ❑ 12,000 cycle test at 22Bar on 1/500 units ❑ Crush & Burst tested to 55Bar

T e s t R i g

it perform?

The MFCF 10 extjnguisher is approved under EN3 with additjonal testjng to the composite gas cylinder regulatjons. Under these gas cylinder regulatjons a 12,000 cycle test on one in 500 is

required. All MFCF 10 ’s are tested to 25 bar in productjon. In the EN3 burst test all extjnguishers

have to pass a minimum 55 bar pressure testjng, however MFCF 10 extjnguishers have a burst pressure consistently reaching in excess of 80 bar.MFCF10 fjre extjnguishers incorporate two patented elements – the loose weave and the locking neck ring. This innovatjve design provides ultjmate protectjon with the added features of being lightweight and extremely durable.

SLIDE 9

Testjng of the ASKA Composite check it out!

SLIDE 10

❑ The 6L foam has a fjre ratjng

f 27A / 183B/E1000V

❑ The 9L foam has a fjre ratjng

f 34A / 233B/E1000V

❑ The 6kg Powder has a fjre ratjng

f 43A / 233B / C / E1000V

❑ The 9kg Powder has a fjre ratjng

f 55A / 233B / C / E1000V

SLIDE 11

It’s as easy as ABC!

B

Gauge Check

C

Da te

A

Visual Check

3 Step Annual Check

A simple in-house inspectjon is all that is needed – massively reducing your maintenance expenditure. There are two gauges, one to calibrate against the other giving a simple quarterly visual check on the working

pressure. Annually the forward facing gauge can be checked for
peratjonal accuracy using a magnet to zero (on removal of the

magnet the gauge will return to show the operatjonal pressure). Inspectjon is just 3 easy steps – a visual inspectjon to check for damage, a check of the pressure gauges, and a check of the manufacturing date – it’s as easy as ABC

SLIDE 12

❑ Less engineer visits ❑ Less discharges /recharges – chemical disposal ❑ Less parts ❑ 100% recyclable ❑ Low energy manufacturing

A Greener Future

❑ This product will eliminate untold mileage in engineer service and maintenance visits – and therefore will massively reduce a large corporatjon’s carbon footprint and help them to achieve yearly environmental targets. ❑ The product is 100% recyclable. At the end of its life, Assured can provide a replacement programme. ❑ The manufacturing process of the MFCF 10 extjnguishers is state of the art and environmentally clean requiring litule energy. Unlike metal extjnguishers it requires no welding, no degreasing, no shot blastjng, no paintjng and no manufacturing waste disposal. ❑ With a 10 year guarantee on each MFCF 10 extjnguisher, the necessity for regular discharge test (environmentally unfriendly) and replacement of extjnguishers will be gone, saving on transport costs and carbon footprint. ❑ All metallic extjnguishers require discharging to enable internal corrosion inspectjon every fjve years, also to ensure internal polythene linings are not separated – which is a common area of failing. The inspectjon requires the fjre fjghtjng chemicals to be discharged, (in most cases for companies the simply way is to replace the extjnguisher) however most chemicals are not reused and end up in landfjll sites. The MFCF 10 extjnguishers have no internal polythene lining and also do not corrode – internally nor externally – therefore this risk is eradicated and so too is the need for internal inspectjon, associated inspectjon costs, chemical waste and pollutjon

SLIDE 13

Service-Free Fire Extinguishers

Aska service-free fjre extjnguishers do not require maintenance by an extjnguisher engineer or a discharge test

ver their entjre 10 year lifespan, which ofgers you massive

savings. The extjnguishers are kite marked, CE marked and supplied with a 10 year warranty (afuer 10 years the extjnguishers can be refurbished for another 10 years service-free life). We take care of everything and the price includes: a free site survey, extjnguisher installatjon, extjnguisher ID sign and bracket, the certjfjcatjon and some quick training to show you and your stafg how to look afuer their extjnguishers.

SLIDE 14

NO Annual Service Engineer Costs

The Aska MFCF 10 extjnguishers can be maintained easily by any person following a simple 3 step process.

Kitemarked by BSI

Aska MFCF 10 extjnguishers are CE marked and have gained the BSI kitemark to BS EN3, the Britjsh and European standard for fjre extjnguishers.

SLIDE 15

10 Year Warranty

Aska MFCF 10 extjnguishers are supplied with a 10 year manufacturers warranty. Constructed using an Aramid core and proven quality components these extjnguisher are 100% corrosion proof. We also ofger refurbishment afuer the 10 year lifespan which will create another 10 year lifespan afuer the refurb.

SLIDE 16

100% Recyclable

Aska MFCF 10 extjnguisher are 100% recyclable. They can also be factory refurbished afuer use or afuer the 10 year lifespan.

SLIDE 17

Step 3 - Check the pressure gauges Visually check that the gauge needles in both pressure gauges are in the green. Hold a magnet underneath the front gauge (located directly under the safety pin) and move it from side to side so that the needle follows it. Release the magnet and ensure that the needle returns to the green area of the pressure gauge. Step 1 - Annual visual inspectjon Visually inspect the extjnguisher, checking for any signs

tampering or damage and ensure that the tamper seal is stjll in

place. Using a clean cloth remove

any dust and dirt that may have built up on the extjnguisher's body. Step 2 - Check the manufacturing date of the extjnguisher, this is either indicated by the coloured plug in the side of the nozzle holder or printed on the extjnguisher. ASKA MFCF 10 extjnguishers can be visually inspected easily by any person following the manufacturer's simple visual inspectjon instructjons. The annual visual check is then simply recorded on the back of the extjnguisher (using a permanent marker) and in the company's fjre log book.

SLIDE 18

SLIDE 19

Composite Extjnguisher

Video Presentatjon

SLIDE 20 A simple in-house inspectjon is all that is needed– massively reducing your maintenance expenditure. There are two gauges, one to calibrate against the other giving a simple quarterly visual check on the working pressure. Annually the forward facing gauge can be checked for

peratjonal accuracy using a magnet to zero (on removal
f the magnet the gauge will return to show the
peratjonal pressure). Inspectjon is just 3 easy steps–a

visual inspectjon to check for damage, a check of the pressure gauges, and a check of the manufacturing date – it’s as easy as ABC

SLIDE 21

ASKA EQUIPMENTS LTD.

Address:- R-482, New Rajendra Nagar, Sir Ganga Ram Hospital Square, Shankar Road, New Delhi – 110 060 Email:- info@askagroup.com Telephone :- 011-49458800 Fax:- 011-49458844
