Components & Sub-Systems for Positioning, Navigation and Timing (PNT) Applications from Chronos Technology Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0)


slide-1
SLIDE 1

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211

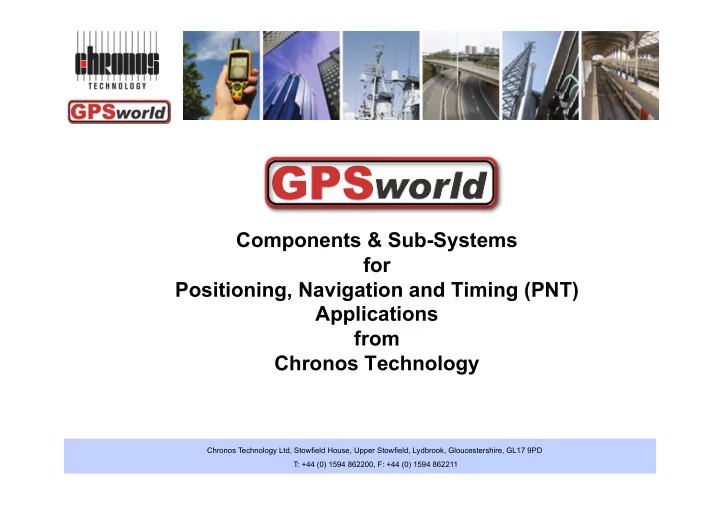

Components & Sub-Systems for Positioning, Navigation and Timing (PNT) Applications from Chronos Technology

slide-2
SLIDE 2

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 2 11/24/08

Applications Asset Tracking Military Hardware Transporting GPS over Fibre Oil Industry Wireless Testing Instrumentation Installation Services

slide-3
SLIDE 3

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 3 11/24/08

Asset Tracking

GPS/GPRS tracking units

  • Integrated antennas and rechargeable battery
  • High sensitivity using assisted GPS technology
  • Completely configurable over the internet
  • Portable format for personnel
  • Rugged weatherproof enclosures

GPS/WiFi tracking

  • Location communicated via 802.11x standards
slide-4
SLIDE 4

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 4 11/24/08

Military Hardware GPS Reradiating Solutions for aircraft

maintenance facilities and military aircraft and vehicles

Miniature GPS Antennas for Future

Integrated Soldier Technology (FIST)

GPS Timing Receivers for electronic

counter measure applications

GPS Location Receivers for asset location

slide-5
SLIDE 5

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 5 11/24/08

Fibre Optic Links ViaLite Metro-GPS Fibre Optic Link

  • Transporting GPS RF signals to locations

remote from the GPS antenna

  • Applications that demand accurate timing,

location or mapping information (Cellular base transceiver station (BTS) sites and public mobile radio networks eg TETRA)

slide-6
SLIDE 6

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 6 11/24/08

Oil Exploration GPS Reradiating Solutions for oil survey vessels to

rebroadcast GPS signals inside ships’ operations rooms

GPS Timing Receivers for seismic survey

  • perations

GPS and IEEE1588v2 for synchronising sonar

workstations

Dual Frequency GPS L1/L2 Receivers

slide-7
SLIDE 7

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 7 11/24/08

Wireless GPS Timing Receivers for 3G microcell base

stations

GPS Timing Receivers for WiMax base stations GPS synchronisation and location solutions for

Femtocells

slide-8
SLIDE 8

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 8 11/24/08

Testing & Shelters Portable EMC enclosure providing a screened

facility for RF applications requiring a quick simple and low cost solution for field solutions or additional shelter within a production test environment

Available in different sizes and custom shapes to

suit various requirements

slide-9
SLIDE 9

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 9 11/24/08

Ordnance Survey – Continuously Operating Reference Stations

Installation services at up to 110 CORs sites Site surveys to produce method statements and risk

assessments

Removal and reclaim existing hardware Install new RF cables and site GNSS antennae Install GNSS receivers and communications equipment Perform system test and ensure station is reporting correctly

to Ordnance Survey HQ

Provide full documentation for each site upgraded

slide-10
SLIDE 10

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 10 11/24/08

Instrumentation - GNSS Simulators

Chronos will be representing

Cast Navigation in Europe

Cast offer Simulators for GPS

L1, L2, L2C and L5 bands

Complete SV Constellation

Generation

Ionosphere Modeling Troposphere Modeling Multipath Modeling

slide-11
SLIDE 11

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 11 11/24/08

Instrumentation – GNSSWatch

GNSSWatch

  • Monitoring GNSS Integrity in real time
  • Web based system
  • Mission Critical Applications
  • Monitoring against following references
  • Telecom Grade GPS
  • Rubidium
  • eLoran
slide-12
SLIDE 12

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211 12 11/24/08

Value Added Services - Turnkey Solutions

  • Security Clearance
  • Climbing Certification
  • Electrical Certification
  • Health & Safety Awareness
  • Consultancy
  • Site Surveys
  • Installation
  • Commissioning
slide-13
SLIDE 13

Chronos Technology Ltd, Stowfield House, Upper Stowfield, Lydbrook, Gloucestershire, GL17 9PD T: +44 (0) 1594 862200, F: +44 (0) 1594 862211

GPS, Galileo Components & Sub-Systems from Chronos Technology
