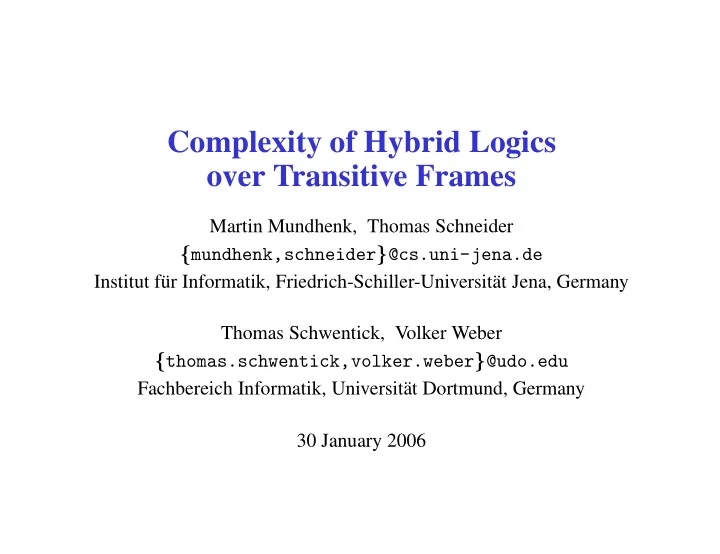

Complexity of Hybrid Logics over Transitive Frames Martin Mundhenk, Thomas Schneider { mundhenk,schneider } @cs.uni-jena.de Institut f ur Informatik, Friedrich-Schiller-Universit at Jena, Germany Thomas Schwentick, Volker Weber {

slide-1
SLIDE 1

Complexity of Hybrid Logics

  • ver Transitive Frames

Martin Mundhenk, Thomas Schneider {mundhenk,schneider}@cs.uni-jena.de Institut f¨ ur Informatik, Friedrich-Schiller-Universit¨ at Jena, Germany Thomas Schwentick, Volker Weber {thomas.schwentick,volker.weber}@udo.edu Fachbereich Informatik, Universit¨ at Dortmund, Germany 30 January 2006

slide-2
SLIDE 2

Complexity of Hybrid Logics

  • ver Transitive Frames

Modal Propositional Logic Temporal Logic Why Transitive Frames? Hybrid Logic Overview and Open Questions

slide-3
SLIDE 3

Modal Propositional Logic

slide-4
SLIDE 4

Modal Logic

Syntax

  • Formulas:

ϕ ::= p | ¬ϕ | ϕ1 ∧ ϕ2 | ✸ϕ, where p is an atomic proposition

  • Abbreviations ∨, →, ↔ as usual; ✷ϕ = ¬✸¬ϕ
  • Language: ML
slide-5
SLIDE 5

Modal Logic

Semantics

  • Models M = (W, R, V)
  • Frames F = (W, R)

arbitrary frame

slide-6
SLIDE 6

Modal Logic

Semantics

  • Models M = (W, R, V)
  • Frames F = (W, R)

transitive frame

slide-7
SLIDE 7

Modal Logic

Semantics

  • Models M = (W, R, V)
  • Frames F = (W, R)

transitive frame

slide-8
SLIDE 8

Modal Logic

Semantics

  • Models M = (W, R, V)
  • Frames F = (W, R)

transitive tree

slide-9
SLIDE 9

Modal Logic

Semantics

  • Models M = (W, R, V)
  • Frames F = (W, R)

linear order

slide-10
SLIDE 10

Modal Logic

Truth and Satisfiability

  • Truth is defined as usual.
  • We consider the satisfiability problem ML-SAT:

Given a formula ϕ, is there a model M = (W, R, V) and a point w ∈ W, such that M, w | = ϕ ?

slide-11
SLIDE 11

Modal Logic

Truth and Satisfiability

  • Truth is defined as usual.
  • We consider the satisfiability problem ML-SAT:

Given a formula ϕ, is there a model M = (W, R, V) and a point w ∈ W, such that M, w | = ϕ ?

  • ML-SAT is PSPACE-complete. [LADNER 1977]
  • Under restricted frame classes:
  • PSPACE-complete over transitive or reflexive frames
  • NP-complete over equivalence relations

[LADNER 1977]

slide-12
SLIDE 12

Temporal Logic

slide-13
SLIDE 13

Temporal Logic

Basic Temporal Operators

  • F, G (“Future”, “Going to”) — other names for ✸, ✷
  • P, H (“Past”, “Has been”)

— correspond to ✸−, ✷−

  • Example:

ϕ ϕ ϕ

slide-14
SLIDE 14

Temporal Logic

Basic Temporal Operators

  • F, G (“Future”, “Going to”) — other names for ✸, ✷
  • P, H (“Past”, “Has been”)

— correspond to ✸−, ✷−

  • Example:

ϕ ϕ ϕ Fϕ

slide-15
SLIDE 15

Temporal Logic

Basic Temporal Operators

  • F, G (“Future”, “Going to”) — other names for ✸, ✷
  • P, H (“Past”, “Has been”)

— correspond to ✸−, ✷−

  • Example:

ϕ ϕ ϕ Fϕ

¬Gϕ

slide-16
SLIDE 16

Temporal Logic

Basic Temporal Operators

  • F, G (“Future”, “Going to”) — other names for ✸, ✷
  • P, H (“Past”, “Has been”)

— correspond to ✸−, ✷−

  • Example:

ϕ ϕ ϕ Fϕ

¬Gϕ

Pϕ

slide-17
SLIDE 17

Temporal Logic

Basic Temporal Operators

  • F, G (“Future”, “Going to”) — other names for ✸, ✷
  • P, H (“Past”, “Has been”)

— correspond to ✸−, ✷−

  • Example:

ϕ ϕ ϕ Fϕ

¬Gϕ

Pϕ Hϕ

slide-18
SLIDE 18

Temporal Logic

Basic Temporal Operators

  • F, G (“Future”, “Going to”) — other names for ✸, ✷
  • P, H (“Past”, “Has been”)

— correspond to ✸−, ✷−

  • Example:

ϕ ϕ ϕ Fϕ

¬Gϕ

Pϕ Hϕ

  • MLF,P-SAT remains PSPACE-complete. [SPAAN 1993]
slide-19
SLIDE 19

Temporal Logic

Until and Since

  • “There will be a point in the future, at which it will be spring,

and from now until then it will always be cold.”

cold cold cold spring

slide-20
SLIDE 20

Temporal Logic

Until and Since

  • “There will be a point in the future, at which it will be spring,

and from now until then it will always be cold.”

cold cold cold spring

U(spring, cold)

slide-21
SLIDE 21

Temporal Logic

Until and Since

  • “There will be a point in the future, at which it will be spring,

and from now until then it will always be cold.”

cold cold cold spring

U(spring, cold)

  • Analogously:

S(ϕ, ψ)

slide-22
SLIDE 22

Temporal Logic

Until and Since

  • “There will be a point in the future, at which it will be spring,

and from now until then it will always be cold.”

cold cold cold spring

U(spring, cold)

  • Analogously:

S(ϕ, ψ)

  • MLU,S-SAT over linear orders: PSPACE-complete.

(ML-SAT over linear orders: NP-complete.) [SISTLA, CLARKE 1985 / ONO, NAKAMURA 1980]

slide-23
SLIDE 23

Why Transitive Frames?

slide-24
SLIDE 24

Why Transitive Frames?

  • Transitivity is a property most temporal applications have in

common.

  • Can we exactly locate the decrease in complexity taking place

when proceeding from arbitrary frames to linear orders? arbitrary . . . linear Logic frames

  • rders

ML PSPACE . . . NP P PSPACE . . . NP i, @, P EXP . . . NP i, ↓ coRE . . . NP

slide-25
SLIDE 25

Hybrid Logic I

slide-26
SLIDE 26

Hybrid Logic I

Nominals

  • Allow for explicit naming of points.
  • Atomic propositions i, j, . . . that hold at exactly one point.
slide-27
SLIDE 27

Hybrid Logic I

Nominals

  • Allow for explicit naming of points.
  • Atomic propositions i, j, . . . that hold at exactly one point.
  • Example:
  • p → Fp defines reflexivity:
  • valid on all reflexive frames
  • not valid on any other frame
slide-28
SLIDE 28

Hybrid Logic I

Nominals

  • Allow for explicit naming of points.
  • Atomic propositions i, j, . . . that hold at exactly one point.
  • Example:
  • p → Fp defines reflexivity:
  • valid on all reflexive frames
  • not valid on any other frame
  • p → ¬Fp does not define irreflexivity.

p

slide-29
SLIDE 29

Hybrid Logic I

Nominals

  • Allow for explicit naming of points.
  • Atomic propositions i, j, . . . that hold at exactly one point.
  • Example:
  • p → Fp defines reflexivity:
  • valid on all reflexive frames
  • not valid on any other frame
  • p → ¬Fp does not define irreflexivity.

p p

slide-30
SLIDE 30

Hybrid Logic I

Nominals

  • Allow for explicit naming of points.
  • Atomic propositions i, j, . . . that hold at exactly one point.
  • Example:
  • p → Fp defines reflexivity:
  • valid on all reflexive frames
  • not valid on any other frame
  • p → ¬Fp does not define irreflexivity.

i

  • i → ¬Fi does!
slide-31
SLIDE 31

Hybrid Logic I

Nominals

  • Allow for explicit naming of points.
  • Atomic propositions i, j, . . . that hold at exactly one point.
  • Example:
  • p → Fp defines reflexivity:
  • valid on all reflexive frames
  • not valid on any other frame
  • p → ¬Fp does not define irreflexivity.

i

  • i → ¬Fi does!
  • HL = ML “plus” nominals.
slide-32
SLIDE 32

Hybrid Logic I

The @ Operator

  • “Jumps” to named points.
  • M, w |

= @

iϕ

iff M, V(i) | = ϕ

  • Example:

i ϕ @i ϕ

Complexity of satisfiability?

slide-33
SLIDE 33

Hybrid Logic I

HL@-SAT Over arbitrary and transitive frames: PSPACE-complete. [ARECES, BLACKBURN, MARX 1999/2000]

slide-34
SLIDE 34

Hybrid Logic I

HL@-SAT Over arbitrary and transitive frames: PSPACE-complete. [ARECES, BLACKBURN, MARX 1999/2000] HL@

F,P-SAT

Over arbitrary and transitive frames: EXPTIME-complete. [ABM]

slide-35
SLIDE 35

Hybrid Logic I

HL@-SAT Over arbitrary and transitive frames: PSPACE-complete. [ARECES, BLACKBURN, MARX 1999/2000] HL@

F,P-SAT

Over arbitrary and transitive frames: EXPTIME-complete. [ABM] HL@

U,S-SAT

  • Over arbitrary frames: EXPTIME-complete. [ABM]
slide-36
SLIDE 36

Hybrid Logic I

HL@-SAT Over arbitrary and transitive frames: PSPACE-complete. [ARECES, BLACKBURN, MARX 1999/2000] HL@

F,P-SAT

Over arbitrary and transitive frames: EXPTIME-complete. [ABM] HL@

U,S-SAT

  • Over arbitrary frames: EXPTIME-complete. [ABM]
  • Over transitive frames:
  • EXPTIME-hard and in 2EXPTIME. [MSSW 2005]
  • Lower bound holds for MLU-SAT.
slide-37
SLIDE 37

Hybrid Logic I

HL@-SAT Over arbitrary and transitive frames: PSPACE-complete. [ARECES, BLACKBURN, MARX 1999/2000] HL@

F,P-SAT

Over arbitrary and transitive frames: EXPTIME-complete. [ABM] HL@

U,S-SAT

  • Over arbitrary frames: EXPTIME-complete. [ABM]
  • Over transitive frames:
  • EXPTIME-hard and in 2EXPTIME. [MSSW 2005]
  • Lower bound holds for MLU-SAT.
  • Over transitive trees:
  • EXPTIME-complete. [MSSW 2005]
  • Lower bound holds for MLU-SAT.
slide-38
SLIDE 38

Hybrid Logic II

slide-39
SLIDE 39

Hybrid Logic II

The ↓ Operator

  • ↓ x.ϕ: Name the current point x and evaluate ϕ, treating all
  • ccurrences of x in ϕ as nominals for this point.
slide-40
SLIDE 40

Hybrid Logic II

The ↓ Operator

  • ↓ x.ϕ: Name the current point x and evaluate ϕ, treating all
  • ccurrences of x in ϕ as nominals for this point.
  • Example: U can be expressed by means of ↓ and @:

U(ϕ, ψ) ≡ ↓ x.✸↓y.ϕ ∧ @x✷(✸y → ψ)

  • or, alternatively, by means of ↓ and past modalities:

U(ϕ, ψ) ≡ ↓ x.F

  • ϕ ∧ H(Px → ψ)
  • ψ

ψ ψ ϕ x

slide-41
SLIDE 41

Hybrid Logic II

Satisfiability for ↓ languages

  • Over arbitrary frames, HL↓ is undecidable.

[ARECES, BLACKBURN, MARX 1999]

slide-42
SLIDE 42

Hybrid Logic II

Satisfiability for ↓ languages

  • Over arbitrary frames, HL↓ is undecidable.

[ARECES, BLACKBURN, MARX 1999]

  • Over transitive frames:
  • HL↓ is NEXPTIME-complete. [MSSW 2005]
  • HL↓,@ and HL↓

F,P are undecidable. [MSSW 2005]

slide-43
SLIDE 43

Hybrid Logic II

Satisfiability for ↓ languages

  • Over arbitrary frames, HL↓ is undecidable.

[ARECES, BLACKBURN, MARX 1999]

  • Over transitive frames:
  • HL↓ is NEXPTIME-complete. [MSSW 2005]
  • HL↓,@ and HL↓

F,P are undecidable. [MSSW 2005]

  • Over transitive trees:
  • ↓ alone is useless.
  • HL↓,@ and HL↓

F,P are nonelementarily decidable.

[MSSW 2005]

  • ELEMENTARY = DTIME
  • 22. . .2n
slide-44
SLIDE 44

Overview and Open Questions

slide-45
SLIDE 45

Overview and Open Questions

arbitrary transitive transitive linear Logic frames frames trees

  • rders

i, @ PSPACE PSPACE PSPACE NP i, @, P EXP EXP PSPACE NP i, @, U, S EXP in 2EXP, EXP PSPACE- EXP-hard hard i, ↓ coRE NEXP PSPACE NP i, ↓, @ coRE coRE nonel. nonel. i, ↓, P coRE coRE nonel. nonel. i, ↓, @, P coRE coRE nonel. nonel.

slide-46
SLIDE 46

Overview and Open Questions

arbitrary transitive transitive linear Logic frames frames trees

  • rders

i, @ PSPACE PSPACE PSPACE NP i, @, P EXP EXP PSPACE NP i, @, U, S EXP in 2EXP, EXP PSPACE- EXP-hard hard i, ↓ coRE NEXP PSPACE NP i, ↓, @ coRE coRE nonel. nonel. i, ↓, P coRE coRE nonel. nonel. i, ↓, @, P coRE coRE nonel. nonel.

Thank you!
