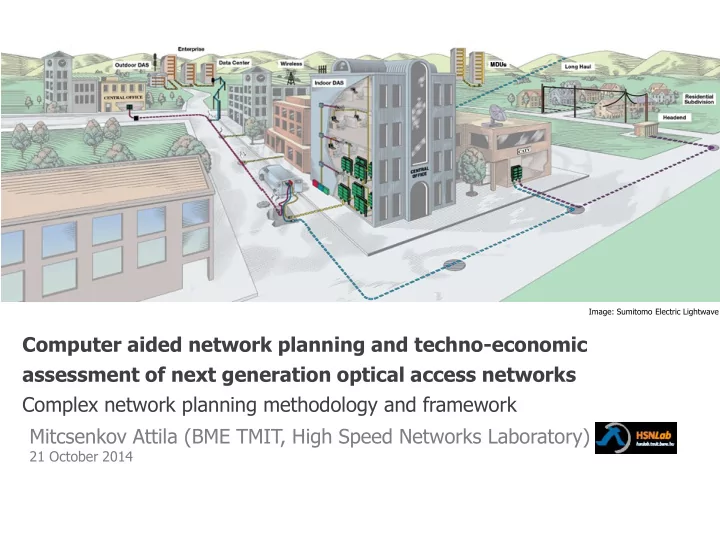

Complex network planning methodology and framework Mitcsenkov Attila - - PowerPoint PPT Presentation

Mitcsenkov Attila (BME TMIT, High Speed Networks Laboratory)

21 October 2014

Computer aided network planning and techno-economic assessment of next generation optical access networks Complex network planning methodology and framework

Image: Sumitomo Electric Lightwave

• Optical fiber “approaches” the

customers:

• FTTC  FTTB  FTTH
• A.) Point-to-point

Dedicated optical fiber to all customers

• B.) Point-multipoint systems

Shared optical “feeder network”

• Active (e.g. Active Ethernet)
• Passive (PON)

Next Generation Access (NGA) networks

• „History”: ABON, BPON
• Currently deployed:
• EPON (USA & Asia) / GPON (EU)
• Recent „upgrade”:
• NGPON-1  10G EPON / 10G GPON
• Near future:
• NGPON-2  TWDM PON, 40G
• Future development:
• WDM PON (“virtual point-to-point”)
• Colorless vs. Tunable: no clear winner

yet…

Passive Optical Networks (PON)

• Next Generation Access networks
• Short / near term demand: 100 Mb/s – 1 Gb/s per customer
• The common phrase: optical access is a “must”
• „FTTH boom”:
• Global Industry Analysts Inc.: 183.9 million FTTH/B subscriptions worldwide by 2015
• Deutche Telekom “will invest almost 30 billion euros over the next three years in
• rder to ensure “the future of telecommunications.” (2012 – FTTC VDSL, Fiber &

LTE)

• …
• What does it cost?
• Who will pay for it?
• Does it make sense?

Network design – The Motivation

• Economic aspects:
• Cost estimation
• Return of Investment, Cash Flow, … Business Case Analysis
• “What do engineers now about business…””
• Technical aspects:
• Quality parameters (bandwidth, delay, reliability, …)
• Support network planning: what and where to deploy?
• “Never let the marketing guys decide…”
• Decision support:
• Lowest cost vs. future proof technologies (e.g. VDSL vs. WDM PON)
• Best fitting solutions for each service area

The “crystal ball” : Techno-economic analysis

• Some fundamental questions:
• What is the cost of deploying a GPON network in XY area?
• And what about Active Ethernet, VDSL or Point-to-Point?
• Which one is the best?
• (what does “best” mean?)

The beginning Once upon a time…

? ? ?

• How to estimate the costs?
• Who will trust our estimation?
• Why exactly *** € / $? Why not less/more?
• We did a research of the literature (not to reinvent the wheel…)
• Rules of thumb: average cost per customer

(but we didn’t have data for Hungary…)

• Geometric models to estimate the physical infrastructure

(but our areas were not that regular / homogeneous…)

„Think, think, think…”

Geometric models 1. Triangle Model

E A B C D

R

F F F F F F F F F F F FP1 FP2 végpont Kábel típus #1 Kábel típus #5 Kábel típus #4 Kábel típus #3 Kábel típus #2

α

 

AB BC R / 3 cos( / 2)    

 

2

CD CE R / 6 1 8 sin ( / 2)      

 

DF R 0,132 0,336 n   

Analytic calculations

Geometric models 2. Simplified Street Length model

Analytic calculations

n houses in a row l = distance between two houses The central office at the center This serves n2 customers

2

I n (n 1) l (n 1) l (n 1) l          

     

n 1 i 1

F 4 l min i,n i n i

 

     



N: buildings in each street L: distance between neighboring buildings CO – Central Office in the geometric median, serving n2 customers

• How to estimate the costs?
• Who will trust our estimation?
• Why exactly *** € / $? Why not less/more?
• We did a research of the literature (not to reinvent the wheel…)
• Investigate the map
• “How big” network?
• How complicated “field”?
• How to adapt the geometric models?
• Knowing the network, we could answer all questions…

Think, think, think…”

• High level network design
• Network connections, system design,

location of equipment, …

• Detailed and accurate information about the necessary physical infrastructure
• Network equipment
• Cable plant
• Optical fiber needs
• Provide “Bill of Material”
• Techno-economic analysis:
• Reliable preliminary cost estimation
• Comparison of technologies

Solution: Strategic design

• Design “guesswork” :
• Human creativity 
• Time consuming 
• N-1 unnecessary designs! 
• Computer aided network design:
• Time and cost savings 
• Repetitious calculations with

variable parameters 

• Highly complex 
• Data availability
• Computing capacity

How to provide the “strategic design”?

• Geographic Information System (GIS) data and digital maps
• Increased computational capacity
• Modern algorithms

Map based, automatic design of access networks

• The technical preconditions were not met earlier

(calling for the use of geometric models)

Opportunities that made the computer able to deliver

Challenges, model, cost function and constraints

Network planning as an optimization problem

What do we expect? What is a “good” network design?

What do we expect? What is a “good” network design?

Which one is the “better” PON network? Why?

• How to translate the problem to mathematics?
• Modeling
• Cost function
• Constraints
• What is an optimal, or at least good topology?
• Economic aspects: what costs to consider?
• Complexity
• NP-hard (@see Travelling Salesman Problem)
• Large scale problem instances (10.000+ households)

Challenges

e2 e3 e1 e4 co co Központ (Central Office, CO) Elosztóhálózati összeköttetés Törzshálózati összeköttetés Gráfpont Végpont Elosztópont Megengedett elosztópont hely Nem használt hálózati szakasz e2 e3 e1 e4 Gráfél Gráfpont e2 e3 e1 e4 co co Központ (Central Office, CO) Gráfpont Végpont Megengedett elosztóponti hely Lehetséges hálózati összeköttetés

CO Törzshálózat Elosztóhálózat Központ (Central Office, CO) Végpont/ előfizető Elosztópont Törzshálózat Elosztóhálózat Előfizetői csoport

{i}

Modeling – translate it to the computer! Point-to-multipoint networks

• Flexible, accurate, parametric
• Contains all necessary data – and nothing else!
• Potential network links
• Distances
• Customer data
• Equipment locations

Network graph model

Goal: minimize costs

CAPEX

Deployment cost

OPEX

Operation, Maintenance

Topology-dependent costs

(e.g. cable plant)

Topology-independent costs

(e.g. user modems)

Cable plant

• Two levels: deployment + fiber costs
• Stepwise: discrete increments
• Existing infrastructure (!)

Network equipment

• Central Office
• Distribution Units
• Customers

Relation between these:

• More distribution units  less cable/fiber infrastructure
• Two extremities: point-to-point network (1 distribution units / ∞ distribution units)

Cost function „All inclusive”

C0 C0+n·Cv Kábelhálózat költsége #szálszám Építési költségek Telepítési költésg Szálköltség

}

Kábelhálózat létrehozása

• Constraint set:
• Distance limitations
• Complete access network reach
• Feeder network reach
• Distribution network reach
• Differential distance
• Capacity of distribution units

Physical and technical constraints

Központ Végpont Elosztópont (Pl.. ETH Switch) Törzshálózat Elosztóhálózat Előfizetői csoport

{i}

{i}

Lfeed

max

Lfeed

max

Törzshálózat hatósugara

Ldist

max

Törzshálózat hatósugara Elosztóhálózat hatósugara

Ldist

max

Elosztóhálózat hatósugara

How to solve?

The challenge is given…

• Fundamentals of optimization: “No Free Lunch” Theorem

» Specialized algorithms needed

• Follow the designers’ way of thinking
• Identify technology specific constraints and costs
• 1. Subproblems and decomposition
• 2. Specialization

• Costs:
• Cable plant dominates
• Splitter costs: low
• Network reach: 20 km not

decisive

• Primary goal: optimal clustering
• Solution:
• Maximize shared cable segments
• Clustering on the Shortest Path Tree
• Typically tree topologies…

Passive Optical Networks (GPON)

Központ Végpont Splitter Törzshálózat Elosztóhálózat Előfizetői csoport {i}

Lmax Lmax

Hálózat hatósugara

GPON 10GPON (WDM-PON)

Branch Contracting Algorithm

• Costs:
• Distribution Unit: high CAPEX + OPEX
• Cable plant: high costs…
• Network reach: 20+3 km (not

sharp)

• Main goal:
• Minimize distribution units / groups
• Optimal clustering:
• No overlapping
• Nearby distribution unit
• Solution:
• Iterative “bottom-up” clustering
• Increase group size if possible
• Avoid overlapping

Active Optical Networks (AETH)

Központ Végpont Elosztópont (Pl.. ETH Switch) Törzshálózat Elosztóhálózat Előfizetői csoport

{i}

{i}

Lfeed

max

L

Törzshálózat hatósugara

Ldist

max

Törzshálózat hatósugara Elosztóhálózat hatósugara

Ldist

Elosztóhálózat hatósugara

Active Ethernet

• Costs:
• DSLAM: high CAPEX + OPEX
• Copper: almost for free
• Constraints:
• Decisive: 300/800 m copper reach
• Goal:
• Minimize DSLAMs, respect reach

constraints

• Solution:
• Greedy algorithm
• Prioritize critical customer nodes
• Top-down clustering

Hybrid copper + fiber (VDSL)

Központ Végpont Elosztópont (DSLAM) Törzshálózat (optika) Elosztóhálózat (réz) Előfizetői csoport

{i}

{i}

Lfeed

m a x

Lfeed

Törzshálózat hatósugara

Ldist

max

Optikai törzshálózat hatósugara Rézhálózat hatósugara

Ldist

Elosztóhálózat (réz) hatósugara

DSL

• Costs:
• Cable plant costly
• Especially the deployment costs

(with scarce networks)

• Goal:
• Minimize trenching / digging
• Solution:
• Steiner-tree problem
• Distance Network Heuristics (DNH):
• Graph-transformations + minimal cost

spanning tree

Point-to-point optical networks

Központ Végpont Hozzűférési hálózat

L

m a x

Lmax

Hálózat hatósugara

Pont-pont

• ptika

Computer aided optical access network design in practice

AccessPlan Framework

• Economic analysis
• Cost estimation (CAPEX)
• Business Case Analysis
• Compare technologies, decision support
• Geographic + Infrastructure Data
• Handling digital maps
• Existing infrastructure

AccessPlan Framework Modular setup

• Build network model
• Graph, nodes and edges
• Cost data
• Technical parameters and constraints
• Topology optimization
• Clustering, group formulation
• Distribution Unit placement
• Connection establishment

AccessPlan input data

Strategic network design

System design Location of network equipment Bill of Material (cable plant, equipment)

• Detailed input for further analysis

and comparison

• Technical:
• Performance analysis
• Possible and guaranteed service levels
• Reliability, identification (protection) of

critical nodes

• Economic:
• Cost estimation
• Business Case Analysis
• Does everything provided by the

geometric models, but more accurate, detailed and reliable…

AccessPlan Results

Let’s see an example…

Case study

AccessPlan: select area

Example: Sashegy (Budapest)

Sashegy, Budapest Districts 11/12 Area of a Central Office 5 km2 / 4500 customers

• Inhomogeneous area
• Family, mid-size and large block houses
• Nature reserve area
• Cemetery
• Existing infrastructure
• Partly re-usable substructures
• Existing copper network
• Different cabling technologies – makes a cost difference
• Aerial cables and poles
• Existing substructures
• New trenching

Parameters of the case study

• 82 km street system
• 60 km existing

infrastructure

• 2 km aerial network
• 20 km new trenching
• Graph model:
• 8000 nodes
• 8500 edges
• Map, street system & infrastructure

Phase #1: Process input data

• Customer database
• Demand points:
• 4239 households in
• 1079 buildings
• Graph model:
• 10 300 nodes
• 10 424 edges

Phase #1: Process input data

AccessPlan: planning rules and cost data

After a few minutes…

• Topology
• System design
• Location of network

equipment

Phase #2: Topology design

• Technical & physical constraints
• Cost database (cost function)

Phase #3: Transform back onto the map

• Topology information, network characteristics
• System design
• Location of network equipment
• Fiber, cable and equipment needs
• Business Case Analysis
• CAPEX, OPEX, Cash Flow, Payback, etc.
• Techno-economic analysis, comparison
• GPON, 10GPON, Active Ethernet, VDSL, Point-to-point fiber, …
• Any custom reports and analytics
• Based on detailed topology information
• Upon request of the network operator

Phase #4: Reports and analyses

AccessPlan: plans and results

AccessPlan: analyses

0,5 1 1,5 2 2,5 3 3,5 P2P GPON AETH VDSL

CAPEX

M EUR

Techno-economic analysis 1/4 Reports: CAPEX estimation

Techno-economic analysis 2/4 Reports: Cash Flow

GPON Pont-pont Ethernet

Éves Cash Flow Éves Cash Flow Akkumulált Cash Flow Akkumulált Cash Flow

100 200 300 400 500 600 700 800 5 000 800 300 EUR / háztartás Háztartás / km2

VDSL: 25 Mb/s vs. 50 Mb/s

VDSL25 VDSL50 100 200 300 400 500 600 700 800 900 1 000 5 000 800 300 EUR / háztartás Háztartás / km2

GPON: 50 Mb/s vs. 100 Mb/s

GPON50 GPON100

Techno-economic analysis 3/4 Reports: CAPEX vs. bandwidth

Techno-economic analysis 4/4 Reports: cost per bit

0 Ft 200 Ft 400 Ft 600 Ft 800 Ft 1 000 Ft 1 200 Ft 1 400 Ft P2P FTTH P2P FTTB 10GPON FTTH 10GPON FTTB WDMPON FTTH WDMPON FTTB Ft / bit/sec Agglomeráció 1 021 Ft 1 035 Ft 587 Ft 548 Ft 243 Ft 244 Ft Kertváros 925 Ft 1 088 Ft 644 Ft 617 Ft 236 Ft 295 Ft Belváros 1 039 Ft 1 260 Ft 788 Ft 717 Ft 270 Ft 347 Ft

1 Mb/s sávszélesség ára (Ft / Mb/s)

Contact

Attila Mitcsenkov mitcsenkov@tmit.bme.hu AccessPlan Framework http://accessplan.tmit.bme.hu/
