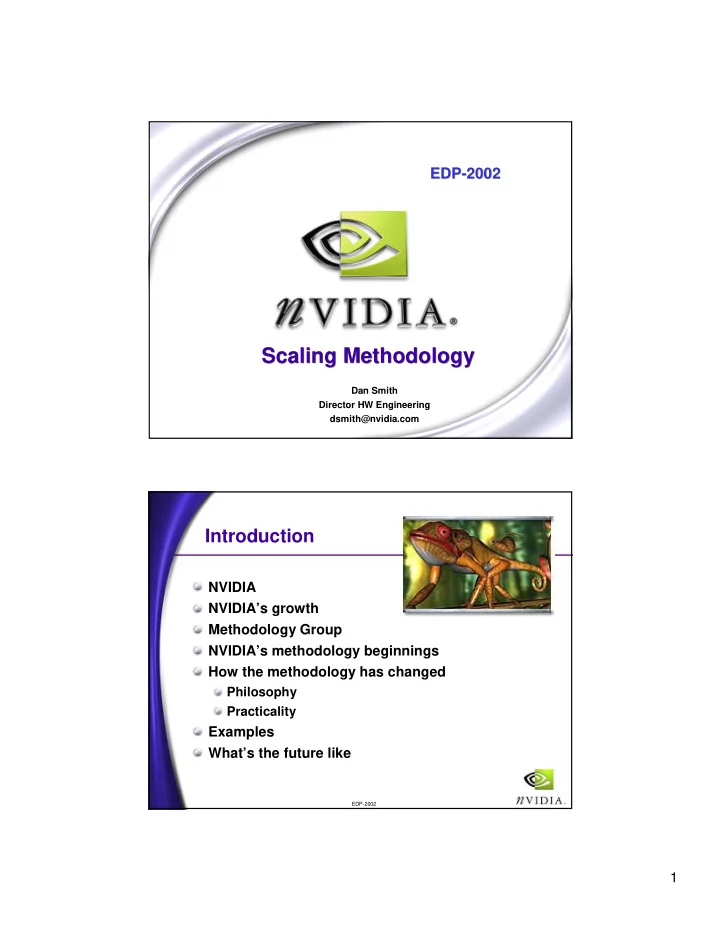

EDP- -2002 2002 EDP Scaling Methodology Scaling Methodology Dan Smith Director HW Engineering dsmith@nvidia.com Introduction NVIDIA NVIDIAs growth Methodology Group NVIDIAs methodology beginnings How the methodology has changed


slide-1
SLIDE 1

1

EDP EDP-

  • 2002

2002

Scaling Methodology Scaling Methodology

Dan Smith Director HW Engineering dsmith@nvidia.com

EDP-2002

Introduction

NVIDIA NVIDIA’s growth Methodology Group NVIDIA’s methodology beginnings How the methodology has changed

Philosophy Practicality

Examples What’s the future like

slide-2
SLIDE 2

2

EDP-2002

NVIDIA Characteristics

NVIDIA is the global leader in advanced graphics processing technology for mainstream platforms

GPU’s, Platform Chipsets, XBOX chipset

Frequent design refreshes Large, complex designs Verilog RTL and C++ behavioral COT back-end Design team primarily in Santa Clara, but reasonable number of people in other areas

EDP-2002

NVIDIA Growth

NVIDIA has grown significantly in many dimensions over the last 5 or so years

Revenue

200 400 600 800 1000 1200 1400 1600 1996 1997 1998 1999 2000 2001 2002 Millions

slide-3
SLIDE 3

3

EDP-2002

Design Growth

Many simultaneous design projects Design complexity is growing

Size in Millions of Transistors

10 20 30 40 50 60 70 NV1 NV2 RIVA 128 RIVA TNT RIVA TNT2 GeForce 256 GeForce2 GeForce3 XGPU

EDP-2002

Compute Server Growth

200 400 600 800 1000 1200 1400 1600 1800 2000

Number

  • f

CPUs

Sparc/Solaris-based machines x86/NT X86/Linux

Riva128Zx Tape-out RivaTNT Tape-out RivaTNT2 Tape-out GeForce256 Tape-out

June-97 July-97 Aug-97 Sep-97 Oct-97 Nov-97 Dec-97 Jan-98 Feb-98 Mar-98 Apr-98 May-98 June-98 July-98 Aug-98 Sep-98 Oct-98 Nov-98 Dec-98 Jan-99 Feb-99 Mar-99 Apr-99 May-99 June-99 July-99 Aug-99 Sep-99 Oct-99 Nov-99 Dec-99 Jan-00 Feb-00 Mar-00 Apr-00 May-00 June-00 Aug-00 July-00

GeForce2/MX Tape-out GeForce2/GTS Tape-out

Sept-00 Oct-00 Nov-00 Dec-00 Jan-01 Feb-01

GeForce3 Tape-out XGP Tape-out

Mar-01 Apr-01 May-01 June-01 July-01 Aug-01 Sept-01

NexGen2 Tape-out IGP/MCP Tape-out NexGen1 Tape-out

Jan 02

slide-4
SLIDE 4

4

EDP-2002

Methodology Group

Central group responsible for standardizing, enhancement, and automation of NVIDIA’s methodology Common methodology for platform and GPU products Practical approach Manage globally used EDA vendor tools

EDP-2002

Methodology Beginnings

Several generations of GPU’s done by same team

One designer per unit No specialization Little turn-over Design code base and tools code base copied from project to project

Consistent high level methodology Lots of variability at the implementation level Many “standard” methodologies in use simultaneously on the same chip Custom tools crafted for a specific chip or unit

slide-5
SLIDE 5

5

EDP-2002

Forces Driving Methodology Change

Volume Time to Market New Markets Hitting all market segments Lowering Cost Competition Engineering staff growth Increased design complexity

EDP-2002

How to scale design methodology

Continually find better ways to do design Standardization

Reduces the learning curve Provides for better reuse Helps ensure consistent quality Combines the best practices from all engineers Allows global upgrades/enhancements

Documentation and training Automation Communication Continue to hire great engineers Specialize

slide-6
SLIDE 6

6

EDP-2002

What to Standardize

Anything that takes engineering time is a candidate for standardization

Verification environments Synthesis/Timing/Layout flows Emulation Manufacturing test methodology Formal verification

Custom scripts, process flows, and software tools should be written only once Selection and use of commercial EDA tools All design rule checks

EDP-2002

Drawbacks to Standardization

Can slow adoption of new techniques if they have to work globally before being used at all Requires dedicated staff to support Different chips may be best designed with different techniques Difficult for chip designers to customize tools quickly to get chip’s out.

slide-7
SLIDE 7

7

EDP-2002

How to Standardize

Programmers develop robust tools and flows, scalable across projects Tool experts working with chip designers and programmers Hire great chip designers, encourage them to innovate, and leverage the work they do across

  • ther projects

Plan ahead, develop and acquire technology, and be opportunistic is deployment

EDP-2002

Standardization Hurtles

Picking the right methodology and getting everyone to agree on the selection Disruption to projects during transition period Projects sometimes diverge from common flows as they get close to tape-out Common flows/tools usually more complex than those written to work on a particular project “Owner” of flows/tools doesn’t usually have the same sense of urgency as those on a project

slide-8
SLIDE 8

8

EDP-2002

Structured Tool & Flow Development

Unlike EDA companies, it does make sense for chip companies to develop custom code for particular chips or design types. All tools and flows should use common set of libraries for accessing information Clear designation between chip specific and chip independent code. Subclass chip independent classes to extend or specialize functionality Tool independent configuration files for all chip specific information Consistent set of tools and libraries “frozen” for each design

EDP-2002

Synthesis - Legacy

Originally

>20 different ways to go about automating synthesis Synthesis responsibility with designer of unit Some were attempts to standardize and used by many modules within a unit Impossible to change things globally, like cycle time Many copies of design quality scripts

Chip designers had problems moving from block to block as they had to relearn these relatively complex environments No documentation meant that new engineers had a steep learning curve

slide-9
SLIDE 9

9

EDP-2002

Synthesis - Common

Merged good characteristics from all environments into one automated and documented flow, used across all projects

Automatic dependency generation Standard script structure Centralized default constraints Centralized library definitions Automatic invocation of design quality scripts Common code base, freezable and tweak-able for individual projects if necessary Simple setup but completely customizable without breaking automation Automatic checking of failure conditions

EDP-2002

Resources

NVIDIA has always had a shared pool of resources

Compute servers: linux and solaris Network and file servers EDA tool licenses

Sharing requires additional priority schemes as the number of projects grows Simple scaling of resources breaks all sorts of things Need to get more sophisticated about our use of resources

slide-10
SLIDE 10

10

EDP-2002

Manufacturing Test - Traditional

100% scan ATPG patterns for all stuck-at faults At-speed Functional patterns for detecting all speed faults and doing speed characterization Test cost expensive per chip

Large chips with huge patterns sets No characterization or optimization of shift speed Functional patterns require tight timing tollerances

Minimal FA

EDP-2002

Manufacturing Test - Today

Automatic structural tests for transition faults Automatic tests for chip delay characterization Better process for isolating faults based on structural tests – both transition and static faults Techniques for compressing vectors New techniques for improving coverage Logic optimized to run structural tests fast Characterization of various pattern sets to

  • ptimize test programs

Requires much larger investment in time, engineers, and capital

slide-11
SLIDE 11

11

EDP-2002

Manufacturing Test - Future

Continual drive towards lower cost test

Timing critical testing moved on-chip

Critical timing relationships for functional testing Analog interfaces PLL

Structural vector compression

Higher quality vectors

Bridging fault models Higher transition fault coverage

Better fault isolation techniques

EDP-2002

Tracking the Design Process

Design process is a complex and involved process taking many people many months to accomplish Problems:

Engineers and managers need to understand the flows and where their chip is in the flow. Need to better manage revisions of design files to ensure that the proper set was used for building the chip, as well as for all verifications steps along the way.

slide-12
SLIDE 12

12

EDP-2002

Design File Revisions - Traditionally

Files are kept in a source code control system Latest revision number of a file is considered the revision to be used. Individual engineers “sync” to a set of files and perform some activities which might span many days, and then check in the resulting files. Leads to confusion on what tools were run with what revision of the files. Relies on very careful engineers with an in-depth knowledge of the process to manage successfully Big waste of time and hit to schedules

EDP-2002

Design File Revisions - Future

Mechanism for formally specifying a process Database for tracking:

execution of process activities revisions of design files involved in the process flow executions checkins to source code system

slide-13
SLIDE 13

13

EDP-2002

Tracking Tools

Tools will read tracking database and process description files. These can be used to:

Verify before running a process that all the input files are available and up to date. Automatically launch process flows when input files have been updated Ensure all verification steps have been run on the file revisions used to tape out a chip

EDP-2002

Conclusion

Nothing is a substitute for intelligent, diligent engineers working well together Well thought out, standard, automated processes will enable growth without compromising quality or efficiency
