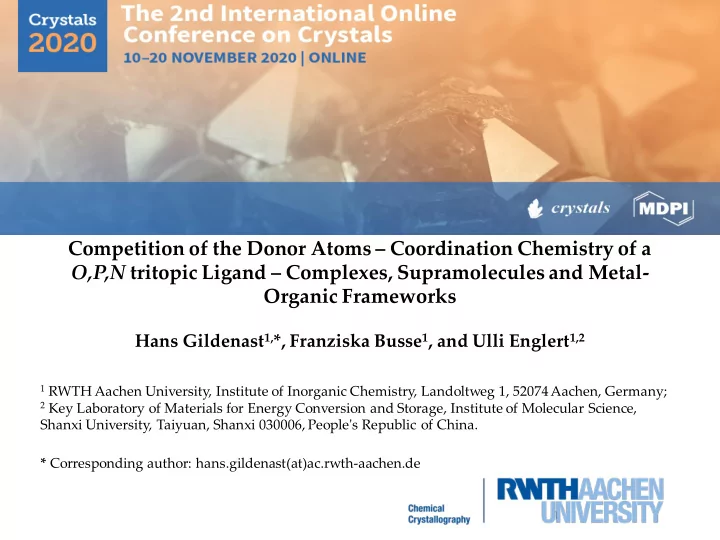

Competition of the Donor Atoms – Coordination Chemistry of a O,P,N tritopic Ligand – Complexes, Supramolecules and Metal- Organic Frameworks

Hans Gildenast1,*, Franziska Busse1, and Ulli Englert1,2

1 RWTH Aachen University, Institute of Inorganic Chemistry, Landoltweg 1, 52074Aachen, Germany; 2 Key Laboratory of Materials for Energy Conversion and Storage, Institute of Molecular Science,

Shanxi University, Taiyuan, Shanxi 030006, People's Republic of China. * Corresponding author: hans.gildenast(at)ac.rwth-aachen.de

1

Abstract

In the rich field of metal-organic frameworks (MOFs) there is a vast number of results with O and N donor ligands, but little to no work on ligands containing P donors. A few reasons for this lack

• f research are obvious: the lower stability of PIII, the more elaborate syntheses, and the

nonexistent availability of commercially suitable candidate molecules. Nevertheless, the usage of phosphorus can enable a much greater variety of structural possibilities for MOF synthesis, as it can stabilize metal cations in low oxidation states, among other advantages. Thus, we intend to compare the abilities of the three donors by preparing the ligand 4-(3-(4- (diphenylphosphino)phenyl)-3-oxopropanoyl)benzonitrile. This multifunctional ligand contains a chelating beta-diketone and a nitrile group as O and N donors, as well as a triarylphosphine P donor group. The results show that its coordination behavior very much depends on reaction

• conditions. We have selectively prepared mononuclear complexes on both the O and P side, but

no purely N coordinated complexes could be obtained. Furthermore, we have crystallized a bimetallic supramolecular cube in the rare cubic space group Pത

• 43n. Finally, the formation of a

porous bimetallic MOF with an interesting topology could be achieved by the simultaneous coordination of all three donors.

Keywords: metal-organic frameworks; coordination chemistry; supramolecular chemistry; phosphines

2

Introduction

Using heterofunctional polytopic ligands the different chemical properties of the donor atoms can be utilized to bind different metal cations selectively. For example, the Pearson hardness[1] of different donor elements can result in selective binding of metal cations that differ in their Pearson hardness as well. For this ligand the beta diketo function represents the Pearson hard donor

• functionality. It additionally needs to be deprotonated for coordination. The
• ther two donors, the nitrile and the triarylphosphine are both soft, whereas

the phosphine should display a superior ligand strength.

3

[1] R. G. Pearson, J. Am. Chem. Soc. 1963, 85, 3533.

HARD Soft

Introduction

Depending on the metal cations and crystallization conditions supramolecules

• r coordination polymers can be formed. This heavily depends on both the

chemical properties of the metal cations, as well as the geometry of the ligand. Below two examples are shown in which the ligand and metal cations display the same connectivity, but the resulting structures are different.

4

ligand metal cations coordination polymer supramolecular cube

Results and Discussion

The synthesis of bimetallic compounds proceeds via a monometallic building block with free donor functions for subsequent crosslinking – a metalloligand. Both the P and O donors can bind to metal cations selectively to form monometallic complexes.

5

O,O’-complexes – these octahedral complexes give two stereoisomers and yield no crystalline material. Identity was determined spectroscopically. P-complexes – give only one isomer and yield crystalline materials.

P-complexes

The tetrahedral HgI2 complex was characterized with SCXRD.

6

Hg I1 I2 O1 O2 O3‘ O3 O2‘ O1‘ 1 _ H1 H3‘ H3 H1‘ O4‘ O4 d / Å O1···O4‘ 2.971(8) O2···O4‘ 2.705(9) O2···O3‘ 3.015(8) O4···O4‘ 3.283(10) P21/c a / Å 10.471(4) b / Å 16.666(6) c / Å 32.251(11) β / ° 95.647(6) V / Å3 5601(4) R1 0.0484 wR2 0.1256

Four beta diketo moieties are arranged in close proximity to each other. The opposing O atoms (O2, O4’) adopt a short distance that usually signals an H bond between them. The close proximity may be enabled by H1 and H3’ whose positions may be fluctuant due to keto enol tautomerism. This is unfortunately not visible with XRD.

P-complexes

The square planar PdCl2 complex was characterized with SCXRD.

7

C2/c a / Å 27.340(13) b / Å 7.494(4) c / Å 23.398(11) β / ° 95.012(9) V / Å3 4776(4) R1 0.0525 wR2 0.1415

Pd Cl1 Cl1’

O1 O2 1 _ O2‘ O1‘ C1 C3 C3‘ C1‘ d / Å O1···C3‘ 3.334(6) O2···C1‘ 3.397(6) centroids 3.400

The beta diketo moieties stack around an inversion center with a π-π stacking

• interaction. In both examples the P donor is

superior to the N donor both in terms of Pearson softness and ligand strength.

Bimetallic rectangle

Reacting the monometallic FeIII complex with HgI2 in methanol leads to the formation of a tetranuclear rectangle. The center is a dinuclear FeIII complex with two bridging methanolates.

8

Pത 1 a / Å 12.494(5) α / ° 74.125(6) b / Å 17.089(7) β / ° 77.095(6) c / Å 18.057(7) γ / ° 76.097(6) V / Å3 3548(2) R1 0.0641 wR2 0.1415

Fe Fe’ Hg’ Hg I2 I1 I1’ I2’

d / Å Fe···Fe‘ 3.079(2)

The rectangle proves that the simultaneous coordination of two donors is possible with this ligand. Again, the P donor is the preferred option compared to the N donor.

+ 2 HL 2 FeL3 + 2 MeOH + 2 HgI2

Bimetallic metal-organic framework

By using Ag+ as the soft metal cation with non coordinating anions instead of HgI2 the same rectangle is obtained. But now, the N donors coordinate to the Ag+ resulting in a bimetallic MOF that uses all three donor atoms.

9

d / Å Fe···Fe‘ 3.078(2)

This results in a porous cationic 3D network with ClO4

− cations and CHCl3

inside the void. Ag Aga Fe Fe’ Agc Agb Agd Age

P21/c a / Å 16.3537(19) b / Å 18.213(3) c / Å 26.477(4) β / ° 94.678(2) V / Å3 7860(2) R1 0.0747 wR2 0.2317

Bimetallic metal-organic framework

10

If the dinuclear iron center is treated as one node the topology is that of an hwx net.[2]

hwx

[2] M. O'Keeffe et al., Acc. Chem. Res. 2008, 41, 1782. [3]K. Lamberts et al., Z. Kristallogr. 2012, 117.

The material is highly porous with about 37% of the unit cell volume accessible to solvent molecules and

• anions. The pores are accessible in

all 3 lattice directions with the largest pore along the a axis. 3.1 Å

GTECS[3] plot of the network to simplify the topology Mercury void plot of the network after deletion of all solvent molecules and

• anions. Calculated with a

probe radius of 1.2 Å.

Bimetallic supramolecular cube

11

In presence of little methanol the AlIII and FeIII octahedral building blocks form a tetrameric cube upon reaction with a soft metal cation. The octahedral MIII complex is the fac isomer and the MI ion is coordinated by three phosphines forming a trigonal planar coordination sphere. Both metal cations are located on threefold rotation axes. The entire cube is generated by symmetry. The asymmetric unit only contains a single ligand molecule.

Pത 43na MIII AlIII MI CuI a / Å 28.7770 (15) V / Å3 23831(4) R1 0.0771 wR2 0.2210 monometallic cutouts of the cube

Al Cu

Bimetallic supramolecular cube

The packing is pseudo body centered with the center of each cube on the corners and the center of the unit cell. The inside of the cubes and the space between them is filled with solvent molecules and non coordinating anions that are heavily disordered. The two gaps are not connected but the outer pores are continuous in all three directions.

12

void plots of the outer and inner void

The cubes are connected via an intramolecular interlocking of phenyl rings at all corners: 9.2 Å 6.1 Å

13

Conclusion and Outlook

The results show that the ligand is capable of connecting two metal cations with a pronounced difference in Pearson hardness. As expected, the phosphine is a stronger donor than the nitrile and will, thus, dominate the coordination chemistry with soft metal cations. Nevertheless, under the right conditions the nitrile can act as a crosslinker and be the decisive donor atom in the formation of a porous MOF. Both the MOF and the supramolecular cube are under further investigation for example with soaking experiments to exchange solvent molecules and luminescence measurements. Furthermore, we are expanding the bandwidth of polytopic ligands containing phosphine donors to explore this new branch of MOF and supramolecular chemistry. If you have any questions, remarks or suggestions, please do not hesitate to contact me: hans gildenast(at)ac.rwth-aachen.de

14

Acknowledgments

We gratefully acknowledge the scholarship of the german academic scholarship

• foundation. The help of all members of the Englert group and the Institute of

Inorganic Chemistry, RWTH Aachen University is greatly appreciated.
