1/23/2014 Comp/Phys/Apsc 715 Lecture 5: Trichromacy, Color Spaces, Properties of Color 1/23/2014 Color Comp/Phys/Apsc 715 Taylor 1 Example Videos Segmentation and visualization of neurons Astro Visualization (the Millennium Run)

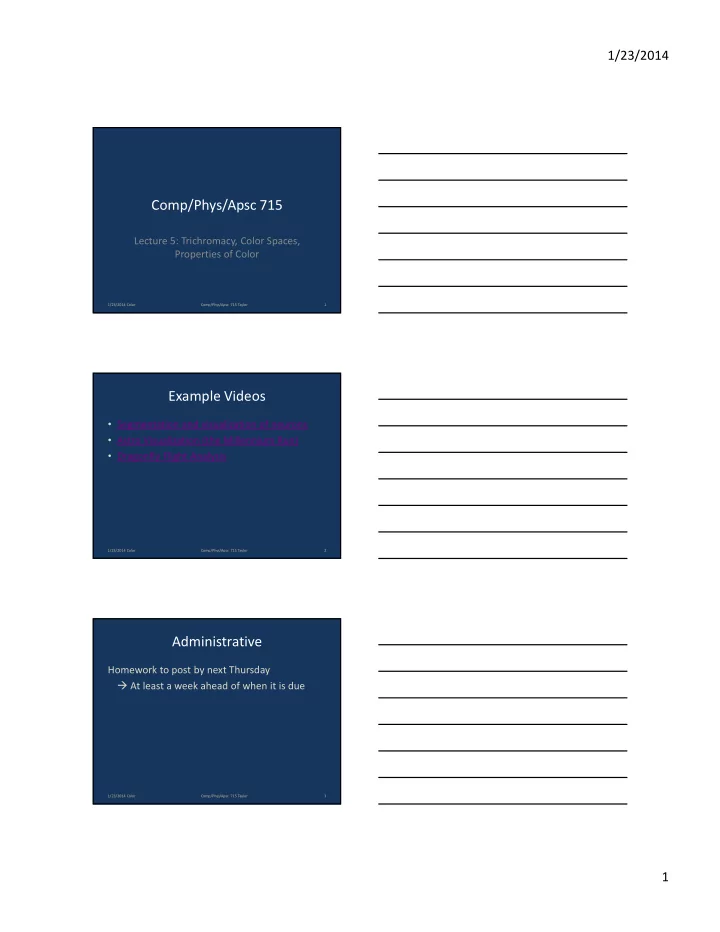

slide-1
SLIDE 1

1/23/2014 1

Comp/Phys/Apsc 715

Lecture 5: Trichromacy, Color Spaces, Properties of Color

1/23/2014 Color 1 Comp/Phys/Apsc 715 Taylor

Example Videos

  • Segmentation and visualization of neurons
  • Astro Visualization (the Millennium Run)
  • Dragonfly Flight Analysis

1/23/2014 Color Comp/Phys/Apsc 715 Taylor 2

Administrative

Homework to post by next Thursday At least a week ahead of when it is due

1/23/2014 Color Comp/Phys/Apsc 715 Taylor 3

slide-2
SLIDE 2

1/23/2014 2

How Important is Color (Hue)?

  • Color is Irrelevant
  • Color is Critical

1/23/2014 Color 4 Comp/Phys/Apsc 715 Taylor

Color is Irrelevant…

  • To determine object shapes
  • To determine layout of objects in space
  • To determine how objects are moving
  • Therefore, to much of modern life

– Laboratory assistant went 21 years without realizing he was color-blind

1/23/2014 Color 5 Comp/Phys/Apsc 715 Taylor

Color is Critical…

1/23/2014 Color 6 Comp/Phys/Apsc 715 Taylor

slide-3
SLIDE 3

1/23/2014 3

Color is Critical…

  • To help us break camouflage
  • To judge the condition of objects (food)

– Ripe or rotten? – Poisonous?

  • To determine material types

1/23/2014 Color 7 Comp/Phys/Apsc 715 Taylor

  • Good for labeling and categorizing

–Show classification (labeling) –Mimic reality –Draw attention –Show grouping

  • Poor for displaying shape, detail, or space

–Use luminance

Uses of Color

1/23/2014 Color 8 Comp/Phys/Apsc 715 Taylor

Show Classification (Labeling)

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-4
SLIDE 4

1/23/2014 4

Mimic reality

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Draw attention

1/23/2014 Color 11 Comp/Phys/Apsc 715 Taylor

Show grouping

  • Ware, p. 142

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-5
SLIDE 5

1/23/2014 5 Show Value (Don’t use only Hue)

Luminance variation required for detail

1/23/2014 Color Comp/Phys/Apsc 715 Taylor 1/23/2014 Color 14 Comp/Phys/Apsc 715 Taylor

Color Models

  • Device-derived

– convenient for describing display device levels – RGB, CMY(K)

  • Intuitive

– based in familiar color description terms – HSV, HSB, HLS

  • Perceptually uniform

– device independent, perceptually “uniform” – CIELUV, CIELAB, Munsell

1/23/2014 Color 15 Comp/Phys/Apsc 715 Taylor

slide-6
SLIDE 6

1/23/2014 6

R(ed) G(reen) B(lue)

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

H(ue) S(aturation) V(alue) and Kindred

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

  • Hill et al. ‘97, pg. 136

Perceptually Uniform

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-7
SLIDE 7

1/23/2014 7

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Opponent Process Theory

  • Cone signals transformed into new channels

– Black/White (Luminance; ignores blue!) – Red/Green – Yellow/Blue

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Color Naming

  • Never “Reddish green” or “Yellowish blue”
  • Across cultures, looking at the appearance of

color names

– If only two, they are black and white – If three, red is next – Fourth and fifth are {yellow, green} (in either order) – Sixth comes blue

  • This supports the opponent-color theory
  • Next comes brown
  • Then {pink, purple, orange, gray}

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-8
SLIDE 8

1/23/2014 8

Color Categories

  • Task: Name the colors
  • Regions same > 75%
  • Nonuniform sizes
  • Only 8 hues named

small number of labels

  • Why “rainbow scale” is so nonuniform

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Hue vs. Luminance

  • Spatial Sensitivity

– Red/Green and Yellow/Blue each about 1/3 detail of Black/White

  • Stereoscopic Depth

– Pretty much can’t do it with hue alone

  • Temporal Sensitivity

– Moving hue-change patterns seem to move slowly

  • Form

– Shape-from-shading works well – Shape-from-hue doesn’t

  • Category: Hue works well!

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Color Spatial Sensitivity

It is very difficult to read text that is isoluminant with its background color. If clear text material is to be presented it is essential that there be substantial luminance contrast with the background color. Color contrast is not enough. This particular example is especially difficult because the chromatic difference is in the yellow blue direction. The

  • nly exception to the requirement for

luminance contrast is when the purpose is artistic effect and not clarity

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-9
SLIDE 9

1/23/2014 9

Color Temporal Sensitivity

  • http://visionlab.harvard.edu/Members/

Patrick/Demos/index.html

1/23/2014 Color 25 Comp/Phys/Apsc 715 Taylor

Color Temporal Sensitivity

  • http://visionlab.harvard.edu/Members/

Patrick/Demos/index.html

1/23/2014 Color 26 Comp/Phys/Apsc 715 Taylor

Application: Color for Labeling

  • Color is comparatively effective for Nominal

Information Coding

– Only about four gray values can code – Can leave luminance channel free for shape perception

  • Issues to consider

– Distinctness, unique hues, number of labels – Contrast with background – Color blindness – Field size – Conventions

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-10
SLIDE 10

1/23/2014 10

Number of Labels

  • Distinctness (Rapid)
  • Number of Labels

– 5-10 (Healey)

  • Unique Hues
  • Contrast with Background

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Other Issues (1/2)

  • Color Blindness

– Most red/green color blind (10% of males, 1% females)

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Other Issues (2/2)

  • Field Size

– Avoid small spots, especially in yellow/blue – Small areas: strong, highly-saturated colors – Large areas: low saturation with slight differences

  • Conventions

– U.S.: Red = danger, Green = life – Some parts of China: Red = life, Green/white = death – Some scientific domains have color conventions

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-11
SLIDE 11

1/23/2014 11

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Trumbo’s Univariate Principles

  • Univariate

– Order: ordered values should be represented by perceptually-ordered colors – Separation: significantly different levels should be represented by distinguishable colors

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Ordered (and double-ended)

  • Tufte ‘97, pg. 76.

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-12
SLIDE 12

1/23/2014 12 Not ordered (red in both halves)

  • Tufte ‘97, pg. 77.

Not Perceptually Ordered

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Not ordered (red at both ends!)

Not Perceptually Ordered

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

(non-perceptually) Ordered, choppy separation

Non-uniform change

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-13
SLIDE 13

1/23/2014 13

Ordered?

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Ordered, Separation?

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Ordered, More separation?

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-14
SLIDE 14

1/23/2014 14

Trumbo’s Bivariate Principles

  • Bivariate

– Rows and columns: to preserve univariate information, display parameters should not obscure one another – Diagonal: to show positive association, displayed colors should group into three perceptual classes: diagonal, above, below

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Rows & Columns, Diagonal

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Not Rows & Columns or Diagonal

  • Tufte ‘83, pg. 153.

Mixes two dimensions

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-15
SLIDE 15

1/23/2014 15

Hue vs. Saturation (Hmm…)

Just plain bad

1/23/2014 Color Comp/Phys/Apsc 715 Taylor 1/23/2014 Color 44 Comp/Phys/Apsc 715 Taylor

Some Univariate Color Scales

  • Color model component
  • Redundant scales
  • Double-ended

1/23/2014 Color 45 Comp/Phys/Apsc 715 Taylor

slide-16
SLIDE 16

1/23/2014 16 Color Model Component Scales

  • Change a single color model component with
  • ther components held constant
  • Examples

– Grey scale – Saturation scale – Spectrum (hue, rainbow) scale (BOO, HISS!)

1/23/2014 Color 46 Comp/Phys/Apsc 715 Taylor

Luminance (Gray) Scale

1/23/2014 Color Comp/Phys/Apsc 715 Taylor 1/23/2014 Color

Saturation Scale

Sudden change

Comp/Phys/Apsc 715 Taylor

slide-17
SLIDE 17

1/23/2014 17

Hue Scale

No luminance change, choppy separation, not perceptually ordered

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Redundant Color Scales

  • Two or more color components varied

together

  • Examples

– Hue with luminance – Heated object scale (black body radiation)

  • Characteristics

– Reinforces signal – Combines characteristics of simpler scales

1/23/2014 Color 50 Comp/Phys/Apsc 715 Taylor

Hue+Luminance

Blue loses Luminance Perceptually ordered?

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-18
SLIDE 18

1/23/2014 18

Hue+Luminance

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Approximates Black Body Radiation

1/23/2014 Color 53 Comp/Phys/Apsc 715 Taylor

All Together Now

1/23/2014 Color 54 Comp/Phys/Apsc 715 Taylor

slide-19
SLIDE 19

1/23/2014 19 Double-ended Scale

  • Two distinct scales joined at neutral middle
  • Characteristics

– segments values into two groups – can emphasize both extremes of data range

1/23/2014 Color 55 Comp/Phys/Apsc 715 Taylor

Double-Ended Income

  • Olson ‘97, fig. 11-8.

1/23/2014 Color Comp/Phys/Apsc 715 Taylor 1/23/2014 Color 57 Comp/Phys/Apsc 715 Taylor

slide-20
SLIDE 20

1/23/2014 20 Consider Data

  • Interesting values?

– Position striking colors at interesting values

  • Zero in range?

– Double-ended scale

  • High spatial frequency?

– Vary lightness in addition to hue

1/23/2014 Color 58 Comp/Phys/Apsc 715 Taylor

Consider Audience

  • Color deficient viewers?

– Don’t depend on red-green differentiation – Use redundant scales

  • Application area conventions?

– Use familiar scales (or at least know when you’re not)

  • Color associations with variables?

– Use associated color

  • Color associations with data ranges?

– Use red for bad range (in U.S.) – Use red for hot

1/23/2014 Color 59 Comp/Phys/Apsc 715 Taylor 1/23/2014 Color 60 Comp/Phys/Apsc 715 Taylor

slide-21
SLIDE 21

1/23/2014 21

Size and Background Effects

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Saturation-size Illusion

Cleveland and McGill ‘83.

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Chromatic Contrast

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-22
SLIDE 22

1/23/2014 22

Brown…

  • Brown is dark yellow…

– But not when it is alone in a dark room

  • Must be surrounded by brighter patches

– Otherwise some shade of yellow

  • Be aware that it may not be seen as belonging to the family of

yellows. "I cannot pretend to feel impartial about colours. I rejoice with the brilliant ones and am genuinely sorry for the poor browns." - Sir Winston Churchill

1/23/2014 Color Comp/Phys/Apsc 715 Taylor

Web Pointers

  • Color Brewer

– Colorbrewer2.org

  • Color FAQ

– http://www.poynton.com/ColorFAQ.html

  • Penny Rheingans’ Color Perception and Apps

– http://www.cs.umbc.edu/~rheingan/SIGGRAPH/color.i ntro.pdf

1/23/2014 Color Comp/Phys/Apsc 715 Taylor 1/23/2014 Color Comp/Phys/Apsc 715 Taylor

slide-23
SLIDE 23

1/23/2014 23

References:

  • Uses of Color and the four examples, Color Models

and the three examples, Univariate, Color Model component (and examples), Redundant (and examples), Color-size illusion, Double-ended (and examples), Multivariate scales (and examples), Evaluating color scales (and examples), Consider Data, Consider Audience: Penny Rheingans

  • The remainder are from Colin Ware’s book

“Information Visualization.”

1/23/2014 Color 67 Comp/Phys/Apsc 715 Taylor
