3/15/2012 Comp/Phys/Mtsc 715 Visualization System Design Examples In-Class Design 3/15/2012 Designs Comp/Phys/Mtsc 715 Taylor 1 Example Videos cad-glyph.avi: Meyer Vis 2008 Glyphs for multivariate surface visualization

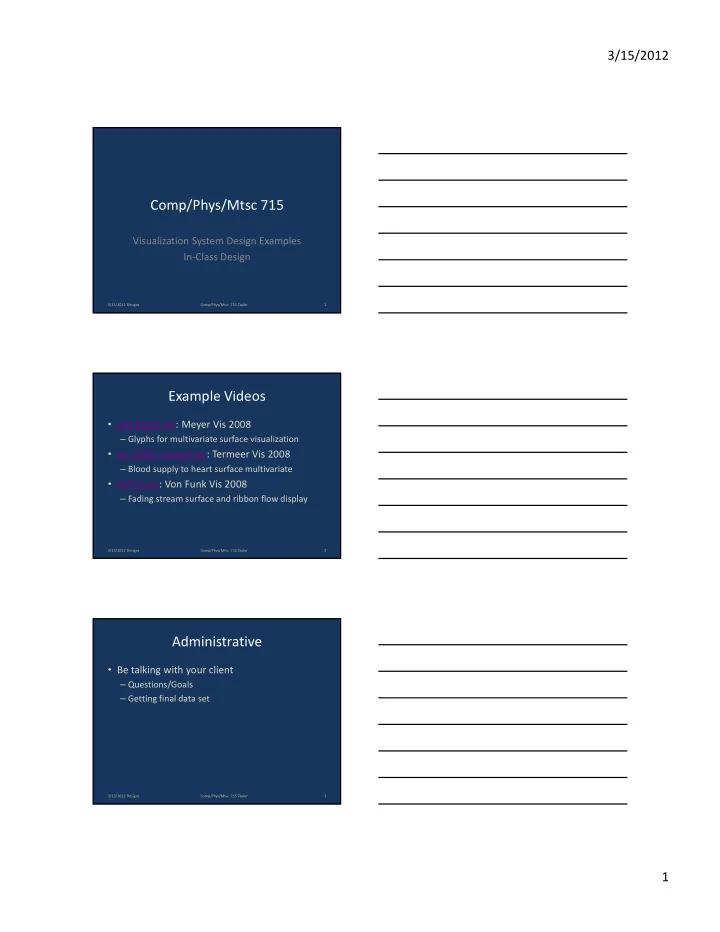

slide-1
SLIDE 1

3/15/2012 1

Comp/Phys/Mtsc 715

Visualization System Design Examples In-Class Design

1 3/15/2012 Designs Comp/Phys/Mtsc 715 Taylor

Example Videos

  • cad-glyph.avi: Meyer Vis 2008

– Glyphs for multivariate surface visualization

  • vis-1006_mpeg4.avi: Termeer Vis 2008

– Blood supply to heart surface multivariate

  • Airfoil.avi: Von Funk Vis 2008

– Fading stream surface and ribbon flow display

2 3/15/2012 Designs Comp/Phys/Mtsc 715 Taylor

Administrative

  • Be talking with your client

– Questions/Goals – Getting final data set

3/15/2012 Designs 3 Comp/Phys/Mtsc 715 Taylor

slide-2
SLIDE 2

3/15/2012 2

Example Final Projects++

  • ImageSurfer - confocal microscopy data
  • GyVe - supercluster of galaxies
  • CDView - 3D molecule charge densities
  • InnerSpace - virtual arthroscopy

3/15/2012 Designs 4 Comp/Phys/Mtsc 715 Taylor

ImageSurfer (2002)

  • Clients:

– Alain Burette, Cell Bio Postdoc – Richard Weinberg, Cell and Developmental Bio

  • Team:

– Dennis Jen, CS student – Peter Parente, CS student

  • Problem:

– How to correlate membrane and calcium?

3/15/2012 Designs 5 Comp/Phys/Mtsc 715 Taylor

How is the concentration of PMCA distributed along a dendrite?

DiO PMCA

3/15/2012 Designs 6 Comp/Phys/Mtsc 715 Taylor

slide-3
SLIDE 3

3/15/2012 3

Looking through the stacks…

3/15/2012 Designs 7 Comp/Phys/Mtsc 715 Taylor

End of Course

  • Two views, 3D volume and 2D slice

3/15/2012 Designs 8 Comp/Phys/Mtsc 715 Taylor

Going Beyond the Course

3/15/2012 Designs 9 Comp/Phys/Mtsc 715 Taylor

slide-4
SLIDE 4

3/15/2012 4 Failed Attempts

3/15/2012 Designs 10 Comp/Phys/Mtsc 715 Taylor

CISMM-sponsored additions

3/15/2012 Designs 11 Comp/Phys/Mtsc 715 Taylor

… easing the pain

3/15/2012 Designs 12 Comp/Phys/Mtsc 715 Taylor

slide-5
SLIDE 5

3/15/2012 5

… adding analysis

3/15/2012 Designs 13 Comp/Phys/Mtsc 715 Taylor

Measures of Success

  • http://www.imagesurfer.org

– Maintained by scientist collaborators! – ~3 downloads per day

  • Dennis Jen, Peter Parente, Jonathan Robbins, Christopher

Weigle, Alain Burette, Richard Weinberg, and Russell M. Taylor II, “ImageSurfer: A Tool for Visualizing Correlations between Two Volume Scalar Fields,” IEEE Visualization 2004 Proceedings, October 10-15, Austin Texas, pp. 529-536.

  • David Feng, David Marshburn, Dennis Jen, Richard Weinberg,

Russell M. Taylor II, Alain Burette, “ToolBox: Stepping into the third dimension,” Journal of Neuroscience, 27(47), Nov. 21, 2007, pp. 12757-12760.

3/15/2012 Designs 14 Comp/Phys/Mtsc 715 Taylor 3/15/2012 Designs 15 Comp/Phys/Mtsc 715 Taylor

slide-6
SLIDE 6

3/15/2012 6

Galaxy Viewer (2005)

  • Clients

– Matthew Fleenor, Astronomy graduate student – James Rose, Astronomer

  • Team

– Jameson Miller, CS student – Cory Quammen, CS student

  • Problem:

– Seeing structure in Horologium Reticulum data

3/15/2012 Designs 16 Comp/Phys/Mtsc 715 Taylor

Gyve Advertisement

Link

3/15/2012 Designs 17 Comp/Phys/Mtsc 715 Taylor

Gyve Display

3/15/2012 Designs 18 Comp/Phys/Mtsc 715 Taylor

slide-7
SLIDE 7

3/15/2012 7

Gyve Results

  • Revealed Spherical Voids

3/15/2012 Designs Comp/Phys/Mtsc 715 Taylor 3/15/2012 Designs Comp/Phys/Mtsc 715 Taylor

Gyve Results

  • Disproved incorrect filament structures

20

Gyve: What Helped?

  • Stereo
  • Torsional Rocking
  • Curved drop shadows

– Tied to previous technique’s views – Showed appropriate space warping

3/15/2012 Designs 21 Comp/Phys/Mtsc 715 Taylor

slide-8
SLIDE 8

3/15/2012 8

Measures of Success

  • Scientists trooped over to CS repeatedly to use the stereo

display!

  • Linux version to run on scientists’ computers
  • http://sourceforge.net/projects/gyve
  • Jameson Miller, Cory W. Quammen, and Matthew C. Fleenor,

Interactive Visualization of Intercluster Galaxy Structures in the Horologium-Reticulum Supercluster, IEEE Transactions on Visualization and Computer Graphics (Proceedings Visualization / Information Visualization 2006), vol. 12, no. 5,

  • pp. 1149–1155, Sept.–Oct. 2006.

3/15/2012 Designs 22 Comp/Phys/Mtsc 715 Taylor 3/15/2012 Designs 23 Comp/Phys/Mtsc 715 Taylor

CDView: Problem Description

  • Client

– Luci Teague from UNC Chemistry

  • Team

– Chad Hantak (CS), David Borland (CS)

  • Problem domain

– 3D molecular charge densities, generated by simulating molecular interactions of a 1-3 Cyclohexadine molecule bonding to a tetrahedral Silicon surface scanned by a Tungsten STM tip.

  • Data Collection

– Data is collected through CASTEP (CAmbridge Serial Total Energy Package) charge density simulations in the Cerius2 software package. Output is various ASCII files.

http://surface.iphy.ac.cn/schinese/SF4/stm.ht1.gif

3/15/2012 Designs 24 Comp/Phys/Mtsc 715 Taylor

slide-9
SLIDE 9

3/15/2012 9

CDView: Goals and Data

  • Goals

– Understand how the charge density varies throughout the volume, and how it relates to the molecular models. Specifically, the charge density values and the shape of the volume where the tip is interacting with the molecule. – Correlate the STM image data with the simulated data.

  • Data

– Regular 3D grid of ratio scalar data from simulation (no noise, no missing data, no appreciable quantization) – Irregular 3D grid of atom coordinates and bonds (no noise, no missing data, no appreciable quantization)

3/15/2012 Designs 25 Comp/Phys/Mtsc 715 Taylor

CDView: Design

  • 3D Scalar Field

– Volume Render vs. Isosurface

  • Interested in shape
  • Specific charge density values
  • (Russ had an idea for displaying several isosurfaces…)
  • 3D Model

– For context, simple ball and stick model

  • Other Techniques

– Bounding box – Axis glyph – Clipping planes – Slices with colormaps

3/15/2012 Designs 26 Comp/Phys/Mtsc 715 Taylor

CDView: Implementation

  • VTK + Java

– Java wrappers for VTK – Wrote most of the code in Java—platform independent – Wrote new VTK class for translucent isosurfaces in C++ (had to reimplement in Java due to wrapping problems…) – Used Java Swing for the GUI

3/15/2012 Designs 27 Comp/Phys/Mtsc 715 Taylor

slide-10
SLIDE 10

3/15/2012 10

CDView: Interface

3/15/2012 Designs 28 Comp/Phys/Mtsc 715 Taylor

CDView: Images

  • Bounding Box
  • 3 Nominally Colored

Isosurfaces

  • Axes

Silicone 1-3 Cyclohexadine Tungsten STM tip 3/15/2012 Designs 29 Comp/Phys/Mtsc 715 Taylor

CDView: Images

  • Clipping Plane

– To remove data of little interest

Tungsten STM tip 1-3 Cyclohexadine 3/15/2012 Designs 30 Comp/Phys/Mtsc 715 Taylor

slide-11
SLIDE 11

3/15/2012 11

CDView: Images

  • Clipping Plane

– To display interior surfaces

3/15/2012 Designs 31 Comp/Phys/Mtsc 715 Taylor

CDView: Images

  • Run reaction-diffusion on isosurfaces, use to

modulate opacity

  • Show inner and outer structure

3/15/2012 Designs 32 Comp/Phys/Mtsc 715 Taylor

CDView: Images

3/15/2012 Designs 33 Comp/Phys/Mtsc 715 Taylor

slide-12
SLIDE 12

3/15/2012 12

CDView: Images

  • Slice with black-body

radiation colormap applied (goes to blue)

  • Enables showing of

ratio data.

  • Used a lot to compare

different data sets.

3/15/2012 Designs 34 Comp/Phys/Mtsc 715 Taylor

Lessons Learned

  • What Went Right

– Application for prototyping (AVS express)

  • Great for making sure you can load the data correctly
  • You guys have ParaView and VisTrails

– Extensible toolkit (VTK)

  • Don’t need to reinvent the wheel for most things, but flexible enough to do so

– Good communication with scientist

  • Very important! You are designing a tool to answer their questions.
  • What Went Wrong

– Undocumented data file formats

  • Spent a large portion of our time figuring this out

– VTK documentation isn’t always the greatest – VTK wrapper problems – VTK opacity bug

  • Need to depth sort for half of the views!
  • Ideal Implementation

– Head-tracked stereo – More interactive (Volume Render Isosurfaces?) *Never enough: David Borland continued working with Lucie for the semester after the course project on fine-tuning, adding various generated data sets, etc.

3/15/2012 Designs 35 Comp/Phys/Mtsc 715 Taylor

Measures of Success

  • Students worked with collaborator after end of semester
  • Collaborator used visualization in preparation of paper

3/15/2012 Designs 36 Comp/Phys/Mtsc 715 Taylor

slide-13
SLIDE 13

3/15/2012 13

3/15/2012 Designs 37 Comp/Phys/Mtsc 715 Taylor

Innerspace

  • David Borland’s dissertation work

3/15/2012 Designs 38 Comp/Phys/Mtsc 715 Taylor

Arthroscopy

  • Use fiber-optic camera and

surgical tools to investigate joint for pathology

  • Problems

– Invasive – Costs time and money – Very cramped area to maneuver in

3/15/2012 Designs 39 Comp/Phys/Mtsc 715 Taylor

slide-14
SLIDE 14

3/15/2012 14

MRI Slice Viewing

  • Current standard for

joint pathology diagnosis

  • Features

– Less invasive – Contrast agent routinely injected to aid imaging

  • Problems

– Requires tedious selection of slices – Requires non-intuitive mental reconstruction

  • f 3D features

Shoulder MRI

Contrast agent in the joint-space

Humeral Head Socket Humeral Head Humeral Head Socket

3/15/2012 Designs 40 Comp/Phys/Mtsc 715 Taylor

Virtual Arthroscopy

  • Work by John Clarke from

UNC Radiology

  • Features

– Also less invasive – More intuitive visualization

  • Problems

– Viewpoints limited to the joint-space – Must maneuver the virtual camera across the entire joint surface for evaluation – “Like looking at the palm of your hand with it touching your nose.”

Humeral Head

3/15/2012 Designs 41 Comp/Phys/Mtsc 715 Taylor

Visualization Course Project

  • Sean Hanlon,

Karl Strohmaier, Kelly Van Busum

  • DVR for context
  • Extracted

isosurface for detail

– Slow…

  • Adjustable

clipping planes

– Problem…

3/15/2012 Designs 42 Comp/Phys/Mtsc 715 Taylor

slide-15
SLIDE 15

3/15/2012 15

If at first you don’t succeed…

  • Volume Rendering?

–Still have occlusion problem

  • Transparency?

–Confusion

3/15/2012 Designs 43 Comp/Phys/Mtsc 715 Taylor

Volumetric Depth Peeling (VDP)

  • Extension to standard ray-casting Volume Rendering algorithm
  • Enables anatomical views not possible with standard clinical techniques
  • Works with complicated structures for which no clipping plane will

suffice

  • Requires no pre-segmentation
  • Works for self-occlusion and tube-like structures
  • Takes advantage of routine contrast enhancement

Presented at Visualizaton and Data Analysis 2006

3/15/2012 Designs 44 Comp/Phys/Mtsc 715 Taylor

Standard Volume Rendering vs. VDP

Constrained to Joint-Space VDP Ligament and Labrum (Ring of Cartilage) Tear Humeral Head

3/15/2012 Designs 45 Comp/Phys/Mtsc 715 Taylor

slide-16
SLIDE 16

3/15/2012 16

Movie 1

3/15/2012 Designs 46 Comp/Phys/Mtsc 715 Taylor

Movie 2

3/15/2012 Designs 47 Comp/Phys/Mtsc 715 Taylor

Movie 3

3/15/2012 Designs 48 Comp/Phys/Mtsc 715 Taylor

slide-17
SLIDE 17

3/15/2012 17

Movie 4

3/15/2012 Designs 49 Comp/Phys/Mtsc 715 Taylor

Innerspace

  • Built with VTK, wxWidgets, and gdcm
  • Loads DICOM format
  • Visualization features

– 3 slice views – 3D render view – Axes – Camera widget in slice views updated with 3D motion – Slices updated with 3D motion – 3D view updated with camera widget motion – Simple sliders and full transfer function control – View threshold value in slice views

3/15/2012 Designs 50 Comp/Phys/Mtsc 715 Taylor

Additional Work: Glove Phantom Study

Shell Stone Stone Fatty Tissue Fatty Tissue

Exterior Interior

  • Proof of

concept for VDP

  • f urinary

system

  • Performed on 3

contrast-filled rubber gloves with various

  • bjects placed

inside

3/15/2012 Designs 51 Comp/Phys/Mtsc 715 Taylor

slide-18
SLIDE 18

3/15/2012 18

Measures of Success

  • Collaborator found funding to support student
  • Two domain-science publications
  • UNC Ph.D. dissertation
  • Patent issued
  • Summer internship for student at Siemens
  • Patent licensed to Siemens and put into Syngo software

3/15/2012 Designs 52 Comp/Phys/Mtsc 715 Taylor 3/15/2012 Designs 53 Comp/Phys/Mtsc 715 Taylor

Example Visualization Design Example AVS Implementation

  • The Research Questions

– Which directions can four magnetic poles located at the corners of a tetrahedron pull a magnetic bead that is centered between them? – How uniform is the pull in each direction?

3/15/2012 Designs 54 Comp/Phys/Mtsc 715 Taylor

slide-19
SLIDE 19

3/15/2012 19

The Raw Data

  • Magnetic field simulation for four poles

– 10,000 sets of random currents on each pole – Computes direction of force (Phi, Theta) – Computes force magnitude for each

  • Data Type

– 2D Ratio Scalar Field (mag) – Unstructured (scatter phi/theta)

Density Plot: |B|, >4.071e- 3.701e-001 : 4.071e- 3.331e-001 : 3.701e- 2.961e-001 : 3.331e- 2.591e-001 : 2.961e- 2.221e-001 : 2.591e- 1.851e-001 : 2.221e- 1.481e-001 : 1.851e- 1.111e-001 : 1.481e- 7.412e-002 : 1.111e- 3.712e-002 : 7.412e- <3.712e-

Increasing Field Density 3/15/2012 Designs 55 Comp/Phys/Mtsc 715 Taylor

Discussion: How Best to Visualize?

  • No fair helping if you peeked at today’s notes
  • r have seen this before

– Unless you have a better idea for how to do it!

3/15/2012 Designs 56 Comp/Phys/Mtsc 715 Taylor

Cooking the Data

  • Convert from unstructured set of points

– Place points into regular set of bins in phi, theta – Average all points falling within each bin – Produces regular grid with missing values – Expect high-frequency changes across the grid

  • Put back into natural space for the problem

– Convert (phi, theta, magnitude) to (x,y,z)

  • Spherical coordinates to Cartesian coordinates

– 2D surface embedded in 3-space

3/15/2012 Designs 57 Comp/Phys/Mtsc 715 Taylor

slide-20
SLIDE 20

3/15/2012 20

Visualization Design

  • Height field encodes force magnitude for primary goal
  • f estimating coverage of directions
  • Color redundantly encodes magnitude to show

uniformity of force (banded, isoluminant would have been better than the one I found in AVS Express)

  • Missing values leave holes in the displayed surface
  • Iso-height sphere model added to improve

understanding of fraction of sphere covered

  • Enable user to rotate view to explore region shape

3/15/2012 Designs 58 Comp/Phys/Mtsc 715 Taylor

Six Poles? Eight Poles?

  • Really want max in each bin, not average?

3/15/2012 Designs 59 Comp/Phys/Mtsc 715 Taylor

What the real data looks like

3/15/2012 Designs 60 Comp/Phys/Mtsc 715 Taylor

slide-21
SLIDE 21

3/15/2012 21

Real vs. Simulated

  • Real is all data, simulated is averaged in

direction

Note the outlying white sphere

3/15/2012 Designs 61 Comp/Phys/Mtsc 715 Taylor
