Simulating LIS ISP-Based Multilink Communications in Aeronautical Networks Chiara Caiazza, Antonio Virdis, Giovanni Stea University of Pisa Outline Overview of aeronautical communications Handover and Multilink LISP protocol

slide-1
SLIDE 1

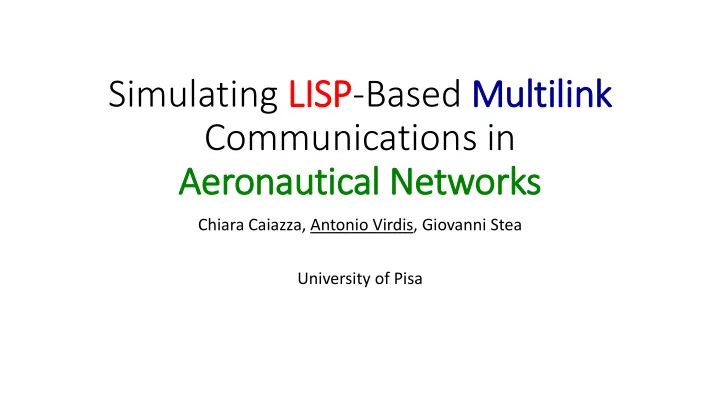

Simulating LIS ISP-Based Multilink Communications in Aeronautical Networks

Chiara Caiazza, Antonio Virdis, Giovanni Stea University of Pisa

slide-2
SLIDE 2

Outline

  • Overview of aeronautical communications
  • Handover and Multilink
  • LISP protocol
  • Performance evaluation
  • Conclusions
slide-3
SLIDE 3

Aeronautical communications

  • Future

Communication Infrastructure (FCI)

Core network LDACS Network Satcom network Aircraft Mobile network Ground end system

slide-4
SLIDE 4

Multilink Concept

Core network LDACS Network Satcom network Aircraft Mobile network Ground end system

  • How do we select the link?
  • How do we enforce this selection

from a communication standpoint?

slide-5
SLIDE 5

Locator/Identifier Separation Protocol (LISP)

Core network LDACS Network Satcom network Aircraft Mobile network Ground end system

LISP routers

EID

?

slide-6
SLIDE 6

Registration: EID to RLOC

Core network LDACS Network Satcom network Aircraft Mobile network Ground end system EID Mapping Server EID RLOC Prio X Y 11

slide-7
SLIDE 7

Map Request

Core network LDACS Network Satcom network Aircraft Mobile network Ground end system EID Req EID X Mapping EID X -> RLOC Y Mapping Server EID RLOC Prio X Y 11

?

slide-8
SLIDE 8

Data Transmission

Core network LDACS Network Satcom network Aircraft Mobile network Ground end system EID RLOC Mapping Server EID RLOC Prio X Y 11 EID X

slide-9
SLIDE 9

Motivation

  • Studying Aeronautical communications in a Multilink environment
  • Evaluating the impact of communication protocols in terms of:
  • System overhead (number of additional messages)
  • System load (computation at critical nodes, storage capacity)
  • Extensible to:
  • Multiple DataLinks
  • Multiple Applications and Communication Services
slide-10
SLIDE 10

SAPIENT Simulator: Modeling the Communication Network

Ground Application (e.g. ATN) ATM/AOC ATN/IPS (SWIM based)

Terrestrial DL Service Provider Satellite DL Service Provider

Airborne Application Terrestrial DL receiver Satellite DL receiver

A/C Domain DL Domain Core Network Domain Application Domain

RPAS pilot (e.g. C2)

Multi-link Connection Manager

slide-11
SLIDE 11

SAPIENT Simulator

A/C Terrestrial Network SATCOM Network Core Network Ground Node

slide-12
SLIDE 12

Example: Terrestrial DL (LDACS)

GS GS GS AC-R AC-R AC-R AG-R AG-R GG-R CME UT UT LDACS Oracle Air Segment Ground Segment

from/to Core

L1 L2 IP2LDACS from/to LDACS air segment LDACS Interface Channel Model from/to upper layers Pathloss Model

A/C Terrestrial Network SATCOM Network Core Network Ground Node

slide-13
SLIDE 13

Core network LDACS network Ground end system

slide-14
SLIDE 14

Simulation Scenario

slide-15
SLIDE 15

System Load: stored entries

10 30 50 50 100 150 200 250 300 AC = Number of entries Indirect mode Direct mode Direct mode w/ push msgs

slide-16
SLIDE 16

System Load: # of messages

Core network LDACS Network Satcom network Aircraft Mobile network Ground end system Mapping Server

slide-17
SLIDE 17

System Load: # of messages (2)

10 30 50 10 30 50 10 30 50 10 30 50 10 30 50 200 400 600 800 1000 Number of LISP MapRequest Indirect mode Direct Mode

delay 0s delay 10ms delay 15ms delay 20ms delay 40ms

slide-18
SLIDE 18

Conclusions and Future Work

  • SAPIENT + LISP: system-level simulator for FCI and Multilink
  • Arbitrarily increase the complexity of domains, keeping the same

Router Architecture

  • Evaluation of the system LOAD
  • Move everything to IPv6
  • Testing using realistic traffic models and mobility patterns
