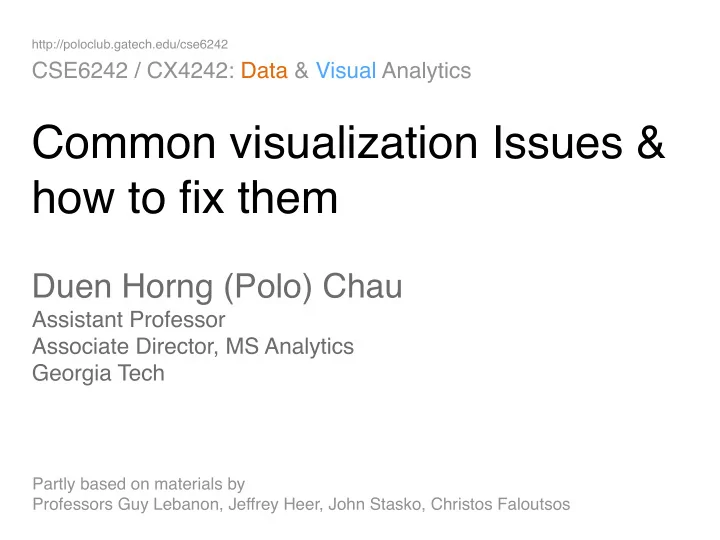

http://poloclub.gatech.edu/cse6242 CSE6242 / CX4242: Data & Visual Analytics Common visualization Issues & how to fix them Duen Horng (Polo) Chau Assistant Professor Associate Director, MS Analytics Georgia Tech

slide-1
SLIDE 1

http://poloclub.gatech.edu/cse6242


CSE6242 / CX4242: Data & Visual Analytics


Common visualization Issues &
 how to fix them

Duen Horng (Polo) Chau


Assistant Professor
 Associate Director, MS Analytics
 Georgia Tech

Partly based on materials by
 Professors Guy Lebanon, Jeffrey Heer, John Stasko, Christos Faloutsos

slide-2
SLIDE 2

2

Student of
 Edward Tufte

http://a.co/6BhlPfZ

slide-3
SLIDE 3

3

Edward Tufte

An American statistician and professor emeritus of political science, statistics, and computer science at Yale University. He is noted for his writings

  • n information design and

as a pioneer in the field of data visualization.

  • Wikipedia
slide-4
SLIDE 4

Also Highly Recommended:

slide-5
SLIDE 5

5

Can you improve its visual design?

slide-6
SLIDE 6

6

Which is better?

slide-7
SLIDE 7

7

What can you improve?

Tables

slide-8
SLIDE 8

What’s the problem with making everything
 bold or italic?

slide-9
SLIDE 9

http://www.youtube.com/watch?v=A8I9pYCl9AQ

slide-10
SLIDE 10

“When everyone is super,
 no one is super”

http://www.youtube.com/watch?v=A8I9pYCl9AQ

slide-11
SLIDE 11

“When everyone is super, no one is super”

10

slide-12
SLIDE 12

11

slide-13
SLIDE 13

11

A lot of “chart junk”.
 Low “data to ink” ratio (Edward Tufte)

slide-14
SLIDE 14

12

Higher “data to ink” ratio

slide-15
SLIDE 15

13

Problems?

slide-16
SLIDE 16

14

slide-17
SLIDE 17

15

The color scheme reminds you of what?

Bar Charts

slide-18
SLIDE 18

16

Better than Christmas


(Use color brewer to find good color schemes)

slide-19
SLIDE 19

17

Company Profits

slide-20
SLIDE 20

17

Don’t show profits in red!!
 Think carefully about your color choices.

Company Profits

slide-21
SLIDE 21

18

slide-22
SLIDE 22

19

slide-23
SLIDE 23

19

Misleading Bar Charts

slide-24
SLIDE 24

20

Vertical axis of bar charts
 should start at 0, almost always

slide-25
SLIDE 25

21

Disorienting color bars

slide-26
SLIDE 26

22

Use gradation

slide-27
SLIDE 27

23

slide-28
SLIDE 28

23

Avoid Tilted or Rotated Labels

slide-29
SLIDE 29

24

Bars Can be Horizontal

slide-30
SLIDE 30

24

Bars Can be Horizontal

When labels are hard to read, try horizontal layout. Don’t settle for the default.

slide-31
SLIDE 31

25 http://www.apple.com/imac/performance/

slide-32
SLIDE 32

26

Line Charts (a.k.a. fever lines)

Can you improve the tick labels?

slide-33
SLIDE 33

27

Use ticks at common intervals (e.g., 2, 5, 10, etc.)

slide-34
SLIDE 34

28

Note y-axis does not need to start at 0.
 Why not as bad as in the case of bar chart?

Too flat or too steep?

slide-35
SLIDE 35

29

Rule of Thumb

slide-36
SLIDE 36

30

Multiple Patterned Lines
 in one chart

slide-37
SLIDE 37

31

Which one is more effective? Why?
 What if you have many lines you want to show?

slide-38
SLIDE 38

32

“Small Multiple” - Edward Tufte
 Better than overlapping (sometimes)

“a series or grid of small similar graphics or charts, allowing them to be easily compared”

slide-39
SLIDE 39

33

The Dreaded Pie Charts

Why people like to use pie charts?

slide-40
SLIDE 40

34 http://www.wired.com/2008/02/macworlds-iphon/

slide-41
SLIDE 41

35 http://flowingdata.com/2012/06/15/what-3-d-pie-charts-are-good-for/

slide-42
SLIDE 42

36 http://wonkette.com/412361/all-193-of-republicans-support-palin-romney-and-huckabee

slide-43
SLIDE 43

37

slide-44
SLIDE 44

38 http://infosthetics.com/archives/2008/09/funniest_pie_chart_ever.html

slide-45
SLIDE 45

Log scale instead of linear scale

Include numbers from different orders of magnitude

39

slide-46
SLIDE 46

40

Example

log-log

slide-47
SLIDE 47

41

Example

“log” also works well for time

slide-48
SLIDE 48

In-class Exercise.

Applying what you have just learned.

42

slide-49
SLIDE 49

How to fix the defaults

43 http://www.darkhorseanalytics.com/blog/clear-off-the-table

slide-50
SLIDE 50

How to fix the defaults

43 http://www.darkhorseanalytics.com/blog/clear-off-the-table

slide-51
SLIDE 51

Great Work destroyed by
 Poor Presentation

Bad color schemes Bad, tiny fonts Too much animation Too much data

44

100 times faster!

http://www.youtube.com/watch?v=lpvgfmEU2Ck&feature=player_embedded

Don McMillan: Life After Death by PowerPoint

can you read this?

slide-52
SLIDE 52

Practitioners’ Guide

Colors: start with black & white Forces you to focus on content and layout Then add colors, carefully Fonts: sans-serif generally easier to read On Mac: Helvetica is great start On Windows: Arial? Animation: start with no animation, then add meaningful ones

45

slide-53
SLIDE 53

Practitioners’ Guide: Use Pictures and Videos

“Pictures” include tables, diagrams, charts, etc.

  • Pictures often more succinct & memorable
  • People like pictures and love movies

46

And show them ASAP!


Once people fall asleep, it’s hard to wake them up! If you have good stuff, show them now.

slide-54
SLIDE 54

47

Example

slide-55
SLIDE 55

Practitioners’ Guide: Additional Tips for PhD students / Researchers

Crown-jewel pictures are important

  • Overview of what readers is going to get — cut to the

chase

  • People skim; look at “interesting” things first
  • Reviewers are busy and sleepy 😵 (read 5-10 papers per

conference) — it’s refreshing to read an interesting paper How to do it?

  • Use your most impressive figure
  • Can be similar to another shown later

48

slide-56
SLIDE 56

Figures should be self-contained.

49

slide-57
SLIDE 57

50

http://www.cs.cmu.edu/~dchau/polonium_sdm2011.pdf

Example

slide-58
SLIDE 58

Figures should be self-contained

Why?

  • Don’t make people go back

and forth between text & figure

  • Bad figures means bad first

impression (reject!) How to fix?

  • Succinctly describe your

main (take-away) messages


51

slide-59
SLIDE 59

52

Example

slide-60
SLIDE 60

Use legible fonts.

53

slide-61
SLIDE 61

For printed materials, print them out and check! Rule of thumb: about 7 lines of text on a slide.

54

If people can’t see it, they won’t appreciate it.

slide-62
SLIDE 62

Apple UI Design Guidelines

55

https://developer.apple.com/design/tips/

slide-63
SLIDE 63

56

Example

slide-64
SLIDE 64

Higher is better. Apolo wins.

* Statistically significant, by two-tailed t test, p <0.05

Judges’ Scores

8 16

Model- based *Prototyping *Average

Apolo Scholar

Score

Example
