NMHH satellite antennas NMHH satellite antennas Fix position antennas: Digi: fix 60 cm offset parabola, west 1 MTVA: fix 110 cm offset parabola, east 9 Telekom: fix 90 cm offset parabola, west 4 UPC: fix 60 cm offset
SLIDE 2
SLIDE 3
NMHH satellite antennas
- Fix position antennas:
– Digi: fix 60 cm offset parabola, west 1° – MTVA: fix 110 cm offset parabola, east 9° – Telekom: fix 90 cm offset parabola, west 4° – UPC: fix 60 cm offset parabola, west 1°
SLIDE 4
NMHH satellite antennas
- 1 axis antennas:
– East monitoring antenna:
- 240cm Grante prime focus parabola,
SMW WDL-PLL LNB
- SV-SP2 controller: range geostat from east
90° to east 3°
– West monitoring antenna:
- 240cm Grante prime focus parabola,
SMW WDL-PLL LNB
- SV-SP2 controller: range geostat from east
36° to west 45°
SLIDE 5
NMHH satellite antennas
- 2 axis antennas:
– Control monitoring antenna:
- 125 cm WISI offset parabola, 43dB gain, WISI OL
150000 LNB, optical
- SV-SP2V2 controller: range geostat from east
57° to west 30°, LNB correction from -30° to +30°
– 360 degree antenna:
- 120 cm RF HAMDESIGN prime focus mesh
parabola, 38dB gain, INVERTO Black Pro LNB head
- SV-SPS1 controller: coverage azimut ±200°,
elevation ±87,5°
SLIDE 6
Antenna controls
- SV-SP2 / SV-SP2V2:
SLIDE 7
Antenna controls
- SV-SP1V2:
– Additional servo motor lnb correction
SLIDE 8
Antenna controls
- SV-SPS1:
SLIDE 9

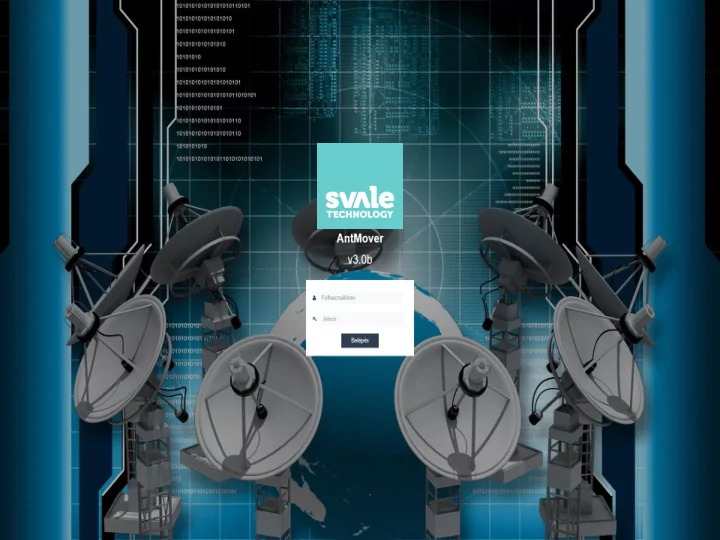

AntMover v3.0
SLIDE 10
AntMover v3.0
SLIDE 11
AntMover v3.0
SLIDE 12
AntMover v3.0
SLIDE 13
AntMover v3.0
SLIDE 14
AntMover v3.0
SLIDE 15
AntMover v3.0
SLIDE 16
AntMover v3.0
SLIDE 17
Server and technologies
- Server:
– Processzor: Intel Core i7 – Memory: 8GB – Storage: 256GB SSD, 2 x 1TB HDD / Raid 1
- Softver components:
– Ubuntu 16.04 LTS – Apache 2.4.18 – PHP 7.0.15 – OpenJDK 1.8 – PostgreSQL 9.5.6
