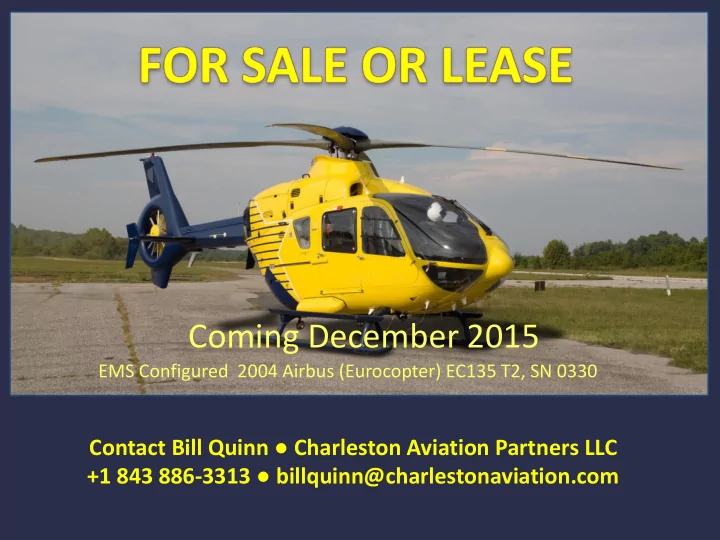

Coming December 2015 EMS Configured 2004 Airbus (Eurocopter) EC135 T2, SN 0330 Contact Bill Quinn ● Charleston Aviation Partners LLC +1 843 886-3313 ● billquinn@charlestonaviation.com
Value Propositions • LEASE OPTIONS AVAILABLE • EMS CONFIGURED • METRO AVIATION EMS PACKAGE • EMS PACKAGE INSTALLED BY HELI-DYNE SYSTEMS • SINGLE PILOT IFR • ADS-B OUT • LOW COMPONENT TIMES • EXCELLENT MAINTENANCE HISTORY
EMS Configuration Metro Aviation Emergency Medical System Pilot EMS Control Panel Univent Model 754 Ventilator System Soft Goods Storage Pockets Single Pump Dual Outlet Vacuum System Patient High Intensity Lighting Dual Medical Gas Outlets Left & Right Storage provisions for Carry on Oxygen MAI Metro IV Pump System Dual Patient Oxygen Systems Left and Right MAI Overhead EMS Console in the Cabin Dual Medical Oxygen Cylinder Mounts Cabin EMS Inverter & Shore Power Control Panel Window Storage Units Electrical System w/Shore Power/Heater System Dual “D” Size Portable Oxygen Cylinder Mounts Dual GFCI Outlets in the Cabin Left & Right MAI PIC 50 Mount One KGS 115VAC 60Hz Inverter MAI Window Mount MAI Pro Paq Mount System Blackout Curtain Scuff Plates MAI Medical Floor Installation Note: The helicopter specifications & equipment are subject to verification upon inspection by any prospective buyer. Charleston Aviation Partners, LLC does not warrant the accuracy or authenticity of the specifications and equipment contained in this document .
EMS Configuration - Left Side Facing Aft
EMS Configuration - Right Side Facing Aft
EMS Configuration - Aft Loading Doors
Avionics Package Dual Thales SMD45 Flight Displays One Technisonic TDFM-6158 VHF/UHF Transceiver Thales Three (3) Axis Autopilot Systems One Technisonic TFM-30 VHF/FM Transceiver One Garmin GNS-530W GPS/NAV/COM One Technisonic AMS-6000 Audio Mode Selector One Garmin GNS-430W GPS/NAV/COM One Technisonic RC-6000 Remote Control Head One Garmin MX-20 Multi-Function Display Dual NAT AA95-863 Audio Panels One Garmin GDL-90 Data Link (ADS-B Out) One NAT AA95-875 Audio Panel One Garmin GTX-330 Transponder One NAT AA35-100 Audio Mixer Panel One Garmin GAE-43 Altitude Encoder One NAT AA31-002 ICS Mode Controller One Garmin GI-106A VOR/LOC/ILS Indicator One NAT AA30-019 Expansion Switches One Honeywell KR-21 Marker Beacon Receiver One NAT AA30-020 Expansion Switches One Honeywell (Bendix/King) RDR-2000 Radar One NAT STX-100 Globalstar SAT Phone One Wulfsberg (Chelton) DMS-44A DME One Davtron M877 Digital Clock One Honeywell KRA-405B Radio Altimeter One KGS Electronics SPC-5B Inverter One Honeywell MKXXI & KGP-560 EGPWS/TAWS One L-3 (AIM520-9B) Standby Attitude Gyro Mid Continent MD41-1208 Terrain Annunciator One L-3 PS-835C Standby Power Supply One Honeywell TRA-45A Terrain Display & RADALT Standby Altimeter Dual Thales ADU-3000 Air Data Units Standby Airspeed Indicator Dual Thales (Safran/Sagem) AHRS Note: The helicopter specifications & equipment are subject to verification upon inspection by any prospective buyer. Charleston Aviation Partners, LLC does not warrant the accuracy or authenticity of the specifications and equipment contained in this document.
Cockpit Configuration
Additional Options Tech-Tool Plastics Cargo Door Windows Dual Controls Tech-Tool Plastics American Eurocopter Pulse Chip Detector Provisions for External PA Wiring Airtex 406-2HM ELT Devore Tail Rotor Flood Lights Hobbs Meter MAI Air Conditioning System Concorde RG-380E/44 Lead Acid Battery SX-16 Nightsun (fixed provisions only) Dart Style Full Length L/H & R/H Passenger Steps Aft Loading light Systems Aviation Specialties Lighting System
Major Component Times Component Description Hourly Limit Action Total Time Time Remaining Main Rotor Hub& Shaft: 14,000 Retire 8,372.4 5,627.6 Main Transmission: 4,000 Overhaul 1,451.2 2,548.8 #1 Main Rotor Blade: 12,400 Retire 5,544.6 6,855.4 #2 Main Rotor Blade: 12,400 Retire 5,544.6 6,855.4 6,855.4 #3 Main Rotor Blade: 12,400 Retire 5,544.6 6,855.4 #4 Main Rotor Blade: 12,400 Retire 5,544.6 10,654.8 Main Rotor Gearbox Upper: 20,000 Overhaul 9,345.2 3,254.8 Main Rotor Gearbox Lower: 12,600 Overhaul 9,345.2 450.8 Tail Rotor Transmission: 3,000 Overhaul 2,549.2 5,878.7 Tail Rotor Blades: 12,000 Retire 6,121.3 1,954.4 #1 Hydraulic Pump: 7,500 Overhaul 5,545.6 1,953.4 #2 Hydraulic Pump: 7,500 Overhaul 5,546.6 2,964.0 Collective Axis Servo: 7.500 Overhaul 4,536 2,964.0 1. Lateral Axis Servo: 7,500 Overhaul 4,536 2,964.0 2. Longitudinal Axis Servo: 7,500 Overhaul 4,536 Note: The times and cycles noted above are subject to verification upon inspection by any prospective buyer. Charleston Aviation Partners, LLC does not warrant the accuracy or authenticity of the information contained within this document.
