cold chain design prespective for warehouse
play

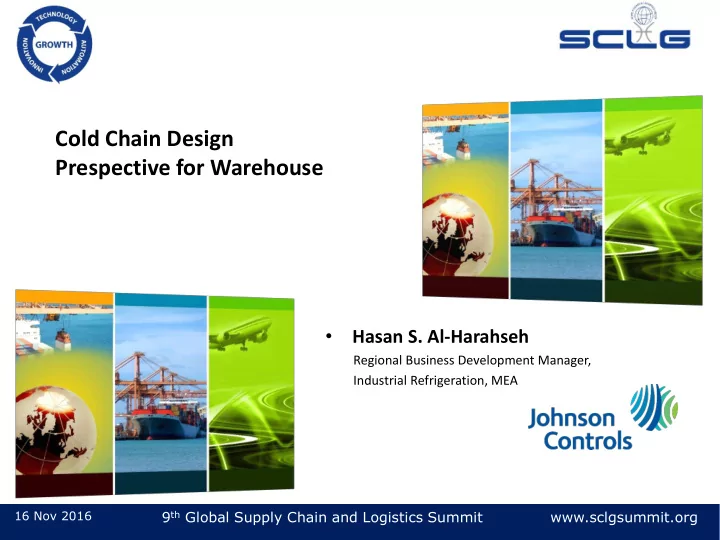

Cold Chain Design Prespective for Warehouse Hasan S. Al-Harahseh - PowerPoint PPT Presentation

Sep 16, 2023 •587 likes •822 views

Cold Chain Design Prespective for Warehouse Hasan S. Al-Harahseh Regional Business Development Manager, Industrial Refrigeration, MEA 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org Headquarter in Milwaukee,

  1. Cold Chain Design Prespective for Warehouse • Hasan S. Al-Harahseh Regional Business Development Manager, Industrial Refrigeration, MEA 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  2. Headquarter in Milwaukee, Wisconson State, USA Established in 1885 Global Company with offices in 150+ countries, in 1500 locations More than 100,000 Employees Globally 9 Feb 2011 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  3. BUILDING POWER TECHNOLOGIES & SOLUTIONS SOLUTIONS Optimizing building Producing vehicle batteries environments Our Vision Creating a Comfortable, Safe and Sustainable World Our Mission Exceeding our Customers’ Increasing Expectations 9 Feb 2011 Our Values Integrity · Customer Satisfaction Employee Engagement · Innovation · Sustainability 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  4. BUILDING TECHNOLOGIES & SOLUTIONS Optimizing building environments Heating, Ventilation & Air Controls Security Service Conditioning (HVAC) Industrial Refrigeration 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  5. 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  6. www.johnsoncontrols.com 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  7. Johnson Controls What is Cold Chain?? Farm (point of Harvest) Processing/Packing Storage/Distribution Cold Storage Retail/Consumption Pre Cooling 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  8. Johnson Controls Where is Industrial Refrigeration in Cold Chain Farm (point of Harvest) Processing/Packing Storage/Distribution Cold Storage Retail/Consumption Pre Cooling 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  9. Temperatures Zones and Applications Dry Storage Ambient Temperature Air Cooling Ambient to +10 C Chilled Storage + 10 to 0 C Frozen Storage -0 to -25 C Blast (Shock) Freezing Down to -45 C 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  10. ‘Design Factors for Cold Storage Warehouse’ - Insulation - Floor Protection - Building Loads - Machine Room - Power Consumption - Water Consumption 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  11. ‘Design Factors for Cold Storage Warehouse’ - Insulation - Walls Insulation - Ceiling Insulation - Floor Insulation 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  12. ‘Design Factors for Cold Storage Warehouse’ - Floor Protection 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  13. ‘Design Factors for Cold Storage Warehouse’ - Floor Protection - Ventilation Pipes - Electric Heaters - Underground Water Pipes 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  14. ‘Design Factors for Cold Storage Warehouse’ - Building Loads - Coolers Loads - Pipes Loads - Machines Loads (humidification, de-humidification, AHUs, Ducts, etc) 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  15. ‘Design Factors for Cold Storage Warehouse’ 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  16. ‘Design Factors for Cold Storage Warehouse’ 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  17. ‘Design Factors for Cold Storage Warehouse’ - Machine Room Construction - Machines Foundations (Compressors, Condensers, Pumps, Vessels, etc.) - Ventilation Requirements - Safety Requirements - Electrical Panels Enclosure - Room Temperature Control (Air Conditioning) 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  18. ‘Design Factors for Cold Storage Warehouse’ 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  19. ‘Design Factors for Cold Storage Warehouse’ 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  20. ‘Design Factors for Cold Storage Warehouse’ 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  21. ‘Design Factors for Cold Storage Warehouse’ - Electrical Power Requirements - LV Room (MDB, Capacitor Bank, ATS,etc.) - Trenches, Cable trays, and Conduits - Gen. Set - Water Requirements - Water Supply Storage Tank - Pumps Station - Water Drainage System (Septic Tank, etc.) 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org

  22. Thank you for your attention 9 th Global Supply Chain and Logistics Summit 16 Nov 2016 www.sclgsummit.org
