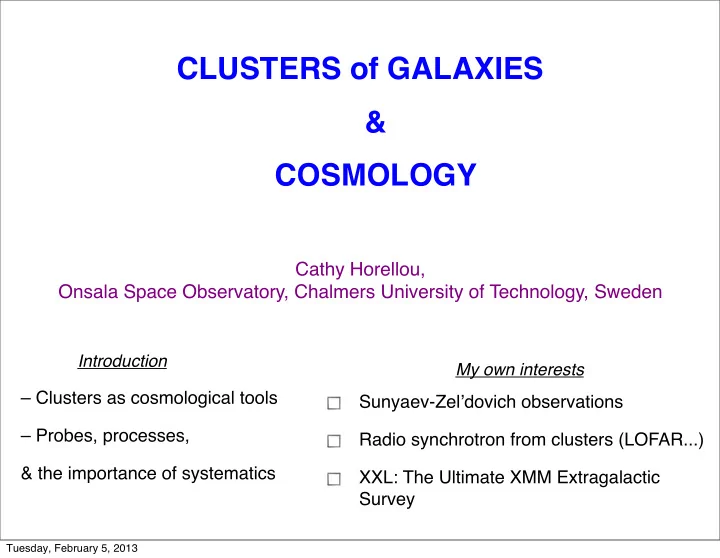

CLUSTERS of GALAXIES & COSMOLOGY

Cathy Horellou, Onsala Space Observatory, Chalmers University of Technology, Sweden

Introduction

– Clusters as cosmological tools – Probes, processes, & the importance of systematics Sunyaev-Zelʼdovich observations Radio synchrotron from clusters (LOFAR...) XXL: The Ultimate XMM Extragalactic Survey

My own interests

Tuesday, February 5, 2013

slide-2
SLIDE 2

Vikhlinin et al. 2009

Tuesday, February 5, 2013

slide-3
SLIDE 3

Credit: The Virgo consortium, 1996

Observations of clusters make it possible to – measure the growth of structure in the expanding Universe – constrain the cosmological parameters

Ex: The observation of 1 single massive cluster at z = 0.8 (MS1054-0321) made it possible to exclude Ωm > 1 (Jetlema et al. 2001)

Ωm = 1 Numerical simulations of structure formation (dark matter only)

170 Mpc 200 Mpc

Ωm = 0.3 ΩΛ = 0.7

Tuesday, February 5, 2013

slide-4
SLIDE 4

Figure: Horellou & Berge 2005, MNRAS

Cluster number counts in different dark energy models

w = p/ρ : equation-of-state parameter of dark energy

w = – 1 (ΛCDM) w = – 0.8 w = – 0.6

A constant limiting mass was assumed. To relate observations to models, it is important to know the selection function of the survey, and the Mass-Observable relation

Tuesday, February 5, 2013

slide-5
SLIDE 5
  • Velocity dispersion of cluster galaxies + virial theorem
  • Hot gas in equilibrium with the gravitational
  • Gravitational lensing (strong + weak lensing)

⇒ Total mass: a few times 1013 to 1015 Msun

  • Scaling relations M - Observable

85% 10% 5%

Galaxies Hot gas Dark matter

kBTe GMmp 2Reff

  • 7
  • M

3 × 1014M Reff 1Mpc −1 keV

Cluster masses

Tuesday, February 5, 2013

slide-6
SLIDE 6

Mass LX TX YSZ N200 σV Lensing mass Optical/ NIR X-ray mm- radio

Scaling relations:

Mass – Observable

Tuesday, February 5, 2013

slide-7
SLIDE 7

Mass LX TX YSZ N200 σV Lensing mass Optical/ NIR X-ray mm- radio

Scaling relations:

Mass – Observable

Tuesday, February 5, 2013

slide-8
SLIDE 8

Constrain cosmologically-relevant quantities & the cosmological model with clusters:

  • Clusters are natural TELESCOPES (Gravitational lenses to probe the high-z

Universe)

  • Number counts n(M,z)

+ 2-point correlation function ξ(M,z) ➜ CosmoParams, neutrino mass, non-Gaussianity, ...

  • Baryon mass fraction in virialized clusters (Allen et al. 2011) ➜ CosmoParams...
  • SZ: – Thermal SZ + X-rays of virialized clusters: DA(z) ➜ H0

– Kinetic SZ: Peculiar velocities ➜ CosmoParams...

– TCMB(z ≠ 0). ➜ Standard law TCMB = T0(1+z), or more exotic model?

  • Dark matter:

– Merging clusters ➜ Constraints on the properties of DM (self-interaction cross- section) – DM annihilation ➜ secondary electrons ➜ SZ signature ➜ gamma rays

  • Cosmic magnetic fields (LOFAR/SKA) via observations of polarized emission and of

Faraday Rotation Measures (∝∫ neB// dl) of background sources (tomography)

Tuesday, February 5, 2013

slide-9
SLIDE 9

Tuesday, February 5, 2013

slide-10
SLIDE 10

B

  • Relat. e-
  • Th. e-

p

Radio synchrotron X-ray (Bremsstrahlung) γCMB γCMB γCMB

  • Th. e-

SZ

(Inverse Compton scattering)

γCMB γCMB γCMB π0 γ+γ Gamma rays

Dark matter

Thermal e- (keV), suprathermal e- (>10 keV), relativistic e- (power-law, MeV-GeV)

B Radio Faraday rotation

(∝∫ neB// dl)

  • Relat. e-

γCMB X/Gamma

(Inv. Compton)

  • Th. e-

π0

Tuesday, February 5, 2013

slide-11
SLIDE 11

THE SUNYAEV-ZELʼDOVICH EFFECT & SZE OBSERVATIONS of CLUSTERS

Picture: Sheldonʼs and Lennartʼs white board in the TV series The Big Bang Theory

x = hν/kT The Compton parameter y y ∝∫ neTe dl ∝∫ Pe dl y is dimensionless We measure Y = ∫ y dΩ in units of solid angle (sr, arcmin2) Y is tightly related to the Mass! The Kompaneets equation Change in the photon occupation number ∆n

Tuesday, February 5, 2013

slide-12
SLIDE 12

Zelʼdovich & Sunyaev 1969; Reviews by Birkinshaw 1999; Carstrom et al. 2002

APEX-SZ LABOCA

The SZ effect: Inverse Compton scattering of CMB

Tuesday, February 5, 2013

slide-13
SLIDE 13
  • 1. Thermal SZ effect

Decrement in the radio/mm, increment in the submm

ΔTSZ,th/TCMB(ν) ∝∫clusterneTedl = gas pressure

  • 2. Kinetic SZ effect: ~10 times weaker

ΔTSZ,kin/TCMB(ν) ∝-vpec/c Depends on the mass of the intracluster gas. Current observations are sensitive to clusters with masses M > a few 1014 Msun. Important: independent of redshift!

  • 3. Relativistic SZ effect

(High Te, high frequencies)

Characteristic distortions of the CMB spectrum:

APEX-SZ LABOCA

Tuesday, February 5, 2013

slide-14
SLIDE 14

Planck observation of Abell 2319 at z = 0.056 (DL = 236 Mpc)

Image Credit: ESA / HFI & LFI Consortia

2 degrees

The Planck Early Science SZ catalog: 189 clusters (incl. 20 new) (the Planck Collaboration 2011, A&A)

Angular resolution: 24ʼ to 5ʼ

Tuesday, February 5, 2013

slide-15
SLIDE 15

Reichardt et al. 2013 South Pole Telescope Angular resolution 1ʼ 150 + 95 GHz Planck: Beam dilution ROSAT: Cosmological dimming 224 cluster candidates in 720 deg2 (out of 2500 deg2), 158 confirmed in opt/NIR. Median z = 0.55 Mlim = 5 1014/h Msun at z > 0.6

Tuesday, February 5, 2013

slide-16
SLIDE 16

APEX-SZ PI: Adrian Lee

  • Mapping the SZ decrement at 2 mm (150 GHz)
  • Angular resolution of 1ʼ; FOV = 24ʼ
  • Observations between 2005 and 2010
  • 48 clusters + 2 deep fields.

Dec 2009

Tuesday, February 5, 2013

slide-17
SLIDE 17

Example of APEX-SZ 150 GHz maps (Schwan et al. 2012, The ESO Messenger)

Tuesday, February 5, 2013

slide-18
SLIDE 18

The Bullet Cluster at z = 0.3

Credit: X-ray: NASA/CXC/CfA/M.Markevitch et al.; Optical: NASA/STScI; Magellan/U.Arizona/ D.Clowe et al.; Lensing Map: NASA/STScI; ESO WFI; Magellan/U.Arizona/D.Clowe et al.

Hot gas (X-ray) Dark matter (lensing) Galaxies

Tuesday, February 5, 2013

slide-19
SLIDE 19

The Bullet Cluster as a gravitational lens

(Johansson, Horellou et al. 2010, A&A)

  • 17 submm galaxies (APEX-LABOCA 870 micron map)
  • The brightest one is a z = 2.8 galaxy located near a caustic line

and magnified ~ 100 times

Red:Total mass distribution (Weak lensing from Clowe et al.) Red: X-ray (XMM)

Tuesday, February 5, 2013

slide-20
SLIDE 20

The Bullet Cluster at z = 0.3

Star: Bright submm galaxy (50 mJy at 870 micron, Johansson et al. 2010) at z=2.8 near a critical line of the Bullet Cluster and magnified 100 times; its flux at 2 mm is negligible compared to the SZ

SZ decrement (APEX-SZ, 2mm): Halverson et al. 2009 SZ increment (LABOCA, 870 micron): Horellou et al., in prep Contours: X-ray Colors: SZ, resolution 27” Substructure in the SZ,

  • ffset from the X-ray

Contours + Colors: SZ, resolution 1.4ʼ

Tuesday, February 5, 2013

slide-21
SLIDE 21

The SZE spectrum

Abell 2163 at z = 0.3, Nord et al. 2009 Fixing temperature gives constraint on peculiar velocity-central Compton parameter

vpec,los = –140 ± 460 km s−1,

Tuesday, February 5, 2013

slide-22
SLIDE 22

Abell 2163 at z = 0.3, Nord et al. 2009

De-projected density & temperature Joint X-ray/SZ analysis:

SZ: ∫losneTe dl X-ray: ∫losne

2 Lambda(Te) dl

Assuming spherical symmetry,

  • ne can use the Abel transformation

ne Te

Tuesday, February 5, 2013

slide-23
SLIDE 23

De-projected density & temperature

Profile of the enclosed gas mass and the total mass (assuming hydrostatic equilibrium)

Abell 2204, a relaxed cluster at z = 0.15, Basu et al. 2010 ne Te Mgas (<R) Mtot (<R) fgas (<R)

Tuesday, February 5, 2013

slide-24
SLIDE 24

APEX-SZ scaling relations Bender et al., in prep

The integrated Compton parameter YSZ is a good proxy of the clusterʼs total mass (e.g. Motl et al. 2006, Arnaud et al. 2010)

Y500

Tuesday, February 5, 2013

slide-25
SLIDE 25

Lensing follow-up

  • f the 15 clusters of our sample for which no weak lensing data exist

Ongoing PhD work of Matthias Klein, Bonn

BVR observations with the wide field imager (WFI) on the ESO/ MPG 2.2 m telescope in La Silla, FOV = 33ʼx34ʼ

Photo: www.eso.org

M200 = 11.4 (+2.5 -2.2) x 1014 Msol R200 = 1.96 +/- 0.13 Mpc

RXC 0532 S/N map of the reconstructed projected mass and shear profile

Tuesday, February 5, 2013

slide-26
SLIDE 26

RADIO SYNCHROTRON OBSERVATIONS

  • f CLUSTERS, LOFAR

The Onsala LOFAR station

Credit: Onsala Space Observatory/Leif Helldner

Tuesday, February 5, 2013

slide-27
SLIDE 27

Figure: Radio halo of the Bullet Cluster (grey)

+ X-ray surface brightness contours (Liang et al. 2000) after subtraction of the radio point sources

  • Synchrotron emission on Mpc scale
  • Low surface brightness:

~3 mJy/arcmin2 at 1.4 GHz

  • Steep spectrum (α < –1, Sν ~να)

⇒ brighter at lower frequencies

  • Unpolarized

Detected in ~30% of X-ray clusters (Ferretti et al. 2012) Origin of the relativistic electrons? Accelerated in turbulence generated in mergers (e.g. Brunetti 2001)?

Giant radio halos in (some) galaxy clusters

Tuesday, February 5, 2013

slide-28
SLIDE 28

Feretti et al. 2012

Tuesday, February 5, 2013

slide-29
SLIDE 29

2 Mpc long radio relic in the z= 0.19 Sausage Cluster (van Weeren et al. 2010, Science)

Tuesday, February 5, 2013

slide-30
SLIDE 30

The radio–X-ray correlation

Figure: Brown et al. 2011, ApJ Red points: Detection of radio signal at 843 MHz by stacking ~100 clusters Bi-modality

ON! OFF! ?

Tuesday, February 5, 2013

slide-31
SLIDE 31

The radio–X-ray correlation

Figure: Brown et al. 2011, ApJ Red points: Detection of radio signal at 843 MHz by stacking ~100 clusters Bi-modality

ON! OFF! What about lower X-ray luminosity clusters/groups? ➜ XXL

? ?

Tuesday, February 5, 2013

slide-32
SLIDE 32

61-67 MHz LOFAR map Field around Abell 2256: resolution 80” Inset: resolution 22”x26” van Weeren et al. 2012 A&A

First LOFAR results: Abell 2256 at 8 - 67 MHz.

Tuesday, February 5, 2013

slide-33
SLIDE 33

z=0.0594

Tuesday, February 5, 2013

slide-34
SLIDE 34

LOFAR expectations for radio halos

So far: only about 50 radio halos are detected (VLA, GMRT). The LOFAR all-sky survey at 120 MHz is expected to detect about 350 giant radio halos at z < 0.6 (Cassano et al. 2010 A&A). Relation to mergers? Population of CR electrons Magnetic field via Rotation Measure Synthesis of polarized background/cluster galaxies. There is a “Clusters” working group in the “Surveys” Key Science Project (KSP) (PIs Brueggen & Brunetti) “Magnetism” KSP: Plan to search for polarization from galaxies (isolated/in groups and clusters, star-forming, AGN) and from the cosmic web of filaments.

Tuesday, February 5, 2013

slide-35
SLIDE 35

die die Kunst Kunst

  • Über

Über!

in der

in der Wissenschaft Wissenschaft!

" Kandinsky

PI: Marguerite Pierre (Saclay, France) Consortium of ~100 researchers! The largest XMM project ever 2 x 25 deg2 Equatorial field CFHT-LS, RA = 2h23, DEC=-5d Southern field BCS, RA=23h30, DEC=-55d 10 ksec per pointing Extension of the XMM-LSS (Pacaud et al.ʼ06; 5.5 deg2; Chiappetti et al.ʼ12, 11.1 deg2), C1 clusters: 5-6 /deg2 C2 clusters (50% complete): 12/deg2 XXL is expected to detect ~50 clusters at z > 1 and more than 500 clusters in total, + 10 000 AGN. Constrain the evolution of equation-of-state parameter w(z) of dark energy.

Tuesday, February 5, 2013

slide-36
SLIDE 36

XXL equatorial field: extension of XMM-LSS field

Blue: existing data Red: new observations Yellow: observations from other programs Black rectangle: VIPERS spectroscopy

Tuesday, February 5, 2013

slide-37
SLIDE 37

XXL Southern field: extension of XMM-BCS field

Blue, cyan, magenta: existing data Red: new observations Yellow: observations from other programs Black: Optical spectroscopy Δα = Δδ= 20ʼ (Δα = Δδ = 23’ in the initial central survey)

Tuesday, February 5, 2013

slide-38
SLIDE 38

From Pierre et al. 2011, MNRAS

Cosmological predictions for the XXL survey

w(z) = w0 + wa z/(1+z) w(a) = w1 + w2 a, where a= 1/(1+z)

Tuesday, February 5, 2013

slide-39
SLIDE 39

Frequency Telescope Area Resolution

Largest angular scale

Detection limit (5σ) Reference 1.4 GHz VLA (NVSS)

All sky δ > –40o

45” 15ʼ 2.5 mJy/b

Condon et al. 1998

1.4 GHz VLA (FIRST)

All sky δ > –40o

5” 2ʼ 0.15 mJy/b

Becker et al.

610 MHz GMRT 12.7 deg2 6.5” 6.9ʼ 1.5 mJy/b

Tasse et al. 2007

325 MHz VLA 15.3 deg2 6.7” 4 mJy/b

Tasse et al. 2006

240 MHz GMRT 18 deg2 14.7” 11.5ʼ 12.5 mJy/b

Tasse et al. 2007

74 MHz VLA 132 deg2 30” 20ʼ 160 mJy/b

Cohen et al. 2003 Tasse et al. 2006

Existing radio observations of the XXL equatorial field

Tuesday, February 5, 2013

slide-40
SLIDE 40

Radio observations of XXL Main goals: Evolution of AGN and cluster-scale radio emission

Equatorial field (at DEC = –5 deg) * Observed with LOFAR in January (PI Ph. Best) * GMRT 610 MHz proposal accepted (PI S. Raychaudhury) 5” resolution. Point-like sources versus extended emission? * Jansky VLA (PI V. Smolcic) Test data 3 GHz, 2 deg2 Future: Map the whole equatorial field at 2-4 GHz, 2” resolution. Southern field: * ATCA (PI V. Smolcic) Pilot proposal accepted (5.5 deg2). 2.1 GHz (BW 2 GHz), 15-20 μJy/beam rms

Tuesday, February 5, 2013

slide-41
SLIDE 41

mm observations of XXL Main goal: Sunyaev-Zeldovich observations of clusters

Equatorial field

* Covered by ACT * Plans to start a systematic SZ follow-up of the most massive/distant clusters

* CARMA observations of a few high-z

clusters PIs: Adam Mantz, Tom Plagge (Chicago)

* APEX-SZ 2 mm observations of 0.75 deg2

  • f XMM-LSS, centered on XMM LSS-006,

M500 = 1.9 1014 h-1 Msun Second cluster detected 10 μK rms in the central 0.25 deg2 PI: Florian Pacaud (Bonn)

Southern field

* Covered by SPT

Figure: APEX-SZ map of XMM-LSS

~50ʼ

Tuesday, February 5, 2013

slide-42
SLIDE 42

Conclusion

– Clusters are at the crossroad of astrophysics & cosmology: they are complex individuals and the sites of interesting physical processes; yet they are rather simple and share common fundamental properties – To use clusters in cosmology it is essential to understand their astrophysics – Fortunately, there are/will be new instruments able to measure the tiny signals from clusters, from gamma-rays to radio

– This is a unique time in history... – ...but with great power comes great responsability (to figure it all out!)
