CIS 330: Applied Database Systems

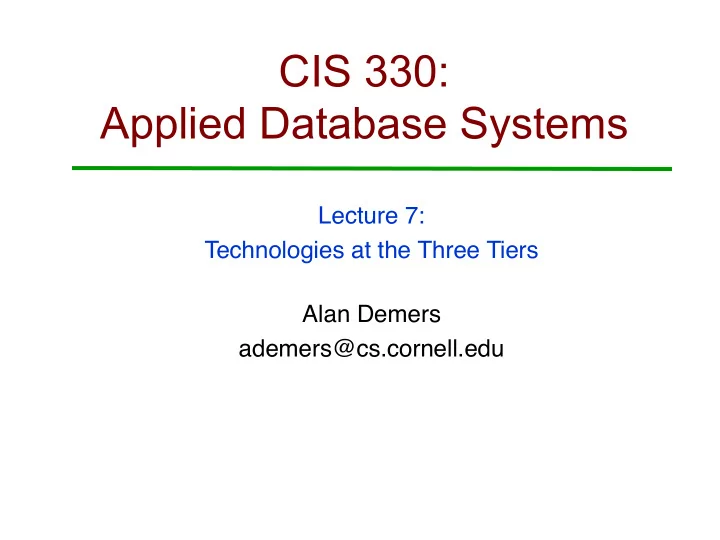

Lecture 7: Technologies at the Three Tiers Alan Demers ademers@cs.cornell.edu

Overview

• Internet concepts
• URIs
• The HTTP Protocol
• The presentation layer
• HTML, HTML Forms
• Cookies
• JavaScript
• Style Sheets
• The middle tier
• Application servers
• Servlets and JSP
• Maintaining state: Session tracking

Internet Concepts

• URIs
• The HTTP Protocol
• HTTP Overview
• Example HTTP Session
• HTTP 1.0 v. 1.1
• Live Demo via HTTP Tracer Plus
• Structure of Client Requests/Server

Responses

Uniform Resource Identifiers

• Uniform naming schema to identify resources on

the Internet

• A resource can be anything:
• Index.html
• mysong.mp3
• picture.jpg
• Example URIs:

http://www.cs.wisc.edu/~dbbook/index.html mailto:webmaster@bookstore.com

Structure of URIs

http://www.cs.wisc.edu/~dbbook/index.html

• URI has three parts:
• Naming schema (http)
• Name of the host computer (www.cs.wisc.edu)
• Name of the resource (~dbbook/index.html)
• URLs are a subset of URIs

HTTP Overview

• HTTP: HyperText Transfer Protocol
• Developed by Tim Berners Lee, 1990
• Client/Server Architecture:
• Client requests a document
• Example clients: IE, Netscape, etc.
• Server returns the document
• Example servers: Apache, IIS

Watch HTTP

• Telnet:
• telnet www.yahoo.com 80
• GET /
• See your requests:
• http://www.schroepl.net/cgi-bin/http_trace.pl
• Trace your HTTP traffic:
• http://www.sstinc.com/

Example HTTP Session

§ Client sends request à Server sends response § Client requests the following URL: http:// www.cs.cornell.edu:80/ § Anatomy of the Request:

§ http:// HyperText Transfer Protocol; other options: ftp, mailto. § www.cs.cornell.edu : host name § :80: Port Number. 80 is reserved for HTTP. Ports can range from: 1-65,535 § / Root document

The Client Request § Actual Browser Request:

GET / HTTP/1.1 Accept: image/gif, image/x-xbitmap, image/ jpeg, image/pjpeg, */* Accept-Language: en-us Accept-Encoding: gzip, deflate User-Agent: Mozilla/4.0 (compatible; MSIE 5.01; Windows NT) Host: www.cs.cornell.edu Connection: Keep-Alive

Anatomy of the Client Request

• GET / HTTP/1.1
• Requests the root / document.
• Specifies HTTP version 1.1.
• HTTP Versions: 1.0 and 1.1 (more on this later…)
• Accept: image/gif, image/x-xbitmap, image/

jpeg, image/pjpeg, */*

• Indicates what type of media the browser will accept.
• Accept-Language: en-us
• Browser’s preferred language
• Accept-Encoding: gzip, deflate
• Accepts compressed data (speeds download times.)

Anatomy of the Client Request

• User-Agent: Mozilla/4.0 (compatible; MSIE 5.01;

Windows NT)

• Indicates the browser type.

§ Host: www.cs.cornell.edu

• Required for HTTP 1.1
• Optional for HTTP 1.0
• A Server may host multiple hostnames. Hence, the

browser indicates the host name here.

§ Connection: Keep-Alive

• Enables “persistent connections”. Faster

performance (more later…)

Server Response

HTTP/1.1 200 OK Date: Mon, 24 Sept 2001 20:54:26 GMT Server: Apache/1.3.6 (Unix) Last-Modified: Mon, 24 Sept 2001 14:06:11 GMT Content-length: 327 Connection: close Content-type: text/html <title>Sample Homepage</title> <img src="/images/oreilly_mast.gif"> <h1>Welcome</h2>This is the webpage of ...

Anatomy of Server Response

§ HTTP/1.1 200 OK

• Server Status Code
• Code 200: Document was found
• We will examine other status codes shortly.

§ Date: Mon, 24 Sept 2001 20:54:26 GMT

• Date on the server.
• GMT (Greenwich Mean Time)

§ Last-Modified: Mon, 24 Sept 2001 14:06:11 GMT

• Indicates the time when the document was last modified.
• Very useful for browser caching.
• If a browser already has the page in its cache, it may not need

to request the whole document again (more later…)

Anatomy of Server Response

§ Content-length: 327

• Number of bytes in the document response.

§ Connection: close

• Indicates that the server will close the connection.
• If the client wants to send another request, it will

need to open another connection to the server.

§ Content-type: text/html

• Indicates the MIME Type of the return document.
• Multi-Purpose Internet Mail Extensions
• Enables web servers to return binary or text files.
• Other MIME Categories:

§ audio, video, images, xml

Anatomy of Server Response The actual HTML document:

<title>Sample Homepage</title> <img src="/images/oreilly_mast.gif"> <h1>Welcome</h2>This is the web page of ...

HTTP 1.0 v. 1.1: Getting Objects

§ Once a browser receives an HTML page, it makes separate connections to retrieve different objects within the page.

Client Web Browser Web Server Give me /index.html Here you go... Now, give me logo.gif Here you go...

HTTP 1.0 v. 1.1

§ HTTP 1.0:

• For each request, you must open a new

connection with the server.

§ HTTP 1.1

• For each request, the default action is to

maintain an open connection with the server.

• Faster, Persistent Connections
• Supported by most browsers and servers.

Example: HTTP 1.0 v. 1.1

§ HTTP 1.0: Get HTML Page plus Images

• Open Connection: GET /index.html
• Open Connection: GET /logo.gif
• Open Connection: GET /button.gif

§ HTTP 1.1: Get HTML Page plus Images

• Open Persistent Connection: GET /

index.html

• GET /logo.gif
• GET /button.gif

Client Requests

§ Every client request includes three parts:

• Method: Used to indicate type of request,

HTTP Version and name of requested document.

• Header Information: Used to specify browser

version, language, etc.

• Entity Body: Used to specify form data for

POST requests.

Client Methods

• GET and POST: We will see them later when we

discuss HTML forms.

• HEAD:
• Similar to GET, except that the method requests only

the header information.

• Server will return date-modified, but will not return the

data portion of the requested document.

• Useful for browser caching.
• For example:
• If browser contains a cached version of a page, it issues a

head request.

• If document has not been modified recently, use cached

version.

Server Responses

§ Every server response includes three parts:

• Response line: HTTP version number, three

digit status code, and status message.

• Header: Information about the server
• Entity Body: The actual data.

Server Status Codes

§ 100-199 Informational § 200-299 Client Request Successful § 300-399 Client Request Redirected § 400-499 Client Request Incomplete § 500-599 Server Errors

Some Important Status Codes

§ 200: OK

§ Request was successful.

§ 301: Moved Permanently

§ Server redirects client to a new URL.

§ 404 Not Found

§ Document does not exist

§ 500 Internal Server Error

§ Error within the Web Server

HTTP Is Stateless

• What does this mean:
• No “sessions”
• Every message is completely self-contained
• No previous interaction is “remembered” by the protocol
• Tradeoff between ease of implementation and ease of

application development: Other functionality has to be built on top

• Implications for applications:
• Any state information (shopping carts, user login-information)

need to be encoded in every HTTP request and response!

• Popular methods on how to maintain state:
• Cookies (later this lecture)
• Dynamically generate unique URL’s at the server level (later this

lecture)

Overview

• Internet concepts
• The presentation tier
• HTML, HTML Forms
• Cookies
• JavaScript
• Style Sheets
• The middle tier

Web Data Formats

• HTML
• The presentation language for the Internet
• XML
• A self-describing, hierarchal data model
• We will cover XML and associated query

and transformation languages (XPath, XSLT) later.

HTML: An Example

<HTML> <HEAD></HEAD> <BODY> <h1>Barns and Nobble Internet Bookstore</h1> Our inventory: <h3>Science</h3> <b>The Character of Physical Law</b> <UL> <LI>Author: Richard Feynman</ LI> <LI>Published 1980</LI> <LI>Hardcover</LI> </UL>

<h3>Fiction</h3> <b>Waiting for the Mahatma</ b> <UL> <LI>Author: R.K. Narayan</ LI> <LI>Published 1981</LI> </UL> <b>The English Teacher</b> <UL> <LI>Author: R.K. Narayan</ LI> <LI>Published 1980</LI> <LI>Paperback</LI> </UL> </BODY> </HTML>

HTML: A Short Introduction

• HTML is a markup language
• Commands are tags:
• Start tag and end tag
• Examples:
• <HTML> … </HTML>
• <UL> … </UL>
• Many editors automatically generate HTML

directly from your document (e.g., Microsoft Word has an “Save as html” facility)

HTML: Sample Commands

• <HTML>:
• <UL>: unordered list
• <LI>: list entry
• <h1>: largest heading
• <h2>: second-level heading, <h3>, <h4>

analogous

• <B>Title</B>: Bold

Overview

• Internet concepts
• The presentation tier
• HTML, HTML Forms
• Cookies
• JavaScript
• Style Sheets
• The middle tier

Forms Are Everywhere

§ Forms provide a simple mechanism for collecting user data and submitting it to a web server. § Every web application uses forms. § Example

• User is prompted to enter first name, last

name and password.

• Data is submitted to the middle tier

<HTML> <HEAD> <TITLE>Form Example 1.0</TITLE> </HEAD> <BODY> <CENTER> ... <FORM ACTION=http://www.ecerami.com/servlet/FormServlet METHOD="POST"> First Name: <INPUT TYPE=TEXT NAME=first SIZE=20 MAXLENGTH=20><BR> Last Name: <INPUT TYPE=TEXT NAME=last SIZE=20 MAXLENGTH=20><BR> Password: <INPUT TYPE=PASSWORD NAME=password SIZE=20 MAXLENGTH=20> <BR><INPUT TYPE=SUBMIT VALUE="Submit"> </FORM> </CENTER> </BODY> </HTML>

Start of Form Tag End of Form Tag

Example 1: Overview

§ Every form must have a start <form> tag and an end </form> tag. <FORM> … </FORM> § Note that the form tag also has two attributes:

• Method
• Action

Form Tag Attributes

• Action (Required):
• indicates where to submit user data.
• Usually indicates a CGI program or a Java Servlet.
• In Example 1, data is submitted to a Java Servlet:
• http://www.ecerami.com/servlet/FormServlet
• Method: indicates the way in which user data is

submitted via the HTTP protocol.

• GET: browser sends user data as part of URL.
• http://www.ecerami.com/servlet/FormServlet?

first=Ethan&last=Cerami&password=blue

• POST: browser sends user data as part of the HTTP

Body.

More on the Form Method

§ Historical meaning:

• POST: Used to “post” new messages.
• GET: Given an ID, go “get” the new

message. § This is now confusing, since you can use either one. So, why use one over the

• ther? Let’s look at another example….

Example 2.0

§ What it does:

• This code does the exact same thing as

example 1.0.

• The only difference is that Example 1.0 sends

data via POST, whereas Example 2.0 sends data via GET.

• Regardless of the Method, the same servlet

still echoes the same data.

• Let’s take a look at the code…

<HTML> <HEAD> <TITLE>Form Example 2.0</TITLE> </HEAD> <BODY> <CENTER> ... First Name: <INPUT TYPE=TEXT NAME=first SIZE=20 MAXLENGTH=20><BR> Last Name: <INPUT TYPE=TEXT NAME=last SIZE=20 MAXLENGTH=20><BR> Password: <INPUT TYPE=PASSWORD NAME=password SIZE=20 MAXLENGTH=20> <BR> <INPUT TYPE=SUBMIT VALUE="Submit"> </FORM> …

<FORM ACTION="http://www.ecerami.com/servlet/ FormServlet" METHOD="GET">

Example 2.0

Example 2.0

§ When submitting data for Example 2.0, note that the user data is now appended to the URL: § http://www.ecerami.com/servlet/FormServlet? first=Ethan&last=Cerami&password=blue § URLEncoding:

• Path and first piece of user data are separated with a ?

character.

• After that, each piece of user data is separated with an &

character.

URL Encoding

§ Because the GET Method passes user data within the URL, you can easily create links that act like forms. § For example: § http://www.ecerami.com/servlet/FormServlet? first=Bill&last=Gates&password=microsoft

GET v. POST

§ If GET and POST end up with the same result, why choose one over the other? § Some servers limit the length of GET requests to 240 characters. § Security? You see the arguments with a GET. § If you want to create links that act like forms, use GET.

Basic Form Controls

§ There are half dozen basic form controls:

• Text boxes, password boxes
• Pull-Down menus
• Radio Buttons
• Checkboxes
• Text Areas
• Hidden Fields

§ We will now examine each of these in detail.

Basic Input Syntax

§ Every form control is specified with the <INPUT> tag. § As usual, every start <INPUT> tag must have an end </INPUT> tag. § Every <INPUT> tag must also have a name attribute. § The name enables your server side program to extract the relevant data.

Text Controls

§ Text boxes enable you to capture small amounts

• f text, such as a person’s name or an email

address. <INPUT TYPE=TEXT NAME=first SIZE=20 MAXLENGTH=20> § size: size of the text box § maxlength: maximum length of string user can enter

Password Controls

§ Same as Text Box Controls. Only difference is that data is masked, so that someone cannot easily peer over your shoulder. <INPUT TYPE=PASSWORD NAME=password SIZE=20 MAXLENGTH=20> § Note: Data is not encrypted

Submit/Reset Buttons

§ Submit Button: Submits the form data <INPUT TYPE=SUBMIT VALUE="Click Here!"> § Reset Button: Clears the form <INPUT TYPE=RESET VALUE="Clear"> § Value: text you want to appear on the button.

Check Boxes § Check boxes enable users to select

• ne or more options.

<input type=checkbox name="options" value="images"> Image <input type=checkbox name="options" value="video"> Video <input type=checkbox name="options" value="mp3"> MP3

§ value: the text submitted to server. § Let’s take a look at Example 3.0

Example 3.0

§ This example simulates a search system. § Users can enter a search keyword. § Users can also select one or more search criteria: images, videos or mp3s.

<HTML> <HEAD><TITLE>Form Example 3.0</TITLE></HEAD> <BODY><CENTER> ... <FORM ACTION="http://www.ecerami.com/servlet/FormServlet" METHOD="GET"> Search for: <INPUT TYPE=TEXT NAME=target SIZE=10 MAXLENGTH=20> <BR>Pages must include: <BR><input type=checkbox name="options" value="images"> Image <BR><input type=checkbox name="options" value="video"> Video <BR><input type=checkbox name="options" value="mp3"> MP3 <BR> <INPUT TYPE=SUBMIT VALUE="Search"> </FORM></CENTER></BODY></HTML>

Example 3.0

Radio Buttons

§ As opposed to check boxes, you can select only one radio button.

<input type=radio name="options" value="images"> Image <input type=radio name="options" value="video"> Video <input type=radio name="options" value="mp3"> MP3

§ value: the text submitted to server. § Let’s take a look at Example 4.0

<HTML> <HEAD><TITLE>Form Example 4.0</TITLE></HEAD> <BODY><CENTER> ... <FORM ACTION="http://www.ecerami.com/servlet/FormServlet" METHOD="POST"> Search for: <INPUT TYPE=TEXT NAME=target SIZE=10 MAXLENGTH=20> <BR>Pages must include: <BR><input type=radio name="options" value="images"> Image <BR><input type=radio name="options" value="video"> Video <BR><input type=radio name="options" value="mp3"> MP3 <BR><INPUT TYPE=SUBMIT VALUE="Search"> </FORM></CENTER></BODY> </HTML>

Example 4

Hidden Fields

§ Sometimes it is useful to send hidden data fields. § These fields are hidden from user, but submitted to the server just like any other piece of data.

• <INPUT TYPE=HIDDEN NAME="username" value=“cs330">

§ These are actually very useful for all sorts of applications: shopping carts, store checkouts, etc. § Let’s take a look at Example 5.0

<HTML> <HEAD><TITLE>Form Example 5.0</TITLE></HEAD> <BODY><CENTER> ... <FORM ACTION="http://www.ecerami.com/servlet/FormServlet" METHOD="POST"> <INPUT TYPE=HIDDEN NAME="username" value=“cs330"> Enter Password: <INPUT TYPE=TEXT NAME="password" SIZE=20 MAXLENGTH=20> <BR> <INPUT TYPE=SUBMIT VALUE="Login"> </FORM> </CENTER> </BODY> </HTML>

Example 5

Text Boxes

§ Used to submit large blocks of text.

<TEXTAREA NAME="bio" COLS=40 ROWS=10> Write a short bio here </TEXTAREA>

§ COLS: Width of the text Box § ROWS: Height of the text Box § Text: Represents default text that will automatically appear. § Let’s take a look at Example 6.0

<HTML> <HEAD><TITLE>Form Example 6.0</TITLE></HEAD> <BODY> <CENTER> ... <FORM ACTION="http://www.ecerami.com/servlet/FormServlet" METHOD="POST"> Tell us about yourself: <BR> <TEXTAREA NAME="bio" COLS=40 ROWS=10> Write a short bio here</TEXTAREA> <BR><INPUT TYPE=SUBMIT VALUE="Submit My Bio"> </FORM> </CENTER></BODY> </HTML>

Example 6

Select Options

§ Creates pull-down and selection lists.

<SELECT NAME="major"> <OPTION VALUE="cs">Computer Science</OPTION> <OPTION VALUE="is">Information Systems</OPTION> <OPTION VALUE="psych">Psychology</OPTION> <OPTION VALUE="hist">History</OPTION> <OPTION VALUE="bio">Biology</OPTION> </SELECT>

§ There are several variations to the select

• control. Example 7.0 examines three different
• ptions.

Form Validation

§ Every computer program must be prepared to deal with human errors and unexpected conditions. § Hence, while it is easy to create forms, most of the hard work goes into validating the user input. § For example:

• Did the user enter all the required fields?
• Did the user enter a search keyword (try yahoo.com

without a keyword)

• Did the user enter a valid zip code?
• Did the user enter a valid email address?

Form Validation Options

§ There are two broad options for form validation:

• Option 1: Client Side Validation

§ Performed via the JavaScript language. § Good for checking that required fields are filled in. § Immediately prompts the user with the error.

• Option 2: Server Side Validation

§ Performed via a JSP or Java Servlet § Upon submission, web server checks form data, and then returns a refreshed page with errors denoted. § An example: Registering for Yahoo.com § This is the option we will explore for Java Servlets

Overview

• Internet concepts
• The presentation tier
• HTML, HTML Forms
• Cookies
• JavaScript
• Style Sheets
• The middle tier

Sites that know you...

§ Just a few common examples:

• my.yahoo.com
• www.amazon.com

§ Each time I return to these sites, they remember who I am.

• Yahoo remembers my news, bookmarks, etc.
• Amazon.com remembers what books I have

browsed and makes recommendations. § How do they do that?

What is a Cookie?

§ Small piece of data generated by a web server, stored on the client’s hard drive. § Serves as an add-on to the HTTP specification (remember, HTTP by itself is stateless.) § Controversial, as it enables web sites to track web users and their habits (more later…)

Example Cookie Use

§ Web Site Acme.com wants to track the number

• f unique visitors who access its site.

§ If Acme.com checks the HTTP Server logs, it can determine the number of “hits”, but cannot determine the number of unique visitors.* § That’s because HTTP is stateless. It retains no memory regarding individual users. § Cookies provide a mechanism to solve this problem.

* Actually, you could check the log files for IP addresses, but you would still have the problem of Internet proxies.

Tracking Unique Visitors

§ Step 1: Person A requests home page for acme.com § Step 2: Acme.com Web Server generates a new unique ID. § Step 3: Server returns home page plus a cookie set to the unique ID. § Step 4: Each time Person A returns to acme.com, the browser automatically sends the cookie along with the GET request.

Cookie Conversation

Browser Server

Give me the home page! Here’s the home page plus a cookie. Now, give me the news page (cookie is sent automatically) I’ve seen you before… Here’s the news page.

Cookie Notes

§ Created in 1994 for Netscape 1.1 § Cookies cannot be larger than 4K § No domain (netscape.com, microsoft.com) can have more than 20 cookies. § Cookies stay on your machine until:

• they automatically expire
• they are explicitly deleted

§ Cookies work the same on all browsers. No cross-browser problems here!

Magic Cookies

§ The term cookie comes from an old programming hack, called Magic Cookies. § If a programmer needed to make two programs communicate, he would create a “magic cookie”, a small text file containing data to transfer between program parts.

Cookie Standards

§ Version 0 (Netscape):

• The original cookie specification
• Implemented by all browsers and servers
• We will focus on this Version

§ Version 1

• A proposed Internet Engineering Task Force (IETF)

standard - RFC 2109

• Not very widely used (we will stick to Version 0.)

Why use Cookies?

§ Tracking unique visitors § Creating personalized web sites § Shopping Carts § Tracking users across your site:

• e.g. do users that visit your sports news page

also visit your sports store?

Cookie Anatomy

§ Version 0 specifies six cookie parts:

• Name
• Domain
• Path
• Expires
• Secure

Cookie Parts: Name/Value

§ Name

• Name of your cookie (Required)
• Cannot contain whitespaces, semicolons or

commas. § Value

• Value of your cookie (Required)
• Cannot contain whitespaces, semicolons or

commas.

Cookie Parts: Domain

§ Only pages from the domain which created a cookie are allowed to read the cookie. § For example, amazon.com cannot read yahoo.com’s cookies (imagine the security flaws if this were otherwise!) § By default, the domain is set to the full domain

• f the web server that served the web page.
• For example, myserver.mydomain.com would

automatically set the domain to .myserver.mydomain.com

Cookie Parts: Domain

§ Note that domains are always prepended with a dot.

• This is a security precaution: all domains must have

at least two periods. § You can however, set a higher level domain

• For example, myserver.mydomain.com can set the

domain to .mydomain.com. This way hisserver.mydomain.com and herserver.mydomain.com can all access the same cookies. § No matter what, you cannot set a domain other than your own.

Cookie Parts: Path

§ Restricts cookie usage within the site. § By default, the path is set to the path of the page that created the cookie. § Example: user requests page from mymall.com/

• storea. By default, cookie will only be returned

to pages for or under /storea. § If you specify the path to / the cookie will be returned to all pages (a common practice.)

Cookie Parts: Expires

§ Specifies when the cookie will expire. § Specified in Greenwich Mean Time (GMT):

• Wdy DD-Mon-YYYY HH:MM:SS GMT

§ If you leave this value blank, browser will delete the cookie when the user exits the browser.

• This is known as a session cookies, as
• pposed to a persistent cookie.

Cookie Parts: Secure

§ The specification says that the secure flag is designed to encrypt cookies while in transit. § A secure cookie will only be sent over a secure connection (such as SSL.) § In other words, if a cookie is set to secure, and you connect using a non-secure connection, the cookie will not be sent.

Cookie Block Software

§ Cookie Central has pointers to lots of cookie blocking software.

• Cookie Pal
• Cookie Crusher
• Cookie Cruncher
• etc.
