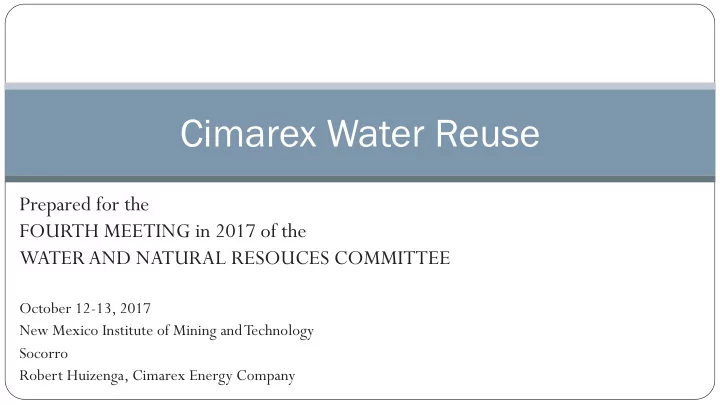

Cimarex Water Reuse
Prepared for the FOURTH MEETING in 2017 of the WATER AND NATURAL RESOUCES COMMITTEE
October 12-13, 2017 New Mexico Institute of Mining and Technology Socorro Robert Huizenga, Cimarex Energy Company
Summary
2
Cimarex Water Reuse Prepared for the FOURTH MEETING in 2017 of the - - PowerPoint PPT Presentation
Cimarex Water Reuse Prepared for the FOURTH MEETING in 2017 of the - - PowerPoint PPT Presentation
Cimarex Water Reuse Prepared for the FOURTH MEETING in 2017 of the WATER AND NATURAL RESOUCES COMMITTEE October 12-13, 2017 New Mexico Institute of Mining and Technology Socorro Robert Huizenga, Cimarex Energy Company Summary The Goal
SLIDE 2
SLIDE 3
The Goal
Develop long term water sourcing and disposal solutions for development projects
3
SLIDE 4
Reuse: Area
4
SLIDE 5
Reuse 2013-2014: Process
5
SLIDE 6
Reuse 2013-2014: Volume
6
Reuse Volume (bbls) Distilled Water 840,000 Heavy Brine 130,000 Total 970,000
SLIDE 7
Reuse 2013-2014:
7
Pros
Removes Total Suspended & Dissolved Solids Provides concentrated brine water Complies with current Texas regulations
Cons
Capital Outlay/Long-Term Contracts High processing costs/bbl Low yield of distilled water Concentrated brine water Disposal of solids Fixed location facility
SLIDE 8
Reuse 2015: Process
8
SLIDE 9
Reuse 2015: Volumes
9
Reuse Volume (bbls) Produced Water 464,000
SLIDE 10
Reuse 2015
10
Pro
Removes Total Suspended Solids Complies with current Texas regulations Lower processing costs/bbl
Con
Capital Outlay/Long-Term Contracts Disposal of solids Fixed location facility
SLIDE 11
Reuse 2016-?: Goals
Water Quality
Control Total Suspended Solids > 25 microns Control Bacteria
Operational
Flexible process rate On-Demand system
11
SLIDE 12
Reuse 2016-?: Process
12
Salt Water Disposal Well
SLIDE 13
Reuse 2016-?: Pitfall
13
250,000 bbl Pit 20,000 bpd Produced Water 75,000 bpd Produced Water Empty Pit = 4.5 days 340,000 bbls of Water
SLIDE 14
Reuse 2016-?: Pitfall
14
1,000,000 bbl Pit 20,000 bpd Produced Water 75,000 bpd Produced Water Empty Pit = 18.2 days 1,364,000 bbls of Water
SLIDE 15
Reuse 2016-?: Cimarex’s View
15
Frac Tanks 70,000 bpd Produced Water 75,000 bpd Produced Water Minimize the use of Non-Produced Water Reduced environmental liability 5,000 bpd Non- Produced Water
SLIDE 16
Reuse 2016-?: Volumes
16
Year Reuse Volume (bbls) 2016 4,000,000 2017 6,100,000 Total 10,100,000
SLIDE 17
Reuse 2016-?:
17
Pros
No Capital Outlay/Long-Term Contracts Less operational “maintenance” cost Reduced environmental liability
Cons
Field or Hydraulically limited to water production Disposal of solids Balancing act with production operations
SLIDE 18
