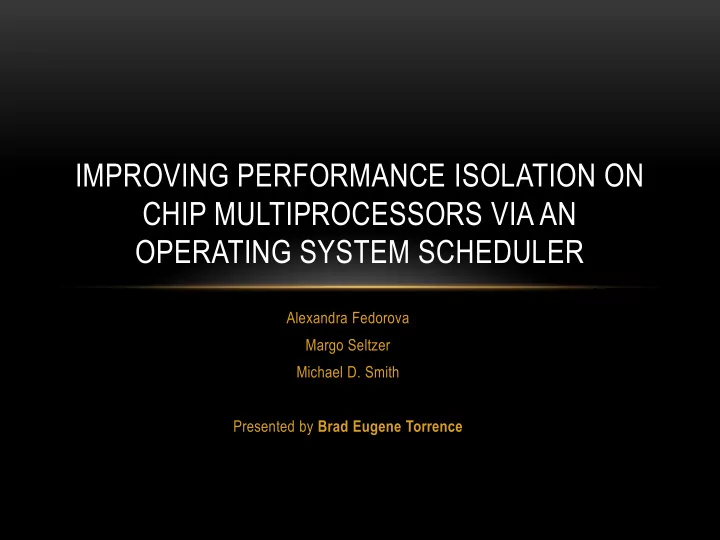

Alexandra Fedorova Margo Seltzer Michael D. Smith Presented by Brad Eugene Torrence

IMPROVING PERFORMANCE ISOLATION ON CHIP MULTIPROCESSORS VIA AN OPERATING SYSTEM SCHEDULER

INTRODUCTION

• Motivation: Poor performance Isolation in chip multiprocessors (CMPs)
• The performance of an application is also dependent on the performance
• f other applications running at the same time.
• Inherently acquired from the shared cache design of CMPs
• Fairness among threads is not considered at the hardware level

INTRODUCTION

• High-miss-rate co-running applications increase execution time
• Problems caused by poor performance isolation:
• OS scheduler becomes non-deterministic and unpredictable
• Weakens thread priority enforcement
• QoS reserved resources are not as effective
• Complicates per-CPU-hour billing
• Applications unfairly billed for longer running times

INTRODUCTION

• Overall Performance measures time to complete execution
• Performance Variability measures performance isolation by

calculating the performance difference between executions

• High variability indicates poor performance isolation
• Instructions per cycle (IPC) how fast a thread executes
• CPU time-slice determines how long a thread takes to execute

INTRODUCTION

• Co-runner-dependent cache allocation creates IPC variability
• IPC variability drastically effects performance variability
• OS CANNOT control IPC variability because it cannot control

cache allocation

• OS CAN control the CPU time-slice for each thread to

compensate for IPC variability

• Cache-fair Algorithm: Offsets performance variability by

adjusting the thread’s CPU time-slice

CACHE-FAIR ALGORITHM

• NOT a new scheduling policy
• Complements existing policies to mitigate performance

variability effects

• Makes threads run as quickly as they would if the cache were

shared equally

• Works by dynamically adjusting CPU time-slices of the threads
• If one thread requires more CPU time, another thread must

sacrifice CPU time so overall execution time is not increased

CACHE-FAIR ALGORITHM

• Conventional Scheduler on a CMP
• High-miss-rate thread B, is co-run with A
• Thread A gets below fair cache allocation
• Results in worse than fair performance
• Hypothetical CMP (enforces fairness)
• Shows the ideal fair performance
• CMP with a cache-fair scheduler
• Thread A is still effected by Thread B
• Increased CPU time-slice of Thread A
• Allows A to achieve fair performance

CACHE-FAIR ALGORITHM

• Two new thread types help maintain proper balance of CPU

time-sharing among threads

• Cache-fair class threads – managed by the cache-fair

complemented scheduler to improve performance isolation

• Best-effort class threads – not managed to improve

performance isolation but may receive time-slice adjustments

CACHE-FAIR ALGORITHM

• How it works:
• When a cache-fair thread is adjusted, another cache-fair thread is adjusted

in such a way as to offset the previous time-slice adjustment

• If another cache-fair thread to receive an offset adjustment does not exist, a

best-effort thread is adjusted instead

• Adjustments to a single best-effort thread are kept under a specific

threshold mitigating the performance effects

• CPU time-slice adjustments:
• Compute and compare the fair IPC value with the actual IPC
• Time-slices are computed so the thread will have an IPC value equal to the

fair IPC value when the time-slice expires

FAIR IPC MODEL

• The fair IPC of a thread cannot be measured directly
• Fair IPC values are estimated using the Fair IPC Model
• Estimates the miss-rate under fair-cache allocation
• Then calculates the fair IPC given the fair-cache miss-rate

FAIR IPC MODEL OVERVIEW

• The miss-rate estimation model:
• 𝑁𝑗𝑡𝑡𝑆𝑏𝑢𝑓 𝐵 = 𝑏 ∗

𝑁𝑗𝑡𝑡𝑆𝑏𝑢𝑓 𝐷𝑗 + 𝑐

𝑜 𝑗=1

• Where a and b are linear coefficients, n is number of co-runners, 𝐷𝑗

is the i-th co-runner

• After running a target thread with several co-runners, a and b are

derived using linear regression analysis

• And since, 𝐺𝑏𝑗𝑠𝑁𝑗𝑡𝑡𝑆𝑏𝑢𝑓 𝐵 = 𝑁𝑗𝑡𝑡𝑆𝑏𝑢𝑓 𝐵 = 𝑁𝑗𝑡𝑡𝑆𝑏𝑢𝑓(𝐷𝑗)
• Then, 𝐺𝑏𝑗𝑠𝑁𝑗𝑡𝑡𝑆𝑏𝑢𝑓 𝐵 =

𝑐 1−𝑏∗𝑜

FAIR IPC MODEL EVALUATION

• Actual vs. Estimated fair-cache miss-rates

FAIR IPC MODEL LIMITATIONS

• To estimate a thread’s miss rate requires running a thread with

several co-runners

• This can yield poor results if co-runners are few or all have

similar cache-access patterns

• Requires running a thread multiple-times with other threads
• Highly impractical in reality
• Model assumes uniform distribution of cache requests
• An unrealistic assumption

IMPLEMENTATION

• Loadable module for Solaris 10 OS
• Flexibility and independence from kernel’s scheduler
• Cache-fair management induced by a system call
• Threads are also assigned to a thread type class
• Tracks positive and negative adjustments to maintain balance in

the overall performance

IMPLEMENTATION

• Cache-fair threads go through an initial preparation phase
• OS gathers performance data to calculate the fair miss rate
• Also necessary if thread changes cache-access patterns
• Forced when thread executes 1 billion instructions
• Scheduling phase monitors threads using hardware

performance counters

• CPU time-slice adjusted if thread deviates from its fair IPC
• Scheduling phase occurs every 50 million instructions

EVALUATION

• Using multi-program workload
• SPEC CPU2000 benchmarks (for CPU workloads)
• SPEC JBB and TPC-C (for Server workloads)
• Default scheduler = Solaris fixed-priority scheduler
• Evaluation compares performance isolation between cache-fair and default schedulers
• Hardware simulator: Simics modules implementing a dual-core CMP

EVALUATION

• Slow schedule contains high-miss-rate co-runners
• Fast schedule contains low-miss-rate co-runners
• The preparation phase estimations are performed prior to experiment
• Run with all benchmark programs to get accurate estimation
• Principal thread is monitored for 500 million scheduling phase instructions
• After the first 10 million to avoid cold-start effects
• Concurrently executed with three threads running identical benchmarks
• Only one of these is designated as a best-effort thread
• Performance variability measured as percent slowdown
• Difference between performance in the fast and slow groups

EFFECT ON PERFORMANCE ISOLATION

• Cache-fair scheduling results in <4% variability across all benchmarks

EFFECT ON ABSOLUTE PERFORMANCE

• Upper bound is the completion time of the slow group
• Lower bound is the completion time of the fast group
• Normalized to default scheduler’s completion time in the fast group

EFFECT ON THE OVERALL THROUGHPUT

• Aggregate IPC found to

be more dependent on relative IPCs of threads that had CPU time-slice adjustments than on the principal benchmark’s IPC

• Slow group 1-12%

increase

• Fast group 1-3%

increase

EFFECT ON BEST-EFFORT THREADS

• Worst-case effect on best-effort

threads is small

• Multiple best-effort threads are

important in avoiding large performance effects

• Average <1% effect on best-

performance threads but the range is quite large

EXPERIMENTS WITH DATABASE WORKLOADS

• The performance variability metric changes to transactions per second
• Two sets of experiments: SPEC JBB and TPC-C each as principal program
• The benchmark twolf was used as a best-effort co-running thread
• Each emulates the database activities of an order-processing warehouse
• Number of warehouses and execution threads are variable
• Number of execution threads is fixed at one by authors
• Memory constraints required reduced warehouse number to 5 or less
• Authors also reduced L2 cache size to 512 KB in response

SPEC JBB

• Experimental layout
• SPEC JBB Experimental Results

TPC-C

• Experimental Layout
• TPC-C Experimental Results

COMPARISON TO CACHE PARTITIONING

• Created a hardware simulator that simulates a CMP with cache-partitioning
• Cache-partitioning only reduced variability in 3 / 9 benchmarks
• Poor results due to NO reduction in contention for the memory bus
• Cache-fair scheduling accounts for memory bus contention
• Therefore, is more effective than the hardware solution

RELATED WORK

• Hardware solutions
• Address problem directly, avoiding OS modifications
• Ensure fair resource allocation
• Limited flexibility and effectiveness
• Increases hardware cost, complexity, and time-to-market
• Software solutions
• Co-scheduling attempts to find the optimal co-runner thread
• Requires a good co-runner to exist or fails
• Limited scalability (requires cores to coordinate in scheduling)

SUMMARY

• The Cache-Fair Scheduling Algorithm improves performance

isolation on chip multiprocessors by nearly eliminating the effects from co-runner-dependent performance variability

• Better than current hardware / software solutions (in 2007)

according to authors

• I think the experiment shows promising results but the process
• f calculating the fair-IPC is much too costly to be practical

DISCUSSION

• ANY QUESTIONS??
• Do you agree that the cache-fair algorithm is better than other solutions at the time?
• Do you think that the two-stage approach to cache-fair scheduling efficient?
• Do you think that using a linear regression model was a good choice for the authors’

method of calculating the fair-IPC of a thread?

• Does the cost of this algorithm outweigh the effects of performance variability?
