2 Introduction to parallel computing Chip Multiprocessors (ACS - - PowerPoint PPT Presentation

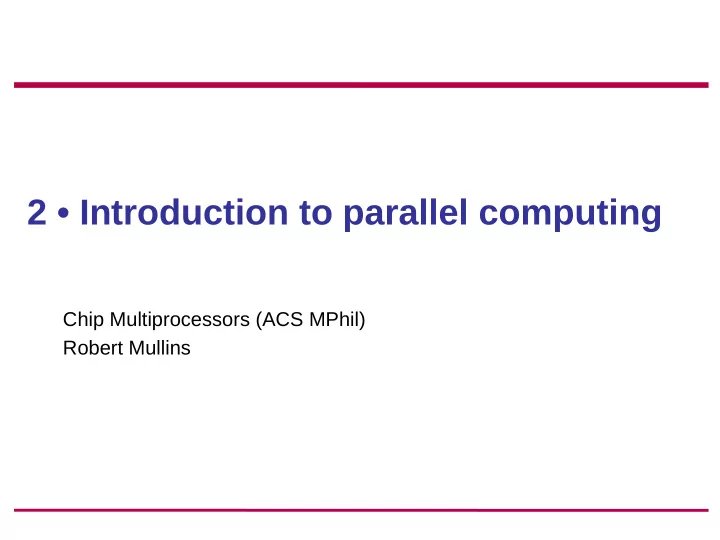

2 • Introduction to parallel computing

Chip Multiprocessors (ACS MPhil) Robert Mullins

Chip Multiprocessors (ACS MPhil) 2

Overview

• Parallel computing platforms

– Approaches to building parallel computers – Today's chip-multiprocessor architectures

• Approaches to parallel programming

– Programming with threads and shared memory – Message-passing libraries – PGAS languages – High-level parallel languages

Chip Multiprocessors (ACS MPhil) 3

Parallel computers

• How might we exploit multiple processing elements

and memories in order to complete a large computation quickly?

– How many processing elements, how powerful? – How do they communicate and cooperate?

• How are memories and processing elements interconnected?
• How is the memory hierarchy organised?

– How might we program such a machine?

Chip Multiprocessors (ACS MPhil) 4

The control structure

• How are the processing elements controlled?

– Centrally from single control unit or can they work independently?

• Flynn's taxonomy:
• Single Instruction Multiple Data (SIMD)
• Multiple Instruction Multiple Data (MIMD)

Chip Multiprocessors (ACS MPhil) 5

The control structure

• SIMD

– The scalar pipelines execute in lockstep – Data-independent logic is shared

• Efficient for highly data

parallel applications

• Much simpler instruction

fetch and supply mechanism

– SIMD hardware can support a SPMD model if the individual threads follow similar control flow

• Masked execution

Reproduced from, "Dynamic Warp Formation and Scheduling for Efficient GPU Control Flow", W. W. L. Fung et al

A Generic Streaming Multiprocessor (for graphics applications)

Chip Multiprocessors (ACS MPhil) 6

The communication model

• A clear distinction is made between two common

communication models:

– 1. Shared-address-space platforms

• All processors have access to a shared data space

accessed via a shared address space

• All communication takes place via a shared memory
• Each processing element may also have an area of

memory that is private

Chip Multiprocessors (ACS MPhil) 7

The communication model

• 2. Message-passing platforms

– Each processing element has its own exclusive address space – Communication is achieved by sending explicit messages between processing elements – The sending and receiving of messages can be used to both communicate between and synchronize the actions of multiple processing elements

Chip Multiprocessors (ACS MPhil) 8

Multi-core

Figure courtesy of Tim Harris, MSR

Chip Multiprocessors (ACS MPhil) 9

SMP multiprocessor

Figure courtesy of Tim Harris, MSR

Chip Multiprocessors (ACS MPhil) 10

NUMA multiprocessor

Figure courtesy of Tim Harris, MSR

Chip Multiprocessors (ACS MPhil) 11

Message-passing platforms

• Many early message-

passing machines provided hardware primitives that were close to the send/receive user-level communication commands

– e.g. a pair of processors may be interconnected with a hardware FIFO queue – The network topology restricted which processors could be named in a send or receive operation (e.g. only neighbours could communicate in a mesh network)

000 001 010 011 100 110 101 111

[Culler, Figure 1.22]

Chip Multiprocessors (ACS MPhil) 12

Message-passing platforms

• The Transputer (1984)

– The result of an earlier foray into the world of parallel computing! – Transputer contained integrated serial links for building multiprocessors

• IN/OUT instructions in ISA for sending and receiving

messages

– Programmed in OCCAM (based on CSP)

• IBM Victor V256 (1991)

– 16x16 array of transputers – The processors could be partitioned dynamically between different users

Chip Multiprocessors (ACS MPhil) 13

Message-passing platforms

• Recently some chip-

multiprocessors have taken a similar approach (RAW/Tilera and XMOS)

– Message queues (or communication channels) may be register mapped or accessed via special instructions – The processor stalls when reading an empty input queue or when trying to write to a full output buffer

A wireless application mapped to the RAW processor. Data is streamed from one core to another over a statically scheduled network. Network input and output is register mapped.

(See also the iWarp paper on wiki)

Chip Multiprocessors (ACS MPhil) 14

Message-passing platforms

• For larger message-passing machines (typically

scientific supercomputers) direct FIFO designs were soon replaced by designs that built message-passing upon remote memory copies (supported by DMA or a

more general communication assist processor) – The interconnection networks also became more powerful, supporting the automatic routing of messages between arbitrary nodes – No restrictions on programmer or software support required

• Hardware and software evolution meant there was a

general convergence of parallel machine

• rganisations

Chip Multiprocessors (ACS MPhil) 15

Message-passing platforms

• The most fundamental communication primitives in a

message-passing machine are synchronous send and receive operations

– Here data movement must be specified at both ends of the communication, this is known as two-sided

• communication. e.g. MPI_Send and MPI_Recv*

– Non-blocking versions of send and receive are also

• ften provided to allow computation and

communication to be overlapped

*Message Passing Interface (MPI) is a portable message-passing system that is supported by a very wide range of parallel machines.

Chip Multiprocessors (ACS MPhil) 16

One-side communication

• SHMEM

– Provides routines to access the memory of a remote processing element without any assistance from the remote process, e.g:

• shmem_put (target_addr, source_addr,

length, remote_pe)

• shmem_get, shmem_barrier etc.

– One-sided communication may be used to reduce synchronization, simplify programming and reduce data movement

Chip Multiprocessors (ACS MPhil) 17

The communication model

• From a hardware perspective we would like to keep

the machine simple (message-passing)

• But we inevitably need to simplify the programmer's

and compiler's task

– Efficiently support shared-memory programming – Add support for transactional memory? – Create a simple but high-performance target

• Trade-offs between hardware complexity and

complexity of hardware and compiler.

Chip Multiprocessors (ACS MPhil) 18

Today's chip multiprocessors

• Intel Nehalem-EX

(2009)

– 8-cores

• 2-way hyperthreaded

(SMT)

• 16 hardware threads

– L1I 32KB, L1D 32KB – 256 KB L2 (Private) – 24MB L3 (Shared)

• 8-banks
• Inclusive L3

Chip Multiprocessors (ACS MPhil) 19

Today's chip multiprocessors

L1 L2 Shared L3 Memory Intel Nahalem-EX (2009)

Chip Multiprocessors (ACS MPhil) 20

Today's chip multiprocessors

• IBM Power 7 (2010)

– 8 core (dual-chip module to hold 16 cores) – 32MB shared eDRAM L3 cache – 2-channel DDR3 controllers – Individual cores

• 4-thread SMT per core
• 6 ops/cycle
• 4GHz

Chip Multiprocessors (ACS MPhil) 21

Today's chip multiprocessors

IBM Power 7 (2010)

Chip Multiprocessors (ACS MPhil) 22

Today's chip multiprocessors

• Sun Niagara T1 (2005)

Each core has its own level 1 cache (16KB for instructions, 8KB for data). The level 2 caches are 3MB in total and are effectively 12-way associative. They are interleaved by 64-byte cache lines.

Chip Multiprocessors (ACS MPhil) 23

Oracle M7 Processor (2014)

• 32 core

– Dual-issue, OOO

• Dynamic multithreading 1-8

threads/core

• 256KB I&D L2 caches

shared by groups of 4 cores

• 64MB L3
• Technology: 20nm, 13 metal

layers

• 16 DDR channels

– 160GB/s – (vs. ~20GB/s for T1)

• >10B transistors!

Chip Multiprocessors (ACS MPhil) 24

“Manycore” designs: Tilera

• Tilera (now Mellanox)

– Evolution of MIT RAW – 100-cores – grid of identical tiles – Low-power 3-way VLIW cores – Cores interconnected by a selection of static and dynamic on-chip networks

Chip Multiprocessors (ACS MPhil) 25

“Manycore” designs: Celerity (2017)

Tiered Accelerator Fabric General-purpose tier: 5 “Rocket” RISC-V cores Massively parallel tier: 496 5-stage RISC-V cores, 16x31 tiled mesh array Specialised tier: Binarized Neural Network accelerator

Chip Multiprocessors (ACS MPhil) 26

GPUs

“The NVIDIA GeForce 8800 GPU”, Hot Chips 2007

• TESLA P100

– 56 Streaming multiprocessors x 64 cores = 3584 “cores” or lanes – 732GB/s memory bandwidth – 4MB L2 cache – 15.3 billion transistors

Chip Multiprocessors (ACS MPhil) 27

Communication latencies

• Chip multiprocessor

– Some have very fast core to core communication, as low as 1-3 cycles – Opportunities to add dedicated core-to-core links – Typical L1-to-L1 communication latencies may be around 10-100 cycles

• Other types of parallel machine:

– Shared memory multiprocessor ~500 – Cluster/supercomputer ~5000-10000

Chip Multiprocessors (ACS MPhil) 28

Approaches to parallel programming

• “Principles of Parallel

Programming”, Calvin Lin and Lawrence Snyder, Pearson, 2009

• This book provides a

good overview of the different approaches to parallel programming

• There is also a

significant amount of information on the course wiki

– Try some examples!

Chip Multiprocessors (ACS MPhil) 29

Approaches to parallel programming

• Programming with threads and shared memory
• Message-passing libraries
• PGAS languages
• High level parallel languages

Chip Multiprocessors (ACS MPhil) 30

Threads and shared memory

• A thread, or thread of execution, is a unit of

parallelism

– It consists of everything necessary to execute a sequential stream of instructions

• program code, a call stack, set of registers (incl. a single

program counter)

– It shares memory with other threads

• Threads cooperate and coordinate there actions by

reading and writing to shared variables

– Special atomic operations are provided by the multiprocessor for synchronization

Chip Multiprocessors (ACS MPhil) 31

Threads and shared memory

• How might we express threads in our code?
• fork/join

– Fork/Join keywords can appear anywhere in code – General, but unstructured

p1 ; start p5 in || fork(p5) p2 fork(p3) P4 ; wait for p5 to ; complete join(p5) p6 join(p3) p7 A forked procedure runs in parallel with main thread

Chip Multiprocessors (ACS MPhil) 32

Threads and shared memory

• fork/join using the pthreads library

– Limitations to bare metal thread programming?

void *thread_func ( void *ptr) { int i = ((thread_args *) ptr)->input; ((thread_args *) ptr)->output = fib(i); return NULL; } args.input=n-1; // create and start first thread status = pthread_create(&thread, NULL, thread_func, (void*)&args ); // calc. fib(n-2) in parallel result = fib (n-2); // join pthread_join(thread, NULL);

Chip Multiprocessors (ACS MPhil) 33

Threads and shared memory

• parbegin/parend (cobegin/coend)
• Simple and structured, but not as general as fork/join,

e.g. we cannot represent the graph on the previous slide.

p1 parbegin p5 begin p2 parbegin p3 p4 parend end parend p6 p7

Chip Multiprocessors (ACS MPhil) 34

Threads and shared memory

• Even though parbegin..parend can only represent

properly nested dependency graphs it is usually adequate

• Cilk style spawn/sync

cilk int fib (int n) { if (n < 2) return n; else { int x, y; x = spawn fib (n-1); y = spawn fib (n-2); sync; return (x+y); } }

spawn – indicates that the proceduce call can safely proceed in parallel sync – wait until all previously spawned procedures have returned their results

Chip Multiprocessors (ACS MPhil) 35

Threads and shared memory

• forall (doall, parfor)

– Simply allows a programmer to indicate that each iteration of the loop is independent and may be run in parallel – OpenMP example:

#pragma omp parallel for for (i=first; i<n; i+=prime) marked[i]=1;

Chip Multiprocessors (ACS MPhil) 36

Threads and shared memory

• Futures

– Future <expr>

• Evaluate the expression concurrently with calling program.

An asynchronous function call

• If a thread requires the value of a future that has not been

computed, stall the thread until it is available

“The incremental garbage collection of processes”, Baker/Hewitt, 1977

y=future (fn(x)) ..... ..... z=y+1;

Chip Multiprocessors (ACS MPhil) 37

Threads and shared memory

• Synchronization and coordination

– In addition to creating threads, we also need to be able to control the way threads interact. – Often involves identifying critical sections

• Mechanisms

– Locks and barriers – Mutexes and monitors – Condition Variables (wait/signal) – Transactional memory

• See reading group papers and examples

Chip Multiprocessors (ACS MPhil) 38

Message-passing

• Simple (perhaps primitive) programming model

– Programmer must distribute and explicitly move data – The fact that the interactions are explicit can be seen as both an advantage and a disadvantage

• Potentially simple hardware implementation
• Processes communicate and synchronize by sending

messages

– Message Passing Interface (MPI) standard

• Widely used on High-Performance Computing (HPC)

platforms

• Programs tend to be portable
• Usually written in a Single-Program Multiple-Data (SPMD)

style

Chip Multiprocessors (ACS MPhil) 39

PGAS languages

• Partitioned Global Address Space Languages

– Aimed at large-scale distributed memory machines

• Aim to improve on MPI

– PGAS languages overlay a global address space on the virtual memories of the distributed machines

• No expectation that memories will be coherent
• The programmer distinguishes between local and non-local

data

• The compiler generates the necessary communication calls

in response to non-local references

• Compiler exploits one-sided communication primitives

rather than message-passing

• Co-Array Fortran, Unified Parallel C, Titanium (Ti)

(Titanium extends Java)

Chip Multiprocessors (ACS MPhil) 40

High-level parallel languages

• Global view of computation

– Raise level of abstraction

• Hide low-level details of communication and synchronization
• Take a global view and describe the algorithm rather than

per-task behavior

• e.g. ZPL forces programmer to think in parallel style using

array operations (reference to neighboring elements, flood, remap, reduction, ...)

• Compiler, runtime and libraries will manage implementation

details

– Interesting examples:

• ZPL – Array programming language
• NESL, Data Parallel Haskell (see wiki)
• See also Cray Chapel, IBM X10, Sun Fortress languages

(DARPA HPCS project)
