Chinas Computer Industry: Manufacturing to Product Development - - PowerPoint PPT Presentation

china s computer industry manufacturing to product
SMART_READER_LITE
LIVE PREVIEW

Chinas Computer Industry: Manufacturing to Product Development - - PowerPoint PPT Presentation

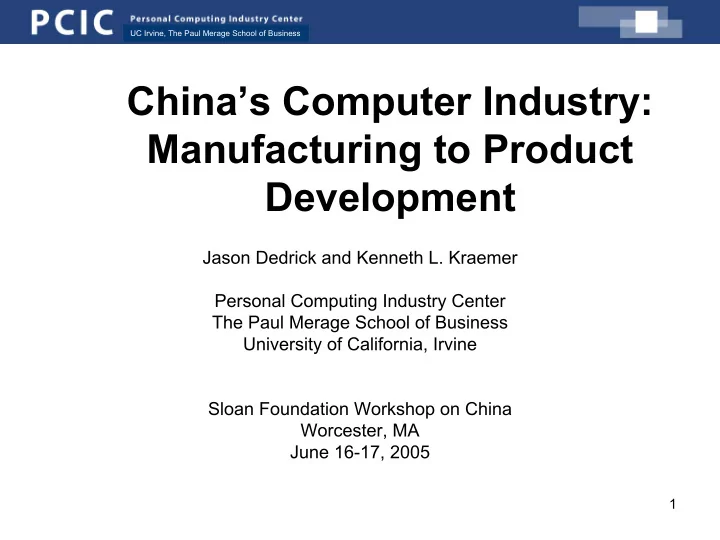

UC Irvine, The Paul Merage School of Business Chinas Computer Industry: Manufacturing to Product Development Jason Dedrick and Kenneth L. Kraemer Personal Computing Industry Center The Paul Merage School of Business University of


slide-1
SLIDE 1

1

UC Irvine, The Paul Merage School of Business

China’s Computer Industry: Manufacturing to Product Development

Jason Dedrick and Kenneth L. Kraemer Personal Computing Industry Center The Paul Merage School of Business University of California, Irvine Sloan Foundation Workshop on China Worcester, MA June 16-17, 2005

slide-2
SLIDE 2

2

UC Irvine, The Paul Merage School of Business

Agenda

China’s computer industry Role of Taiwanese companies Knowledge work: New product development in notebook PCs Location of NPD activities and shift to China Implications

slide-3
SLIDE 3

3

UC Irvine, The Paul Merage School of Business

China’s computer industry

Largest hardware producer in 2004 (est’d). Production and exports dominated by Taiwanese firms. Second largest PC market. Domestic PC companies are top three sellers Lenovo buys IBM PC business in 2004.

slide-4
SLIDE 4

4

UC Irvine, The Paul Merage School of Business

Leading computer producing countries

Hardware production in US$ millions and share of total global production

Source: Reed Electronics Research, Yearbook of World Electronics Data

6 4.5% 14,280 4.0% 15,241 2.4% 6,795

  • S. Korea

7 4.3% 13,553 4.6% 17,368 1.8% 5,280 Malaysia 2 20.5% 65,000 7.3% 27,500 1.9% 5,600 China 4 6.8% 21,512 7.2% 27,212 5.6% 16,007 Taiwan 5 5.0% 15,912 5.9% 22,209 7.3% 21,127 Singapore 3 10.5% 33,403 17.3% 65,130 25.2% 72,678 Japan 1 21.7% 69,102 24.0% 90,430 26.5% 76,284 US Global Rank Share Value Share Value Share Value 2003 2000 1995 World region

slide-5
SLIDE 5

5

UC Irvine, The Paul Merage School of Business

China’s PC market

4.8 HP 5.1 IBM 7.2 Dell 7.8 Tsinghua Tongfang 9.9 Beijing Founder 25.1 Lenovo 2004 Market share (%) Company

slide-6
SLIDE 6

6

UC Irvine, The Paul Merage School of Business

Greater China and the role of Taiwanese companies

#1 makers of notebook PCs, motherboards, scanners, keyboards, add-on cards, optical drives, monitors, some network equipment. Original design manufacturers (ODMs) develop and manufacture over half the world’s notebook PCs. Customers include all major branded PC vendors (OEMs).

slide-7
SLIDE 7

7

UC Irvine, The Paul Merage School of Business

Taiwan’s top notebook ODMs

23,900 Total Apple 1,000

  • 10. ECS

Clone, F/S, Actebis, Samsung 1,000

  • 9. Uniwill

Sharp, F/S, NEC, JVC 1,100

  • 8. Mitac

Epson, Canon, Sony, Apple, Trigem 1,500

  • 7. Asus

NEC, Legend 1,500

  • 6. FIC

NEC, Gateway 1,500

  • 5. Arima

HP, Toshiba 1,800

  • 4. Inventa

IBM, Dell, Acer, Hitachi, F/S 2,500

  • 3. Wistron

Dell, HP, F/S Toshiba, Acer 6,000

  • 2. Compal

Gateway, Dell, HP, IBM, Apple, Sharp, Sony, Fujitsu-Siemens (F/S) 8,500

  • 1. Quanta

Major OEM partners 2003 volume (thousands) Name

Source: Taiwan Ministry of Economic Affairs, 2003 (table provided to authors)

slide-8
SLIDE 8

8

UC Irvine, The Paul Merage School of Business

New product development

Manufacturing has shifted from U.S. to Taiwan and SE Asia, then to China Will knowledge work follow? Case study of new product development in notebook PCs illustrates factors and trends in knowledge-intensive part of the PC industry

slide-9
SLIDE 9

9

UC Irvine, The Paul Merage School of Business

Notebook NPD process

Product planning Design review Prototype build Pilot production Mass production Sustaining support Concept design

  • Analyze need
  • Create concept
  • Set brand image

Development Production Design

  • Business case
  • Specifications
  • Industrial design
  • Sourcing strategy
  • Mock-ups
  • Electrical test
  • DVT
  • Commercial

samples

  • Integrated

system test

  • EVT
  • Production

process design

  • Pilot assembly
  • PVT
  • Ramp-up
  • Volume

production

  • Production

testing

  • Global

distribution

  • Speed bump
  • Component

replacement

  • Technical support
  • Warranty support
slide-10
SLIDE 10

10

UC Irvine, The Paul Merage School of Business

Interdependencies

Development and manufacturing are closely linked, need manufacturability, testing of sample products. Concept design and product planning stay together in lead markets and branded vendors. Design and development can be separated

  • rganizationally and geographically. Product

spec’s can be handed off with limited human interaction.

slide-11
SLIDE 11

11

UC Irvine, The Paul Merage School of Business

Organizational forms

Notebook NPD follows three patterns

Inhouse design/development (IBM, Toshiba): vertically integrated within one PC company Joint design/development – (Dell, HP) : PC maker does design, ODM does development and mfg. Pure ODM design – (low-end products, small PC vendors): PC makers choose products off-the-shelf to sell.

Estimated share of products sold: 30% designed in- house; 50% joint vendor/ODM; 20% ODM Trend is toward more joint design/development

slide-12
SLIDE 12

12

UC Irvine, The Paul Merage School of Business

Joint development model

PC makers retain control of key decisions.

Product management, marketing, brand image Architecture, standards, key components. Interact with Intel, MS, key component makers. Decide on specific product features

ODMs

Develop products to match their mfg. processes. Choose suppliers of many parts, components Responsible for quality, support

slide-13
SLIDE 13

13

UC Irvine, The Paul Merage School of Business

Skill and proximity factors

Concept design and product planning.

Knowledge of market, skill in translating market needs into product concepts, and proximity to

  • market. Analytical and management skills.

Development

Specialized engineering skills, e.g. thermal, EMI, shock and vibration, power management, materials, radio frequency, software. Hands-on skills.

Production engineering and sustaining support

Process engineering skills and proximity to production processes. Hands-on skills.

slide-14
SLIDE 14

14

UC Irvine, The Paul Merage School of Business

Skills and costs by location

Fully-loaded cost for design engineers

U.S. or Japan: $120K Taiwan: $60K China: $20-40K

Characteristics

U.S./Japan: strong analytical skills, good management skills, creative problem solving Taiwan: strong hands-on experience, weaker analytical and management skills but learning China: core skills vary, gaining hands-on experience, weak analytical and independent problem solving skills.

slide-15
SLIDE 15

15

UC Irvine, The Paul Merage School of Business

Production “pull” of NPD activities

Product planning Design review Prototype build Pilot production Mass production Sustaining support Concept design

Development Production Design

slide-16
SLIDE 16

16

UC Irvine, The Paul Merage School of Business

Shifting location of NPD activities

United States Japan Taiwan China United States Japan Taiwan China

2003 2006

Design Development Mfg. Concept Product planning Design review Proto- type Pilot Prod. Mass Prod. Sust. support Concept Product planning Design review Proto- type Pilot Prod. Mass Prod. Sust. support

slide-17
SLIDE 17

17

UC Irvine, The Paul Merage School of Business

China’s role in NPD

Solve problems related to production process. Sustaining support for existing products while new product teams move on. Taking over pilot production and testing, likely to move to prototype and design review in some cases.

slide-18
SLIDE 18

18

UC Irvine, The Paul Merage School of Business

Trends and Implications

Overall, number of jobs is small (<20K). Notebook market growing—now 50% of PC sales. Beyond notebooks

Design and development important in other IT products, e.g. cell phones, game machines, PDAs, MP3 players. May see similar patterns in other industries where more jobs are involved, e.g., 45,000 chip designers in U.S.

slide-19
SLIDE 19

19

UC Irvine, The Paul Merage School of Business

Impacts of China

Availability and cost of engineering talent can’t be ignored. Experience will provide hands-on skills and work out cross-cultural management issues. Biggest impact on Taiwan and Japan as development moves. U.S. has lost this already. China will only take over concept design stages if it becomes a leading market and source of innovation.
