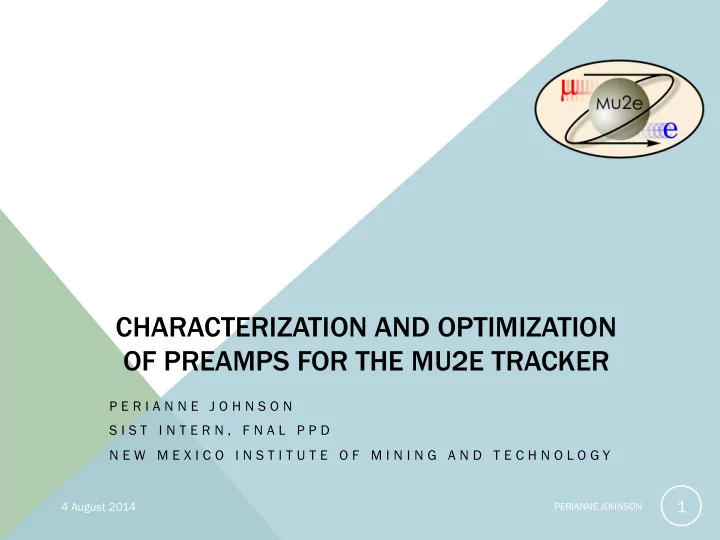

CHARACTERIZATION AND OPTIMIZATION OF PREAMPS FOR THE MU2E TRACKER

P E R I A N N E J O H N S O N S I S T I N T E R N , F N A L P P D N E W M E X I C O I N S T I T U T E O F M I N I N G A N D T E C H N O L O G Y

4 August 2014

PERIANNE JOHNSON

1

slide-2
SLIDE 2

OVERVIEW

  • General Background on Mu2e
  • Preamp Specifications
  • Original Preamp
  • Modifications
  • New Design
  • Future Improvements

4 August 2014

PERIANNE JOHNSON

2

slide-3
SLIDE 3

MU2E: CHARGED LEPTON FLAVOR VIOLATION

  • Neutrinoless conversion of a muon into an electron
  • Rare event – rates predicted by SM theory of < 10-50
  • Effectively, one event could imply New Physics

4 August 2014

PERIANNE JOHNSON

3

slide-4
SLIDE 4

MU2E: STRAW TRACKER

  • 5 mm mylar straw with wire running through it, potential difference draws

ionized ArCO2 to wire, creating current

  • Array tracks path of particles
  • Preamp at each end – distance determination

4 August 2014

PERIANNE JOHNSON

4

slide-5
SLIDE 5

PREAMPS: BASICS

  • Small printed circuit board (4.0 by 1.1 cm by 31 mils)
  • Amplifies an input signal at an inherent gain

​𝐻 ​𝐻𝑏𝑗𝑜↓𝑒𝐶 =20 =20​lo log↓10 10 ⁠(​𝐵 (​𝐵↓𝑝𝑣𝑢 /​𝐵 ​𝐵↓𝑗𝑜 ) )

4 August 2014

PERIANNE JOHNSON

5

slide-6
SLIDE 6

PREAMPS: SCHEMATIC

4 August 2014

PERIANNE JOHNSON

6

Bala lanc nce Point nt

slide-7
SLIDE 7

PREAMPS: MOTHERBOARD

  • Provides power, programming via 1-Wire, and viewing of output signal for eight preamps
  • Mounted very close together – cross talk

4 August 2014

PERIANNE JOHNSON

7

Cha hanne nnels ls 1-Wire C Chi hips Arduino no Conne nnector Sc Scope pe Cable les

slide-8
SLIDE 8

PREAMPS: PROGRAMMING

  • One Wire Chip – 8 Channel Addressable Switch
  • Arduino Due Microcontroller
  • Python

4 August 2014

PERIANNE JOHNSON

8

slide-9
SLIDE 9

PREAMPS: “READ.PY”

4 August 2014

PERIANNE JOHNSON

9

Time (ns)

slide-10
SLIDE 10

ORIGINAL PREAMPS

  • No shaping
  • Soldered directly to motherboard
  • 2.5 mV input peak-to-peak amplitude from signal generator

4 August 2014

PERIANNE JOHNSON

10

slide-11
SLIDE 11

ORIGINAL PREAMPS: CROSS TALK

  • Unavoidable fact of close mounting
  • Mounted second preamp into channel 6 on motherboard
  • Two percent limit for final experiment

4 August 2014

PERIANNE JOHNSON

11

slide-12
SLIDE 12

NEW PREAMPS: SHAPING

  • Addition of 100 pF capacitor to shape (“boost”) gain at 100 MHz
  • Factor of five increase
  • Input Signal: 50 mV attenuated by 38 dB – 0.63 mV

4 August 2014

PERIANNE JOHNSON

12

slide-13
SLIDE 13

INSTABILITY: REMOVAL OF CAPACITOR

  • Boosting made the preamps very sensitive to movement / touching
  • Touching preamps adds capacitance where it doesn’t belong
  • Shaping capacitor was removed from eight preamps

4 August 2014

PERIANNE JOHNSON

13

Preamp # ¡ Balance # ¡ Voltage Drop ¡ Output Amplitude (mV) ¡ Noise RMS ¡ 0 ¡ 22800 ¡ 70 ¡ 21 ¡ 0.35 ¡ 1 ¡ 22600 ¡ 74 ¡ 23 ¡ 0.38 ¡ 2 ¡ 22900 ¡ 65 ¡ 48 ¡ 0.6 ¡ 3 ¡ 22400 ¡ 74 ¡ 21 ¡ 0.34 ¡ 4 ¡ 22300 ¡ 75 ¡ 21 ¡ 0.36 ¡ 5 ¡ 23100 ¡ 70 ¡ 24 ¡ 0.36 ¡ 6 ¡ 21800 ¡ 73 ¡ 20 ¡ 0.33 ¡ 7 ¡ 22300 ¡ 71 ¡ 22 ¡ 0.35 ¡

slide-14
SLIDE 14

INSTABILITY: BFP520 VERSUS BFP720

  • Originally, two 720s for input and three 520s for output
  • BFP720: Si-Ge material allows for faster transition frequency and greater

bandwidth

  • Via not well grounded – small piece of copper tape

4 August 2014

PERIANNE JOHNSON

14

slide-15
SLIDE 15

BFP 520 + COPPER TAPE

4 August 2014

PERIANNE JOHNSON

15

slide-16
SLIDE 16

BETTER GROUNDING FOUND

  • Large ground plane right by components that rely on via
  • Flipped them around and soldered, now well grounded

PERIANNE JOHNSON

16

slide-17
SLIDE 17

FINAL PREAMPS: GAIN

  • All BFP520 transistors, shaping capacitor replaced, components flipped to ground

4 August 2014

PERIANNE JOHNSON

17

slide-18
SLIDE 18

FINAL PREAMPS: CROSS TALK

  • Above the requisite two percent, no further testing done at this point

4 August 2014

PERIANNE JOHNSON

18

slide-19
SLIDE 19

CONCLUSIONS & FUTURE MODIFICATIONS

  • 52 db gain for preamps with:
  • BFP520 transistors throughout
  • Shaping capacitor
  • Better grounding
  • Original preamps: gain of 30 dB
  • Future Modifications:
  • Better grounding for components built into layout
  • Reduction of cross talk to signal ratio

4 August 2014

PERIANNE JOHNSON

19

slide-20
SLIDE 20

QUESTIONS?

4 August 2014

PERIANNE JOHNSON

20

slide-21
SLIDE 21

REFERENCES

DS2408: 1-Wire 8-Channel Addressable Switch http://www.maximintegrated.com/en/products/digital/memory-products/ DS2408.html Arduino Due Microcontroller http://arduino.cc/en/Main/ArduinoBoardDue

4 August 2014

PERIANNE JOHNSON

21

slide-22
SLIDE 22

ACKNOWLEDGEMENTS
