Cellular Network Delay: Measurements in Four Swedish HSDPA+ and LTE Networks Anna Brunstrom Karlstad University, Karlstad, Sweden RAIM Workshop Yokohama, Japan October 31, 2015 Anna Brunstrom Cellular Network Delay: Measurements in Four

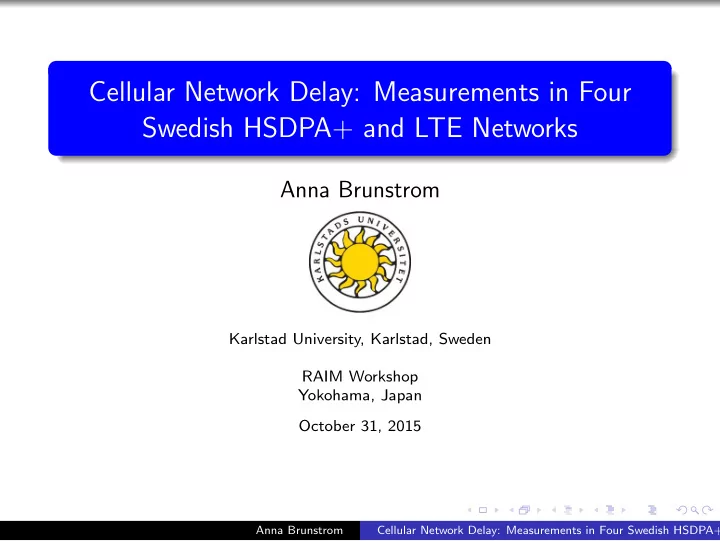

SLIDE 1

Cellular Network Delay: Measurements in Four Swedish HSDPA+ and LTE Networks

Anna Brunstrom

Karlstad University, Karlstad, Sweden RAIM Workshop Yokohama, Japan October 31, 2015

Anna Brunstrom Cellular Network Delay: Measurements in Four Swedish HSDPA+

SLIDE 2

Delay Measurements

Why have we focused on delay Delays typically directly impact user service perceptions Most TCP flows in cellular networks are short (90% < 36KiB) Per-user queuing are employed in cellular networks, but concurrent user flows can interact Measurements for HSPA+ and LTE Networks of 4 main Swedish providers for 3+ years Different approaches to measure network layer delay Impact of concurrent traffic on measured delay and application performance Impact of congestion control Modeling and analysis of short flow performance

Anna Brunstrom Cellular Network Delay: Measurements in Four Swedish HSDPA+

SLIDE 3

Effect of Single Background Flow for HSPA+

A d a p . N

g A d a p w / b g 3 W H S n

g 3 W H S w / b g A d a p . N

g A d a p w / b g 3 W H S n

g 3 W H S w / b g A d a p . N

g A d a p w / b g 3 W H S n

g 3 W H S w / b g A d a p . N

g A d a p w / b g 3 W H S n

g 3 W H S w / b g 200 400 600 800 1000 Round-trip time (ms) Operator 1 Operator 2 Operator 3 Operator 4

Delays are considerably increased when a background TCP flow is present

Anna Brunstrom Cellular Network Delay: Measurements in Four Swedish HSDPA+

SLIDE 4

Relative Impact of Throughput and RTT on Short Flow Completion Time

5 10

3.5G

1.10 * RTT 0.90 * RTT 1.10 * Tp 0.90 * Tp 50 100 150 200 250 300 Flow size (KiByte)

5 10

Difference in completion time (%)

Mean values for RTT and throughput from our measurements are used as baselines. The figure shows the relative impact of a 10% change in RTT and throughput. The completion time is much more sensitive to variation in RTT than throughput.

Anna Brunstrom Cellular Network Delay: Measurements in Four Swedish HSDPA+
