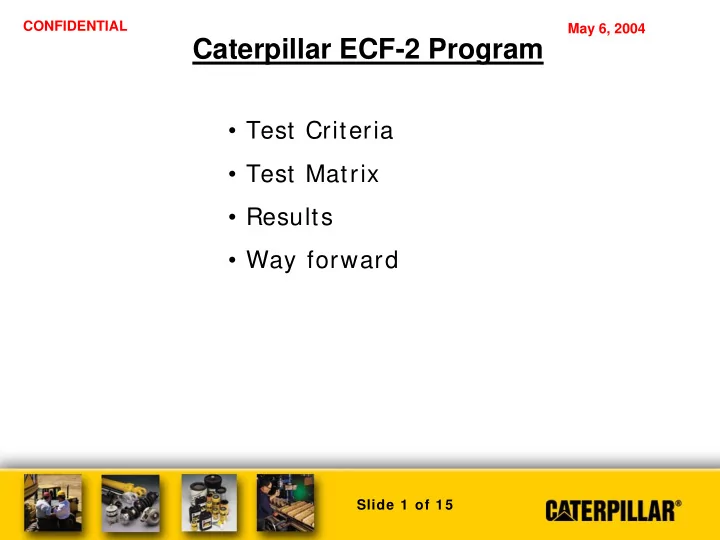

Slide 1 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Program

• Test Criteria
• Test Matrix
• Results
• Way forward

Slide 2 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Criteria

500 hour – Steady State Test Cycle Test Pass/ Fail Criteria: 1.

No Loss of Oil Consumption Control (< 50% ) 2. No stuck rings/ Loss of ring side clearance 3. No Liner Scuffing or Bore Polish 4. No Loss of Blowby Control 5. Measured Piston Deposits 6. EOT Oil Quality to be monitored

Slide 3 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Matrix

Test Conditions IMP IMT Coolant Oil Fuel Rate kPa °C °C °C g/min High 310 75 108 115 1260 Intermediate 290 55 98 107 1260 Low 280 40 88 100 1200

Slide 4 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

C13 Max TLHC

60.9 36.5 15.9 7.3 2.8 10 20 30 40 50 60 70 10 20 30 40 50 60 70 80 Intake Manifold Temperature (°C) Oil Consumption Increas

• 1.0

1.0 3.0 5.0 7.0 9.0 11.0 13.0 15.0 Max Piston Demerits (TLHC

Temperature Effects on Deposits

Slide 5 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results

# Ref 1 Ref X

Intermediate Temps 1 36% Inc OC, Stuck Ring 41 % Inc OC, Sluggish Rings

(Ref # 0)

Hot Temps 2 16 % Inc OC, Rings Free 49% Inc OC, Rings Free

(Ref #2)

Low Temps 3 4 5 6 105 % Inc OC, Stuck Rings* 62 % Inc OC, Stuck Ring 61 % Inc OC, Stuck Ring 78 % Inc OC, Rings Free 31% Inc OC, Stuck Rings*

(Ref #2)

43% Inc OC, Rings Free

Comm A – 1.5 Ash

46% Inc OC, Rings Free

Ref # 4 – 1.0 Ash

• Test started at hot temp for first 100-150 hrs, then switched to Low Temp
• Test 6 was a new engine on a new oil batch run at new test stand

Slide 6 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

Caterpillar C13 Oil Consumption

0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2 0.22 0.24 0.26 0.28 0.3 0.32 0.34 0.36 0.38 0.4 50 100 150 200 250 300 350 400 450 500 Oil Hours Oil Consumption (g/kW.hr 0.00000 0.00010 0.00020 0.00030 0.00040 0.00050 0.00060 0.00070 0.00080 Oil Consumption (lb/hp.hr Ref Oil #1 PE 4 Ref Oil #1 PE 5 Ref Oil #1 XOM 1 Ref Oil #1 SwRI 4 Comm A Ref # 4

Slide 7 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

Dep WDP

615.3 518.9 504.6 412.2 497.4 457.3 439.5 452.2 452.6 433.3 451.9 100 200 300 400 500 600 700 Ref #2, High T Ref #1, High T Ref #0, Int T Ref #1, Int T Ref #2, H-L T Ref #1 H,L T Ref #1, Low T Ref #1, Low T Ref #1, Low T Ref # 4, Low T Comm A, Low T

Sluggish Stuck Stuck Stuck Stuck Stuck Free Free Free Free Free

Slide 8 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

TGC

43.7 41.4 57.9 50.8 46.5 52.1 39.9 44.8 43.5 46.3 53.9 0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0

Ref #2, High T Ref #1, High T Ref #0, Int T Ref #1, Int T Ref #2, H-L T Ref #1 H,L T Ref #1, Low T Ref #1, Low T Ref #1, Low T Ref # 4, Low T Comm A, Low T

Sluggish Stuck Stuck Stuck Stuck Stuck Free Free Free Free Free

Slide 9 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

TLHC

0.2 3.7 2.8 3.8 9.5 7.7 7.3 8.7 6.8 14.8 2 4 6 8 10 12 14 16 Ref #2, High T Ref #1, High T Ref #0, Int T Ref #1, Int T Ref #2, H-L T Ref #1 H,L T Ref #1, Low T Ref #1, Low T Ref #1, Low T Ref # 4, Low T Comm A, Low T

Sluggish Stuck Stuck Stuck Stuck Stuck Free Free Free Free Free

Slide 1 0 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

TLC

8.6 11.0 18.4 25.8 23.1 26.5 27.8 26.7 29.6 25.0 30.1 5 10 15 20 25 30 35 Ref #2, High T Ref #1, High T Ref #0, Int T Ref #1, Int T Ref #2, H-L T Ref #1 H,L T Ref #1, Low T Ref #1, Low T Ref #1, Low T Ref # 4, Low T Comm A, Low T

Sluggish Stuck Stuck Stuck Stuck Stuck Free Free Free Free Free

Slide 1 1 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

2GC

16.0 8.8 12.2 12.8 8.9 9.2 6.9 9.0 9.3 7.3 10.9 0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 Ref #2, High T Ref #1, High T Ref #0, Int T Ref #1, Int T Ref #2, H-L T Ref #1 H,L T Ref #1, Low T Ref #1, Low T Ref #1, Low T Ref # 4, Low T Comm A, Low T

Sluggish Stuck Stuck Stuck Stuck Stuck Free Free Free Free Free

Slide 1 2 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

2GF

11.7 6.0 3.7 6.5 4.2 4.2 2.5 2.2 2.6 2.2 5.5 2 4 6 8 10 12 14

Ref #2, High T Ref #1, High T Ref #0, Int T Ref #1, Int T Ref #2, H-L T Ref #1 H,L T Ref #1, Low T Ref #1, Low T Ref #1, Low T Ref # 4, Low T Comm A, Low T

Sluggish Stuck Stuck Stuck Stuck Stuck Free Free Free Free Free

Slide 1 3 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Results Summary

% Oil Cons Inc

49.4 15.9 41.3 36.5 30.6 105.0 62.5 60.9 43 46.3 43.4 20 40 60 80 100 120 Ref #2, High T Ref #1, High T Ref #0, Int T Ref #1, Int T Ref #2, H-L T Ref #1 H,L T Ref #1, Low T Ref #1, Low T Ref #1, Low T Ref # 4, Low T Comm A, Low T

Sluggish Stuck Stuck Stuck Stuck Stuck Free Free Free Free Free

Slide 1 4 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test Summary

• 1. Oil Consumption Control –variable
• 2. Discrimination - No Parameter distinctive
• 3. No Correlation – Oil consumption with deposits

– Oil consumption with 2nd ring stick

• 4. Propose Continue C13 test for PC-10
• 4. No Passing oil found – Ref # 4 best candidate
• 5. Failing Ref #1 oil is marginal

Slide 1 5 of 1 5 CONFIDENTIAL May 6, 2004

Caterpillar ECF-2 Test For 2007

Time to explore other deposit effects

• CCV
• ULSDF
• Aftertreatment
• Engine Durability of low Ash oils
