Canterbury earthquake (magnitude7.1), Darfield-Christchurch Sept 4, 2010 A photographical account from a visit on Sept 8, 2010 By: P. Marinos, R. Rodogianni, G. Tsiambaos, N. Sabatakakis & B. Christaras The area The fault Strike slip

slide-1
SLIDE 1

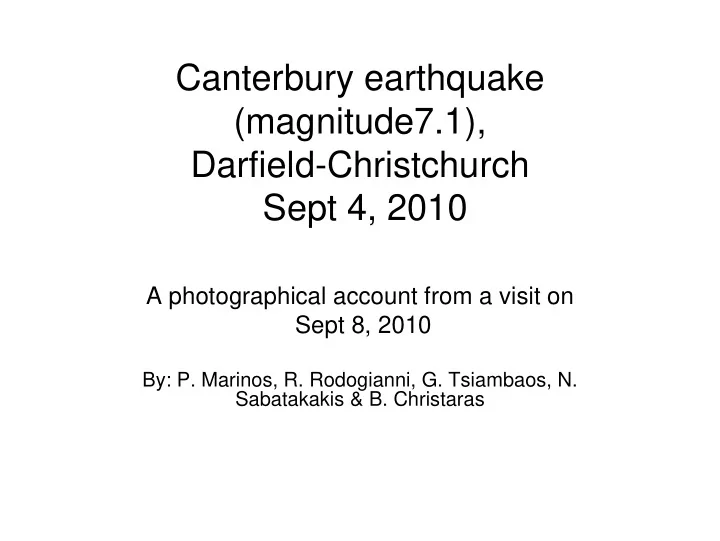

Canterbury earthquake (magnitude7.1), Darfield-Christchurch Sept 4, 2010

A photographical account from a visit on Sept 8, 2010

By: P. Marinos, R. Rodogianni, G. Tsiambaos, N. Sabatakakis & B. Christaras

slide-2
SLIDE 2
slide-3
SLIDE 3
slide-4
SLIDE 4

The area

slide-5
SLIDE 5

The fault

Strike slip right lateral about 3 m horizontal offset. En

  • echelon. Observed length 13km

Vertical displacement of about few 10s of cm,

Small inverse component. Width of zone of deformations 10-30m (on sites inspected)

Surface rupture on Glaciation surface 18000 old

slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8

En echelon features of the fault

slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15

The width of deformations associated with the en echelon development of the fault rupture

slide-16
SLIDE 16
slide-17
SLIDE 17

Signs of the local inverse component

slide-18
SLIDE 18

Signs of the local inverse component

slide-19
SLIDE 19

Signs of the local inverse component

slide-20
SLIDE 20

One of the bigger vertical displacement in the fault zone

slide-21
SLIDE 21

One of the bigger vertical displacement in the fault zone

slide-22
SLIDE 22

Trees unrooted in the course of the fault

slide-23
SLIDE 23

The liquefaction

slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29
slide-30
SLIDE 30

Failure of embankment of Waimakariri river due to liquefaction of its surroundings. Lateral spreading assisted

The river is just at the left side of photo.

slide-31
SLIDE 31

Failure of embankment of Waimakariri river due to liquefaction of its surroundings. Lateral spreading assisted

The river is just at the left side of photo.

slide-32
SLIDE 32

Subsidence of the frontal part of the house, Kaiapoi

slide-33
SLIDE 33

Subsidence due to liquefaction, Kaiapoi

slide-34
SLIDE 34

Liquefaction affected pavements and streets

slide-35
SLIDE 35

Kaiapoi

slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38

Lateral spreading

Mainly due to liquefaction

slide-39
SLIDE 39

Failure of embankment of Waimakariri river due to lateral

  • spreading. Liquefaction affected its environment.

The river is just at the left side of photo.

slide-40
SLIDE 40

Failure of embankment of Waimakariri river due to lateral

  • spreading. Liquefaction affected its environment.

The river is just at the left side of photo.

slide-41
SLIDE 41

Failure of embankment of Waimakariri river due to lateral

  • spreading. Liquefaction affected its environment.

The river is just at the right side of photo.

slide-42
SLIDE 42

Fissures from lateral spreading

slide-43
SLIDE 43

Fissure from lateral spreading. The river bank is at the right, in a distance of about 150m

slide-44
SLIDE 44

Lateral spreading. A canal can be seen on the right

slide-45
SLIDE 45

Lateral spreading. Due to the provoked subsidence the banks got new position, covering the trunks of trees

slide-46
SLIDE 46

Lateral spreading towards the canal which is in front of the undermined house, in a distance of about 50m

slide-47
SLIDE 47

Lateral spreading that reached and undermined the house (with this simple, laying on ground, foundation)

slide-48
SLIDE 48

With thanks to Ed Ladley for his contribution to have this visit effective

slide-49
SLIDE 49

An other disaster to improve our knowledge…… ……for the hope of the future
