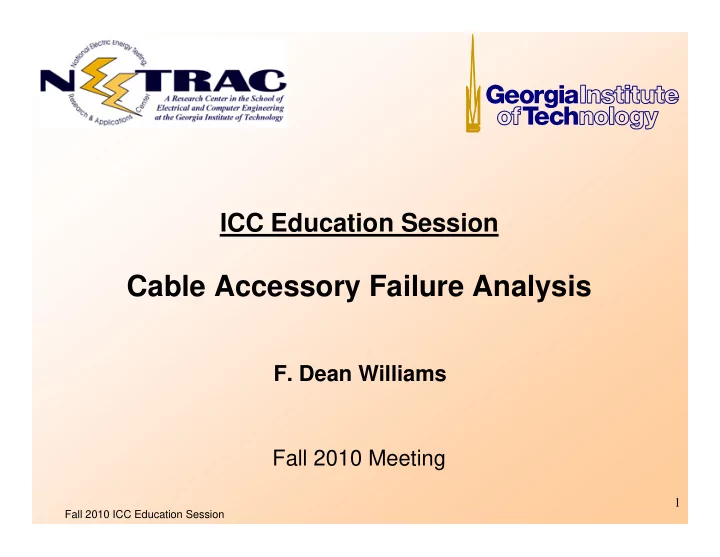

SLIDE 1

1

Fall 2010 ICC Education Session

ICC Education Session

Cable Accessory Failure Analysis

  • F. Dean Williams

Fall 2010 Meeting

slide-2
SLIDE 2

2

Fall 2010 ICC Education Session

Outline

  • Background
  • Overall Process for an Effective Forensic Program
  • Primary Modes of Failure
  • Benefits of a Forensic Program
  • Summary
slide-3
SLIDE 3

3

Fall 2010 ICC Education Session

Background – Significance of Problem

Old Middle Aged New 80 70 60 50 40 30 20 10 Old Middle Aged New Accessories Age Description Percentage of Service Interuptions (% ) Cable

  • Cable accessories have a significant

Infant mortality rate

  • Newly installed accessories account

for 20% of accessory related service interruptions

  • Workmanship is the Number 1 cause
  • f failure representing nearly 50% of

the total failures

  • The number of unknown cause of

failure is high (about 20%) showing the need for more thorough forensic evaluations

  • Manufacturing defects represent 15%
  • f the total failures
slide-4
SLIDE 4

4

Fall 2010 ICC Education Session

Analysis of Collated Data – Cable Accessories - Cause of Failure

Fault Type

5 10 15 20 25 30 35 40 P

  • r

w

  • r

k m a n s h i p M a n u f a c t u r i n g p r

  • b

l e m C

  • r

r

  • s

i

  • n

M e c h a n i c a l D a m a g e E v e n t A g i n g O v e r l

  • a

d U n k n

  • w

n M

  • i

s t u r e O t h e r D i e l e c t r i c b r e a k d

  • w

n C

  • n

t a m i n a t i

  • n

O v e r h e a t I n c

  • r

r e c t r e c

  • r

d M a i n t e n a n c e f a i l u r e % of Total Cases

slide-5
SLIDE 5

5

Fall 2010 ICC Education Session

Analysis of Collated Data – Failures by Accessory Vintage

Accessory Vintages - All Utilities

5 10 15 20 25 30 35 40 1 9 7

  • 1

9 7 5 1 9 7 5

  • 1

9 8 1 9 8

  • 1

9 8 5 1 9 8 5

  • 1

9 9 1 9 9

  • 1

9 9 5 1 9 9 5

  • 2

2

  • 2

5 > 2 5

Vintage % of Total Failures

Joints Terminations Junctions

slide-6
SLIDE 6

6

Fall 2010 ICC Education Session

Analysis of Collated Data – Cause of Failure

Summary by Failure Type ‐ All Utilities

Overheat 4%

Dielectric breakdown 10%

Aging 6% Corrosion 4% Moisture 4% Event 3%

Manufacturing problem 14%

Overload 2% Maintenance failure 2% Mechanical Damage 1% Contamination 1%

Poor workmanship 49%

slide-7
SLIDE 7

7

Fall 2010 ICC Education Session

Overall Process for an Effective Forensic Program

  • Preservation of sample integrity
  • Importance of sister components
  • Collection of background information
  • Obtain installation instructions
  • Choose the right evaluation technique/document all findings
  • Identify all installation errors/determine most probable root cause of

failure

  • Clearly and accurately report all findings/forward to the appropriate

personnel

  • Track results of examinations
slide-8
SLIDE 8

8

Fall 2010 ICC Education Session

Preservation of Sample Integrity

  • Remove sufficient cable length on either side of failed

component

  • Label sample to clearly identify location of failure
  • Seal cable ends and wrap component to protect from

environment

  • Keep associated components together
  • Store in a dry location prior to performing analysis
slide-9
SLIDE 9

9

Fall 2010 ICC Education Session

Preservation of Sample Integrity

  • If you do not know what you are doing Do Not attempt

your own analysis

slide-10
SLIDE 10

10

Fall 2010 ICC Education Session

Importance of Sister Components

  • Sister components are those installed at

the same time of the failed component, likely by the same installer

  • Significant damage to failed component

may prevent determining most probable root cause of failure

  • Sister components allow for easy

detection of installation/workmanship errors if installed by the same personnel

slide-11
SLIDE 11

11

Fall 2010 ICC Education Session

Sister Units

Jacket Cutback Constant Force Spring Ground Strap Copper Tape Shield Jacket Cutback

slide-12
SLIDE 12

12

Fall 2010 ICC Education Session

Sister Units

Cut in Cable Insulation at Jacket Cutback

slide-13
SLIDE 13

13

Fall 2010 ICC Education Session

Sister Units

Cut in Tape Shield at Jacket Cutback Copper Tape Shield intact

slide-14
SLIDE 14

14

Fall 2010 ICC Education Session

Collection of Background Information

  • Events leading up to failure (weather, switching events,

previous failures, etc.)

  • Circuit diagram
  • Number of re-closures on circuit after initial failure
  • Available fault current
  • Typical loading conditions
  • Type of load being served
  • Any additional information that may be helpful in

determining the root cause of failure

slide-15
SLIDE 15

15

Fall 2010 ICC Education Session

Obtain Installation Instructions

  • Obtain installation instructions for vintage of

component to be evaluated

  • A proper analysis of most failed components is the

exact reverse of the installation instructions

  • Check for function, not for detailed compliance
  • A perfectly installed accessory may fail by means
  • utside the installers control
slide-16
SLIDE 16

16

Fall 2010 ICC Education Session

Outside the Installers Control

Termite Damage UV Aging

slide-17
SLIDE 17

17

Fall 2010 ICC Education Session

Outside the Installers Control

12 Inches Over ¾ inch Total Insulation Shrinkback

slide-18
SLIDE 18

18

Fall 2010 ICC Education Session

  • Think before you cut
  • Document all findings/observations

through photographs

  • Preserve failure site, Do Not make

cuts directly through failure site

  • Cuts should be made at locations 90

degrees on either side of failure site

  • Cuts through failure site should only

be made, if necessary, and once a detailed examination of the various mating interfaces has been made

Choose the Right Evaluation Technique

Failure Site Cut through Failure Site

slide-19
SLIDE 19

19

Fall 2010 ICC Education Session

X-Ray

slide-20
SLIDE 20

20

Fall 2010 ICC Education Session

Identify all Installation Errors/Determine Most Probable Root Cause of Failure

  • Identification of all installation errors should be documented to

enhance training efforts

  • Multiple errors may have contributed to the failure
  • Determine most probable cause by process of elimination through a

detailed analysis of the available evidence “When you have eliminated the impossible, whatever remains, however improbable, must be the truth” Sherlock Holmes – In the Sign of the Four

slide-21
SLIDE 21

21

Fall 2010 ICC Education Session

Clearly and Accurately Report all Findings

  • Report should indentify most

probable cause of failure and all installation errors observed

  • Share report with all parties to reduce
  • r prevent future occurrences
  • Discuss product defects with

manufacturer to improve processes

  • Discuss installation errors with

training personnel or installers to eliminate installation errors

  • If installation errors are the result of

unclear installation instructions revise instructions

As-Built of termination used in report

slide-22
SLIDE 22

22

Fall 2010 ICC Education Session

Track Examination Results

  • Results of examinations should be tracked in a database
  • A database will help responsible personnel to observe and

take appropriate action when trends in installation errors

  • r manufacturing defects are evident
slide-23
SLIDE 23

23

Fall 2010 ICC Education Session

Common Failure Modes

  • Workmanship
  • Manufacturing Defects
  • Design Issues
slide-24
SLIDE 24

24

Fall 2010 ICC Education Session

Workmanship

Cut in Cable Insulation

slide-25
SLIDE 25

25

Fall 2010 ICC Education Session

Workmanship

Nicks in Conductor Strands

Cuts in Conductor Strands

slide-26
SLIDE 26

26

Fall 2010 ICC Education Session

Workmanship

Lower Cold Shrink Tube Incorrectly Installed at Upper End of Termination Black Stress Control Tube Electrical Activity off Insulation Shield Cutback

slide-27
SLIDE 27

27

Fall 2010 ICC Education Session

Workmanship

Incomplete Shrink Down of Dual Layer Tube Leading to Failure

Puncture

slide-28
SLIDE 28

28

Fall 2010 ICC Education Session

Workmanship

Discharge between Inner Stress Control Tube and Cable Insulation Caused by Incomplete Shrink Down

slide-29
SLIDE 29

29

Fall 2010 ICC Education Session

Workmanship

Discharge between Inner Stress Control Tube and Dual Layer Tube Caused by Incomplete Shrink Down and Failure to Keep Stress Control Tube Hot

slide-30
SLIDE 30

30

Fall 2010 ICC Education Session

Workmanship

Corrosion Deposits Lack of Bond between Mastic and Jacket Water Migrated Past End Seal

No Mastic between Solder Blocks

slide-31
SLIDE 31

31

Fall 2010 ICC Education Session

Workmanship

Discharge between Stress Control Tube and Insulation Shield Puncture at Knife Cut in Cable Insulation

slide-32
SLIDE 32

32

Fall 2010 ICC Education Session

Workmanship

Interface Tracking from Surface Contamination

slide-33
SLIDE 33

33

Fall 2010 ICC Education Session

Workmanship

Water Dirt Deposits and Lack of Bond

slide-34
SLIDE 34

34

Fall 2010 ICC Education Session

Workmanship

Contamination between Insulating Tube and Stress Control Tube

slide-35
SLIDE 35

35

Fall 2010 ICC Education Session

Workmanship

Stress Relief Mastic Across Entire Cable Interface

slide-36
SLIDE 36

36

Fall 2010 ICC Education Session

Workmanship

Brown Discoloration

  • f TRXLPE caused

by Overheating Compression Connector No Wire Brush Marks on Conductor in Area of Crimp Down

slide-37
SLIDE 37

37

Fall 2010 ICC Education Session

Workmanship

Deformation of Insulation Transition of Insulation Color Away from Connector Thermal Damage to Joint Body

slide-38
SLIDE 38

38

Fall 2010 ICC Education Session

Workmanship

No Wire Brush Marks on Conductor Wire Brush Marks on Conductor

slide-39
SLIDE 39

39

Fall 2010 ICC Education Session

Workmanship

Brown Discoloration of TRXLPE caused by Overheating Compression Connector Thermal Damage Tool Cuts in Conductor Strands

slide-40
SLIDE 40

40

Fall 2010 ICC Education Session

Workmanship

Aluminum Oxides Area of Crimpdown in Connector Body Arc Pit in Connector Body

slide-41
SLIDE 41

41

Fall 2010 ICC Education Session

Workmanship

Bent Probe Melting of Arc Quenching Probe

slide-42
SLIDE 42

42

Fall 2010 ICC Education Session

Workmanship

Surface Tracking Surface Contamination

slide-43
SLIDE 43

43

Fall 2010 ICC Education Session

Workmanship

Corrosion Deposits Ground Strap Soldier Block Located over Dual Layer Tube

slide-44
SLIDE 44

44

Fall 2010 ICC Education Session

Workmanship

Cut in Cable Insulation Dielectric Puncture Start of Penciling on Cable Insulation Thin Area of Insulation Wall In Line With Failure

slide-45
SLIDE 45

45

Fall 2010 ICC Education Session

Workmanship

Note that Cut Aligns with Centerline of Puncture Electrical Treeing Fault Channel

slide-46
SLIDE 46

46

Fall 2010 ICC Education Session

Workmanship

Failure Site Open Neutrals Arcing to Bracket Bracket Cutting into Cable

slide-47
SLIDE 47

47

Fall 2010 ICC Education Session

Workmanship

Compression Lug Vaporized

slide-48
SLIDE 48

48

Fall 2010 ICC Education Session

Workmanship/Manufacturing

Knife Cuts Created During removal of Joint Body Sanding Marks Folds/Wrinkles in Copper Tape White Bedding Tape

slide-49
SLIDE 49

49

Fall 2010 ICC Education Session

Manufacturing Defect

Puncture Site Area of Discoloration Puncture Site

slide-50
SLIDE 50

50

Fall 2010 ICC Education Session

Manufacturing Defect

Insulation Conductor Shield Puncture in Conductor Shield Void in Insulation

slide-51
SLIDE 51

51

Fall 2010 ICC Education Session

Manufacturing Defect

Fault Channel in Joint Insulation Metal Contaminant

slide-52
SLIDE 52

52

Fall 2010 ICC Education Session

Design Issues

Surface Tracking

  • n Cable

Insulation Erosion of Stress Control Tube

slide-53
SLIDE 53

53

Fall 2010 ICC Education Session

Design Issues

Corrosion on Conductor Path of Moisture Moisture Entry Point

slide-54
SLIDE 54

54

Fall 2010 ICC Education Session

Design Issue

Dielectric Puncture Cable Training

slide-55
SLIDE 55

55

Fall 2010 ICC Education Session

Design Issue

Complete Break in Sheath Stress Cracking Failure Site

slide-56
SLIDE 56

56

Fall 2010 ICC Education Session

Design Issue - UV Aging

Surface Tracking and Erosion Stress Cracking

slide-57
SLIDE 57

57

Fall 2010 ICC Education Session

Benefits of a Failure Analysis Program

  • Improve Training
  • Reduce outages
  • Increase in revenue
  • Reduce need for expensive diagnostic testing
slide-58
SLIDE 58

58

Fall 2010 ICC Education Session

Summary

  • Surveys and data analysis show

cable accessory failures make up a large percentage of in-service

  • utages
  • About 20% of accessory failures

have no known cause, indicating a need for more detailed forensic analysis

  • About 15% of accessory failures

can be attributed to manufacturing defects, indicating a need for tighter control of manufacturing processes

  • Surveys and data analysis show

the need for improved training of cable accessory installers

Unknown 1.1% Terminations 5.6% Splices 37.1% Cable 56.2%

Utility Survey Showing System Failure Causes

slide-59
SLIDE 59

59

Fall 2010 ICC Education Session

Summary All evidence points to improved TRAINING as the single most cost effective means of improving system reliability
