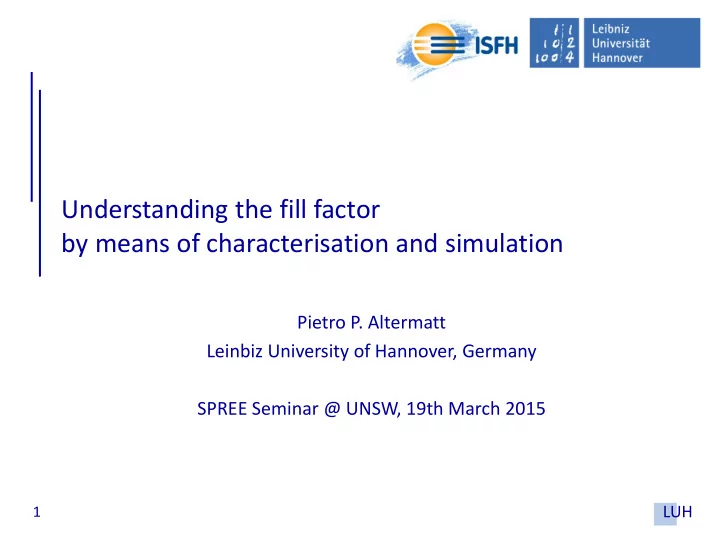

Understanding the fill factor by means of characterisation and simulation

Pietro P. Altermatt Leinbiz University of Hannover, Germany SPREE Seminar @ UNSW, 19th March 2015

1

LUH

Which parameters influence the fill factor?

LUH

…the lumped series resistance Rs

LUH

… the Voc

M.A. Green, Solar Cells, 1992, (ISBN 0 85823 580 3), p. 96 M.A. Green, Solar Cells 7, 337 (1982)

n = 1.0 Rs = 0

LUH

… der ideality factor n

M.A. Green, Solar Cells, 1992, (ISBN 0 85823 580 3), p. 96 M.A. Green, Solar Cells 7, 337 (1982)

Rs = 0

LUH

Analytical approximation using Voc, n and Rs

Jsc = 39 mA/cm2 Detailed overview of analytical equations for FF:

• E. Sanchez and G.L. Araujo, Solar Cells 20, 1 (1987)

LUH

Do we here have a „FF problem“ ?

LUH

No

LUH

FF in relation to Voc

It is advantageous to consider FF in relation to Voc

LUH

FF depends on n

The idality factor may influence FF as strongly as Rs.

LUH

Contents

(Loss)-analysis using simulations Characterization using I-V measurements

1 2

LUH

Contents

1

Characterization using I-V measurements

LUH

Measurement of I-V curves

Measurement

Dark 1-sun 1.1-sun  0.9 sun (Jsc-Voc)

1-sun Jsc-Voc dark Voc Vmpp Bias [V] Current-density [mA/cm2]

LUH

I-V curves – logarithmic

LUH

I-V curves – logarithmic

LUH

I-V curves – logarithmic

LUH

I-V curves – logarithmic

LUH

I-V curves – logarithmic

Jsc-Voc Voc Vmpp 1-sun dark Bias [V] Current-density [mA/cm2]

LUH

Extraction of Rs

Measurement Extraction

• f Rs

LUH

Rs extraction from I-V curves

Overview: P.P. Altermatt et al, Prog. PV 4, 399 (1996)

1-sun Jsc-Voc dark Voc Vmpp Jsc-Voc DLL Bias [V] Current density [mA/cm2] Series resistance [cm2] Bias [V]

LUH

Tripple light-level (TLL) method

• K. F. Fong, K. R. McIntosh, A. W. Blakers, Prog. PV 21, 490 (2013)

LUH

Tripple light-level (TLL) method

• K. F. Fong, K. R. McIntosh, A. W. Blakers, Prog. PV 21, 490 (2013)

LUH

Large J0 → I-V curve is higher

LUH

Large J0 → I-V curve is higher

LUH

Rs extraction from I-V curves

• K. F. Fong, K. R. McIntosh, A. W. Blakers, Prog. PV 21, 490 (2013)

1-sun Jsc-Voc dark Voc Vmpp Jsc-Voc DLL

If possible, use the tripple light-level method to measure Rs

Bias [V] Current-density [mA/cm2] Series resistance [cm2] Bias [V]

LUH

Simulation of the metallised parts

• Y. Yang et al, Prog. PV 20, 490 (2012)

Device simulation Circuit simulation

LUH

Simulation of the metallized parts

Device simulation Internal Rs Jsc-Voc DLL. Bias [V] Series resistance [cm2] Circuit simulation

LUH

Parametrization of Rs

Measurement Extraction

• f Rs

Parametrization

• f Rs(V)

If simulation: internal Rs Proper distinction between Rs- and recombination losses

LUH

Rs(V) as polynome 2nd degree

Jsc-Voc

where V0 is offen Voc

Internal Rs DLL. Bias [V] Series resistance [cm2]

LUH

Rs-corrected I-V curves

Measurement Extraction

• f Rs

Parametrization

• f Rs(V)

Rs(V)-free I-V curves If simulation: internal Rs Proper distinction between Rs- and recombination losses Rs(V) polynome

LUH

Rs-corrected I-V curves

10

• 1

10 10

1

Current density [mA/cm

2]

0.65 0.60 0.55 0.50 0.45 0.40

External bias [V]

Exp Rs(V) Rs(Vmpp)

FF Exp = 78.52 FF Rs(V) = 83.18

LUH

Rs-corrected I-V curves show recombination losses

10

• 1

10 10

1

Current density [mA/cm

2]

0.65 0.60 0.55 0.50 0.45 0.40

External bias [V]

Exp Rs(V) Rs(Vmpp)

FF Exp = 78.52 FF Rs(V) = 83.18 FF Rs(Vmpp) = 83.09

LUH

Comparison of pseudo-FF with 1FF

n = 1.0 Rs = 0

M.A. Green, Solar Cells, 1992, (ISBN 0 85823 580 3), p. 96 M.A. Green, Solar Cells 7, 337 (1982)

pFF is often smaller than 1FF

FF Exp = 78.52 FF Rs(V) = 83.18 FF Rs(Vmpp) = 83.09 FF n=1 = 83.28

LUH

Loss analysis

If simulation: internal Rs Proper distinction between Rs- and recombination losses Rs(V) polynome Recombination losses pFF Loss analysis Predictions Measurement Extraction

• f Rs

Parametrization

• f Rs(V)

Rs(V)-free I-V curves 1FF

LUH

Content

(Loss)-Analysis using simulations

2

LUH

Domain & discretization

Domain

2D Entire cell Finger

LUH

Reproduction of the ideality factor

Ultimate test

• S. Steingrube et al. Energy Procedia 8, 263 (2011)

LUH

Which is the most likely current-path?

V

dark

applied forward bias

LUH

Exponentially increasing recombination rates

39

LUH

Dark I-V curve = recombination rate

40 30 20 10

Stromdichte [mA/cm

2]

700 600 500 400 300 200 100

• 100

Spannung [mV]

many few Number of defects

LUH

Illuminated I-V curve is shifted to 4th quadrant

LUH

Think of G – R

G

LUH

J(V) = G – R(V)

R(V)

G

J(V) = G – R(V)

LUH

Losses in the various cell regions

R(V)

Recombination current [mA/cm2] Voltage [V]

Total Emitter Base Al-BSF

LUH

Predictions

Loss analysis Predictions Measurement Extraction

• f Rs

Parametrization

• f Rs(V)

Rs(V)-free I-V curves

LUH

After improvement of the emitter in a PERC cell

Recombination current [mA/cm2] Bias [V]

Total Emitter Base Al-BSF Voc = 614 mV Voc = 633 mV FF = 75.4 FF = 76.3

Bias [V] Standard cell Improved emitter

LUH

Losses in the p-type Cz base

LUH

Ladungsträgerkonzentration n [cm-3]

1012 1013 1014 1015 1016 1017

Lebensdauer eff[µs]

10-5 10-4

B-dotiertes Cz-Si Ndop=5.110

15cm

• 3

nach Beleuctung (1Sonne 60 Stunden) nach Tempern (200°C 10 min)

Injection dependent lifetime in the p-type base

p/n=10

n



p n

  

              

1 1 SRH

( ) ( ) ( )

p n

n n n p p n n n p n

Injection density n [cm-3] B-O complex

Ndop=5.1x1015 cm-3

Effective lifetime

• J. Schmidt, A. Cuevas, J. Appl. Phys. 86 (1999) 3175
• S. Rein, S.W. Glunz, Appl. Phys. Lett. 82 (2003) 1054
• K. Bothe R. Sinton, J. Schmidt, Prog. PV 13 (2005) 287

LUH

Deactivated B-doped Cz wafers

49

• D. Waler et al, Appl. Phys. Lett. 104, 042111 (2014)

LUH

Improved emitter → smaller FF because of base!

Recombination current [mA/cm2] Bias [V]

Total Emitter Base Al-BSF Voc = 614 mV Voc = 633 mV FF = 75.4 FF = 76.3

Bias [V] Standard cell Improved emitter

LUH

FF, pFF und 1FF

Two cells with low FF 1) Mainly due to Rs  pFF is close to 1FF 2) Mainly due to n  pFF is far from1FF  Determine FF and pFF, if possible using Rs(V), and 1FF

LUH

More recent progress of PERC cells (1)

52

Inital Improved emitter

79.69 80.38

LUH

More recent progress of PERC cells (2)

53

Improved base and rear Improved emitter

80.80 80.38

LUH

More recent progress of PERC cells (3)

54

Improved base Improved base and rear

81.46 80.80

LUH

Emitter losses increase…

55

Inital Improved emitter… …base …base and rear

LUH

…because Vmpp increases

56

Inital Improved emitter… …base …base and rear

LUH

Main points

• Extraction of Rs(V) from three I-V curves (TLL method)
• Clear distinction between Rs(V) and recombination losses
• Rs(V)-corrected I-V curve

→ pFF < 1FF ?

• Further analysis and prediction with simulations

FF is not only determined by Rs, but also by the ideality factor, i.e.by recombination, especially in good cells (where the base or the rear surface dominates)

LUH

Thank you!

altermatt@solar.uni-hannover.de
