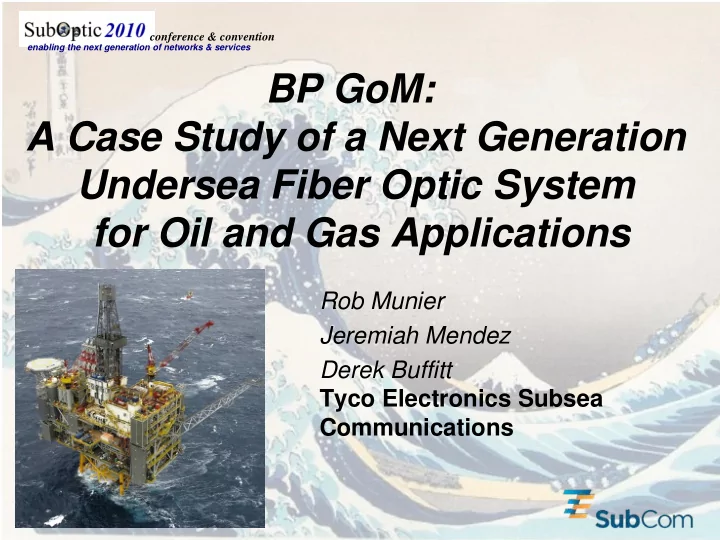

BP GoM: A Case Study of a Next Generation Undersea Fiber Optic System for Oil and Gas Applications

Rob Munier Jeremiah Mendez Derek Buffitt Tyco Electronics Subsea Communications

conference & convention

Presenter Profile

Marsha has over 25 years of experience in the submarine telecommunications industry, beginning at Bell Laboratories, holding positions in R&D, engineering, sales, and project management. Marsha is currently an R&D Director responsible for fiber and cable design, as well as planning and engineering for special projects, including oil and gas

• pportunities. Marsha received her BS

Mechanical Engineering from California State University Fresno and her MS Mechanical Engineering from Stanford University. Marsha Spalding Director, Cable & Offshore Planning & Engineering Email: marshaspalding@subcom.com Tel: +1-732-578-7154

conference & convention

Outline

• Background
• Design
• Implementation
• Key Project Enablers
• Results & Conclusions

conference & convention

Background

• Offshore Oil & Gas Fields are Expensive to

Develop

A typical field in the US GOM costs between US$2-4 Billion

• High Tech Systems Require More Reliable

Bandwidth

• Safety, hurricane resilience, managing day-to-day
• perations, active monitoring systems, quality of life
• Facilities are Becoming More Automated
• Remote operations and minimal crew sizes are possible

Major production platforms require secure, stable and expandable communications that are only available through fiber:

conference & convention

Traditional Connectivity Approaches

Satellite and Microwave Can Isolate Expensive Deep Water Platforms Following Storm Events

• Antenna Failures
• Cascaded Connectivity Relies on Shallow Water Facilities

Facility Isolated Deep Water Shore Station

X

Deep Water Shore Station Shallow Water Facility Isolated

X X X

conference & convention

Deep Water Shore Station

The Goal of the BP GoM Fiber Solution

Direct “Virtual” Com m unication Path to Each Platform

Shallow Water Facility Remains Connected

“Disaster Proof” Netw ork

X X X

conference & convention

BP GoM Fiber Solution: Overarching Objectives

• Secure, Highly Reliable Communications
• Communications Unaffected by Significant Weather

Events – Dedicated Communications Path from Rig to Shore with No Shallow Water Platform Dependencies – Rapid Re-Manning after Storm Activity

• Sufficient Bandwidth for Current & Future

Needs

• Audio Telecon Service
• Video Conferencing
• Remote Troubleshooting
• Data Transmission from Down-Hole Monitoring or

Seismic Sensors

• Flexible
• Easily Expandable
• Upgradeable
• Implementable &Cost Effective
• Modest Construction & Technology Risk

conference & convention Freeport Pascagoula Marlin Horn Mt. Nakika Thunder Horse Atlantis Mad Dog Holstein

• 19 OADM BUs: 7 Initial Platform Connections; 12 Future Expansion Stubs
• Both East & West Communications for Redundancy from Each Platform
• Second Fiber Pair for Expansion

The BP GoM Network

conference & convention

BP GoM: Design Requirements

– Bandwidth

• Provide initial 1 x GigE to

7 primary platforms

• Upgradeable to 64 X

10Gb/s ultimate capacity

– Configuration

• Self healing “wet’ ring

between landings

• 2 fiber pairs
• 19 primary branches

– Technology

• Powered trunk,

repeaterless branches

• Wet-mate subsea

connections

• Dynamic Riser Cables
• Compact Terminal Eqt

– Expansion

• Branches up to 100 km
• Trunk extendable an

additional 300 km

• Sea floor terminations to

subtend secondary platforms or sensors

– High Reliability

Dynamic Riser Riser Cable Termination FDC OADM BU

Sensor

conference & convention

• SL17 Submarine Cable
• Millennia Joints
• Optically Amplified Repeaters
• Standard BU Bodies

BP GoM Backbone Implemented with Standard Telecom Hardware

conference & convention

Platform Connection Hardware

Adapt Proven & Qualified Technologies and Products for O&G Functionality Fiber Distribution Canister & Deployment Pallet Based on Industry Standard Wet-Mates within SubCom Repeater Body & Couplings Riser Cable Termination & Fusible Link Based on Millennia Joints OADM BUs Incorporation of OADM Functionality in Standard BUs

conference & convention

BP GoM Platform Connection Types

Dynamic Riser Cable with Fiber Distribution Canister for 4 Platforms Subsea Wet-Mate in Deployment Pallet for 3 Platforms Two Methods of Platform Connection

conference & convention

• 3. The main lay vessel overboards the Dynamic Riser Cable (DRC) and

associated equipment

Dynamic Riser Connection Installation

• 1. A pull-in system (winch skid) is installed on the platform
• 2. Support ROV attaches a messenger to the pulling wire
• 4. The DRC is secured topside; the bend limiter connector is secured by

the ROV

• 5. The Main Lay Vessel lays the DRC creating the catenary, followed by

the FDC & branch leg, while the support ROV performs touchdown monitoring

• 6. The Main Lay Vessel lays the final bight, completing the connection

conference & convention

Subsea Wet-Mate Connection Installation

• 1. The support vessel ROV performs an inspection of the

UTA and seabed

• 2. The Main Lay Vessel deploys the Deployment Pallet to

the seabed

• 3. The flying lead is deployed to the seabed, support vessel

ROV performs wet-mate connection

• 4. The Main Lay Vessel completes the branch leg, installs

and lays the final bight, completing the connection

conference & convention

• 62 Pipeline Crossings
• 19 Branching Units
• 21 Repeaters
• ~300 km of Burial
• ~900 km of Surface Lay
• 2 Pre-Laid Shore Ends
• 2 Un-manned Cable Stations

BP GoM Installation Accomplishments

conference & convention

Key Project Enablers

conference & convention

Project Success Attributed To:

• Robust Network & Hardware Designs
• Adaptation of Existing Technologies
• Long-term Planning & Detailed Installation Modeling
• Successful Peer Design Reviews
• Coordination of all Parties
• Established Installation Techniques Customized for

O&G Hardware

Key Project Enablers

conference & convention

Engineering, Modeling & Review

conference & convention

Engineering, Modeling & Review

• Extensive Routing & Engineering
• Modeling & Analysis
• Design & Peer Reviews
• Complexity of Seabed Infrastructure
• Flowlines & umbilicals in the vicinity of facility
• Drill center infrastructure
• Lease Block & Pipeline Crossing Requirements
• Future exploration
• Pipeline Mattressing
• Dynamic Riser Cable Catenary
• Motion characteristics
• Clashing with existing infrastructure
• Catenary shape
• Subsea Equipment (FDC/DP/Fusible Link)
• Deployment
• Cathodic protection
• Riser Equipment
• Riser Termination/Buoyancy/Centralizers/Uraduct
• Inclusion of all Design Parameters
• Robust Network Design
• Adherence to Safety Protocols
• Proper Integration into Facility Systems
• Incident-Free Installation

conference & convention

Installation & Coordination

conference & convention

Installation & Coordination

• Adaptation of Existing Equipment
• Standard Cable Lay Procedures & Equipment
• Cable Modeling & Sea Trials
• Topside Coordination
• Simultaneous Operations
• Normal Loading & Transportation Techniques
• No Alteration of Cable Load/Lay Equipment Required
• Traditional Testing & Power Safety Procedures
• Foundation of Standard Submarine Cable Product Handling
• Generate DRC lay procedures
• Dry run DRC equipment overboarding
• Verify subsea equipment deployment procedures
• Practice ROV wetmates, model ROV interventions

Coordination of topside activities required schedule integration early in the process to allow:

• Topside telecom equipment installations
• Installation of riser pull-in equipment
• Network testing

To avoid schedule and POB conflicts with O&G activities which have priority Safety - Safety knowledge & procedures are already ingrained in the existing systems Operational Integrity - Did not require shipboard personnel to learn new lay or testing techniques Schedule - Did not require the generation and review of new procedures by all parties De-conflict installation through constant monitoring of in-field activities such as:

• Drilling Operations in Vicinity of Subsea Connections
• Support Activities at Floating Facilities during Riser

Installations

• Pipe Lays over Cable Route
• Seismic Surveys through Lease Blocks

conference & convention Freeport Pascagoula Marlin Horn Mt. Nakika Thunder Horse Atlantis Mad Dog Holstein

Network Effectiveness: 2008 Hurricanes

GUSTAV IKE

2008 Hurricanes Gustav & Ike proved the value and strength of the network

conference & convention

Gulf of Mexico 2008 Hurricane Season

Network Effectiveness

• Ability to monitor platform motions

and stability through storm events

• Preliminary assessment of systems

prior to sending crews offshore

• Undamaged, full-time

communications in place to allow earlier return of facility personnel

• With earlier deployment of personnel,
• il production re-started with

substantially less downtime

conference & convention Freeport Facility 1 Facility 2 Pascagoula Marlin Horn Mt. Nakika Thunder Horse Atlantis Mad Dog Holstein

• Network Expansion: 2 Additional Subsea Connections

2009 Network Expansion

conference & convention

BP GoM Summary of Success

• Robust, Highly Reliable Communication Connectivity

Demonstrated during 2008 Hurricane Season

• Expandability Proven through Additional Platform

Connections in 2009, including Third Party Customers

• Improved Communications Reliability has become an

Attractive Benefit for Improved Productivity

• Introduction of OADM BU Technology has been a Benefit

for the Traditional Telecom Market

• Technology has Potential Application to Scientific

Systems
