Beyond Standard Model and Neutrino Physics Eduardo Peinado Instituto de Fsica de la UNAM Reunion Anual de la Divisin de Partculas y Campos DPyC SMF 20-22 de Mayo de 2015 BSM Limits on some scenarios by LCH The SM is complete LHC The

slide-1
SLIDE 1

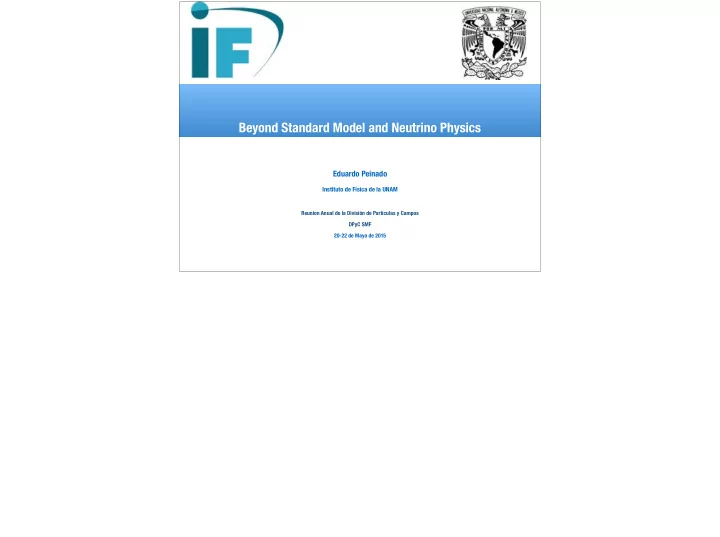

Beyond Standard Model and Neutrino Physics

Eduardo Peinado

Instituto de Física de la UNAM

Reunion Anual de la División de Partículas y Campos DPyC SMF 20-22 de Mayo de 2015

slide-2
SLIDE 2

Limits on some scenarios by LCH

BSM

slide-3
SLIDE 3

The SM is complete LHC

slide-4
SLIDE 4

The SM is complete LHC

Terra cognita and terra incognita

slide-5
SLIDE 5

The SM is complete LHC

Terra cognita and terra incognita

Standard Model & Physics BSM

slide-6
SLIDE 6

Infinite possibilities

  • H. Murayama
  • Many of these extensions

were proposed to address some unsolved questions

  • f the SM: hierarchy

problem, generation and flavour problem

  • Others simply to explain

some deviations of the SM, top forward backward asymmetry, μ→eγ, h→γγ, non universal lepton decays, DM, etc…

slide-7
SLIDE 7

BSM searches

Nothing yet!!! Only limits!!!

slide-8
SLIDE 8

Outline

Introduction

The SM

Neutrino physics

SeeSaw Mechanism

Extensions of the SM Conclusions

slide-9
SLIDE 9

The SM

slide-10
SLIDE 10

The SM

➢

The theory describes the fundamental interactions among particles

➢

Based on principle of gauge symmetry

➢

The Higgs Mechanism

1979 1995 1974

1968

1923 1977 1947 1968 1956 1962 2000 1983 1983 1976 1937 1897 HIGGS

The Higgs mechanism for particle masses

slide-11
SLIDE 11

the theory is complete… but what about neutrino physics? cosmology?

slide-12
SLIDE 12

Evidence of Physics BSM

LHC put constraints only in PBSM Neutrino masses * (In the SM L is not violated) Cosmology: Dark Matter, Baryon Asymmetry, Dark Energy … Some theoretical aspects like hierarchy problem something else? LHC? rare decays …

slide-13
SLIDE 13

Neutrinos

slide-14
SLIDE 14

Neutrinos

slide-15
SLIDE 15

Neutrinos

slide-16
SLIDE 16

Neutrino short story

In 1930, Wolfgang Pauli postulated a new particle to explain the apparent non-conservation of energy in radioactive decays. But the theoretical particle he described had properties that made it so elusive that even Pauli wondered whether anyone would ever see it

A revolutions starts that is not finished yet

By 1934, Enrico Fermi had developed a theory of beta decay to include the neutrino, presumed to be massless as well as chargeless.

slide-17
SLIDE 17

Deficit of the solar neutrino flux

Solar neutrino problem

The pioneer experiment of Ray Davis were puzzled by the discrepancy between solar neutrino measurements and the expectations based upon the Standard Solar Model flux calculations

Eric’s talk

slide-18
SLIDE 18

Deficit of the solar neutrino flux

Solar neutrino problem

The pioneer experiment of Ray Davis were puzzled by the discrepancy between solar neutrino measurements and the expectations based upon the Standard Solar Model flux calculations

Eric’s talk

slide-19
SLIDE 19

Deficit of the solar neutrino flux

Solar neutrino problem

The pioneer experiment of Ray Davis were puzzled by the discrepancy between solar neutrino measurements and the expectations based upon the Standard Solar Model flux calculations The flux measured by SNO was consistent with the model

Eric’s talk

slide-20
SLIDE 20

Deficit of the solar neutrino flux

Solar neutrino problem

The pioneer experiment of Ray Davis were puzzled by the discrepancy between solar neutrino measurements and the expectations based upon the Standard Solar Model flux calculations The flux measured by SNO was consistent with the model

Eric’s talk

slide-21
SLIDE 21

Deficit of the solar neutrino flux

Solar neutrino problem

The pioneer experiment of Ray Davis were puzzled by the discrepancy between solar neutrino measurements and the expectations based upon the Standard Solar Model flux calculations The flux measured by SNO was consistent with the model neutrinos change flavour from the sun to the earth

Eric’s talk

slide-22
SLIDE 22

Neutrino Oscillation

Neutrino physics

Bruno Pontecorvo 1957

slide-23
SLIDE 23

Neutrinos

50,000 tons of ultra- pure water.

slide-24
SLIDE 24

how can we give mass to the neutrinos?

Neutrino masses

slide-25
SLIDE 25

how can we give mass to the neutrinos?

Neutrino masses

Neutrinos are neutral particles

slide-26
SLIDE 26

how can we give mass to the neutrinos?

Neutrino masses

Neutrinos are neutral particles If we add a Right-Handed neutrino (singlet of SM) then we have the Yukawa coupling with the Higgs (like quarks and leptons)

slide-27
SLIDE 27

how can we give mass to the neutrinos?

Neutrino masses

Neutrinos are neutral particles

↵i ¯ L↵✏H?Ni

If we add a Right-Handed neutrino (singlet of SM) then we have the Yukawa coupling with the Higgs (like quarks and leptons)

slide-28
SLIDE 28

how can we give mass to the neutrinos?

Neutrino masses

Neutrinos are neutral particles

↵i ¯ L↵✏H?Ni

But there is no symmetry that forbids also this term If we add a Right-Handed neutrino (singlet of SM) then we have the Yukawa coupling with the Higgs (like quarks and leptons)

slide-29
SLIDE 29

how can we give mass to the neutrinos?

Neutrino masses

Neutrinos are neutral particles

Mi ¯ NiNi ↵i ¯ L↵✏H?Ni

But there is no symmetry that forbids also this term If we add a Right-Handed neutrino (singlet of SM) then we have the Yukawa coupling with the Higgs (like quarks and leptons)

slide-30
SLIDE 30

how can we give mass to the neutrinos?

Neutrino masses

Neutrinos are neutral particles

Mi ¯ NiNi ↵i ¯ L↵✏H?Ni

But there is no symmetry that forbids also this term If we add a Right-Handed neutrino (singlet of SM) then we have the Yukawa coupling with the Higgs (like quarks and leptons)

Violates lepton number

slide-31
SLIDE 31

how can we give mass to the neutrinos?

Neutrino masses

Neutrinos are neutral particles

Mi ¯ NiNi ↵i ¯ L↵✏H?Ni

But there is no symmetry that forbids also this term If we add a Right-Handed neutrino (singlet of SM) then we have the Yukawa coupling with the Higgs (like quarks and leptons)

Violates lepton number

Vs.

slide-32
SLIDE 32

Can be either

If Dirac

slide-33
SLIDE 33

Can be either

If Dirac

If we impose Lepton number then the neutrinos are Dirac particles just like quarks and charged leptons many orders of magnitude

mν << me << mt

The Yukawa couplings are very different

Yνe : Ye : Yt

< 10−11 : 10−6 : 1

slide-34
SLIDE 34

If we allow L to be violated?

Majorana Neutrinos

slide-35
SLIDE 35

If we allow L to be violated?

Majorana Neutrinos

The simplest effective source of Majorana neutrino masses dim 5 Weinberg

  • perator
slide-36
SLIDE 36

If we allow L to be violated?

Majorana Neutrinos

The simplest effective source of Majorana neutrino masses dim 5 Weinberg

  • perator

Weinberg, S. (1980)

L = LSM + 1 ΛL5 L5 = LLΦΦ ∆L = 2

slide-37
SLIDE 37

If we allow L to be violated?

Majorana Neutrinos

The simplest effective source of Majorana neutrino masses dim 5 Weinberg

  • perator

Weinberg, S. (1980)

L = LSM + 1 ΛL5 L5 = LLΦΦ ∆L = 2

Implications?

0νββ

slide-38
SLIDE 38

Black Box Theorem

If the neutrinoless double beta decay is observed that will imply a Majorana nature of the neutrinos

. Schechter, J. and Valle, J.W.F. (1982)


Vs.

slide-39
SLIDE 39

Black Box Theorem

If the neutrinoless double beta decay is observed that will imply a Majorana nature of the neutrinos

. Schechter, J. and Valle, J.W.F. (1982)


slide-40
SLIDE 40

seesaw

Opening the box (UV completion)

We have several possibilities SU(2) doublets L

2 ⊗ 2 = 1 + 3

type I seesaw

2 ⊗ 2 ⊗ 1 LHN

type II seesaw

2 ⊗ 3 ⊗ 2 L∆L

type III seesaw

2 ⊗ 3 ⊗ 2 LHΣ

slide-41
SLIDE 41

seesaw

Opening the box (UV completion)

We have several possibilities SU(2) doublets L

2 ⊗ 2 = 1 + 3

type I seesaw

2 ⊗ 2 ⊗ 1 LHN

type II seesaw

2 ⊗ 3 ⊗ 2 L∆L

type III seesaw

2 ⊗ 3 ⊗ 2 LHΣ

slide-42
SLIDE 42

seesaw

Opening the box (UV completion)

We have several possibilities SU(2) doublets L

2 ⊗ 2 = 1 + 3

type I seesaw

2 ⊗ 2 ⊗ 1 LHN

type II seesaw

2 ⊗ 3 ⊗ 2 L∆L

type III seesaw

2 ⊗ 3 ⊗ 2 LHΣ

slide-43
SLIDE 43

Linear see-saw

More on see-saw

New features emerge when the seesaw is realized with non-minimal lepton content (Isosinglets) SU(2) singlets: (νi

c,Si)


transforming as


field L νi +1 N −1 Si +1

slide-44
SLIDE 44

Linear see-saw

More on see-saw

New features emerge when the seesaw is realized with non-minimal lepton content (Isosinglets) SU(2) singlets: (νi

c,Si)


transforming as


field L νi +1 N −1 Si +1

slide-45
SLIDE 45

Linear see-saw

More on see-saw

New features emerge when the seesaw is realized with non-minimal lepton content (Isosinglets) SU(2) singlets: (νi

c,Si)


transforming as


field L νi +1 N −1 Si +1

violates L in 2 units smallness of neutrino mass is related to the smallness of the parameter mu “natural” in the sense of ’t Hooft

t’Hooft, G. (1982)

slide-46
SLIDE 46

Linear see-saw

More on see-saw

New features emerge when the seesaw is realized with non-minimal lepton content (Isosinglets) SU(2) singlets: (νi

c,Si)


transforming as


field L νi +1 N −1 Si +1

violates L in 2 units smallness of neutrino mass is related to the smallness of the parameter mu “natural” in the sense of ’t Hooft

t’Hooft, G. (1982)

slide-47
SLIDE 47

Neutrino oscillations 2 flavors

What do we know?

3 mixing angles and 2 squared mass differences weak eigenstates mass eigenstates weak eigenstates mass eigenstates

slide-48
SLIDE 48

What do we know?

Nature of neutrinos Absolute mass scale Mass ordering CP phases Precision in mixing angles

Neutrino mass scale:

Mainz current limit Σ mν < 2 eV Katrin future sensitivity ~ 0.2 eV PLANK+BAO Σ mν <0.23 eV

slide-49
SLIDE 49

What do we know?

Nature of neutrinos Absolute mass scale Mass ordering CP phases Precision in mixing angles

Neutrino mass scale:

Mainz current limit Σ mν < 2 eV Katrin future sensitivity ~ 0.2 eV PLANK+BAO Σ mν <0.23 eV

slide-50
SLIDE 50

Tri-BiMaximal Mixing

Oscillation parameters

Forero, Tortola and Valle, arXiv:1205.4018v2 [hep-ph]

CP mesurable?? Daya Bay: ~ 0.0235

Harriso, Perkin, Scott

bi-maximal tri-maximal

slide-51
SLIDE 51

Tri-BiMaximal Mixing

Oscillation parameters

slide-52
SLIDE 52

Tri-BiMaximal Mixing

Oscillation parameters

Schwetz et al Gonzalez et al Fogli et al Forero et al 2012 Gonzalez-Garcia et al 2012 Fogli et al 2012

slide-53
SLIDE 53

Tri-BiMaximal Mixing

Oscillation parameters

slide-54
SLIDE 54

Tri-BiMaximal Mixing

Oscillation parameters

Forero et al 2012 Gonzalez-Garcia et al 2012 Fogli et al 2012 Forero et al 2012 Gonzalez et al 2010 Fogli et al 2012 Forero et al 2012 Gonzalez-Garcia et al 2012 Fogli et al 2012

slide-55
SLIDE 55

Tri-BiMaximal Mixing

Oscillation parameters

Forero et al 2012 Gonzalez-Garcia et al 2012 Fogli et al 2012 Forero et al 2012 Gonzalez et al 2010 Fogli et al 2012 Forero et al 2012 Gonzalez-Garcia et al 2012 Fogli et al 2012

Tri-Bimaximal and all the models

Predicting zero reactor neutrino RULED OUT!!! THANKS DAYA BAY, T2K ...

slide-56
SLIDE 56

If Majorana

Neutrinoless double beta decay

In the case of 3 active Majorana neutrinos See Eric’s talk IH NH Can also be zero

slide-57
SLIDE 57

If Majorana

Neutrinoless double beta decay

slide-58
SLIDE 58

If Majorana

Neutrinoless double beta decay

1 Dirac + 2 Majorana

Meroni and Peinado (2015)

slide-59
SLIDE 59

Neutrinoless double beta decay

Meroni and Peinado (2015)

2 Dirac + 1 Majorana

slide-60
SLIDE 60

Messing with sterile

More exotic

Meroni and Peinado (2015)

+PseudoDirac See Catalina’s talk

slide-61
SLIDE 61

If type I see-saw

Light Neutrino Masses through see saw

Minkowski,Yanagida, Mohapatra, Senjanovic Sechter, Valle …

slide-62
SLIDE 62

Baryon asymmetry and neutrino mass

The universe consists only on matter

slide-63
SLIDE 63

Baryon asymmetry and neutrino mass

The universe consists only on matter

slide-64
SLIDE 64

Baryon asymmetry and neutrino mass

The universe consists only on matter

B-L

sphalerons violates B and L preserves B-L 't Hooft

slide-65
SLIDE 65

Leptogenesis

If complex Yukawa couplings CP violation

Fong, Gonzalez-Garcia, Nardi, Peinado (2013) Aristizabal-Sierra,Fong, Nardi, Peinado (2014)

slide-66
SLIDE 66

Leptogenesis

If complex Yukawa couplings CP violation

Fong, Gonzalez-Garcia, Nardi, Peinado (2013) Aristizabal-Sierra,Fong, Nardi, Peinado (2014)

slide-67
SLIDE 67

Dark Matter

Zwicky 1933 See one of Eric’s Talks

slide-68
SLIDE 68

Not only in the clusters of galaxies

DM evidence

1969 Vera Rubin Velocidad de las estrellas en la galaxia andromeda Vera Rubin 70's

slide-69
SLIDE 69

Gravitational lensing

DM evidence

slide-70
SLIDE 70

Rotational curves Clusters of galaxies CMB anisotropies BBN ...

See one of Eric’s Talks

slide-71
SLIDE 71

Inventary of matter in the universe

Gas

DM

baryonic matter Non baryonic matter no Stars Stellar gas Gas

slide-72
SLIDE 72

What do we “know” about DM?

Many indirect evidences of DM Constrain the properties of DM Only gravitational up to now

slide-73
SLIDE 73

What do we “know” about DM?

Long lived (Stable) DM cosmological abundance extracted from observations DM is cold ( or warm ) Electrically neutral DM-DM and DM-SM interactions constrained by

  • bservations
slide-74
SLIDE 74

DM puzzle

slide-75
SLIDE 75

DM puzzle

Higgs Portal Direct detection

slide-76
SLIDE 76

Inert scalar DM

One simple Idea for DM

slide-77
SLIDE 77

Inert scalar DM

One simple Idea for DM

H H DM H DM H H DM H DM DM DM DM DM H DM DM

Higgs portal

EWSB

SM + scalar Z2 + -

Deshpande and Ma (1978)

slide-78
SLIDE 78

Neutrino masses in the Inert DM?

L H N η

Z2 + - Z2

slide-79
SLIDE 79

Neutrino masses in the Inert DM?

L H N η

Z2 + - Z2

N

  • T

y p e I S e e s a w

slide-80
SLIDE 80

Neutrino masses in the inert DM

“scotogenic”

  • E. Ma (2006)
  • A. Zee (1980)

Radiative see-saw

slide-81
SLIDE 81
slide-82
SLIDE 82

Direct Detection

slide-83
SLIDE 83

Direct Detection

slide-84
SLIDE 84

Flavor Symmetries (Horizontal)

slide-85
SLIDE 85

An example: A4

Ma and Rajasekaran 2001 Babu, Ma, Valle 2003 Altarelli, Feruglio 2005 ...

slide-86
SLIDE 86

A4 and TBM

A4 completely broken

Altarelli Feruglio (2005)

slide-87
SLIDE 87

We have symmetries (stability)?

Z3 in the charged sector Z2 in the neutrino sector

TBM

Hirsch, Morisi, Peinado and Valle

  • Phys. Rev. D 82, 116003 (2010)
slide-88
SLIDE 88

We have symmetries (stability)?

Z3 in the charged sector Z2 in the neutrino sector

TBM

x

stabilize the DM

x

Hirsch, Morisi, Peinado and Valle

  • Phys. Rev. D 82, 116003 (2010)
slide-89
SLIDE 89

We have symmetries (stability)?

Z2 in the charged sector Z2 in the neutrino sector

stabilize the DM

1, 1', 1'' 3

Hirch, Morisi, Peinado and Valle

  • Phys. Rev. D 82, 116003 (2010)
slide-90
SLIDE 90

The simplest model

SM + 3 Higgs SU(2) doublets , 4 right handed neutrinos Charged leptons diagonal

Hirsch, Morisi, Peinado and Valle

  • Phys. Rev. D 82, 116003 (2010)
slide-91
SLIDE 91

The simplest model

SM + 3 Higgs SU(2) doublets , 4 right handed neutrinos

Hirsch, Morisi, Peinado and Valle

  • Phys. Rev. D 82, 116003 (2010)

SM + 3 Higgs SU(2) doublets , 4 right handed neutrinos

Hirsch, Morisi, Peinado and Valle

  • Phys. Rev. D 82, 116003 (2010)
slide-92
SLIDE 92

Neutrino masses in the model

slide-93
SLIDE 93

reactor mixing angle?

slide-94
SLIDE 94
slide-95
SLIDE 95
slide-96
SLIDE 96
slide-97
SLIDE 97

Susy and Proton decay

slide-98
SLIDE 98

Susy and proton decay

Hinchliffe, Kaeding (1993)

  • F. Vissani, (1995).

…

Proton decay

slide-99
SLIDE 99

R-Parity

slide-100
SLIDE 100

Breaking R-parity and neutrino masses

Hall and Suzuki (1984) Mukhopadhyaya, Roy,Vissani (1998)

R-parity breaking gives a contribution to Majorana neutrino mass

Hirsch, Diaz, Porod, Romao, Valle (2000)

Bi-linear R-parity breaking can generate one neutrino mass,

  • ther two by radiative corrections

This case is similar to 1 RH neutrino, rank 1 matrix

slide-101
SLIDE 101

Conclusions

We have evidence of “physics beyond the SM” It is interesting to find scenarios where some of them have a common explanation neutrino physics is a nice “portal to PBSM” DM stability and neutrino physics can be related Neutrino and BAU also related why not neutrinos - DM - BAU

slide-102
SLIDE 102

Conclusions I

slide-103
SLIDE 103

Thank you very much for your attention

slide-104
SLIDE 104

Just in case!!!

slide-105
SLIDE 105

The alignment

slide-106
SLIDE 106

Z2 residual symmetry

Z2 even Z2 odd

Dark Matter Stability

slide-107
SLIDE 107

Relevant Diagrams

Boucenna, Hirsch, Morisi, Peinado, Taoso and Valle JHEP 1105 (2011) 037

slide-108
SLIDE 108

Direct detection

LUX

LUX collaboration arXiv:1310.8214

slide-109
SLIDE 109
slide-110
SLIDE 110

Baryon asymmetry

The universe consists only on matter

slide-111
SLIDE 111

Sakharov conditions

slide-112
SLIDE 112

Sakharov conditions

slide-113
SLIDE 113

Sakharov conditions Sakharov conditions

slide-114
SLIDE 114

Sakharov conditions

C:

slide-115
SLIDE 115

Sakharov conditions

slide-116
SLIDE 116

BG in the SM

slide-117
SLIDE 117

Leptogenesis

The simplest way to neutrino masses: Type I see-saw

Minkowski(1977),Yanagida(1979), Gell-Mann et al. (1979), Glashow (1980), Mohapatra and Senjanovic (1981, Schechter and Valle (1980)

We get for free: baryogenesis through leptogenesis [Fukugita and Yanagida (1986)] Conventional Type-I leptogenesis requires

[Davidson and Ibarra (2002)]

Resonant leptogenesis

[Pilaftsis (1997)]

slide-118
SLIDE 118

Leptogenesis

B-L conserved Klinkhamer and Manton

V(υT) υT T <T

EW

T > T

EW

φ

V(φ, T)

Quantum tunneling and Thermal fluctuation EW Vacuum (φmin=v)

T=Tcrit≈TEW

First order phase transition

slide-119
SLIDE 119

Possible models

Type I see-saw

slide-120
SLIDE 120

Possible models

Type I see-saw New scalar that couple to RH neutrino and SM fermions

slide-121
SLIDE 121

Possible models

Type I see-saw New scalar that couple to RH neutrino and SM fermions

slide-122
SLIDE 122

Possible models

Type I see-saw New scalar that couple to RH neutrino and SM fermions

slide-123
SLIDE 123

Possible models

Type I see-saw New scalar that couple to RH neutrino and SM fermions To match the gauge qn of

slide-124
SLIDE 124

Possible models

Type I see-saw New scalar that couple to RH neutrino and SM fermions ARE NOT SUPERPARTNERS !!!!!!!

slide-125
SLIDE 125

How does it works?
