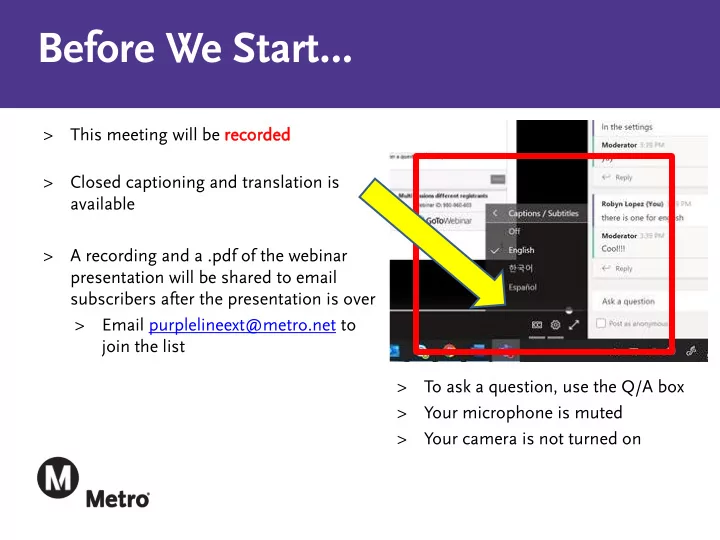

Before We Start > This meeting will be record rded > Closed captioning and translation is available > A recording and a .pdf of the webinar presentation will be shared to email subscribers after the presentation is over >
1
> This meeting will be record rded > Closed captioning and translation is available > A recording and a .pdf of the webinar presentation will be shared to email subscribers after the presentation is over > Email purplelineext@metro.net to join the list > To ask a question, use the Q/A box > Your microphone is muted > Your camera is not turned on
3
> As part of the Federal government’s Coronavirus Guidance for America, transportation infrastructure is considered an “Essential Critical Infrastructure.” > Additionally, transit capital projects are not subject to the State of California’s Stay at Home order, therefore Metro construction projects continue to progress. Updated personal protective equipment (PPE)
4
> Construction activities continue to progress on all active Metro projects, including the Crenshaw/LAX, Purple Line Extension and Regional Connector Transit Projects. > Due to reduced traffic conditions during the Stay at Home orders, local jurisdictions are allowing the Agency to work through “peak hours” on a case by case basis. > Metro’s contractors are following safety precautions during the pandemic, including implementing social distancing when applicable and the use of masks and other PPE.
> Wilshire ire/Rod /Rodeo eo Station
> Piling > Decking > Geotechnical
Instrumentation
5
> Century
ry City/ y/Cons
llati tion
> Constellation Bl Full Closure
Extension
> Tunneling > Water Line Relocation > Piling > Decking > Busine
ness Interrupt ruption
d (BIF) IF)
> #EatShopP
pPlay ay #BeverlyH lyHil ills ls #Century ry City
6
7
Forecasted Schedule Section
Section 1 Section 2 Section 3
Length
3.92 Miles 2.59 Miles 2.56 Miles
New Stations
Wilshire/La Brea Wilshire/Fairfax Wilshire/La Cienega Wilshire/Rodeo Century City/ Constellation Westwood/UCLA Westwood/VA Hospital
Pre-Construction Activities
2014 – 2015 2016 – 2018 2018 – 2019
Construction
2015 – 2023 2018 – 2025 2019 – 2026
Operations
2023 2025 2027
*Subject to change. The PLE project team is working to deliver the project consistent with Measure M
8
10
Rendering shows length of the underground station box
*As of May 2020, subject to change. Pending Council approval. 11
12
> Closure will be in place 24 hours a day, 7 days a week. Vehicles will not be permitted onto Wilshire Bl between Crescent Dr and El Camino Dr > Detours will be in place to route traffic around the street closure, north to Santa Monica Bl, and south to Olympic Bl > Local access will be maintained east and west of the closures, updates will be provided regularly > Pedestrian access will be maintained on north side sidewalk of Wilshire Bl
13
Photo taken on April 17 prior to decking
14
Photo taken on April 17 prior to decking
15
16
South side piling work on Wilshire Bl with three drill rigs
> Reeves Dr will be closed at Wilshire Bl to the alley to facilitate decking of Wilshire Bl and the station entrance > Through access will be provided to Rolex building employees > Sidewalk adjacent to Reeves Staging Yard and from Reeves Dr to Beverly Dr will be closed > Pedestrian detour to be provided for sidewalk closure around Reeves yard. Reeves Dr crosswalk will be closed > Crosswalk across Reeves Dr will be closed
17 *Map not to scale
Traffic plan for south Wilshire Bl piling and station entrance piling at Reeves Dr
> S Cañon Dr will be closed at Wilshire Bl to the alley to facilitate decking of Wilshire Bl > Through access will be provided to Rolex building visitors and East West Bank (9378 Wilshire Bl) > S Cañon Drive crosswalk to be shifted south of pile alignment with temporary ramps
18 *Map not to scale
Traffic plan for south Wilshire Bl piling at S Cañon Dr
19
20
Decking installation progress within Wilshire Bl full closure
> The contractor will continue installation of cap beams and cap wales in advance of decking at each segment > Contractor will continue installation of a dewatering well system to temporarily lower groundwater levels to allow excavation to occur in dry and stable conditions below natural groundwater level
Installation of cap beams and plates
22
Construction of a temporary concrete deck, curb-to-curb on Wilshire Bl to allow traffic overhead while excavation continues underground Dura ration ion: : Through mid-June if completed within full closure If full closure is lifted, work could continue into September 2020 Work Hours: rs: If decking occurs during the temporary full closure, daily work hours will be from 8am to 11pm Hauling hours start at 7am If decking occurs after the full closure is lifted, work hours will be 8pm, Friday through 7am, Monday Addit ition ional l activiti ties es durin ing deckin ing closures: ures: Ground improvements, piling, temporary civil improvements, dewatering system installation and geotechnical instrumentation
*Dates subject to change
23
Photo taken on May 13
> During ing full l closur ure: 7am – 11pm > After r full l closure sure lifts: 24/7* > Hours: M-F 7am-4pm > Weekends 8am-6pm > Spoils will be removed from site 7 days a week, 8pm – 7am* > Traffic closures will be required on Wilshire Bl. during night hours
Example of excavator machine
*Pending City Approval
25
Instruments will be installed within the tunnel alignment and station box area to monitor ground movement, settlement and other geological conditions Installations will be within the public right of way and within privately owned properties. Duration: tion: Ongoing Note: e: Installations occur at 1-2 locations at a time and can last anywhere between 30 minutes to 3 days depending on the instrument
Example of geotechnical instrument installation in Century City Work Hours: rs: > Weekdays: 8am – 6pm > Saturdays: 8am – 7pm
26
Location ions: s: Wilshire Bl, Young Dr, Lasky Dr, S Moreno Dr, Charleville Bl, Spalding Dr, Linden Dr, Swall Dr, Wetherly Dr, S Oakhurst Dr, Brighton Wy, alleys, and streets adjacent to Wilshire Bl in the highlighted area below
27
Traffi ffic c Control ntrol > On street parking restrictions, intermittent lane, sidewalk, alley, and crosswalk closures will be required for this work > Flaggers will be available at alleys > Two lanes in each direction will be maintained for day work on Wilshire Bl > Work hours on Wilshire Bl 7am-4pm > Young Dr, Lasky Dr, Charleville Bl, Spalding Dr, Swall Dr, Wetherly Dr, S Oakhurst Dr, Brighton Wy, and other streets adjacent to Wilshire Bl may be reduced to one lane with flaggers available to direct traffic
28
Anticip icipated ated Completion: pletion: on hold until Wilshire Bl full closure is lifted Remaini ining ng Work: k: Installation of pedestrian push buttons Sidewalk and street restoration Replacement of temporary traffic poles with permanent poles
*Dates subject to change
Intersection of Clifton Wy/ Crescent Dr
29
During community outreach meetings in 2018, we outlined plans for investigating underground wells at the BHHS. As part of the EIS/EIR phase, the Project Team: Reviewed historic maps and photographs, Researched geological data bases, Obtained historic well records and consulted petroleum industry experts
30
31
2010 10 - 2012 12
Final Environmental Impact Report (FEIS/FEIR)
2012 12 - 2017 17
Advanced Preliminary Engineering
2017 17 - Present sent
Section 2 Design- Build Contract Awarded
2017 17
Supplemental FEIS/FEIR
2019 19
CalGEM Project Site Review Letter
2019 19 - Present sent
Oil Well Investigation
32
33
34
NOTE: Contractor chose to drill HDD hole from their tunnel access shaft
35
Discovered three underground anomalies
Two of the anomalies are confirmed to be wells in the path of the second TBM In March 2020, two of the anomalies were confirmed to be oil wells
36
37
38
39
40
41
Rendering shows length of the underground station box on Constellation Bl from Century Park East to Avenue of the Stars
42
43
*As of May 2020, subject to change.
44
TBM assembly continues
*Dates subject to change
1st TBM was launched in April 2020
45
1940, 1950, 2010, 2040 Century Park East
46
> Excavation within tunnel
> Installation of utilities to
> Monday – Friday > 6am – 5pm and
Tunnel shaft excavation Tunnel shaft excavation progress
47
> Closure required to support the launch of both Tunnel Boring Machines > No Public Access for Tenants through Driveway > Limited Access for: Large Trucks, Deliveries, Construction, Trash, FedEx/UPS > Flaggers will be present for access
TPOG to request extension of launch box full closure through November 2020.
Relocation began in early April east of AOS and will move west toward Solar Way. Dura ration ion: through June 2020 Work Hours: rs:
>
Area east of AOS: Monday – Friday, 7am – 5pm and 6pm – 4am
>
Within intersec ection tion & A Area west of AOS: Monday – Friday, 8pm – 6am Traff affic ic Control
>
Partial and full lane closures will be required on Constellation Bl and AOS (see map)
48 *Dates subject to change
Partial Closures Full Closure
49
Temporary full closure during COVID-19 “stay at home” restrictions. Activities include water line relocation, piling, and preparation for decking.
*TPOG will be requesting to extend this closure through the “stay at home” restrictions
Process of reinforcing the station box by drilling 70-100 ft holes, placing piles, and backfilling with concrete around perimeter of station box
All work occurs behind k-rail and/or lane closures. Start Date: May 13, 2020 Duration: ion: through July 2020* Work k Hours: 7 days a week, 7am – 4pm and 8pm – 6am Traffi ffic c Closure sures: s: Within full closure east of AOS and partial lane closures within intersection and west AOS > Coordinating directly with Westfield Mall, Century Plaza Hotel, Century Park, Watt Plaza, SunAmerica Center, and JMB
50 *Dates subject to change
51
52
*Dates subject to change 53
Note: : Some stages may occu cur r concurr current ntly ly pe pending ng City y app pproval. l.
54
> Construction of a concrete deck, curb- to-curb on Constellation Bl > Decking will serve as the temporary street surface > Metro will work closely with first responders on emergency access and safety > Work will be done in stages, beginning east of AOS, through the Constellation/AOS intersection, then west of AOS Duration:
completed sooner depending on expedited approvals due to COVID-19 pandemic) Work Hours: rs: Full closures Friday, 8pm through Monday, 6am Asphalt removal on Wilshire Bl Concrete deck panel installation at Launch Box
*Dates subject to change
*Dates subject to change 55
