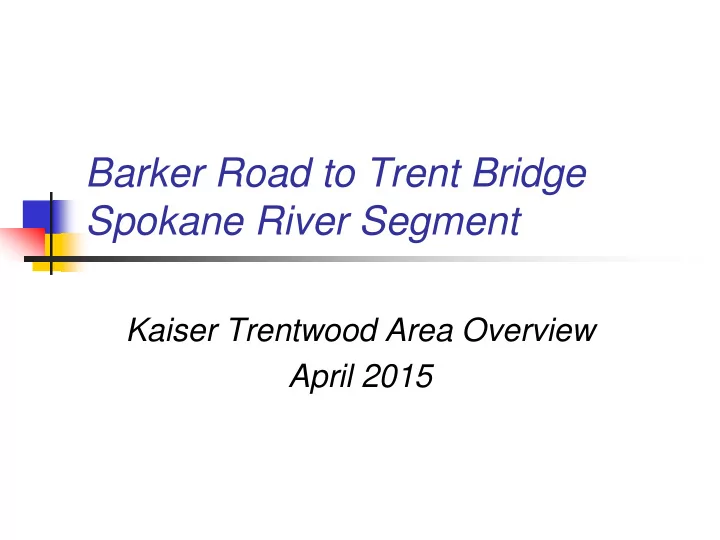

Barker Road to Trent Bridge Spokane River Segment

Kaiser Trentwood Area Overview April 2015

slide-2
SLIDE 2

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-3
SLIDE 3

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-4
SLIDE 4

Spokane River Synoptic Survey Scope

slide-5
SLIDE 5

Spokane River Synoptic Survey Segment

slide-6
SLIDE 6

Site Status

 Model Toxics Control Act (MTCA)

 Trentwood facility is a MTCA site  Kaiser and Ecology formalized all future

activity on the site with an Agreed Order (No. 2692) in August 2005

 Agreed Order scope of activities amended

in September 2012

slide-7
SLIDE 7

Site Status

 Model Toxics Control Act (MTCA)

 All data, studies, and work plans are

submitted to Ecology

 All plans and specifications for actions are

approved by Ecology

 During the 2013 and 2014 Interim Actions,

excavated ~34,000 cubic yards of soil and capped ~100,000 ft2

slide-8
SLIDE 8

Site Groundwater Monitoring

 Monitoring Network

 153 monitoring wells on site  129 wells sampled either annually or semi-

annually for various parameters

 Groundwater elevation data collected

during all sampling events

 Groundwater flow direction is generally

northeast to southwest

slide-9
SLIDE 9

Site Groundwater Flow Direction

slide-10
SLIDE 10

Site Groundwater Monitoring

 PCB Data Sets – 2003 to Present

 ~1,900 samples analyzed for PCB by

Method 8082ULL at ALS Global

 ~200 samples analyzed for PCB by

Method 1668 at AXYS

slide-11
SLIDE 11

Background Data Collection

 Data Collection Details (Congeners)

 Routine sample collection since 2007  Samples collected in accordance with

Ecology approved Sampling and Analysis Plan

 One liter samples collected  Samples processed for PCB by EPA

Method 1668 (AXYS Analytical)

slide-12
SLIDE 12

Background Data Collection

 Data Processing

 Blank Correction

 Blank values subtracted from raw data on

congener by congener basis

 If blank value larger than or equal to raw value,

corrected value is set to zero

 Non-Detects

 “Less than” raw data is set to zero

slide-13
SLIDE 13

Background Data Collection

 Data Processing

 Homologues

 Homologues are determined following blank

corrections and non-detect corrections

slide-14
SLIDE 14

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-15
SLIDE 15

Background Data Collection

 Site Background Groundwater Monitoring

 Five wells screened in the upper aquifer

 RM-MW-5S, MW-4, MW-11, MW-10, and MW-5

 One water supply well screened at depth

 North Well

slide-16
SLIDE 16

Site Background Monitoring Wells

slide-17
SLIDE 17

Site Background Cross Section

slide-18
SLIDE 18

Site Background

 PCB concentrations in site background

groundwater are significant relative to the synoptic survey unidentified non- point source contribution

 ~80% of total PCB is in the tetra to

hepta homologue groups

slide-19
SLIDE 19

Background PCB Levels

200 400 600 800 1,000 PCB in pg/L

RM-MW-5S

slide-20
SLIDE 20

Background PCB Levels

200 400 600 800 1,000 1,200 PCB in pg/L

MW-4

slide-21
SLIDE 21

Background PCB Levels

100 200 300 400 500 600 700 PCB in pg/L

MW-11

slide-22
SLIDE 22

Background PCB Levels

50 100 150 200 250 300 350 PCB in pg/L

MW-10

2Q10 – 5,924 pg/L

slide-23
SLIDE 23

Background PCB Levels

200 400 600 800 1,000 1,200 1,400 1,600 1,800 PCB in pg/L

MW-5

slide-24
SLIDE 24

Background PCB Levels

20 40 60 80 100 120 140 160 PCB in pg/L

North Well

slide-25
SLIDE 25

Background PCB Levels

200 400 600 800 1,000 1,200 1,400 1,600 1,800 RM-MW-5S MW-4 MW-11 MW-10 MW-5 North Well PCB in pg/L Q1 Minimum Mean Maximum Q3

The 5,924 pg/L result for MW-10 not included

Q1 and Q3 refer to data quartiles – 50% of data is within the box shown for each location

slide-26
SLIDE 26

Background PCB Homologues

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% RM-MW-5S MW-4 MW-11 MW-10 MW-5 North Well Mono Di Tri Tetra Penta Hexa Hepta Octa Nona Deca

slide-27
SLIDE 27

Site Background Overview

slide-28
SLIDE 28

Background Area Observations

 Background wells have variable PCB

levels

 Homologue fingerprint is fairly stable  Tetra through hepta homologue groups

represent about 80% of the total PCB

slide-29
SLIDE 29

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-30
SLIDE 30

Casting Area Data Collection

 Casting Area Groundwater Monitoring

 Approximately 35 wells screened mainly in

the upper aquifer

 Four upper aquifer wells are tracked as

“centerline” wells

slide-31
SLIDE 31

Casting Area Monitoring Wells

slide-32
SLIDE 32

Casting Area Centerline Monitoring Wells

slide-33
SLIDE 33

Casting Area Cross Section

slide-34
SLIDE 34

Casting Area PCB Contours

slide-35
SLIDE 35

Casting Area PCB Contours

slide-36
SLIDE 36

Casting Area

 Relative to site background, there is a

significant difference in homologue patterns

 ~94% of total PCB is in the tri and tetra

homologue groups

slide-37
SLIDE 37

Casting Area PCB Levels

100,000 200,000 300,000 400,000 500,000 600,000 700,000 800,000 PCB in pg/L

HL-MW-29S

slide-38
SLIDE 38

Casting Area PCB Levels

20,000 40,000 60,000 80,000 100,000 120,000 140,000 PCB in pg/L

HL-MW-25S

slide-39
SLIDE 39

Casting Area PCB Levels

50,000 100,000 150,000 200,000 250,000 PCB in pg/L

HL-MW-14S

slide-40
SLIDE 40

Casting Area PCB Levels

20,000 40,000 60,000 80,000 100,000 120,000 140,000 160,000 PCB in pg/L

HL-MW-30S

slide-41
SLIDE 41

Casting Area PCB Levels

100,000 200,000 300,000 400,000 500,000 600,000 700,000 800,000 HL-MW-29S HL-MW-25S HL-MW-14S HL-MW-30S PCB in pg/L Q1 Minimum Mean Maximum Q3

Q1 and Q3 refer to data quartiles – 50% of data is within the box shown for each location

slide-42
SLIDE 42

Casting Area PCB Homologues

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% HL-MW-29S HL-MW-25S HL-MW-14S HL-MW-30S Mono Di Tri Tetra Penta Hexa Hepta Octa Nona Deca

slide-43
SLIDE 43

Casting Area Overview

slide-44
SLIDE 44

Casting Area Observations

 PCB homologue profile is very stable in

“centerline” monitoring wells

 PCB profile in “centerline” monitoring

wells is dominated by Tri and Tetra homologue groups and represents about 94% of the total PCB

slide-45
SLIDE 45

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-46
SLIDE 46

River Area Data Collection

 River Area Groundwater Monitoring

 8 wells screened in the upper aquifer  13 additional wells are located at the western

edge of the site running north and south

slide-47
SLIDE 47

River Area Monitoring Wells

slide-48
SLIDE 48

River Area Cross Section

slide-49
SLIDE 49

River Area Groundwater

 The relationships between groundwater

elevation, flow direction, and PCB levels in the vicinity of the river are complicated

slide-50
SLIDE 50

River Area Groundwater Flow

 From September 2009 to January 2011

a pressure sensor network operated in 9 wells and in 2 locations in the river to collect water elevation data to better understand groundwater flow directions near the river

slide-51
SLIDE 51

River Area Groundwater Flow

 Sensor data showed that groundwater

flow direction changes significantly when river elevation increases

slide-52
SLIDE 52

River Area Groundwater Flow Video Clip

slide-53
SLIDE 53

River Area Groundwater Flow

 Sensor data shows that these flow

direction changes are frequent and variable in duration

 May 2010 – 6 events (2 to 72 hours)  June 2010 – 10 events (1 to 91 hours)  December 2010 – 2 events (2 to 16 hours)  January 2011 – 2 events (2 to 37 hours)

slide-54
SLIDE 54

River Area PCB Levels

2,000 4,000 6,000 8,000 10,000 12,000 PCB in pg/L

MW-17S

slide-55
SLIDE 55

River Area PCB Levels

5,000 10,000 15,000 20,000 25,000 30,000 PCB in pg/L

HL-MW-32S

slide-56
SLIDE 56

River Area PCB Levels

2,000 4,000 6,000 8,000 10,000 12,000 14,000 PCB in pg/L

HL-MW-23S

slide-57
SLIDE 57

River Area PCB Levels

10,000 20,000 30,000 40,000 50,000 60,000 70,000 PCB in pg/L

MW-12A

slide-58
SLIDE 58

River Area PCB Levels

5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 45,000 50,000 PCB in pg/L

MW-23S

slide-59
SLIDE 59

River Area PCB Levels

2,000 4,000 6,000 8,000 10,000 12,000 14,000 16,000 PCB in pg/L

MW-27S

slide-60
SLIDE 60

River Area PCB Levels

2,000 4,000 6,000 8,000 10,000 12,000 PCB in pg/L

MW-28S

slide-61
SLIDE 61

River Area PCB Levels

50 100 150 200 250 300 350 400 PCB in pg/L

MW-15

slide-62
SLIDE 62

River Area PCB Levels

10,000 20,000 30,000 40,000 50,000 60,000 70,000 PCB in pg/L Q1 Minimum Mean Maximum Q3

Q1 and Q3 refer to data quartiles – 50% of data is within the box shown for each location HL-MW-30S (85,000 ng/L – 123,000 ng/L)

slide-63
SLIDE 63

River Area PCB Levels

10 20 30 40 50 60 70 80 90 100 MW-17S HL-MW-32S HL-MW-23S MW-12A MW-23S PCB in ng/L Q1 Minimum Mean Maximum Q3

Q1 and Q3 refer to data quartiles – 50% of data is within the box shown for each location EPA Method 8082 – Detection Limit ~ 10 ng/L

slide-64
SLIDE 64

MW-12A Groundwater Elevation and PCB Concentration History

10 20 30 40 50 60 70 80 90 100 1,920 1,922 1,924 1,926 1,928 1,930 1,932 1,934 1,936 1,938 PCB in ng/L Groundwater Elevation in feet Elevation PCB

slide-65
SLIDE 65

River Area PCB Homologues

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Mono Di Tri Tetra Penta Hexa Hepta Octa Nona Deca

slide-66
SLIDE 66

River Area Overview

slide-67
SLIDE 67

River Area PCB Observations

 The relationships between groundwater

elevation, flow direction, and PCB levels in the vicinity of the river are complicated

slide-68
SLIDE 68

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-69
SLIDE 69

Source and Pathway Actions

 Hydraulic Systems in Casting

 Soybean oil derivative (Bio-Syn)  Double containment system for embedded

hydraulic system piping

 Water Systems in Casting

 Cooling water supply line relocation  Casting pit integrity  Sewer system relining

slide-70
SLIDE 70

Source and Pathway Actions

 Soil Removal

 West Discharge Ravine

 Lower/Lower Area

 Soil Removal and Capping

 West Discharge Ravine

 Upper/Lower Area  Upper Area

slide-71
SLIDE 71

Source and Pathway Actions

 Capping and Drainage Modifications

 Casting Area

 Capping of Suspect Area  Elimination of Dry Wells Over Impacted Area

slide-72
SLIDE 72

Source and Pathway Actions

slide-73
SLIDE 73

Casting Area

slide-74
SLIDE 74

West Discharge Ravine Area

slide-75
SLIDE 75

West Discharge Ravine Area

slide-76
SLIDE 76

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-77
SLIDE 77

Treatment System Pilot Testing

 Groundwater Extraction

 Vicinity of HL-MW-29S

 Pilot System

 50 gpm walnut shell filtration unit  Pretreatment with castor oil and coagulants  Upgradient infiltration of treated discharge  Storage of system backwash

slide-78
SLIDE 78

Pilot Testing Layout

slide-79
SLIDE 79

Agenda

 Site General Information  Site Background Groundwater Data  Casting Area Groundwater Data  River Area Groundwater Data  Source and Pathway Actions  Treatment System Pilot Testing  Overall Observations

slide-80
SLIDE 80

Overall Observations

 Site background data indicates PCB is

present in groundwater over at least a mile wide arc at significant levels relative to the PCB increase in river calculated from the synoptic sampling event

slide-81
SLIDE 81

Questions?
