Audio Video Power Conditioners Setting a New Standard for Audio Video Power Conditioners Made In Canada T ORUS P OWER : B UILT IN C ANADA BY P LITRON Plitron Manufacturing: 30 years of experience designing and manufacturing toroidal

slide-1
SLIDE 1

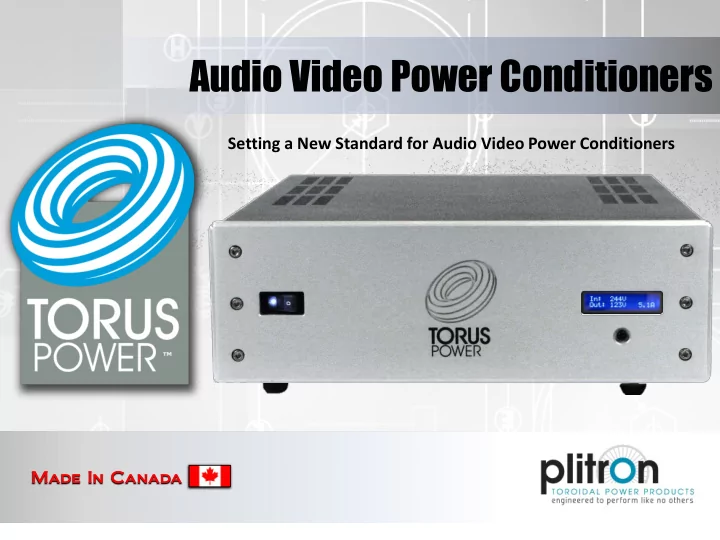

Audio Video Power Conditioners

Made In Canada

Setting a New Standard for Audio Video Power Conditioners

slide-2
SLIDE 2

2

TORUS POWER: BUILT IN CANADA BY PLITRON

  • Made In Canada

Plitron Manufacturing:

  • 30 years of experience designing and manufacturing toroidal

transformers for OEM customers

  • Located in Toronto, Ontario, Canada
  • Dedicated & Specialized R&D team
  • Markets:
  • Audio and Video
  • Medical
  • Broadcast
  • Telecommunications
  • Computer
  • Green Energy / Energy Savings
slide-3
SLIDE 3

3

AWARDS & ACCOLADES

Stereophile, Recommend Component 2012:

Torus Power RM 20

CE Pro Magazine, Best Products of 2009:

Torus Power CS 15 AVR

The World’s Best Audio System (TWBAS) 2012:

Torus Power WM 100 BAL & AVR 20 CS

3

Home Theater & Sound, Reviewers Choice:

Torus Power RM 10

CE Pro: Must Have Component:

Torus Power RM 15

slide-4
SLIDE 4

4

MARKETS

Home Theater Commercial Theater Corporate Board Room Professional Audio Video Audiophile 2-Channel Audio Professional Schools

slide-5
SLIDE 5

5

Product Line Features

Additional Product Information:

  • 5 Year Warranty
  • Designed and Manufactured in North America

True Isolation Noise Filtration High Instantaneous Current Capability Series Mode Surge Suppression Automatic Voltage Regulation Ethernet Monitoring & Control

IS RM AVR Seri ries es Seri ries es Seri ries es

AVR

TOROIDAL ISOLATION

SMSS

slide-6
SLIDE 6

6

Additional Product Information:

  • 5 Year Warranty
  • Designed and Manufactured in North America, Canada

1Cabinet Style:

  • RK = Rack Mount
  • CS = Brushed Aluminum
  • CB = Anodized Black Aluminum
  • AIO = All In One Panel Board
  • FM = Floor Mount with Plinth

PRODUCT FEATURES

Series: IS RM AVR AIO FM

Amperage:

5A-20A @ 120V 5A-100A @120V 15A-90A @120V 40A-100A @ 120V 20A-50A @ 240V 200A-290A @ 120V 100A-145A @ 240V

Cabinet Style1:

RK, CS, CB RK, CS, CB, WM RK, CS, CB, WM 24 x 20A Breaker Panel FM with Plinth

True Isolation from mains via Plitron

Toroidal Isolation Transformer

    

Noise Filtering / Clean Power using

patented Plitron NBT technology

    

High Instantaneous Current Capability

    

Series Mode Surge Suppression

(up to 6000V, 3000A, 1000 times)

 

Automatic Voltage Regulation

(AVR & AVR2)

Remote Monitoring & Control

TVSS (Transient Voltage Spike and Surge

Suppression)

Optional Optional

Optional

TOROIDAL ISOLATION

SMSS

AVR

TVSS

Features Matrix

All Products

slide-7
SLIDE 7

7

IS Se Series ies

Premium Power Conditioning at Entry Level Prices

  • Dynamic loads like amplifiers perform better when they don’t

Model Max Current Rating (A) Outlets IS 5 5 6 IS 5 BX 5 6 IS 10 10 8 IS 10 BX 10 8 IS 15 15 10 IS 20 20 10 TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration High Instantaneous Current Capability

slide-8
SLIDE 8

8 8

  • Model

Max Current Rating (A) Output Breaker (A) Outlets RM 2.5 2.5

  • 4

RM 5 5

  • 6

RM 10 10

  • 8

RM 5 BX 5

  • 6

RM 10 BX 10

  • 8

RM 15 15

  • 10

RM 20 20

  • 10

RM 20 BAL 20

  • 10

RM 45 BAL 45 3x20 18 RM 60 BAL 60 3x20 18 RM 75 BAL 75 4x20 24 RM 100 BAL 100 5x20 24

Plitron’s

RM Se Series ies

TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration High Instantaneous Current Capability

SMSS

Series Mode Surge Suppression

slide-9
SLIDE 9

9 9 9

  • Plitron’s
  • Model

Max Current Rating (A) Output Breaker (A) WM 45 BAL 45 3x20 WM 60 BAL 60 3x20 WM 75 BAL 75 4x20 WM 100 BAL 100 5x20 TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration High Instantaneous Current Capability

SMSS

Series Mode Surge Suppression

Wall Mount Products

RM Se Series ies

*Additional TVSS available on all WM models

slide-10
SLIDE 10

10 10

  • Plitron’s
  • Model

Max Current Rating (A) Output Breaker (A) Outlets AVR 15 15

  • 10

AVR 20 20

  • 10

AVR 20 BAL 20

  • 10

AVR 45 BAL 45 3x20 18 AVR 60 BAL 60 3x20 18 AVR 75 BAL 75 4x20 24 AVR 90 BAL 90 5x20 24

AVR

Automatic Voltage Regulation Ethernet Monitoring & Control

TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration High Instantaneous Current Capability

SMSS

Series Mode Surge Suppression

AVR Se Series ies

Automatic Voltage Regulation

slide-11
SLIDE 11

11 11

  • Plitron’s
  • Model

Max Current Rating (A) Output Breaker (A) WM 45 BAL AVR 45 3x20 WM 60 BAL AVR 60 3x20 WM 75 BAL AVR 75 4x20 WM 90 BAL AVR 90 5x20

  • AVR

Automatic Voltage Regulation Ethernet Monitoring & Control

TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration High Instantaneous Current Capability

SMSS

Series Mode Surge Suppression

AVR Se Series ies

Wall Mount Products

*Additional TVSS available on all WM models

slide-12
SLIDE 12

12

AVR

Automatic Voltage Regulation Ethernet Monitoring & Control

TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration High Instantaneous Current Capability

SMSS

Series Mode Surge Suppression

Individual Outlet Zone Control Automatic Reboot

Switch-On Delay

AVR2 Se Series ies

Automatic Voltage Regulation 2

NEW IN AVR2

PING

AVR upgradable to AVR2 through Manufacturer

Individual

ON ON OFF

Control

Scheduling & Sequencing

Email Fault Notification Email

Notification

4 Zones available in 15A and 20A models 7 Zones available in 45A to 90A models

slide-13
SLIDE 13

WHAT’S INSIDE?

Medical Grade Duplex Outlets Grounding Post IEC Inlet Series Mode Surge Suppression Board Relay Card Toroidal Isolation Transformer 12V Fault Notification 12V Trigger (on/off) RS-232 (on/off) Ethernet Port Rear Panel Face Plate Rear Panel 13

Rack/Shelf Mount AVR Products

Input Breaker (on/off) LCD Display

slide-14
SLIDE 14

14

WHAT’S INSIDE?

Wall Mount Products

Relay Card Series Mode Surge Suppression Board Input Toroidal Isolation Transformer Output Cooling Fan Ethernet Port RS-232 12V Fault Notification 12V Trigger (on/off)

slide-15
SLIDE 15

TECHNOLOGY

TOROIDAL ISOLATION

  • 2. Noise Attenuation - NBT
  • Narrow Bandwidth Technology (NBT) uses the toroid

as a low pass filter.

  • Attenuation from 2kHz to 1MHz at 12dB/decade up to

500kHz.

  • Torus Power does not use passive current-limiting

filter banks to achieve attenuation.

  • 3. High Instantaneous Current Capability
  • Torus Power can supply high levels of instantaneous
  • power. This is achieved through an optimally

designed transformer which is capable of providing clean and least obstructed power flow.

  • Dynamic loads like amplifiers perform better when

they don’t have to struggle to get sufficient power from the wall.

  • 6. Ethernet Monitoring & Control
  • Electrical parameters (Voltage In/Out & Current

Draw) may be monitored on the Torus Power, or via any web browser on the local network.

  • Email Fault Notification in the event of system fault
  • Switch-On Safety Delay
  • Power cycling (on/off) via web browser interface (all
  • utlets for AVR, individual zones for AVR2)
  • Scheduler and Sequencer
  • Auto Reboot when internet is lost
  • 5. Automatic Voltage Regulation (AVR)
  • Maintains system voltage at 120V +/-5V with

incoming voltage from 85V to 135V.

  • Start-up Delay as an additional safety feature to

protect against extreme voltage conditions.

  • Programmable automatic shut-off during extreme

voltage.

  • 4. Series Mode Surge Suppression (SMSS)
  • Meets IEEE C62.41 1991 (6000V, 3000A, 1000 times)
  • Torus Power SMSS absorbs the surge in the toroid

and slowly bleeds it to the loads, preventing ground contamination.

  • Torus Power SMSS does not shunt surges to ground

like MOVs.

  • SMSS uses all non-sacrificial components (does not

require replacement or repair after large surges )

  • 1. True Isolation
  • Torus Power provides true isolation from the external

power grid via Plitron toroidal isolation transformer.

AVR

SMSS

  • they don’t have to struggle to get sufficient power

15

slide-16
SLIDE 16

TECHNOLOGY

Individual Zone Control

  • Individually addressable outlet zones :
  • 4 zones for 15A and 20A models
  • 7 zones for 45A, 60A, 75A & 90A models
  • Available in AVR2 models

Auto Reboot

  • Outlet will automatically reboot if Torus Power

detects a loss of internet connection.

  • Designed to reboot the modem and/or router to

regain connection

  • Available in AVR2 models

Scheduler & Sequencer

  • Scheduler: Each zone may be programmed with 6 on
  • r off events per day, seven days per week.
  • Power-up sequencing with selectable delay times

between zones.

  • Scheduler remains active even when internet

connection is lost, so long as unit is powered.

  • Sequencing available via Scheduler as well
  • Available in AVR2 models

Switch-On Safety Delay

  • When power is restored or turned on, Torus power

waits 5 seconds prior to engaging the circuit to ensure safe line conditions.

  • Available in AVR & AVR2 models

Email Fault Notification

  • Notification Email in event of extreme voltage
  • High Voltage is >135V for products with single phase

(120V) input, and > 270V for products with dual phase (2 x 120V, or 240V) input.

  • Low voltage is defined as <85V for products with

single phase (120V) input, and <170V for products with dual phase (2x120V, or 240V) input.

  • Available in AVR & AVR2 models

PING

Individual

ON ON OFF

Control

Email

Notification

AVR & AVR2 Series Ethernet Monitoring & Control Features

16

AVR Web Browser Online Interface

AVR Status Switch Power Setup Email Configuration Network Configuration

slide-17
SLIDE 17

17

BLOCK SCHEMATIC

slide-18
SLIDE 18

18 18

Features Matrix

Additional Product Information:

  • 5 Year Warranty
  • Designed and Manufactured in North America, Canada

PRODUCT FEATURES

Series: IS RM AVR AIO FM

Amperage:

5A-20A @ 120V 5A-100A @120V 15A-90A @120V 40A-100A @ 120V 20A-50A @ 240V 200A-290A @ 120V 100A-145A @ 240V

Cabinet Style1:

RK, CS, CB RK, CS, CB, WM RK, CS, CB, WM 24 x 20A Breaker Panel FM with Plinth

True Isolation from mains via Plitron

Toroidal Isolation Transformer

    

Noise Filtering / Clean Power using

patented Plitron NBT technology

    

High Instantaneous Current Capability

    

Series Mode Surge Suppression

(up to 6000V, 3000A, 1000 times)

 

Automatic Voltage Regulation

(AVR & AVR2)

Remote Monitoring & Control

TVSS (Transient Voltage Spike and Surge

Suppression)

Optional Optional

Optional

1Cabinet Style:

  • RK = Rack Mount
  • CS = Brushed Aluminum
  • CB = Anodized Black Aluminum
  • AIO = All In One Panel Board

All Products

TOROIDAL ISOLATION

SMSS

AVR

TVSS

  • FM = Floor Mount with Plinth
slide-19
SLIDE 19

19

  • Plitron’s
  • 1” x 1.25” all copper buss bars

The All In One Panel Board brings together the Torus Power benefits with the footprint

  • f an industrial grade distribution panel.

All In One Syst stems ems

Custom Products

Transient Voltage Spike & Surge Suppression

6’

TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration Instantaneous Current On Demand

TVSS

Model Nominal Input Voltage (V) Nominal Output Voltage (V) Output Current (A) Power Rating (kVA)

AIO-5K-240 240 240 and/or 2x120 2x20 5 AIO-5K-208 208 240 and/or 2x120 2x24 5 AIO-7.5K-240 240 240 and/or 2x120 2x30 7.5 AIO-7.5K-208 208 240 and/or 2x120 2x36 7.5 AIO-12.5K-240 240 240 and/or 2x120 2x52 12.5 AIO-12.5K-208 208 240 and/or 2x120 2x60 12.5

slide-20
SLIDE 20

20 20

Model Nominal Input Voltage (V) Nominal Output Voltage (V) Output Current Rating (A) Weight (lbs.) Power Rating (kVA)

FM-35K-230 230 240 and/or 2x120 145 724 35 FM-35K-240 240 145 FM-35K-230-TVSS 230 240 and/or 2x120 145 730 FM-35K-240-TVSS 240 145 FM-25K-230 230 240 and/or 2x120 100 612 25 FM-25K-240 240 100 FM-25K-230-TVSS 230 240 and/or 2x120 100 618 FM-25K-240-TVSS 240 100

The Floor Mount System combines protection, capacity, and fidelity.

  • Plitron’s
  • Floor Mount Syst

stems ems

Custom Products

Transient Voltage Spike & Surge Suppression

TOROIDAL ISOLATION

True Toroidal Isolation Noise Filtration Instantaneous Current On Demand

TVSS

slide-21
SLIDE 21

21

50A 100A 200A 300A 0A

5A – 20A 5A – 100A 15A – 90A 40A – 100A 100A – 290A Current Capacity (Amps)

Current Rating by Series & Systems

FM Systems AIO Systems AVR Series RM Series IS Series

slide-22
SLIDE 22

22

Made In Canada

Setting a New Standard for Audio Video Power Conditioners Plitron Manufacturing 8-601 Magnetic Drive Toronto, Ontario M2J2J3, Canada www.toruspower.com www.plitron.com Matthew Roher Business Development Manager - Torus Power mroher@plitron.com 416-667-9914 x248

CONTACT

Audio Video Power Conditioners

slide-23
SLIDE 23

23

APPENDIX

slide-24
SLIDE 24

24 24

UNDERSTANDING POWER

APPENDIX A1: Incoming Power

Source: http://science.howstuffworks.com/environmental/energy/power.htm

Incoming Power:

 High levels of noise due to voltage shaping (inverters & converters) and the growing number

  • f noise-generating household devices (dimmers,

non-linear power supplies, non-linear loads).  The effects of power line impedance become greater as the distance to the load increases. This can result in loss of power.  Inconsistent voltage levels (Sags, Brownouts, Surges and Spikes)

“Keeping voltage distortion, current harmonics, normal mode noise and common mode noise to a minimum in a power distribution system is absolutely necessary for reliable operation.”

  • Arthur Kelm, Ground One

Work Includes: Chief Engineer at Skywalker Sound, Technical Consultant to Walt Disney Imagineering, General Manager & Technician at Record One Studios

slide-25
SLIDE 25

Common Electrical Impurities

APPENDIX A2: Incoming Power

25

Low Voltage / Brownout High Voltage Noise*:

Common Mode / Differential Mode

Voltage Spikes/Transients Voltage Sag High Impedance:

Voltage Drops as Distance Increases

Clean Voltage Sine Wave

This pure 120V sine wave is required for every audio video system, especially high fidelity systems that are more discriminating.

*Motors and switching power supplies are the primary culprits for noise. Common Mode Noise is noise between the neutral and ground, Differential Mode Noise is noise between the neutral and line.

Line Neutral Ground Loss Loss

slide-26
SLIDE 26

26

THINKING ABOUT POWER IN A DIFFERENT WAY

APPENDIX A3: MANAGING INCOMING POWER “For years sensitive electronics have been segregated from other equipment in the recording and post production environment. When engineering a new system all loads should be divided into categories and isolated from one another.”

  • Arthur Kelm, Ground One

Work Includes: Chief Engineer at Skywalker Sound, Technical Consultant to Walt Disney Imagineering, General Manager & Technician at Record One Studios

Motor loads are frequently associated with the negative effects

  • f voltage spikes & dips

when motors start up (example: HVAC systems). Motor Loads These loads are generally not a problem with the exception of florescent light ballasts and SCR dimmer circuits. Lighting & Convenience Loads These are the most critical loads that must isolated, protected and conditioned! Audio Video systems are a perfect example. Sensitive Electronic Loads

Types of Loads
