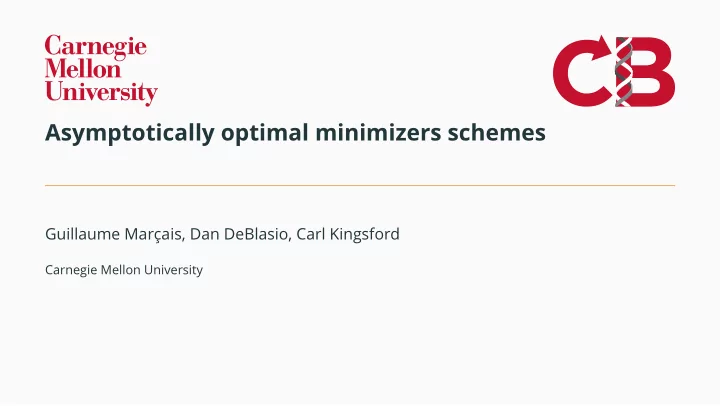

Asymptotically optimal minimizers schemes

Guillaume Marc ¸ais, Dan DeBlasio, Carl Kingsford

Carnegie Mellon University

Computing read overlaps

Roberts, et al. (2004). Reducing storage requirements for biological sequence comparison.

1

Computing read overlaps

Roberts, et al. (2004). Reducing storage requirements for biological sequence comparison.

1

Computing read overlaps

Roberts, et al. (2004). Reducing storage requirements for biological sequence comparison. Overlaps Cluster by similarity

1

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Minimizers definition and properties

Minimizers (k, w, o) In each window of w consecutive k-mers, select the smallest k-mer according to order o.

• 1. No large gap: distance between selected k-mers is ≤ w
• 2. Deterministic: two strings matching on w consecutive k-mers select the

same minimizer

3

Computing read overlaps

• 1. No large gap: no

sequence ignored

• 2. Deterministic:

reads with overlap in same bin Overlaps Cluster by minimizer

4

Many applications of minimizers

• UMDOverlapper (Roberts, 2004): bin sequencing reads by shared

minimizers to compute overlaps

• MSPKmerCounter (Li, 2015), KMC2 (Deorowicz, 2015), Gerbil (Erber,

2017): bin input sequences based on minimizer to count k-mers in parallel

• SparseAssembler (Ye, 2012), MSP (Li, 2013), DBGFM (Chikhi, 2014):

reduce memory footprint of de Bruijn assembly graph with minimizers

• SamSAMi (Grabowski, 2015): sparse suffix array with minimizers
• MiniMap (Li, 2016), MashMap (Jain, 2017): sparse data structure for

sequence alignment

• Kraken (Wood, 2014): taxonomic sequence classifier
• Schleimer et al. (2003): winnowing

5

Improving minimizers by lowering density

Density Density of a scheme is the expected proportion of selected k-mer in a random sequence: d = # of selected k-mers length of sequence

6

Improving minimizers by lowering density

Density Density of a scheme is the expected proportion of selected k-mer in a random sequence: d = # of selected k-mers length of sequence

Cluster by minimizer

Lower density = ⇒ smaller bins = ⇒ less computation

6

Minimizers density minimizing problem

For fixed k and w:

• Properties “No large gap” & “Deterministic” unaffected by order
• Density changes with ordering o
• Lower density =

⇒ sparser data structures and/or less computation

• Benefit existing and new applications

Density minimization problem For fixed w, k, find k-mer order o giving the lowest expected density

7

Minimizers density minimizing problem

For fixed k and w:

• Properties “No large gap” & “Deterministic” unaffected by order
• Density changes with ordering o
• Lower density =

⇒ sparser data structures and/or less computation

• Benefit existing and new applications

Density minimization problem For fixed w, k, find k-mer order o giving the lowest expected density

7

Density and density factor trivial bounds

1 w

• Pick every other w k-mer

≤ d ≤

Pick every k-mer

• 1

Random order usual expected density d =

2 w+1

1 + 1 w ≤ df = (w + 1) · d ≤ w + 1 Random order usual expected density factor df = 2

8

Density and density factor trivial bounds

1 w

• Pick every other w k-mer

≤ d ≤

Pick every k-mer

• 1

Random order usual expected density d =

2 w+1

1 + 1 w ≤ df = (w + 1) · d ≤ w + 1 Random order usual expected density factor df = 2

8

Schleimer’s bound does not apply in general

d ≥ 1.5 +

1 2w

w + 1 (Schleimer et al.)

9

Schleimer’s bound does not apply in general

d ≥ 1.5 +

1 2w

w + 1 (Schleimer et al.) Applies only if w ≫ k, or for random orders

9

Schleimer’s bound does not apply in general

d ≥ 1.5 +

1 2w

w + 1 (Schleimer et al.) Applies only if w ≫ k, or for random orders d ≥ 1.5 +

1 2w + max

• 0, ⌊ k−w

w ⌋

• w + k

Valid for any k, w and any order

9

Schleimer’s bound does not apply in general

d ≥ 1.5 +

1 2w

w + 1 (Schleimer et al.) Applies only if w ≫ k, or for random orders d ≥ 1.5 +

1 2w + max

• 0, ⌊ k−w

w ⌋

• w + k
• −

− − →

k→∞

1 w

• Valid for any k, w and any order

9

Asymptotic behavior in k and w

What is the best ordering possible when:

• w is fixed and k → ∞
• k is fixed and w → ∞

10

A universal set defines an ordering

Universal set A set M of k-mers that intersects every path of w nodes in the de Bruijn graph

• f order k.
• w = 2 =

⇒ M is a vertex cover

• From M, get order with density d ≤ |M|

σk 000 010 101 111 100 110 011 001 11

A universal set defines an ordering

Universal set A set M of k-mers that intersects every path of w nodes in the de Bruijn graph

• f order k.
• w = 2 =

⇒ M is a vertex cover

• From M, get order with density d ≤ |M|

σk

Universal set of size σk

w

⇓ Order with density 1

w 11

Creating a universal set, k = 3, w = 3, algorithm overview

Start with a de Bruijn graph

000 010 101 111 100 110 011 001 12

Creating a universal set, k = 3, w = 3, algorithm overview

Embed into a w dimensional space using ψ

000 010 101 111 100 110 011 001 001 000 111 100 110 011 101 010 12

Creating a universal set, k = 3, w = 3, algorithm overview

An edge correspond (almost) to a rotation by 2π/w

000 010 101 111 100 110 011 001 000 010 101 111 100 110 011 001 001 000 111 100 110 011 101 010 12

Creating a universal set, k = 3, w = 3, algorithm overview

After w edges return to same sub-volume

000 010 101 111 100 110 011 001 001 000 111 100 110 011 101 010 12

Creating a universal set, k = 3, w = 3, algorithm overview

Pick k-mers in the highlighted “wedge”

000 010 101 111 100 110 011 001 001 000 111 100 110 011 101 010 12

Asymptotic behavior in w

0.5 1 1.5 2 2.5 3 3.5 4 5 10 15 20 25 30 k=3

Trivial bound 1 + 1/w Lower bound (w + 1)/σk Optimal solutions

density factor (w + 1)d window length w

d ≥ 1 σk , df ≥ w + 1 σk Density factor is θ(w), not constant

13

Asymptotic behavior in w

0.5 1 1.5 2 2.5 3 3.5 4 5 10 15 20 25 30 k=3

Trivial bound 1 + 1/w Lower bound (w + 1)/σk Optimal solutions

density factor (w + 1)d window length w

d ≥ 1 σk , df ≥ w + 1 σk Density factor is θ(w), not constant

13

Summary

Asymptotic behavior of minimizers is fully characterized:

• Minimizers scheme is optimal for large k: d −

− − →

k→∞ 1 w

• Minimizers scheme is not optimal for large w: df = θ(w)
• Tighter lower bound

d ≥ 1.5 +

1 2w + max

• 0, ⌊ k−w

w ⌋

• w + k
• Comparison between k-mers take O(k)

14

Future work

• Local scheme: f : Σw+k−1 → [1, w]
• Local schemes might be optimal for large w

15
