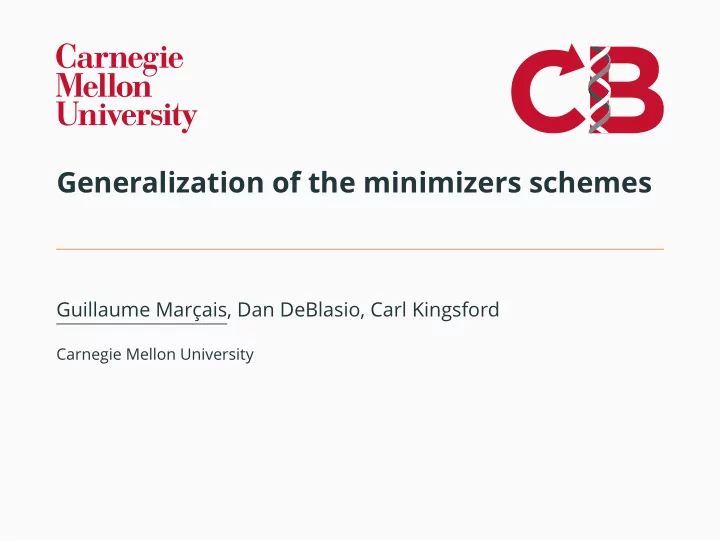

Generalization of the minimizers schemes

Guillaume Marc ¸ais, Dan DeBlasio, Carl Kingsford

Carnegie Mellon University

Computing read overlaps

Roberts, et al. (2004). Reducing storage requirements for biological sequence comparison.

1

Computing read overlaps

Roberts, et al. (2004). Reducing storage requirements for biological sequence comparison.

1

Computing read overlaps

Roberts, et al. (2004). Reducing storage requirements for biological sequence comparison. Overlaps Cluster by similarity

1

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Computing minimizers

2

Minimizers definition and properties

Minimizers (k, w, o) In each window of w consecutive k-mers, select the smallest k-mer according to order o.

• 1. Uniform: distance between selected k-mers is ≤ w
• 2. Deterministic: two strings matching on w consecutive

k-mers select the same minimizer

3

Computing read overlaps

• 1. Uniform: no

sequence ignored 2. Deterministic: reads with

• verlap in

same bin Overlaps Cluster by minimizer

4

Many applications of minimizers

• UMDOverlapper (Roberts, 2004): bin sequencing

reads by shared minimizers to compute overlaps

• MSPKmerCounter (Li, 2015), KMC2 (Deorowicz, 2015),

Gerbil (Erber, 2017): bin input sequences based on minimizer to count k-mers in parallel

• SparseAssembler (Ye, 2012), MSP (Li, 2013), DBGFM

(Chikhi, 2014): reduce memory footprint of de Bruijn assembly graph with minimizers

• SamSAMi (Grabowski, 2015): sparse suffix array with

minimizers

• MiniMap (Li, 2016), MashMap (Jain, 2017): sparse

data structure for sequence alignment

• Kraken (Wood, 2014): taxonomic sequence classifier
• Schleimer et al. (2003): winnowing

5

Improving minimizers by lowering density

Density Density of a scheme is the expected proportion of selected k-mer in a random sequence: d = # of selected k-mers length of sequence

6

Improving minimizers by lowering density

Density Density of a scheme is the expected proportion of selected k-mer in a random sequence: d = # of selected k-mers length of sequence

Cluster by minimizer

Lower density = ⇒ smaller bins = ⇒ less computation

6

Minimizers density minimizing problem

For fixed k and w:

• Properties “Uniform” & “Deterministic” unaffected by
• rder
• Density changes with ordering o
• Lower density =

⇒ sparser data structures and/or less computation

• Benefit existing and new applications

Density minimization problem For fixed w, k, find k-mer order o giving the lowest expected density

7

Minimizers density minimizing problem

For fixed k and w:

• Properties “Uniform” & “Deterministic” unaffected by
• rder
• Density changes with ordering o
• Lower density =

⇒ sparser data structures and/or less computation

• Benefit existing and new applications

Density minimization problem For fixed w, k, find k-mer order o giving the lowest expected density

7

Density and density factor trivial bounds

Density 1 w

• Pick every other w k-mer

≤ d ≤

Pick every k-mer

• 1

d = # of minimizers per base

8

Density and density factor trivial bounds

Density 1 w

• Pick every other w k-mer

≤ d ≤

Pick every k-mer

• 1

d = # of minimizers per base Density factor 1+ 1 w ≤ df = (w+1)·d ≤ w+1 df ≈ # of minimizers per window

8

Expected and bound on density

For an idealized random

• rder o:

d = 2 w + 1 df = 2 Expect ≈ 2 minimizers per window For any order o: d ≥ 1.5 +

1 2w

w + 1 df ≥ 1.5+ 1 2w Requires ≥ 1.5 minimizers per window

Schleimer 2003, Roberts 2004

9

Expected and bound on density

For an idealized random

• rder o:

d = 2 w + 1 df = 2 Expect ≈ 2 minimizers per window Not valid for w ≫ k For any order o: d ≥ 1.5 +

1 2w

w + 1 df ≥ 1.5+ 1 2w Requires ≥ 1.5 minimizers per window Valid only for w ≫ k

Schleimer 2003, Roberts 2004

9

Asymptotic behavior in k and w

What is the best ordering possible when:

• w is fixed and k → ∞
• k is fixed and w → ∞

10

Asymptotic behavior in w

0.5 1 1.5 2 2.5 3 3.5 4 5 10 15 20 25 30 k=3

Trivial bound 1 + 1/w Lower bound (w + 1)/σk Optimal solutions

density factor (w + 1)d window length w

d ≥ 1 σk , df ≥ w + 1 σk Density factor is Ω(w), not constant

11

Asymptotic behavior in w

0.5 1 1.5 2 2.5 3 3.5 4 5 10 15 20 25 30 k=3

Trivial bound 1 + 1/w Lower bound (w + 1)/σk Optimal solutions

density factor (w + 1)d window length w

d ≥ 1 σk , df ≥ w + 1 σk Density factor is Ω(w), not constant

11

Asymptotic behavior in k

Asymptotically optimal minimizers schemes There exists a sequence of orders (ok)k∈N which are asymptotically optimal: dok − − − →

k→∞

1 w df ok − − − →

k→∞ 1 + 1

w

12

Depathing the de Bruijn graph

Optimal vertex cover of the de Bruijn graph (Lichiardopol 2006) There exists a sequence of vertex cover Vk of DBk which is asymptotically optimal in size: |Vk| − − − →

k→∞

σk 2 Optimal depathing of the de Bruijn graph For a fixed w, there exists a sequence (Uk)k∈N of sets of k-mers that covers every path of length w in DBk such that |Uk| − − − →

k→∞

σk w

13

Bound on density

For all k, w and order o: d ≥ 1.5 +

1 2w + max

• 0, ⌊ k−w

w ⌋

• w + k

14

Bound on density

For all k, w and order o: d ≥ 1.5 +

1 2w + max

• 0, ⌊ k−w

w ⌋

• w + k

df ≥ 1 + 1 w for large k df ≥ 1.5 + 1 2w for large w

14

Density factor of minimizers

Asymptotic behavior of minimizers is fully characterized:

• Minimizers scheme is optimal for large k: df −

− − →

k→∞ 1 + 1 w

• Minimizers scheme is not optimal for large w: df = Ω(w)
• Better lower bound on d

15

Density factor of minimizers

Asymptotic behavior of minimizers is fully characterized:

• Minimizers scheme is optimal for large k: df −

− − →

k→∞ 1 + 1 w

• Minimizers scheme is not optimal for large w: df = Ω(w)
• Better lower bound on d

Good:

• First example of
• ptimal minimizers

scheme

• Constructive proof

Not good:

• Large k less interesting

in practice

• Minimizers don’t have

constant density factor

15

Generalizing minimizers: local and forward schemes

Local scheme Given f : Σw+k−1 → [0, w − 1], for each window ω, select k-mer at position f(ω).

16

Generalizing minimizers: local and forward schemes

Local scheme Given f : Σw+k−1 → [0, w − 1], for each window ω, select k-mer at position f(ω). Minimizers scheme with order o is a local scheme where f = arg mini∈[0,w−1] o(ω[i : k])

16

Generalizing minimizers: local and forward schemes

Local scheme Given f : Σw+k−1 → [0, w − 1], for each window ω, select k-mer at position f(ω). Minimizers scheme with order o is a local scheme where f = arg mini∈[0,w−1] o(ω[i : k]) Forward scheme Local scheme such that f(ω′) ≥ f(ω) − 1 if suffix of ω′ equals prefix of ω

16

Local & forward as better minimizers schemes

Minimizers Forward Local

• Properties “Uniform” & “Deterministic” also satisfied
• Drop-in replacement for minimizers
• Potential for lower density

17

Density factor overview

Density factor df k → ∞ w → ∞ Scheme Best Bound Minimizers Forward Local

18

Density factor overview

Density factor df k → ∞ w → ∞ Scheme Best Bound Minimizers 1 + 1

w

O(w) Ω(w) Forward Local

18

Density factor overview

Density factor df k → ∞ w → ∞ Scheme Best Bound Minimizers 1 + 1

w

O(w) Ω(w) Forward 1 + 1

w

O(√w) ∼ 1.5 +

1 2w

Local

18

Density factor overview

Density factor df k → ∞ w → ∞ Scheme Best Bound Minimizers 1 + 1

w

O(w) Ω(w) Forward 1 + 1

w

O(√w) ∼ 1.5 +

1 2w

Local 1 + 1

w

O(√w) 1 + 1

w 18

Conclusion: the quest for constant density factor

• Minimizers schemes can’t achieve constant density

factor

• Local and forward schemes may achieve constant

density factor

• Design of optimal orders or functions f still open

19
