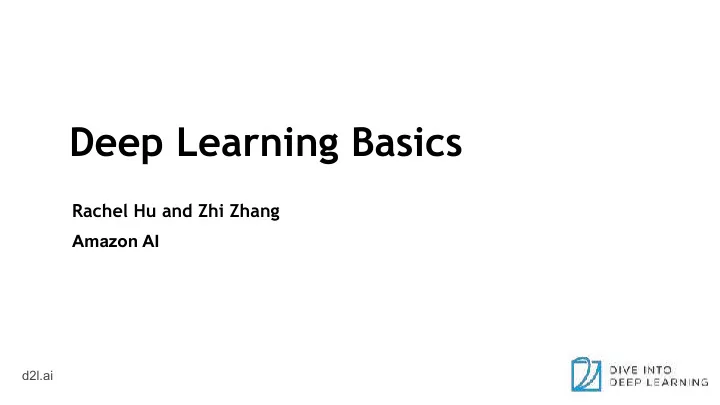

Deep Learning Basics Rachel Hu and Zhi Zhang Amazon AI d2l.ai - - PowerPoint PPT Presentation

d2l.ai

Deep Learning Basics

Rachel Hu and Zhi Zhang

Amazon AI

d2l.ai

Outline

• Installations
• Deep Learning Motivations
• DeepNumpy & Calculus
• Regression
• Optimization
• Softmax Regression
• Multilayer Perceptron (train MNIST)

d2l.ai

Installations

d2l.ai

Installations

• Python
• Everyone is using it in machine learning
• Miniconda
• Package manager (for simplicity)
• Jupyter Notebook
• So much easier to keep track of your experiments

d2l.ai

Installations

https://d2l.ai/chapter_install/ install.html

Detailed step-by-step instructions on local (Mac or Linux):

d2l.ai

Deep Learning

d2l.ai

Classify Images

http://www.image-net.org/

d2l.ai

Classify Images

http://www.image-net.org/ Yanofsky, Quartz https://qz.com/1034972/the-data-that-changed-the-direction-of-ai-research-and-possibly-the-world/

d2l.ai

Detect and Segment Objects

https://github.com/matterport/Mask_RCNN

d2l.ai

Style Transfer

https://github.com/zhanghang1989/MXNet-Gluon-Style-Transfer/

d2l.ai

Synthesize Faces

Karras et al, arXiv 2019

d2l.ai

Analogies

https://nlp.stanford.edu/projects/glove/

d2l.ai

Machine Translation

https://www.pcmag.com/news/349610/google-expands-neural-networks-for-language-translation

d2l.ai

Text Synthesis

Li et al, NACCL, 2018

d2l.ai

Question answering

Shi et al, 2018, Arxiv

Q: “What’s her mustache made of?”

Vision Feature Extractor Text Feature Extractor Combine Predictor

A: “Banana” Question Type: “Subordinate Object Recognition”

Question Type Guided Attention

d2l.ai

Image captioning

Shallue et al, 2016 https://ai.googleblog.com/2016/09/show-and-tell- image-captioning-open.html

d2l.ai

Problems we will solve: Classification

Given image x estimate label y

cat dog rabbit gerbil

y = f(x) where y ∈ {1,…N}

d2l.ai

Problems we will solve: Regression

Given image x estimate label y

0.4kg 2kg 4kg 10kg

y = f(x) where y ∈ ℝ

d2l.ai

Problems we will solve today: Sequence Models

GPT2, 2019

d2l.ai

Deep

d2l.ai

N-dimensional Arrays

0-d (scalar)

1.0

A class label 1-d (vector)

[1.0, 2.7, 3.4]

A feature vector

[[1.0, 2.7, 3.4] [5.0, 0.2, 4.6] [4.3, 8.5, 0.2]]

2-d (matrix) An example-by- feature matrix

N-dimensional arrays are the main data structure for machine learning and neural networks

d2l.ai

N-dimensional Arrays

3-d

[[[0.1, 2.7, 3.4] [5.0, 0.2, 4.6] [4.3, 8.5, 0.2]] [[3.2, 5.7, 3.4] [5.4, 6.2, 3.2] [4.1, 3.5, 6.2]]]

A RGB image (width x height x channels) 4-d

[[[[. . . . . . . . .]]]]

A batch of RGB images (batch-size x width x height x channels) 5-d

[[[[[. . . . . . . . .]]]]]

A batch of videos (batch-size x time x width x height x channels)

d2l.ai

Element-wise access

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1 2 3 1 2 3

element: [1, 2] row: [1, :]

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1 2 3 1 2 3

column: [1, :]

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1 2 3 1 2 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1 2 3 1 2 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1 2 3 1 2 3

d2l.ai

d2l.ai

Calculus - Derivatives

dy dx y a xn nxn−1 u + v du dx + dv dx uv du dx v + dv dx u y = f(u), u = g(x) dy du du dx sin(x) cos(x) exp(x) log(x) 1 x exp(x) dy dx y

d dx x2 = 2x x = 1

E.g. slope of tangent.

Derivative measures the sensitivity to change of the output value with respect to a change in its input value.

d2l.ai

y = |x|

x = 0 slope=1 slope= - 1 ∂|x| ∂x = 1 if x > 0 −1 if x < 0 a if x = 0, a ∈ [−1,1] Another example: ∂ ∂x max(x,0) = 1 if x > 0 if x < 0 a if x = 0, a ∈ [0,1]

Calculus - Non-differentiable

Extend derivative to non-differentiable cases.

d2l.ai

Calculus - Gradients

x ∈ ℝn y y ∈ ℝm

∂y ∂x ∂y ∂x ∂y ∂x ∂y ∂x

x

Scalar Vector Scalar Vector

∂y ∂x

(1, n) (1,) (m, 1) (m, n) Gradient is a multi-variable generalization of the derivative.

d2l.ai

∂y/∂x

y = y1 y2 ⋮ ym x = x1 x2 ⋮ xn

x ∈ ℝn, y ∈ ℝm, ∂y ∂x ∈ ℝm×n

Derivatives for vectors

x ∈ ℝn y y ∈ ℝm

∂y ∂x ∂y ∂x ∂y ∂x ∂y ∂x

x

∂y ∂x =

∂y1 ∂x ∂y2 ∂x

⋮

∂ym ∂x

=

∂y1 ∂x1 , ∂y1 ∂x2 , …, ∂y1 ∂xn ∂y2 ∂x1 , ∂y2 ∂x2 , …, ∂y2 ∂xn

⋮

∂ym ∂x1 , ∂ym ∂x2 , …, ∂ym ∂xn

[ ∂y ∂x ]ij = dyi dxj

d2l.ai

Derivatives for vectors

sum(x) ∥x∥2 ∂y ∂x y a 0T a ∂u ∂x ∂u ∂x + ∂v ∂x ∂u ∂x v + ∂v ∂x u au uT ∂v ∂x + vT ∂u ∂x 1T 2xT 0 and 1 are vectors ∂y ∂x y ⟨u, v⟩ u + v uv

E.g.

x ∈ ℝn, y ∈ ℝ, ∂y ∂x ∈ ℝ1×n

Let’s do some exercise!

d2l.ai

∂y ∂x y a a ∂u ∂x A ∂u ∂x x ∂u ∂x + ∂v ∂x

I

0 and I are matrices a, a and A are not functions of x ∂y ∂x y

u + v

au

Au

Ax A xTA AT x ∈ ℝn, y ∈ ℝm, ∂y ∂x ∈ ℝm×n

E.g.

Derivatives for vectors

Let’s do some exercise!

d2l.ai

Generalize to Matrices

x y y ∂y ∂x ∂y ∂x ∂y ∂x ∂y ∂x x

Scalar Scalar Vector

X ∂y ∂X Y

Matrix

∂Y ∂x

(n,1) (n, k) (1,n) (k, n) (m,1) (m, l) (m, l) (m,1) (m, n) (m, l, n) (m, k, n) (m, l, k, n)

∂Y ∂x ∂Y ∂X

Vector Matrix

∂y ∂X

(1,) (1,) (1,)

d2l.ai

Chain Rule

Scalars Vectors y = f(u), u = g(x) ∂y ∂x = ∂y ∂u ∂u ∂x ∂y ∂x = ∂y ∂u ∂u ∂x

(1,n) (1,) (1,n)

∂y ∂x = ∂y ∂u ∂u ∂x

(1,n) (1,k) (k, n)

∂y ∂x = ∂y ∂u ∂u ∂x

(m, n) (m, k) (k, n)

Shapes: Too many shapes to memory …

d2l.ai

Automatic Differentiation

Computing derivatives by hand is HARD. Chain rule (evaluate e.g. via backprop) ∂y ∂x = ∂y ∂un ∂un ∂un−1 … ∂u2 ∂u1 ∂u1 ∂x Compute graph:

• Build explicitly


(TensorFlow, MXNet Symbol)

• Build implicitly by tracing


(Chainer, PyTorch, DeepNumpy)

d2l.ai

Automatic Differentiation z = (⟨x, w⟩ − y)

2

1 2 3

a = ⟨x, w⟩ x w y b = a − y

4

z = b2

Computing derivatives by hand is HARD. Chain rule (evaluate e.g. via backprop) ∂y ∂x = ∂y ∂un ∂un ∂un−1 … ∂u2 ∂u1 ∂u1 ∂x Compute graph:

• Build explicitly


(TensorFlow, MXNet Symbol)

• Build implicitly by tracing


(Chainer, PyTorch, DeepNumpy)

d2l.ai

NumPy & AutoGrad notebook

d2l.ai

Regression

d2l.ai

$0.41 g3.4xlarge $1.37 g3.16xlarge $0.73 g3.8xlarge Can we estimate prices (time, server, region)? p = wtime ⋅ t + wserver ⋅ s + wregion ⋅ r

d2l.ai

Linear Model

• Basic version
• Vectorized version
• n-dimensional inputs
• Weights:
• Bias,
• Vectorized version (Closed form)
• Add bias as an element in weights

x = [x1, x2, …, xn]T w = [w1, w2, …, wn]⊤ b

̂ y = ⟨w, x⟩ + b ̂ y = w1x1 + w2x2 + … + wnxn + b

X ← [X, 1] w ← [ w b]

̂ y = ⟨w, x⟩

d2l.ai

Loss

l2

• Basic version
• Vectorized version
• Vectorized version (Closed form)

̂ y = ⟨w, x⟩ + b ̂ y = w1x1 + w2x2 + … + wnxn + b

X ← [X, 1] w ← [ w b]

̂ y = ⟨w, x⟩ + b

ℓ(y, ̂ y) = 1 n (y − ̂ y)

2

ℓ(X, y, w, b) = 1 n y − Xw − b

2

ℓ(X, y, w) = 1 n y − Xw

2

• Basic version
• Vectorized version
• Vectorized version (Closed form)

d2l.ai

Objective Function

• Objective is to minimize training loss

argmin

w

loss ⇔ argmin

w

1 n y − Xw

2

⇔ 2 n (y − Xw)

T X = 0

⇔ w* = (XTX)

−1 Xy

⇔ ∂ ∂w ℓ(X, y, w) = 0

ℓ(y, ̂ y) = 1 n (y − ̂ y)

2

ℓ(X, y, w, b) = 1 n y − Xw − b

2

ℓ(X, y, w) = 1 n y − Xw

2

• Basic version
• Vectorized version
• Vectorized version (Closed form)

d2l.ai

Linear Model as a Single-layer Neural Network

We can stack multiple layers to get deep neural networks

d2l.ai

Linear Regression notebook

d2l.ai

Optimization

negative gradient momentum

d2l.ai

Gradient Descent in 1D

Consider some continuously differentiable real-valued function 𝑔: ℝ→ℝ. Using a Taylor expansion we obtain that: Assume we pick a fixed step size (𝜃>0) and choose :

f(x + ϵ) = f(x) + ϵf′(x) + O(ϵ2) ϵ = − ηf′(x) f(x − ηf′(x)) = f(x) − ηf ′2(x) + O(η2 f ′2(x))

d2l.ai

Gradient Descent in 1D

If the derivative does not vanish, we make progress since . Moreover, we can always choose 𝜃 small enough for the higher order terms to become irrelevant. Hence we arrive at: This means that, if we use to iterate 𝑦 , the value

• f function 𝑔(𝑦) might decline.

f′(x) ≠ 0 ηf ′2(x) > 0 f(x − ηf′(x)) ⪅ f(x) x ← x − ηf′(x)

d2l.ai

Gradient Descent in General

Choose a starting point Repeat to update weight

• Gradient direction indicates increase in value
• Learning rate adjusts step length

w0

wt = wt−1 − η∂wl(wt−1)

w0 w1 w2

d2l.ai

Goldilocks Learning Rate

Too small Too big

More iterations May diverge

d2l.ai

Mini-batch Stochastic Gradient Descent (SGD)

• Computing the gradient over all data is too slow
• Redundancy in data (e.g. many similar digits)

• Single observation is not efficient on GPU

• Sample examples

to approximate loss/gradient



 b is the mini-batch size (chosen for GPU efficiency)

b i1, …ib

1 b ∑

i∈Ib

l(xi, yi, w) and 1 b ∑

i∈Ib

∂wl(xi, yi, w)

d2l.ai

Gradient Descent (SGD)

Batch Size Computation Memory Pros and Cons GD Training Size Efficient Inefficient Parallel processing available stable gradient descent, but maybe bad (saddle point). Mini- batch GD n Okay Okay A compromise that injects enough noise to each gradient update, while achieving a relative speedy convergence SGD 1 Inefficient Efficient Can escape from saddle points or local minimal, but maybe very noisy

d2l.ai

Softmax Regression

d2l.ai

Regression vs. Classification

Regression estimates a continuous value Classification predicts a discrete category

MNIST: classify hand-written digits (10 classes) Housing price predictions

d2l.ai

From Regression to Multi-class Classification

Regression

• Single continuous output
• Natural scale in
• One Loss given
• e.g. in terms of difference

ℝ

y − f(x)

Multi-class Classification

• Multiple outputs, one for each

class

• Multiple Loss given
• Outputs should reflect confidence

d2l.ai

• One hot encoding per class
• Train with squared loss
• Largest output wins
• max is not differentiable

̂ y = argmax

i

• i

y = [y1, y2, …, yn]⊤ yi = { 1 if i = y 0 otherwise

From Regression to Multi-class Classification

Example: Given y = [0, 0, 1] Predict = [0.3, 0, 7000] Losses are not in the same scale!

̂ y

Use Square Loss?

d2l.ai

From Regression to Multi-class Classification

Softmax Regression

• Probability indicates confidence


(nonnegative, sums to 1)





[ eo1 ∑n

i=1 eoi,

eo2 ∑n

i=1 eoi, …,

eon ∑n

i=1 eoi ]

softmax([o1, o2, …, on]T) = Example: given scores [1, -1, 2] softmax: [0.26, 0.04, 0.7]

• One hot encoding per class
• Train with squared loss
• Largest output wins
• max is not differentiable

̂ y = argmax

i

• i

y = [y1, y2, …, yn]⊤ yi = { 1 if i = y 0 otherwise

d2l.ai

∂ol(y, o) = exp(o) ∑i exp(oi) − y

Cross-Entropy Loss

• (element-wise) Negative log-likelihood (for given class

)

y ∈ {0,1}

−log p(y|o) = log∑

i

exp(oi) − oy l(y, o) = log∑

i

exp(oi) − y⊤o Difference between true and estimated probability

• (vector-wise) Cross-Entropy Loss (for probability distribution

)

yi ∈ [0,1]

• Gradient

d2l.ai

Regression vs Softmax Regression

⟨w, x⟩ + b

softmax(Wx + b)

Softmax Regression (k-class classification) Regression (Linear Model) Problem Model Loss Squared loss Cross-entropy loss

w ∈ ℝn, b ∈ ℝ

W ∈ ℝk×n, b ∈ ℝk

d2l.ai

Softmax Regression Notebook

d2l.ai

Multilayer Perceptron

d2l.ai

Neural Networks Derive from Neuroscience

Inputs Computation happens here Output Send to the next layer

The real neuron

d2l.ai

Linear Model as a Single-layer Neural Network

d2l.ai

Single Hidden Layer

We can stack multiple neurons in one layer.

d2l.ai

Single Hidden Layer

We can stack multiple layers to get deep neural networks.

d2l.ai

Single Hidden Layer

• Input
• Hidden
• Output

x ∈ ℝn

W1 ∈ ℝm×n, b1 ∈ ℝm w2 ∈ ℝm, b2 ∈ ℝ

h = σ(W1x + b1)

• = wT

2h + b2

is an element-wise activation function σ

d2l.ai

Single Hidden Layer

h = σ(W1x + b1)

• = wT

2h + b2

is an element-wise activation function σ

Why do we need an a nonlinear activation?

d2l.ai

Single Hidden Layer

h = W1x + b1

• = wT

2h + b2

hence o = w⊤

2W1x + b′

Linear … Why do we need an a nonlinear activation?

d2l.ai

ReLU Activation

ReLU: rectified linear unit

ReLU(x) = max(x,0)

d2l.ai

Sigmoid Activation

Map input into (0, 1), a soft version of

sigmoid(x) = 1 1 + exp(−x) σ(x) = { 1 if x > 0 0 otherwise

d2l.ai

Tanh Activation

Map inputs into (-1, 1)

tanh(x) = 1 − exp(−2x) 1 + exp(−2x)

d2l.ai

Multiclass Classification

y1, y2, …, yk = softmax(o1, o2, …, ok)

d2l.ai

Multiple Hidden Layers

Hyper-parameters

• # of hidden layers
• Hidden size for each layer

h1 = σ(W1x + b1) h2 = σ(W2h1 + b2) h3 = σ(W3h2 + b3)

• = W4h3 + b4

d2l.ai

MLP Notebook

d2l.ai

Summary

• Installations
• Deep Learning Motivations
• DeepNumpy & Calculus
• Regression
• Optimization
• Softmax Regression
• Multilayer Perceptron (train MNIST)

d2l.ai

Questions?
